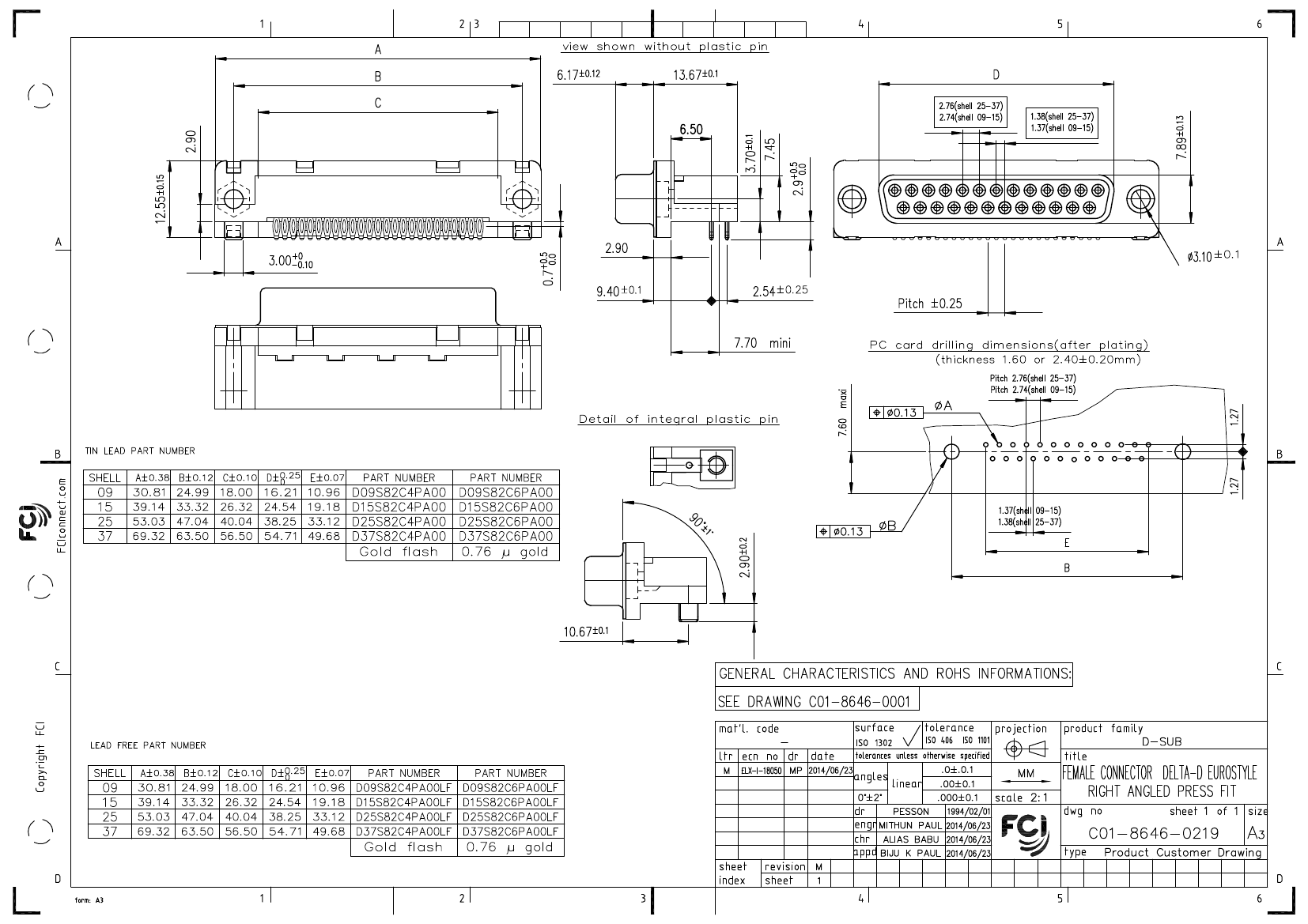

D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 14 weeks |
| Other features | ROHS COMPLIANT |
| body width | 0.494 inch |
| subject depth | 0.538 inch |
| body length | 1.541 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 5.004 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Plug contact pitch | 0.108 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .112-.124 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 2/A |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.7432 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 15 |
| Evacuation force-minimum value | .3058 N |
| D15S82C6PA00LF | D09S82C6PA00LF | D15S82C4PA00 | D37S82C6PA00 | |
|---|---|---|---|---|
| Description | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug, LEAD FREE | CONN DSUB RCPT 9POS R/A PRESSFIT | D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug | D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Plug |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| body width | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.538 inch | 0.538 inch | 0.538 inch | 0.538 inch |
| body length | 1.541 inch | 1.213 inch | 1.541 inch | 2.729 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | AU ON NI | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| empty shell | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| maximum insertion force | 5.004 N | 5.004 N | 5.004 N | 5.004 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| MIL compliance | NO | NO | NO | NO |
| Plug contact pitch | 0.108 inch | 0.108 inch | 0.108 inch | 0.109 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | HOLE .112-.124 | HOLE .112-.124 | HOLE .112-.124 | HOLE .112-.124 |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | FLASH inch | 30u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL |
| Housing size | 2/A | 1/E | 2/A | 4/C |
| Terminal length | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch |
| Terminal pitch | 2.7432 mm | 2.7432 mm | 2.7432 mm | 2.7686 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 15 | 9 | 15 | 37 |
| Evacuation force-minimum value | .3058 N | .3058 N | .3058 N | .3058 N |
| Is it Rohs certified? | conform to | conform to | - | incompatible |
| ECCN code | EAR99 | - | EAR99 | EAR99 |
