D37S13A4UL00LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D37S13A4UL00LF

D37S13A4UL00LF: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket, LEAD FREE; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D37S13A4UL00LF Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket, LEAD FREE

D37S13A4UL00LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

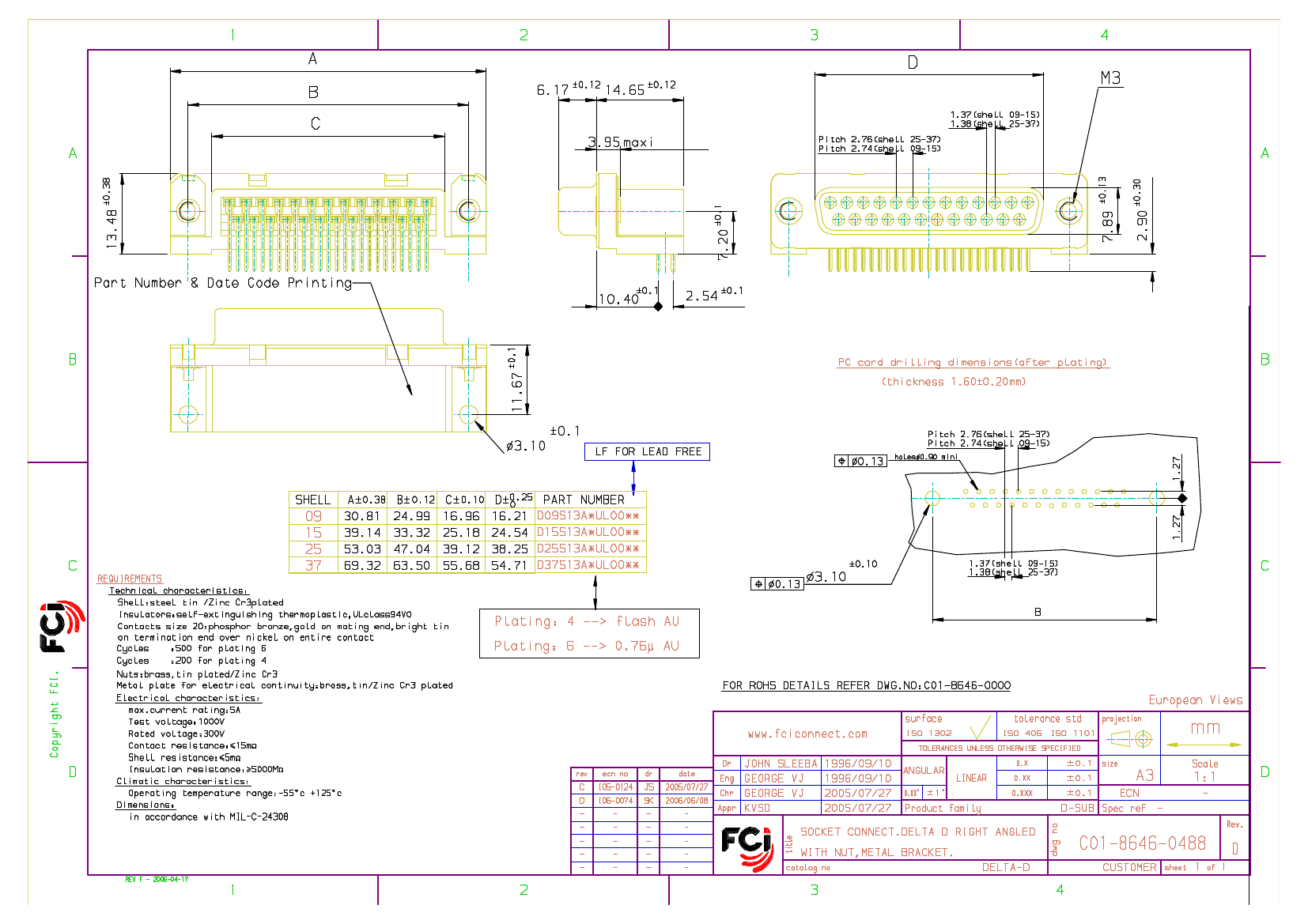

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011
