D37S91C8PL00 Overview

D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal

D37S91C8PL00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	PRESS FIT
Total number of contacts	37
UL Flammability Code	94V-0

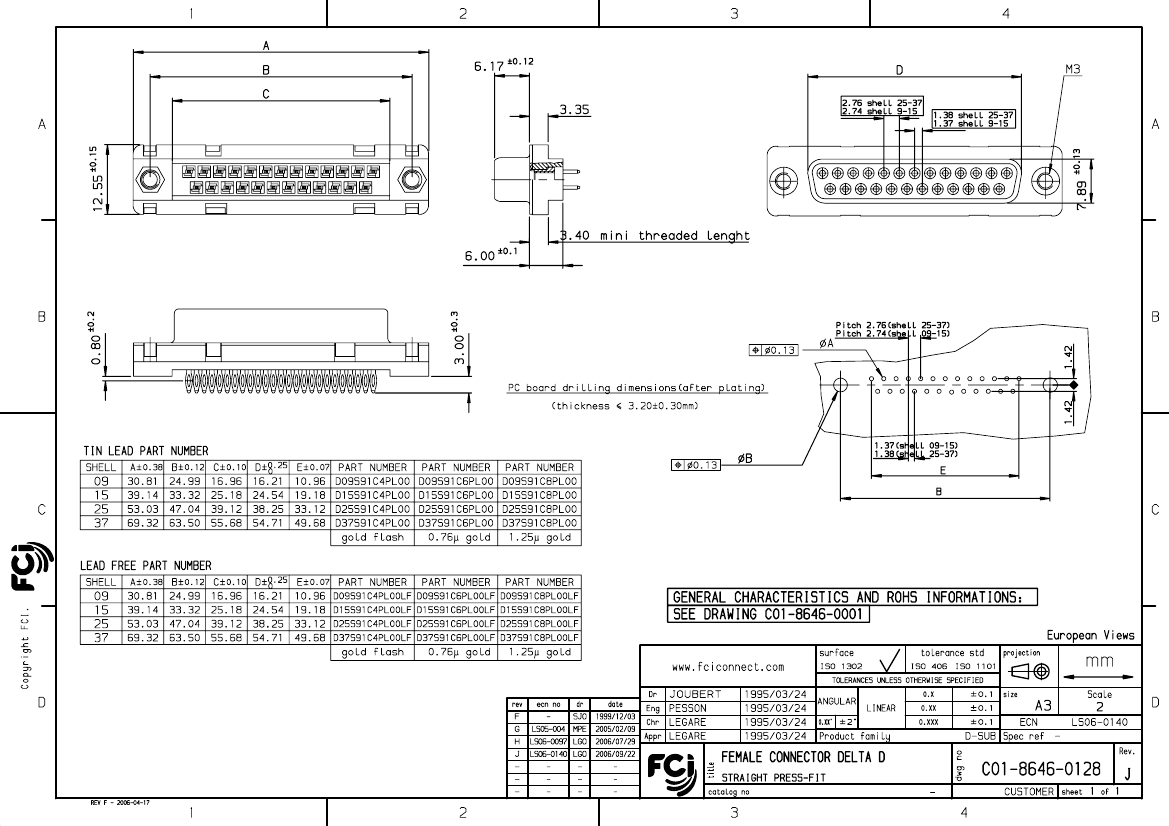

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Jan 18, 2011

D37S91C8PL00 Related Products

	D37S91C8PL00	D09S91C8PL00LF	D09S91C8PL00	D15S91C8PL00LF	D15S91C8PL00	D25S91C8PL00	D37S91C8PL00LF	D25S91C8PL00LF
Description	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, M3, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Press Fit Terminal, M3, LEAD FREE
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN OVER NICKEL	TIN	TIN OVER NICKEL	TIN	TIN	TIN OVER NICKEL	TIN OVER NICKEL
Housing size	4/C	1/E	1/E	2/A	2/A	3/B	4/C	3/B
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	37	9	9	15	15	25	37	25
Contact to complete cooperation	-	AU ON NI	-	AU ON NI	-	NOT SPECIFIED	AU ON NI	AU ON NI
Contact material	-	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	-	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Manufacturer's serial number	-	D09S91C8PL00LF	D09S91C8PL00	D15S91C8PL00LF	D15S91C8PL00	-	D37S91C8PL00LF	-
Base Number Matches	-	1	1	1	1	1	-	-
