RSB6.8CS
Diodes
ESD Protection diode
RSB6.8CS
Application
ESD Protection, bi direction
External dimensions
(Unit : mm)
0.16±0.05
0.6±0.05
Land size figure
(Unit : mm)
0.55
0.45
Features
1) Ultra small mold type. (VMN2)
2) High reliability.
3)
Bi chip-mounter, automatic mounting
is possible.
0.156
0.35±0.1
0.9±0.05
1.0±0.05
VMN2
Structure
0.37±0.03
Construction
Silicon epitaxial planar
ROHM : VMN2
dot (year week factory) + day
Taping specifications
4±0.1
2±0.05
φ1.55
0.2±0.05
1.75±0.1
3.5±0.05
0.45
1.1±0.05
φ0.5
0.7±0.05
2±0.05
4.0±0.1
0.52
Absolute maximum ratings
(Ta=25°C)
Parameter
Peak pulse power (tp=10×1000us)
Power dissipation
Junction temperature
Storage temperature
Operating temperature
Symbol
Ppk
P
Tj
Tstg
Topor
Limits
10
100
150
-55 to +150
-55 to +150
Unit
W
mW
℃
℃
℃
Electrical characteristics
(Ta=25°C)
Parameter
Zener voltage
Reverse current
Capacitance between terminals
Symbol
V
z
I
R
Ct
Min.
5.78
-
-
Typ.
-
-
15
Max.
7.82
0.5
-
Unit
V
µA
pF
Conditions
I
Z
=1mA
V
R
=3.5V
V
R
=0V , f=1MHz
8.0±0.2
0.5

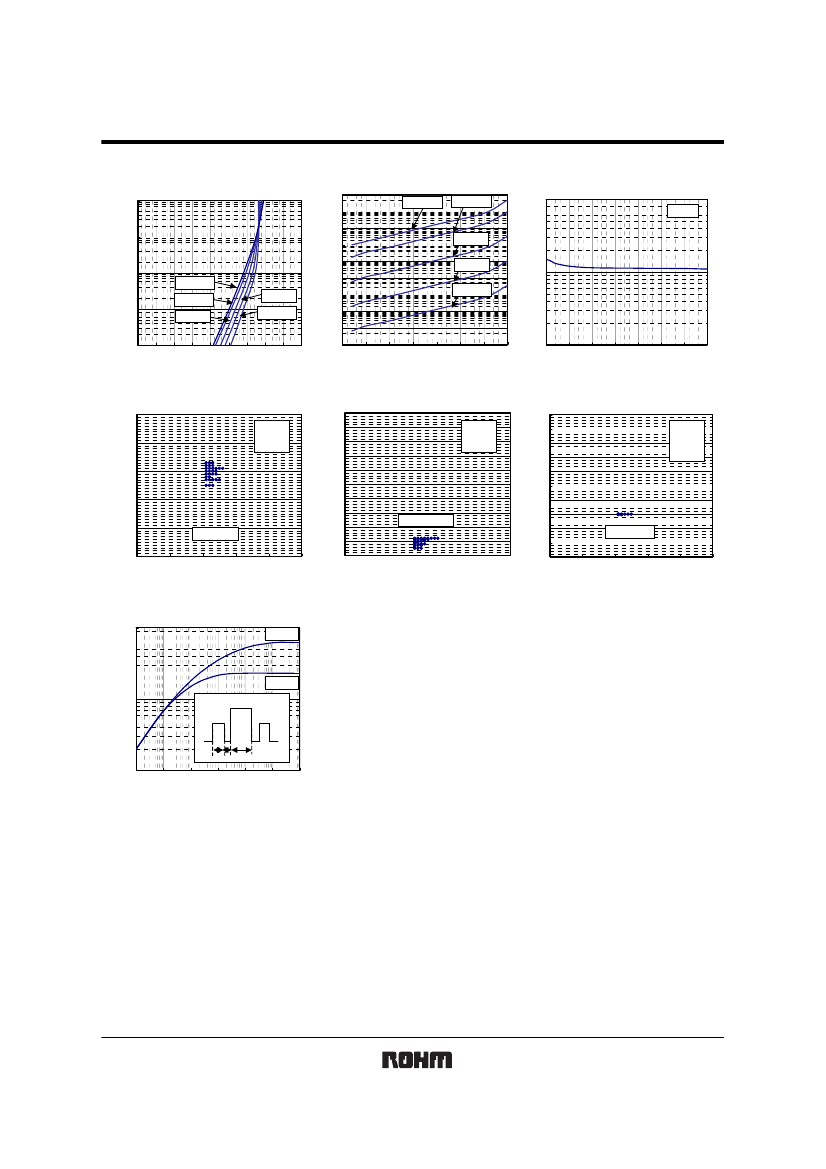

1/2
