Part Number

Search

1-532775-1

Description
HEADER CONNECTOR,PCB MNT,RECEPT,135 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL
CategoryThe connector    The connector

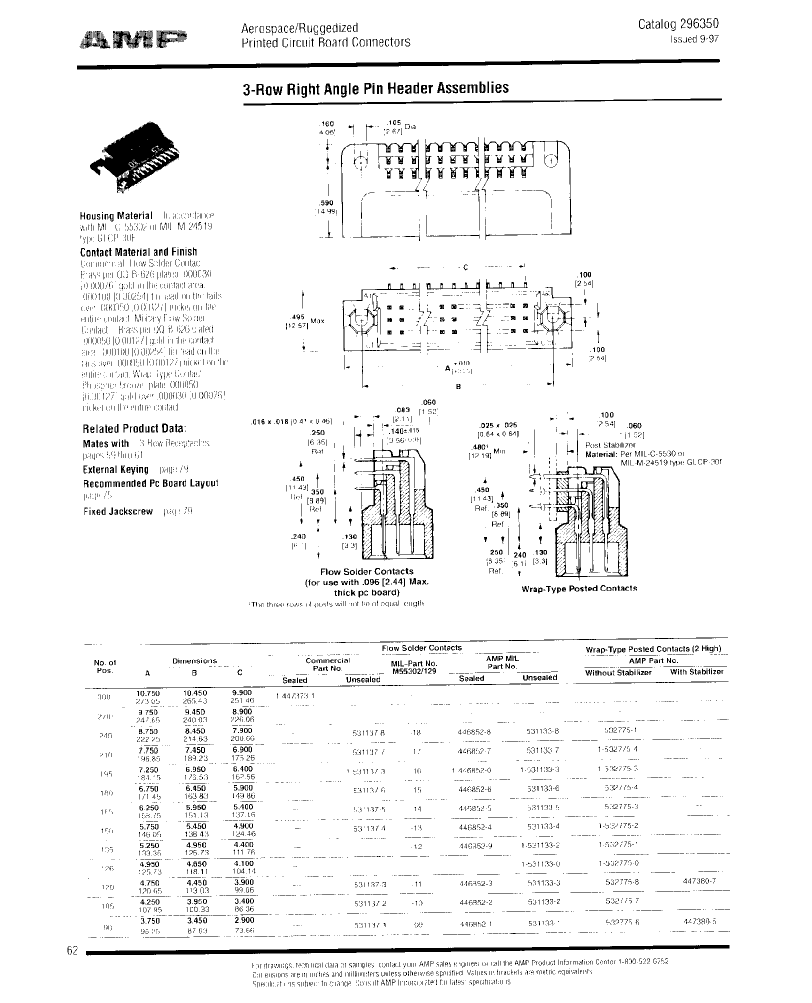

File Size40KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1-532775-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,135 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL

1-532775-1 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Board mount optionsHOLE .099-.111
body width0.495 inch
subject depth0.75 inch
body length5.25 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Manufacturer's serial number532775
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness50u inch
polarization keyENDS
reliabilityCOMMERCIAL
Terminal length0.48 inch
Terminal pitch2.54 mm
Termination typeWIRE WRAP
Total number of contacts135
Base Number Matches1
