TWM3J8K2: DescriptionMetal Oxide Resistors 3watt 8.2K 5% Vertical Mount; CategoryPassive components The resistor; File Size436KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

TWM3J8K2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TWM3J8K2	-	-	View	Buy Now

TWM3J8K2 Overview

Metal Oxide Resistors 3watt 8.2K 5% Vertical Mount

TWM3J8K2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Ohmite
package instruction	RADIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLAME PROOF
structure	Rectangular
Lead diameter	0.812 mm
Lead length	5 mm
lead spacing	5 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package height	25 mm
Package length	12.5 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	9 mm
Rated power dissipation(P)	3 W
resistance	8200 Ω
Resistor type	FIXED RESISTOR
series	TWM
size code	4935
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	-350,350 ppm/°C
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	250 V

Preview

Download Datasheet

View All

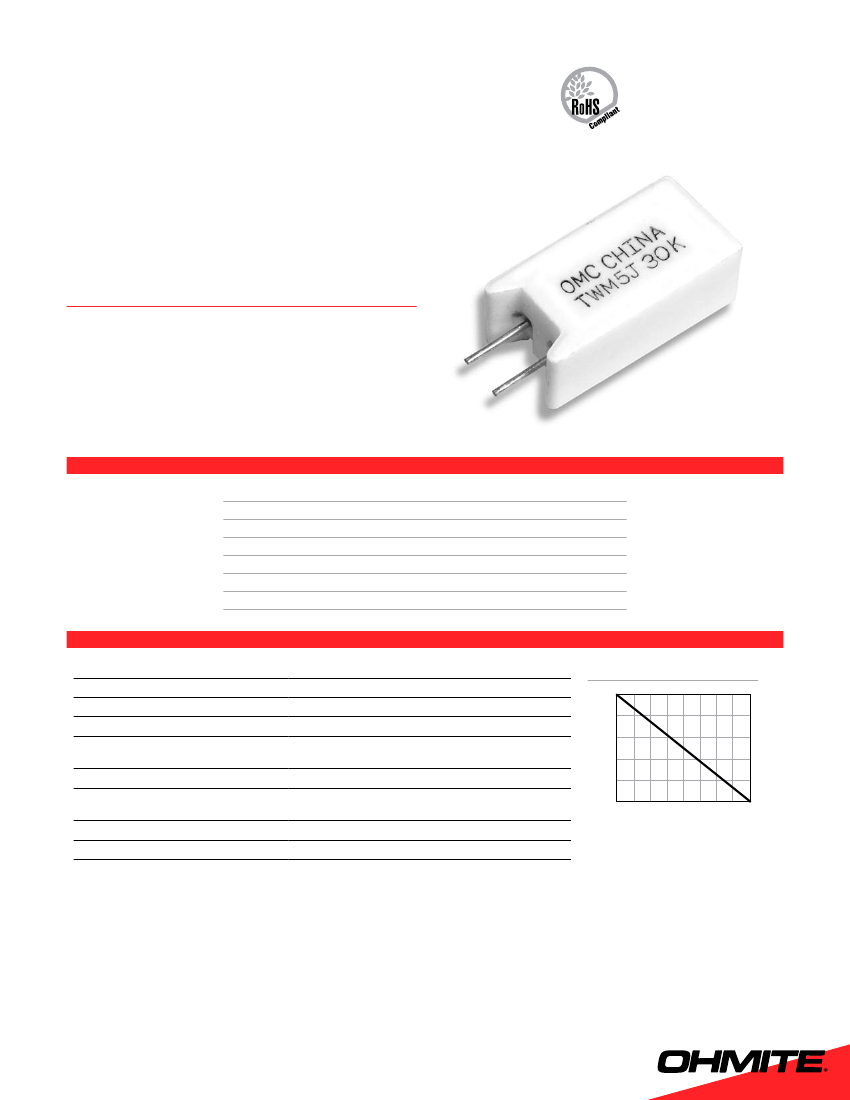

TWM/TWW Series

Ceramic Housed Radial Terminal Power

The TWM/TWW series radial terminal power resis-

tors offer significant board space savings over axial

terminal products. Generated heat is also kept away

from the circuit board.

They are recommended for commercial applica-

tions requiring low cost.

F e aT u r e S

• Economical Commercial Grade for general purpose

use

• Wirewound and Metal Oxide construction

• Wide resistance range

• Flameproof inorganic construction

S e r I e S S P e C I F I C aT I O N S

Series

TWW3

TWW5

TWW10

TWM3

TWM5

TWM10

Wattage

3

5

10

3

5

10

Resistance

0.01-39Ω

0.01-47Ω

0.04-990Ω

43-50KΩ

51-50KΩ

1000-50KΩ

Voltage

250

350

750

250

350

750

Element

Wire

Metal oxide

CharaCTerISTICS

Housing

Ceramic

Core

Fiberglass

Filling

Cement based

Tolerance

5% standard

Temperature coeffIicient

0.01-20Ω ±400ppm/°C;

20-10Ω ±350ppm/°C

Dielectric withstanding voltage

1,000VAC

Short time overload

TWW: 10x rated power for 5 sec.;

TWM: 5x rated power for 5 sec.

Operating Temperature

-55°C to 275°C

Storage Temperature

6°C to 36°C

Derating

100

Percent Rated Watts

80

60

40

20

0

70 100

150

200

250 275

Ambient Temperature, C

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com

97
