1349010000

Description
Board Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size71KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1349010000 Overview

Board Connector, 24 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

1349010000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts24
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

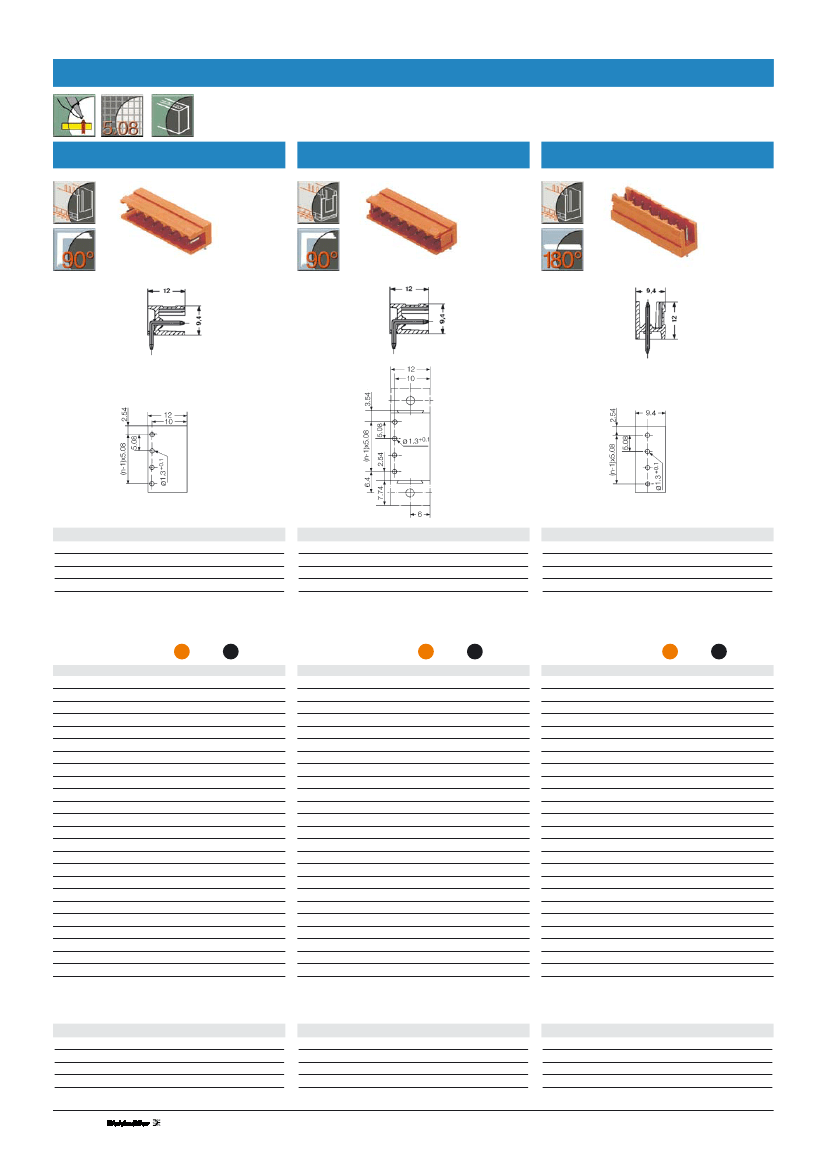

Unimate - Die Einzigartigen
SLA/BLARange - SLA/BLA
Pin headers SLA 90
Pin headers SLA 90B
Pin headers SLA 180
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
10
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
10
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
10
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 227
*Overvoltage category III / Pollution severity 3
Additional technical data see page 227
*Overvoltage category III / Pollution severity 3
Additional technical data see page 227
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SLA 2/90
SLA 3/90
SLA 4/90
SLA 5/90
SLA 6/90
SLA 7/90
SLA 8/90
SLA 9/90
SLA 10/90
SLA 11/90
SLA 12/90
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
13/90
14/90
15/90
16/90
17/90
18/90
19/90
20/90
21/90
22/90
23/90
24/90
3.2 mm
4.5 mm
Solder pin length
Colour
3.2 mm
4.5 mm
Solder pin length
Colour
3.2 mm
4.5 mm
Cat. No.
1238060000
1238160000
1238260000
1238360000
1238460000
1238560000
1238660000
1238760000
1238860000
1238960000
1239060000
1239160000
1239260000
1239360000
1239460000
1271760000
1271860000
1271960000
1272060000
1272160000
1315960000
1316060000
1316160000
Cat. No.
1346810000
1346910000
1347010000
1347110000
1347210000
1347310000
1347410000
1347510000
1347610000
1347710000
1347810000
1347910000
1348010000
1348110000
1348210000
1348310000
1348410000
1348510000
1348610000
1348710000
1348810000
1348910000
1349010000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SLA 2/90B
SLA 3/90B
SLA 4/90B
SLA 5/90B
SLA 6/90B
SLA 7/90B
SLA 8/90B
SLA 9/90B
SLA 10/90B
SLA 11/90B
SLA 12/90B
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
13/90B
14/90B
15/90B
16/90B
17/90B
18/90B
19/90B
20/90B
21/90B
22/90B
23/90B
24/90B
Cat. No.
1241060000
1241160000
1241260000
1241360000
1241460000
1241560000
1241660000
1241760000
1241860000
1241960000
1242060000
1242160000
1242260000
1242360000
1242460000
1270260000
1270360000
1270460000
1270560000
1270660000
1315660000
1315760000
1315860000
Cat. No.
1351410000
1351510000
1351610000
1351710000
1351810000
1351910000
1352010000
1352110000
1352210000
1352310000
1352410000
1352510000
1352610000
1352710000
1352810000
1352910000
1353010000
1353110000
1353210000
1353310000
1353410000
1353510000
1353610000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SLA 2/180
SLA 3/180
SLA 4/180
SLA 5/180
SLA 6/180
SLA 7/180
SLA 8/180
SLA 9/180
SLA 10/180
SLA 11/180
SLA 12/180
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
SLA
13/180
14/180
15/180
16/180
17/180
18/180
19/180
20/180
21/180
22/180
23/180
24/180
Cat. No.
1239560000
1239660000
1239760000
1239860000
1239960000
1240060000
1240160000
1240260000
1240360000
1240460000
1240560000
1240660000
1240760000
1240860000
1240960000
1271260000
1271360000
1271460000
1271560000
1271660000
1315060000
1315160000
1315260000
Cat. No.
1349110000
1349210000
1349310000
1349410000
1349510000
1349610000
1349710000
1349810000
1349910000
1350010000
1350110000
1350210000
1350310000
1350410000
1350510000
1350610000
1350710000
1350810000
1350910000
1351010000
1351110000
1351210000
1351310000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
–
196
199
205
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
193
196
199
205
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
–
196
199
–
156
