CDRH3D16NP-1R1NC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH3D16NP-1R1NC

CDRH3D16NP-1R1NC: DescriptionFixed Inductors 1.1uH 1.9A 0.038ohms; CategoryPassive components inductor; File Size223KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH3D16NP-1R1NC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH3D16NP-1R1NC	-	-	View	Buy Now

CDRH3D16NP-1R1NC Overview

Fixed Inductors 1.1uH 1.9A 0.038ohms

CDRH3D16NP-1R1NC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	18 weeks
uppercase and lowercase codes	1515
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.05 Ω
Nominal inductance(L)	1.1 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	1.8 mm
Package length	3.8 mm
Package form	SMT
Package width	3.8 mm
method of packing	Tape
Maximum rated current	1.9 A
series	CDRH3D16
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	35%

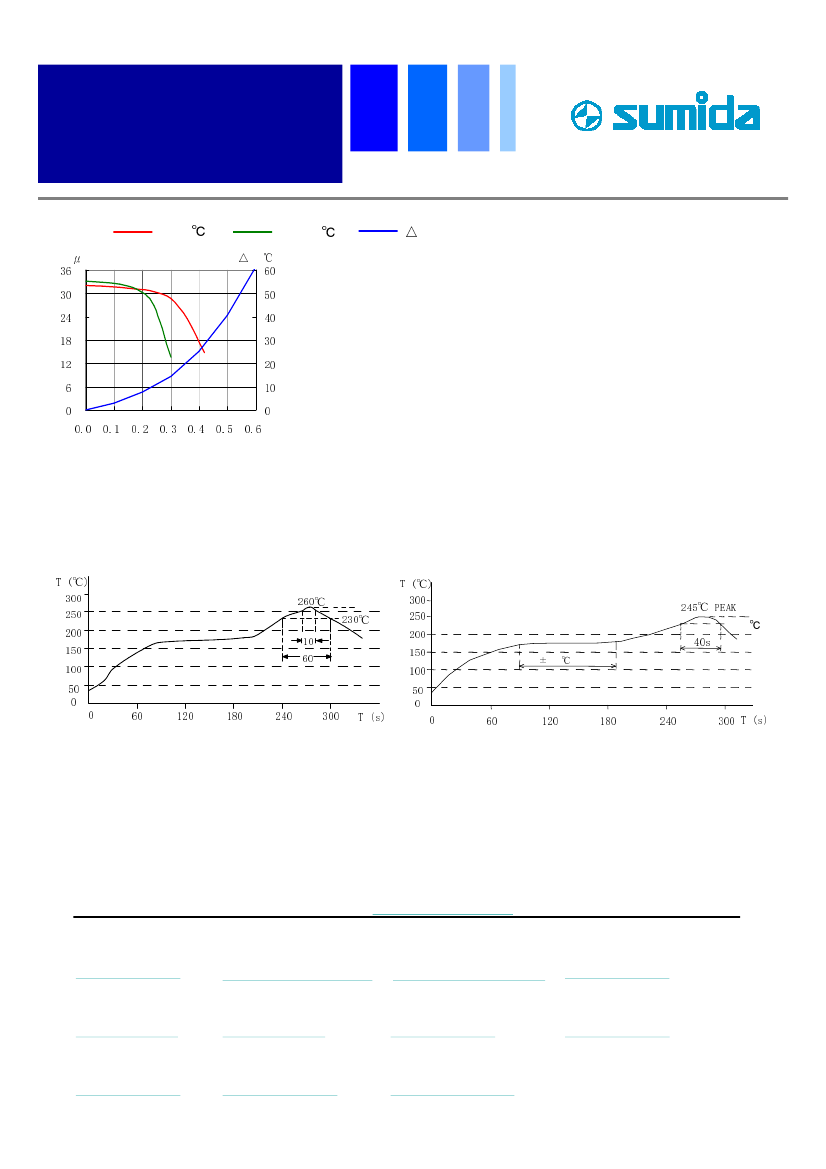

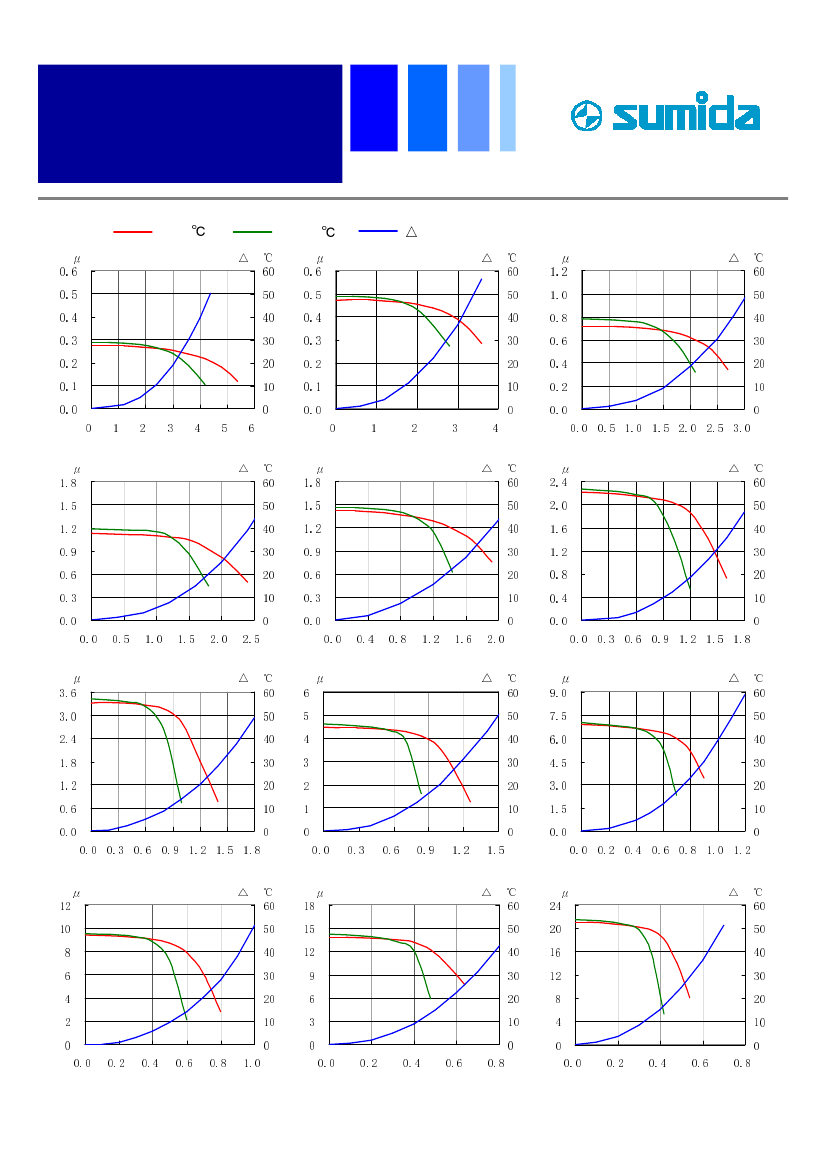

Preview

Download Datasheet

View All

SMD Power Inductor

CDRH3D16

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H:4.0 4.0 1.8 mm Max.

• Product weight: 80mg (Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40 ~+100

(including coil’s self temperature rise)

+100

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 7.0”diameter reel

• 1000pcs per reel

RoHS

Halogen

Free

±8.2

1.0

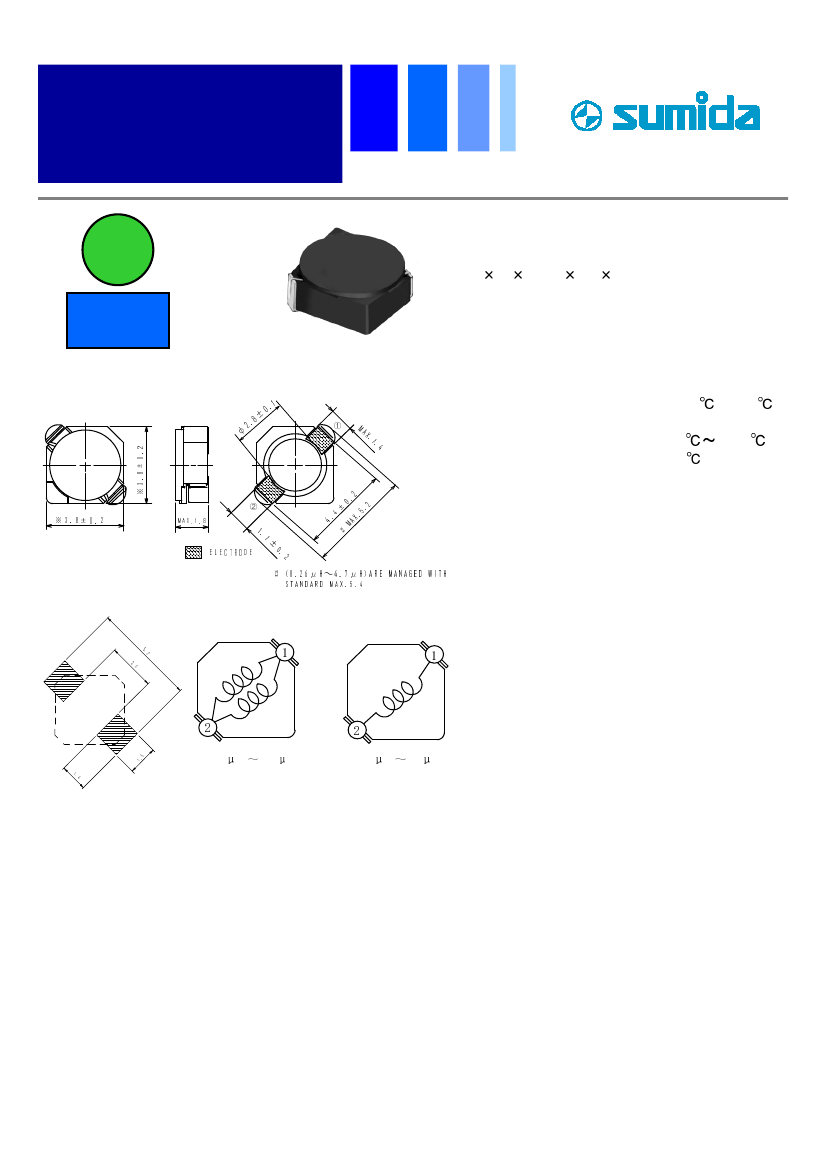

Dimension - [mm]

Land pattern and Schematics - [mm]

Applications

• Ideally used in Mobile phone, PDA, MP3,

DSC/DVC, Portable DVD, etc as DC-DC

converter inductors.

μ ½μ

(0.26

H 4.7

(6.8

H 33

Page 1 of 4

Revised: 7-Jan-14

℃

½℃

℃

× ×

4.5.XAM DRADNATS

HTIW DEGANAM ERA)Hμ7.4½Hμ62.0( #

5. ±4

2. 0

①

E D O RT C E LE

±1

②

8.1.XAM

※

2 . 0 ±8 . 3 ※
