RoHS Compliant in Accordance with EU Directive 2011/65/EU
- Lead-Free Termination Finish
- Exemption 7(c)-I, Electrical and electronic components containing
lead [Pb] in glass
Applications
Data Communications
Image Processing
Medical Equipment
Networking
Pull-Up/Pull-Down Logic Gates
DDR SDRAM, MDDR, DRAM
Portable Test Equipment
Low Profile High Density Designs
Description
74x Series Chip Arrays are single packaged devices containing an array of homogeneous resistor elements. Arrays
are typically used for convenience when several resistors occupy the same area in a layout. Multiple package
sizes and circuit configurations help save placement costs by reducing application component count.

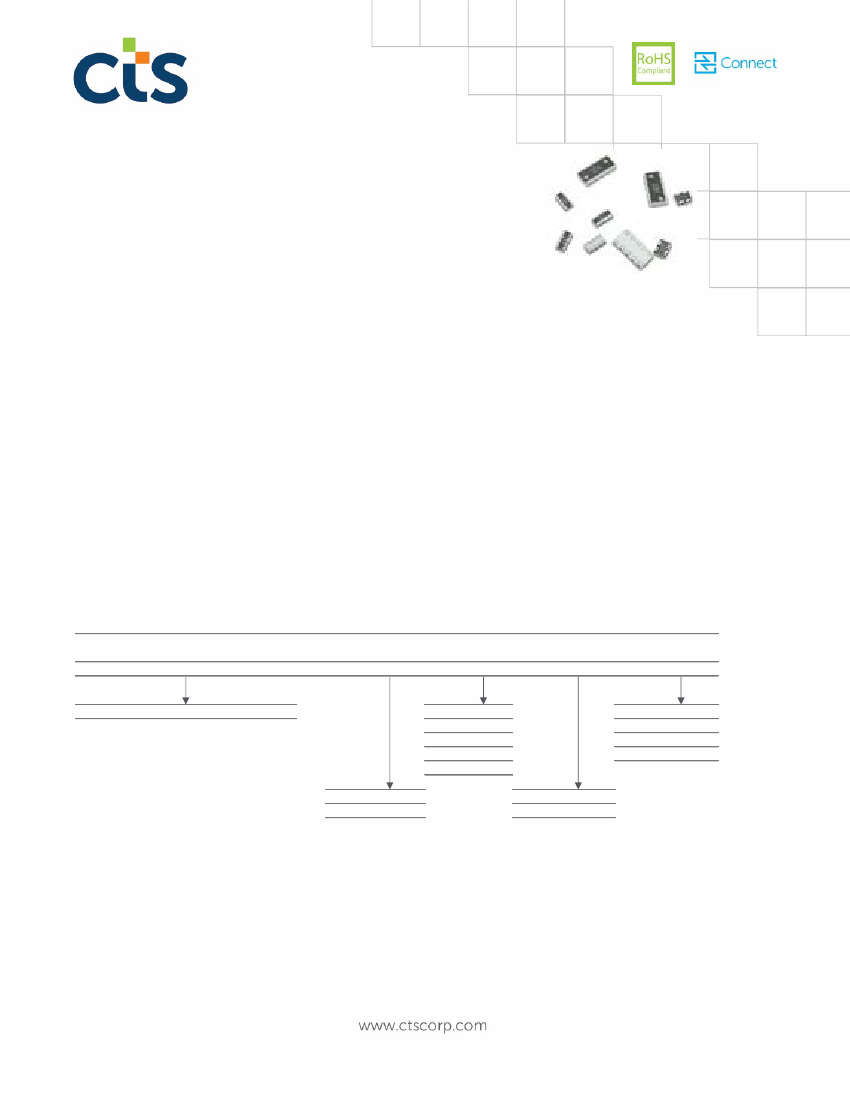

Ordering Information
Model
741X083
Resistor
Value
103
Resistor
Tolerance
J
RoHS
Compliant
P
Special
Packaging

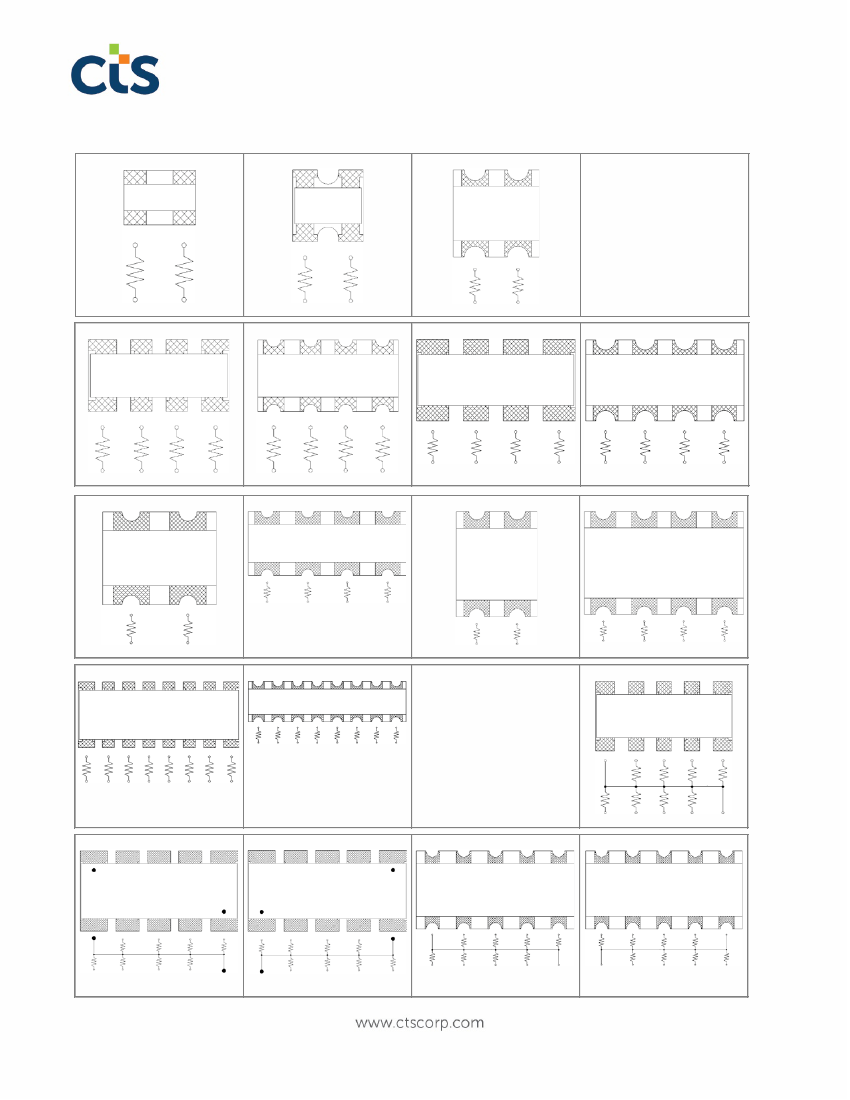

Package Code
740X043
741X043
741X083
741C083
741X163
742C043
Package Code
742X083
742C083
742C163
743C043
743C083
744C043
Package Code
744C083
745X101
745X102
745C101
745C102
746X101
Code
J
G
F
X
Code Resistor Value *
10k ohm
103
* See Addendum for Standard
EIA Values and Codes
Tolerance
±5%
1
±2%
2, 4
±1%
3, 4
Zero Ohm
Code Termination
P Matte Sn Finish
Code Carrier Tape
8mm Tape
C8
12mm Tape
C12
Blank 12mm or 8mm
741X163 Model Only!
Notes:
1.
2.
3.
4.
Standard tolerance is ±5% and available for all 740 - 746 package codes; 3-digit resistor codes.
Optional tolerance at ±2% is available for all 741 - 745 package codes, 3-digit resistor codes; except 741X163, 745X101 and 745X102 [±5% and ±1% only].
Optional tolerance at ±1% is available for all 741 - 745 package codes, 4-digit resistor codes; except 745X101 and 745X102 [±5% and ±1% only].
Consult factory for availability with 740X043 package code.
Not all performance combinations and resistor values may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use
of this product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
