1653760000

Description
Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size60KB,1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1653760000 Online Shopping

Suppliers Part Number Price MOQ In stock
1653760000 - - View Buy Now

1653760000 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

1653760000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Factory Lead Time10 weeks
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch5 mm
Termination typeSOLDER
Total number of contacts16
UL Flammability Code94V-0
Base Number Matches1

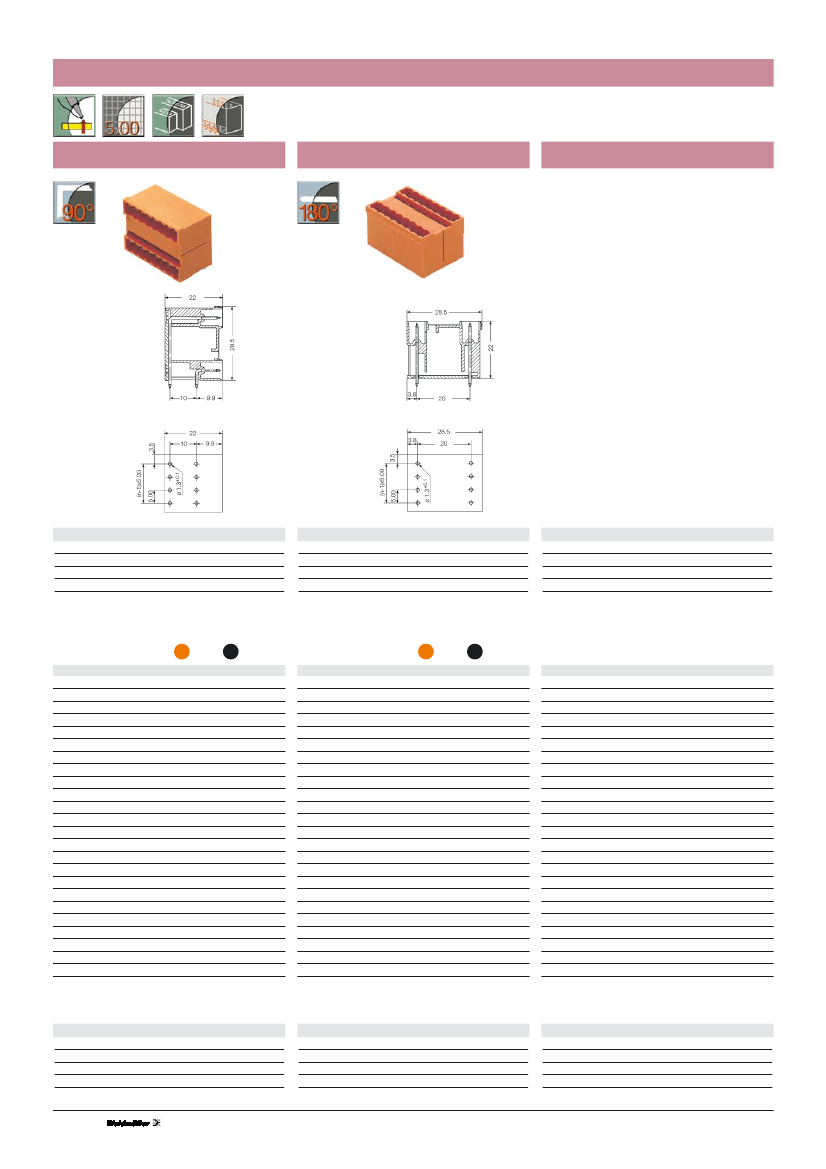

Omnimate Range - Pitch 5.00 mm
Pin headers SLD 5.00R20
Pin headers SLD 5.00R20
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
8
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
8
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 216
*Overvoltage category III / Pollution severity 3
Additional technical data see page 216
Solder pin length
Colour
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Type
SLD 5.00R20/4
SLD 5.00R20/6
SLD 5.00R20/8
SLD 5.00R20/10
SLD 5.00R20/12
SLD 5.00R20/14
SLD 5.00R20/16
SLD 5.00R20/18
SLD 5.00R20/20
SLD 5.00R20/22
SLD 5.00R20/24
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
5.00R20/26
5.00R20/28
5.00R20/30
5.00R20/32
5.00R20/34
5.00R20/36
5.00R20/38
5.00R20/40
5.00R20/42
5.00R20/44
5.00R20/46
5.00R20/48
Cat. No.
1614350000
1614360000
1614370000
1614380000
1614390000
1614400000
1614410000
1614420000
1614430000
1614440000
1614450000
1614460000
1614470000
1614480000
1614490000
1614500000
1614510000
1614520000
1614530000
1614540000
1614550000
1614560000
1614570000
Cat. No.
Qty.
1653700000
50
1653710000
50
1653720000
50
1653730000
50
1653740000
50
1653750000
20
1653760000
20
1653770000
20
1653780000
20
1653790000
10
1653800000
10
1653810000
1653820000
1653830000
1653840000
1653850000
1653860000
1653870000
1653880000
1653890000
1653900000
1653910000
1653920000
10
10
10
10
10
10
10
10
10
10
10
10
Type
SLD 5.00R20/4
SLD 5.00R20/6
SLD 5.00R20/8
SLD 5.00R20/10
SLD 5.00R20/12
SLD 5.00R20/14
SLD 5.00R20/16
SLD 5.00R20/18
SLD 5.00R20/20
SLD 5.00R20/22
SLD 5.00R20/24
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
SLD
5.00R20/26
5.00R20/28
5.00R20/30
5.00R20/32
5.00R20/34
5.00R20/36
5.00R20/38
5.00R20/40
5.00R20/42
5.00R20/44
5.00R20/46
5.00R20/48
Cat. No.
1614810000
1614820000
1614830000
1614840000
1614850000
1614860000
1614870000
1614880000
1614890000
1614900000
1614910000
1614920000
1614930000
1614940000
1614950000
1614960000
1614970000
1614980000
1614990000
1615000000
1615010000
1615020000
1615030000
Cat. No.
Qty.
1653470000
50
1653480000
50
1653490000
50
1653500000
50
1653510000
50
1653520000
20
1653530000
20
1653540000
20
1653550000
20
1653560000
10
1653570000
10
1653580000
1653590000
1653600000
1653610000
1653620000
1653630000
1653640000
1653650000
1653660000
1653670000
1653680000
1653690000
10
10
10
10
10
10
10
10
10
10
10
10
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
196
198, 199
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
196
198, 199
