P0770332NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> P0770332NLT

P0770332NLT: DescriptionFixed Inductors 3.3uH 20% '332'; CategoryPassive components; File Size110KB，1 Pages; ManufacturerPulse; Environmental Compliance

Download Datasheet Parametric View All

P0770332NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P0770332NLT	-	-	View	Buy Now

P0770332NLT Overview

Fixed Inductors 3.3uH 20% '332'

P0770332NLT Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Unshielded
Inductance	3.3 uH
Tolerance	20 %
Maximum DC Current	2 A
Maximum DC Resistance	50 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 130 C
Termination	-
Length	0.26 in
Width	0.175 in
Height	0.115 in
Application	Power
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Fixed Inductors
Factory Pack Quantity	2500
Unit Weight	0.007055 oz

Preview

Download Datasheet

View All

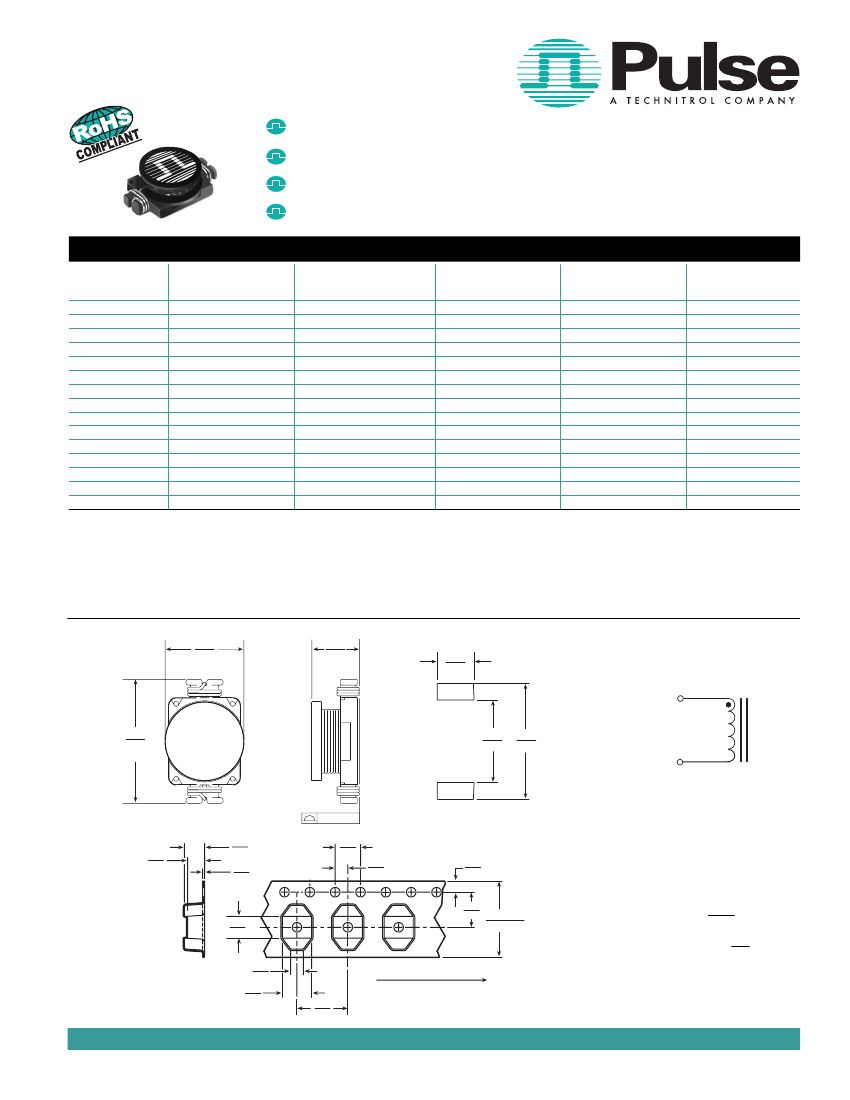

SMT POWER INDUCTORS

Unshielded Drum Core - P0770NL Series

Height:

2.9mm Max

Footprint:

6.6mm x 4.5mm Max

Current Rating:

up to 2.9A

Inductance Range:

1.0µH to 220µH

Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C

Part

6,7

Number

P0770.102NL

P0770.152NL

P0770.222NL

P0770.332NL

P0770.472NL

P0770.682NL

P0770.103NL

P0770.153NL

P0770.223NL

P0770.333NL

P0770.473NL

P0770.683NL

P0770.104NL

P0770.154NL

P0770.224NL

Inductance

@ I

(µH ± 20%)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

Irated

(A)

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.30

0.25

0.20

DCR (MAX)

(mΩ)

130

160

230

370

510

640

860

1270

2000

3110

Saturation Current

(A) @

25°C

2.90

2.60

2.30

2.00

1.50

1.20

1.10

0.90

0.70

0.58

0.50

0.40

0.31

0.27

0.22

Heating Current

(A)

2.90

2.80

2.40

2.00

1.50

1.40

1.10

1.20

0.80

0.60

0.50

0.40

0.30

0.2

0.20

NOTES:

1. The temperature of the component (ambient plus temperature 5. The rated current is the lower of the saturation or heating current.

rise) must be within the specified operating temperature range. 6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part no. (i.e. P0770.102NL

becomes P0770.102NLT). Pulse complies to industry standard tape and reel specification EIA481.

2. Inductance tested at 100kHz, 10 mV

RMS

7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necessarily

3. Inductance drop = 10% typical at the Saturation Current

RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does

ΔT

= 15°C rise typical at the Heating Current

not have the "NL" suffix, but an RoHS compliant version is required, please contact Pulse for availability.

Mechanical

.175

4,45

MAX

.115

2,92

MAX

Schematic

SUGGESTED PAD LAYOUT

.140

3,56

.260

6,60

MAX

XXX

.004/0,10

.160

4,06

.270

6,86

.110

2,80

.125

3,18

.012

0,30

.157

4,00

.079

2,00

.069

1,75

.217

+.012

5,51 .472

.000

12,00

+0,30

0,00

Weight

. . . . . . . . 0.2 grams

Tape & Reel

. . . . . 2500/reel

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.134

3,40

.079

2,00

.181

5,00

USER DIRECTION OF FEED

.315

8,00

TAPE & REEL LAYOUT

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

SPM2007 (11/07)
