CDRH127-LDNP-680MC datasheet, PDF

Datasheet> All Categories > Passive components> CDRH127-LDNP-680MC

CDRH127-LDNP-680MC: DescriptionFixed Inductors 68uH 2.6A; CategoryPassive components; File Size179KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH127-LDNP-680MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH127-LDNP-680MC	-	-	View	Buy Now

CDRH127-LDNP-680MC Overview

Fixed Inductors 68uH 2.6A

CDRH127-LDNP-680MC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SUMIDA
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	68 uH
Tolerance	20 %
Maximum DC Current	2.6 A
Maximum DC Resistance	120 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 100 C
Test Frequency	100 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	12.3 mm x 12.3 mm
Length	12.3 mm
Width	12.3 mm
Height	8 mm
Application	Power
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Ferrite
Product	Fixed Inductors
Factory Pack Quantity	500
Unit Weight	0.126986 oz

Preview

Download Datasheet

View All

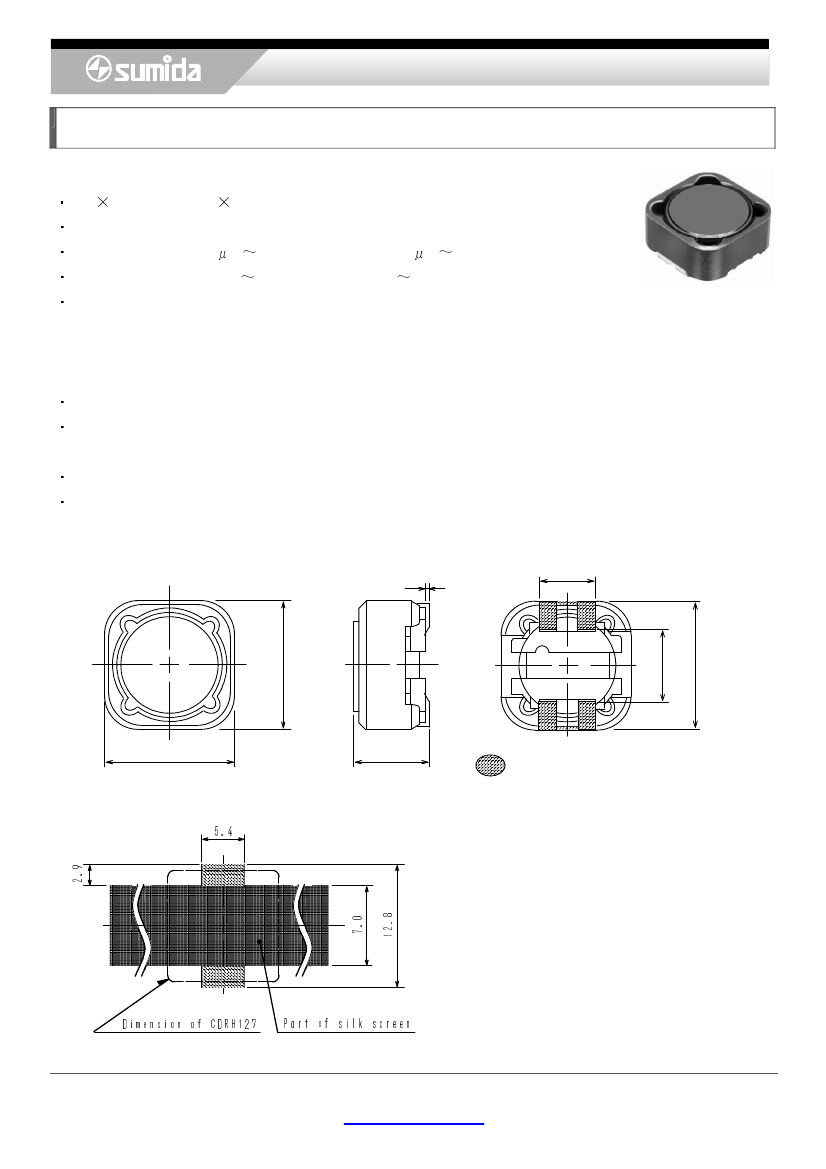

POWER INDUCTORS <SMD Type: CDRH Series>

Type: CDRH127 , CDRH127/LD

◆

Product Description

12.3 12.3mm Max.(L W ), 8.0mm Max. Height.

Both standard type CDRH127 and Low DCR type CDRH127/LD are available.

Inductance Range:1.2 H 1.0mH(CDRH127); 1.0 H 1.0mH(CDRH127/LD).

Rated current range: 0.55 9.8A(CDRH127); 0.7 14A(CDRH127/LD).

In addition to the standard versions of inductors shown here, custom inductors are available

to meet your exact requirements.

◆

Feature

Magnetically shielded construction.

Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC

Converter inductors.

Qualification to AEC-Q200.

RoHS Compliance and Halogen free.

◆

Dimensions (mm)

12.0±0.3

◆

Land Pattern (mm)

4.5

Max.8.0

Electrode terminal

Please refer to the sales offices on our website for a representative near you

www.sumida.com

12.0±0.2

7.6

neercs klis fo traP

½μ

0.2

721HRDC fo noisnemiD

½μ

・

5.0 ± 0.2

1/4

CDRH127-LDNP-680MC Related Products

	CDRH127-LDNP-680MC	CDRH127NP-151MC	CDRH127-LDNP-390MC	CDRH127-LDNP-270MC	CDRH127/LDNP-180MC
Description	Fixed Inductors 68uH 2.6A	Fixed Inductors 150uH 1.42A	Fixed Inductors 39uH 3.5A	Fixed Inductors 27uH 4.2A	Fixed Inductors 18uH 5.1A
Tolerance	20 %	20%	20 %	20 %	20%
Product Attribute	Attribute Value	-	Attribute Value	Attribute Value	-
Manufacturer	SUMIDA	-	SUMIDA	SUMIDA	-
Product Category	Fixed Inductors	-	Fixed Inductors	Fixed Inductors	-
RoHS	Details	-	Details	Details	-
Termination Style	SMD/SMT	-	SMD/SMT	SMD/SMT	-
Shielding	Shielded	-	Shielded	Shielded	-
Inductance	68 uH	-	39 uH	27 uH	-
Maximum DC Current	2.6 A	-	3.5 A	4.2 A	-
Maximum DC Resistance	120 mOhms	-	60.5 mOhms	41.6 mOhms	-
Minimum Operating Temperature	- 40 C	-	- 40 C	- 40 C	-
Maximum Operating Temperature	+ 100 C	-	+ 100 C	+ 100 C	-
Test Frequency	100 kHz	-	100 kHz	100 kHz	-
Mounting Style	PCB Mount	-	PCB Mount	PCB Mount	-
Package / Case	12.3 mm x 12.3 mm	-	12.3 mm x 12.3 mm	12.3 mm x 12.3 mm	-
Length	12.3 mm	-	12.3 mm	12.3 mm	-
Width	12.3 mm	-	12.3 mm	12.3 mm	-
Height	8 mm	-	8 mm	8 mm	-
Packaging	Reel	-	Reel	Reel	-
Core Material	Ferrite	-	Ferrite	Ferrite	-
Product	Fixed Inductors	-	Power Inductors	Fixed Inductors	-
Factory Pack Quantity	500	-	500	500	-
Unit Weight	0.126986 oz	-	0.126986 oz	0.126986 oz	-
