PM54-181K-RC: DescriptionFixed Inductors 180uH 10%; CategoryPassive components inductor; File Size338KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM54-181K-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM54-181K-RC	-	-	View	Buy Now

PM54-181K-RC Overview

Fixed Inductors 180uH 10%

PM54-181K-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	2323
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	2323
structure	Rectangular
core material	FERRITE
DC Resistance	1.38 Ω
Nominal inductance(L)	180 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	2
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	4.8 mm
Package length	5.8 mm
Package form	SMT
Package width	5.8 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	0.38 A
self resonant frequency	6 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver/Nickel/Tin (Ag/Ni/Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

PL

IA

NT

Features

n

Formerly model

n

Available in E12 series

n

Small diameter of only 5.8 mm maximum

n

Profile of 4.8 mm

n

RoHS compliant*

F

RE

E

Applications

n

Input/output of DC/DC converters

n

Power supplies for:

*R

oH

S

C

OM

• Portable communication equipment

• Camcorders

• LCD TVs

LE

AD

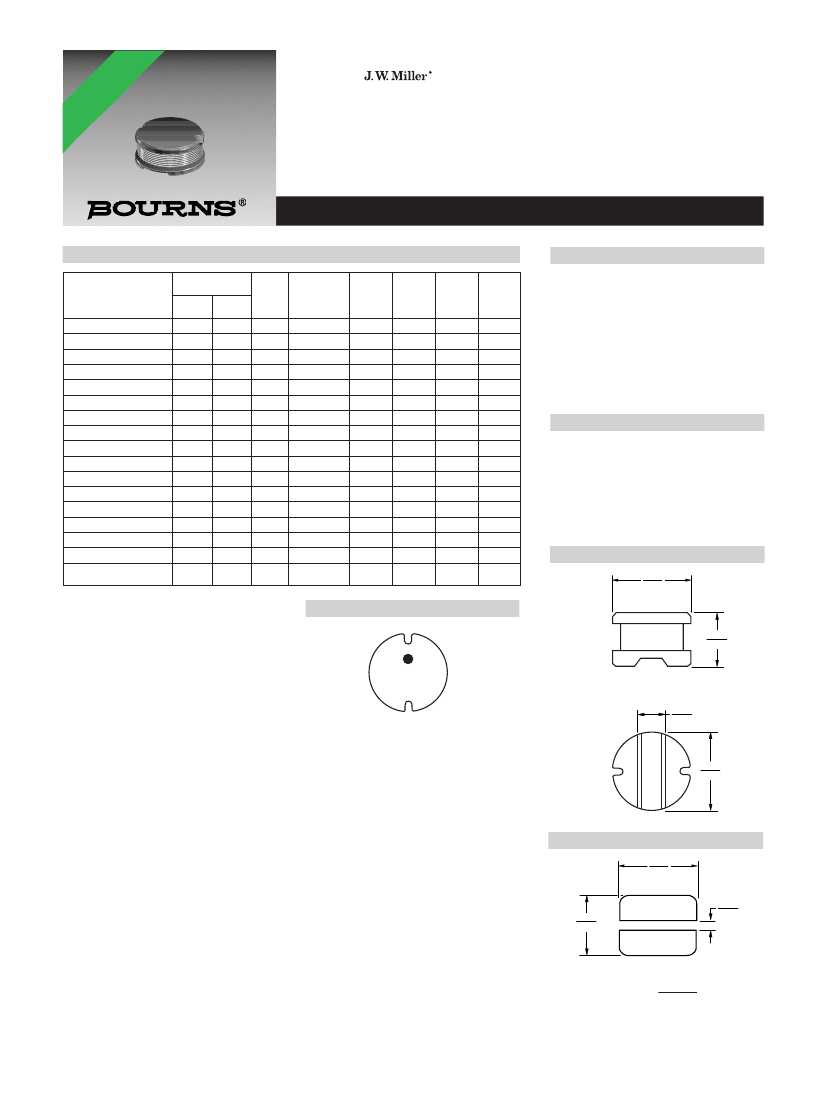

PM54 Series - SMD Power Inductor

Test

Frequency

(MHz)

2.52

0.796

SRF

Min.

(MHz)

23

22

20

18

16

14

13

12

11

10

9

7

6

Irms

Max.

(A)

1.45

1.40

1.30

1.25

1.10

1.00

0.88

0.80

0.72

0.68

0.62

0.58

0.52

0.48

0.40

0.38

0.35

Isat

Typ.

(A)

2.00

1.90

1.60

1.50

1.40

1.30

1.10

1.00

0.90

0.84

0.75

0.68

0.60

0.54

0.50

0.44

Electrical Specifications

Inductance 1 kHz

Bourns Part No.

PM54-100M-RC

PM54-120M-RC

PM54-150M-RC

PM54-180M-RC

PM54-220M-RC

PM54-270M-RC

PM54-330L-RC

PM54-390L-RC

PM54-470L-RC

PM54-560K-RC

PM54-680K-RC

PM54-820K-RC

PM54-101K-RC

PM54-121K-RC

PM54-151K-RC

PM54-181K-RC

PM54-221K-RC

(µH)

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

Tol. %

± 20

± 15

± 10

Q

Ref.

30

28

24

22

20

22

20

RDC

(Ω)

0.10

0.12

0.14

0.15

0.19

0.22

0.25

0.32

0.37

0.42

0.52

0.60

0.70

0.93

1.10

1.38

1.57

Test Voltage .......................................1 V

Reflow soldering .... 230 °C, 50 sec max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

................................. 260 °C for 5 sec.

Moisture Sensitivity Level .....................1

ESD Classification (HBM).................N/A

Core ............................... Ferrite DR core

Wire ............................Enameled copper

Terminal: ...................................Ag/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temp. Rise.......40 °C max. at rated Irms

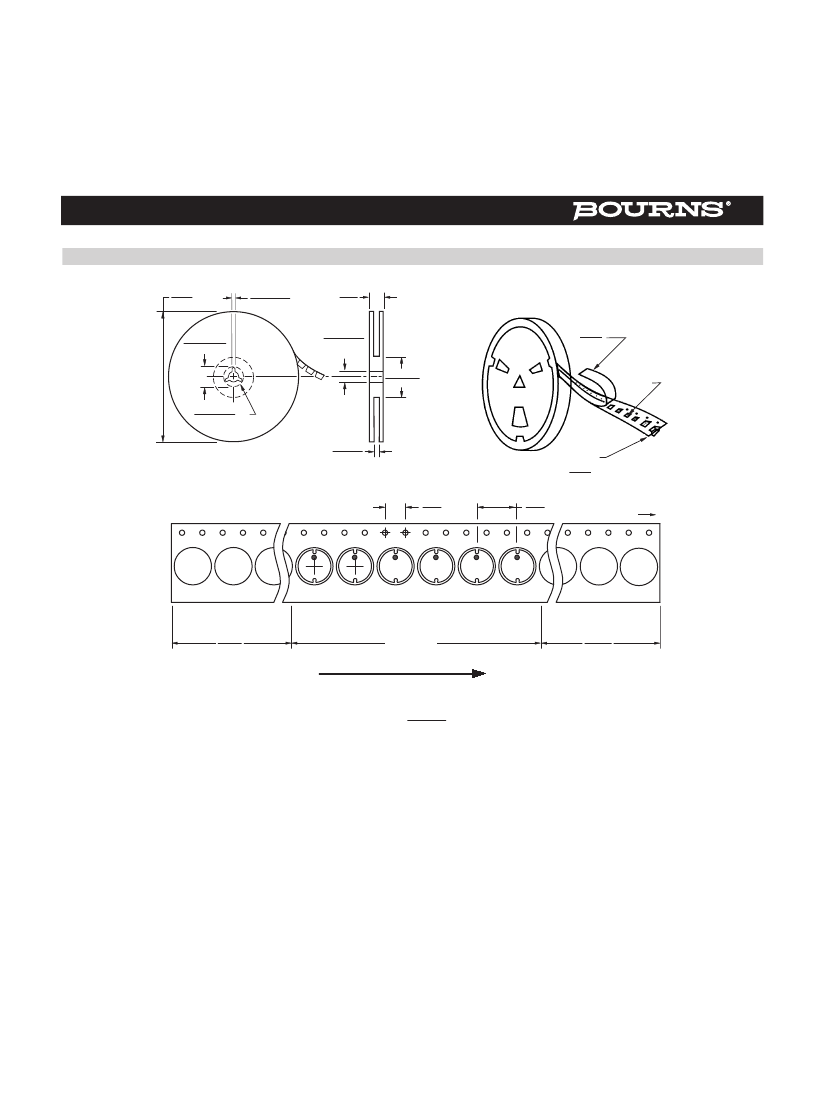

Packaging .................. 1500 pcs. per reel

(.228)

Product Dimensions

MAX.

5.8

(.228)

MAX.

5.8

General Specifications

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

NT

*

Materials

Typical Part Marking

4.8

MAX.

(.189)

4.8

MAX.

(.189)

101

1.8

TYP.

(.071)

1.8

TYP.

(.071)

5.8

MAX.

(.228)

5.8

MAX.

(.228)

Recommended Layout

5.8

(.228)

5.8

(.228)

6.0

(.236)

6.0

(.236)

1.8

(.071)

1.8

(.071)

MM

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
