“High Frequency Ceramic Solutions”
5.5 GHz Band Pass Filter
Detail Specification
P/N 5515BP15B730
Rev. 01/29/2002 Page 1 of 2
Part
Number
5515BP15B730_
Frequency
(MHz)
5150 - 5875
Insertion
Loss
2.8 dB max.
Attenuation (min.)
30 dB @ 0.5-4.0 GHz
25 dB @ 10.3-11.8 GHz
20 dB @ 4.6 GHz
Return
Loss
9.5 dB min.
Ripple
0.7 dB max.
Input Power
3 Watts max
Group Delay
5.0 nS max.
Impedance
50
Ω
Operating Temperature Range
-40 to +85°C

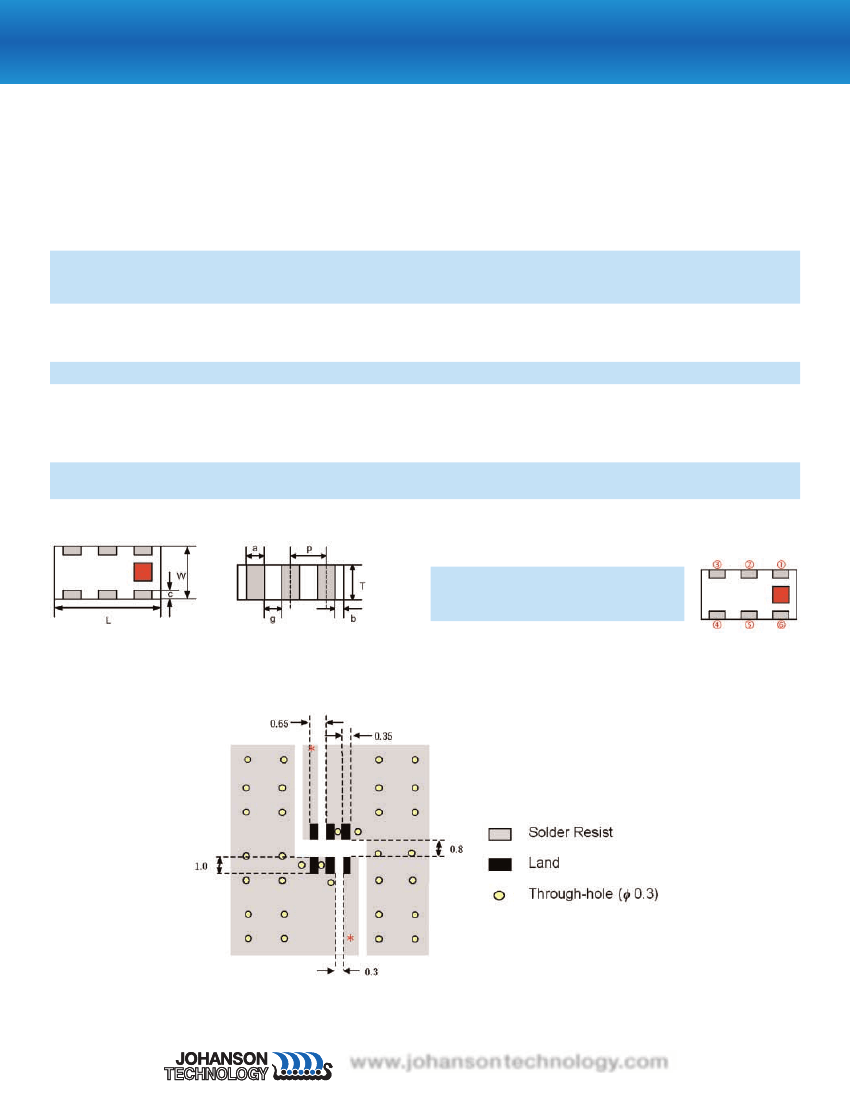

Mechanical Dimensions
L
Inches
mm
0.079 ± .004
2.0 ± 0.1
W
0.049± .004
1.25 ± 0.1
T
0.034 ± .004
0.85 ± 0.1
a
0.012 ± .004
0.30 ± 0.1
b
0.008 ± .004
0.20 ± 0.1
c
0.012 + .004/-.008
0.30+0.1/-0.2
g
0.014 ± .004
0.35 ± 0.1
p
0.026 ±.002
0.65 ± 0.05
Terminal Configuration
1
2
3
GND
GND
I/O
4
5
6
GND
GND
I/O
Mounting Considerations
Mount these devices with brown colored side facing up.
*
Line width should be designed to provide 50Ω impedance matching characteristics.
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
“High Frequency Ceramic Solutions”
5.5 GHz Band Pass Filter
Detail Specification
P/N 5515BP15B730
Rev. 01/29/2002 Page 2 of 2

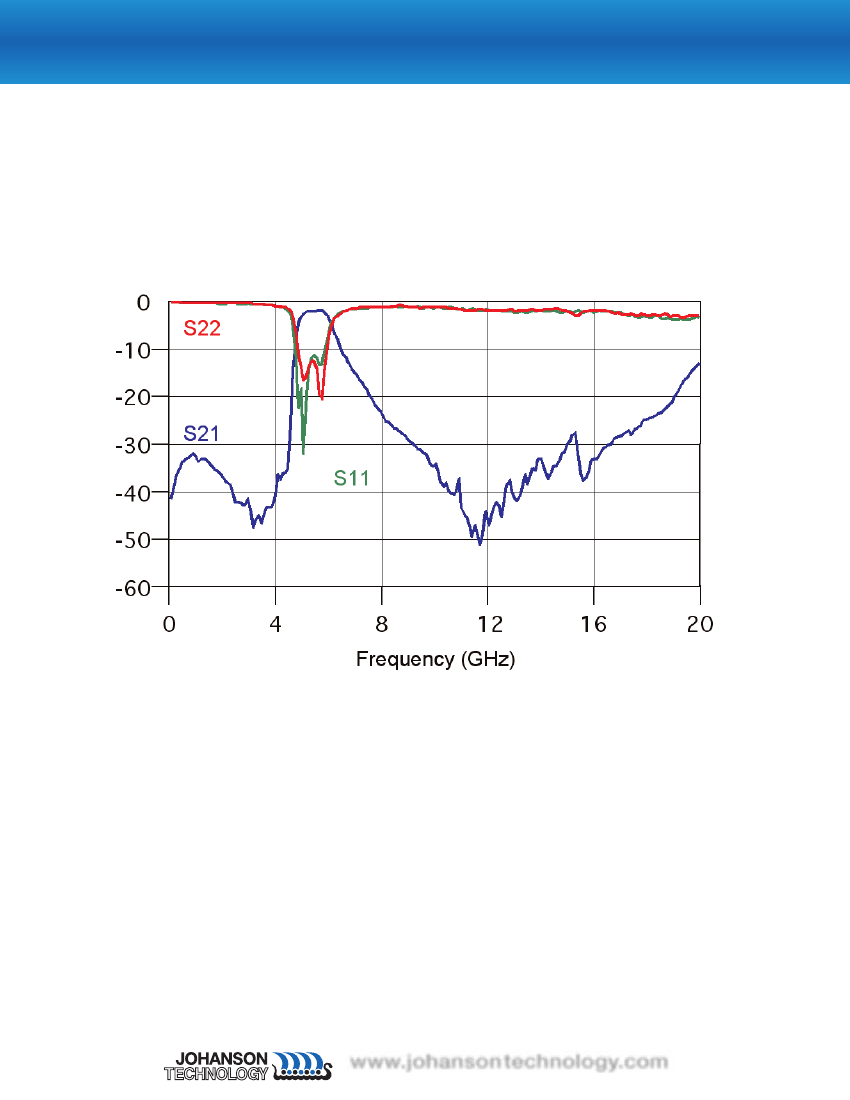

Typical Insertion Loss / Return Loss
Delivery
Packaged in embossed tape on 7” reels (3000 / reel)
Standard delivery is eight weeks or sooner ARO
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
