Preliminary
"High Frequency Ceramic Solutions"
P/N 2450DP39H5500
Page 1 of 3

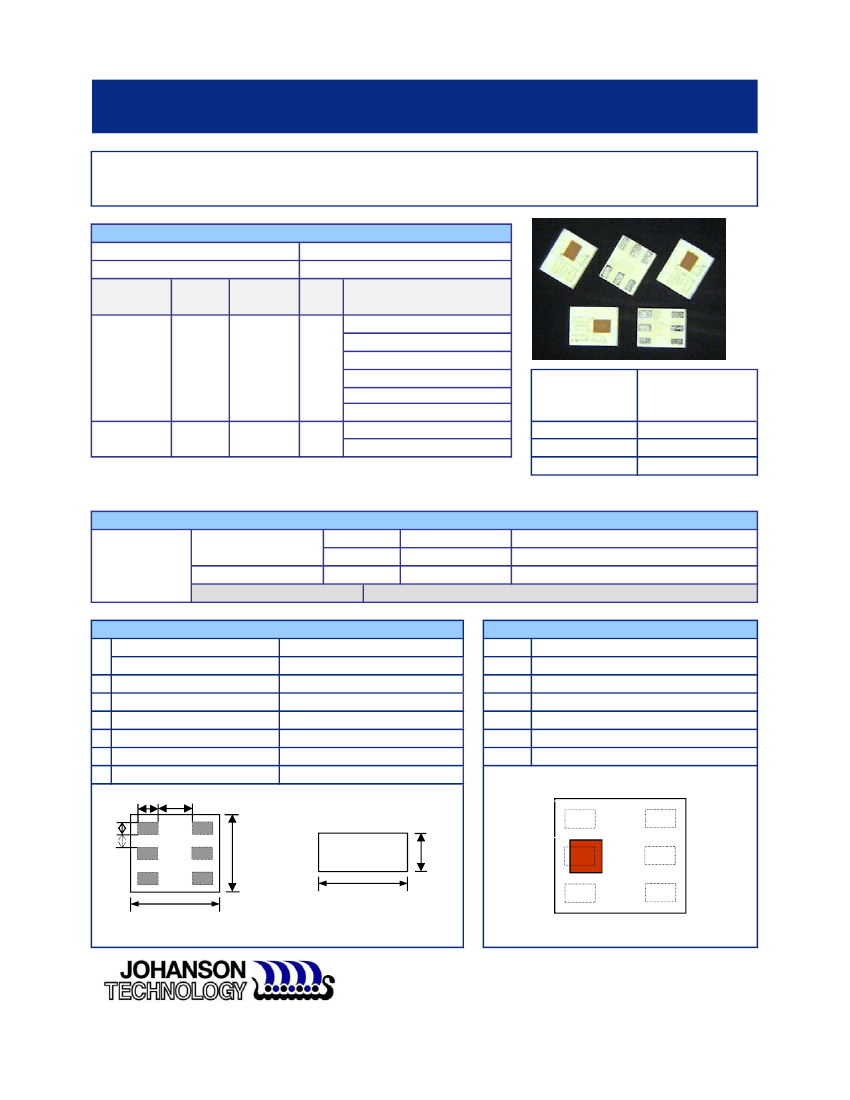

2.45 / 5.5GHz WLAN Ceramic Diplexer (BPF/BPF type)
Detail Specification:
8/2/2012
General Specifications
Part Number
Operating Temperature Range
Insertion Passband
Frequency
Loss
VSWR
Return
Loss
(min)
2450DP39G5500
-40 ~ +85 °C
Attenuation (db)
2400~2500
2.5 max.
2.0 max.
5150~5850
1.0 max. 2.0 max.
30 min. @ 824~915MHz
30 min. @ 1545~1605MHz
30 min. @ 1710~1910MHz
-9.54
22 min. @ 2170MHz
35 min. @ 4800~5000MHz
30 min. @ 7200~7500MHz
25 min. @ 2400~2500MHz
-9.54
20 min. @ 10300~11700MHz
Recommended
Storage
Conditions*
Reel Quanity
Storage Period
Power Capacity
+5 to +35 °C,
Humidity
45~75%RH
3,000
18 months max.
500mW max.
*18 months in vacuum sealed bag and 1 week cumulative after
opened.
Part Number Explanation
Packing Style
P/N Suffix
Termination style
Evaluation Board
Suffix = S
eg. 2450DP39H5500S
Bulk
Suffix = E
eg. 2450DP39H5500E
T & R
(3000pcs)
Suffix = None
eg. 2450DP39H5500(E or S)
100% Tin
2450DP39H5500-EBSMA
Terminal Configuration
No.
Function
Common Port
1
GND
2
Higher Freq. Port
3
Lower Freq. Port
4
GND
5
GND
6
Mechanical Dimensions
In
L
W
T
a
b
c
g
0.098 ± 0.008
0.079 ± 0.008
0.028
max.
0.012 ± 0.004
0.016 ± 0.004
0.024 ± 0.004 /-0.2
0.043 ± 0.006
mm
2.50 ± 0.20
2.00 ± 0.20
0.70 max.
0.30 ± 0.10
0.40 ± 0.10
0.60 ± 0.10
1.10 ± 0.15
c
a
b
d
Unit : mm
W
L
T
Bottom View
L
Side View
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2012 Johanson Technology, Inc. All Rights Reserved
Preliminary
"High Frequency Ceramic Solutions"
P/N 2450DP39H5500
Page 2 of 3
2.45 / 5.5GHz WLAN Ceramic Diplexer (BPF/BPF type)
Detail Specification: 8/2/2012

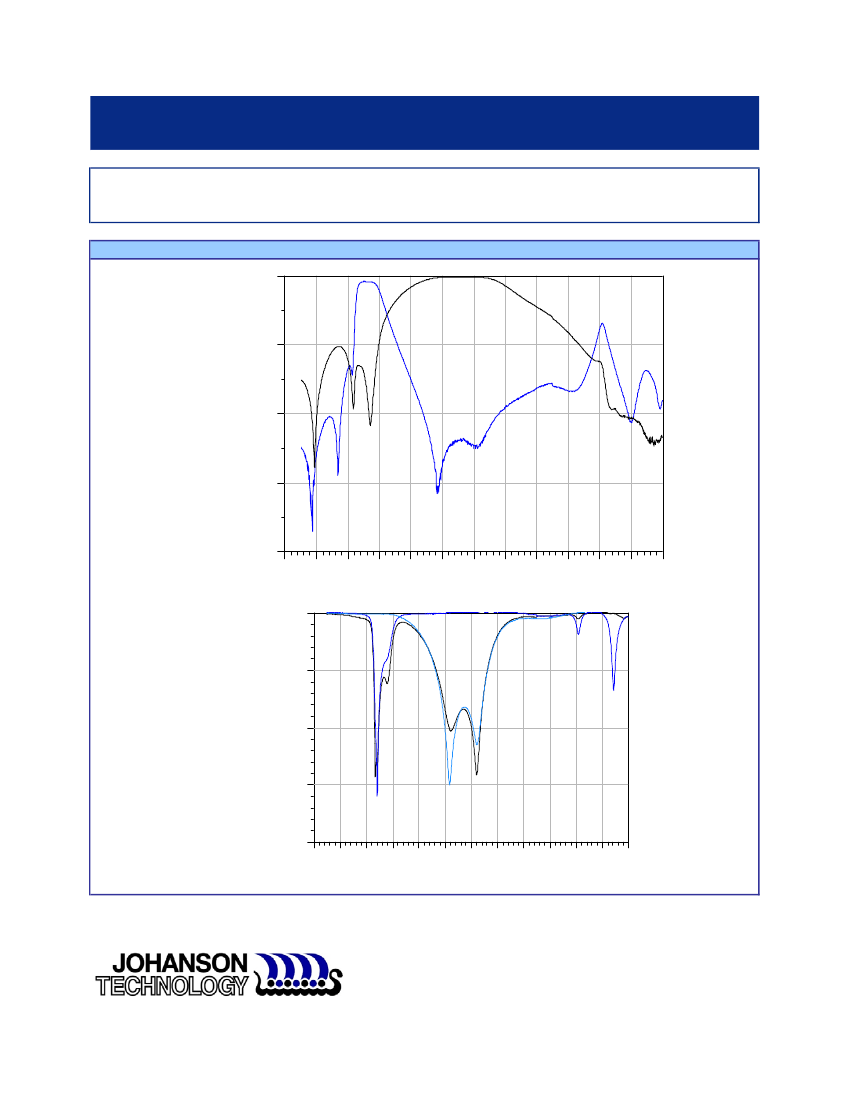

Typical Electrical Performance (T=25°C)
Attenuation
0
Loss (min)
-20
dB(S(1,3))
dB(S(1,2))
Return Loss
-40
-60
-80
0 1 2 3 4 5 6 7 8 9 10 11 12
freq, GHz
0
-10
dB(S(3,3))
dB(S(2,2))
dB(S(1,1))
-20
-30
-40
0 1 2 3 4 5 6 7 8 9 10 11 12
freq, GHz
The contents of this data sheet are subject to change without notice. Please confirm the specifications
and delivery conditions when placing your order. All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2012 Johanson Technology, Inc. All Rights Reserved
Preliminary
"High Frequency Ceramic Solutions"
P/N 2450DP39H5500
Page 3 of 3
2.45 / 5.5GHz WLAN Ceramic Diplexer (BPF/BPF type)
Detail Specification: 8/2/2012

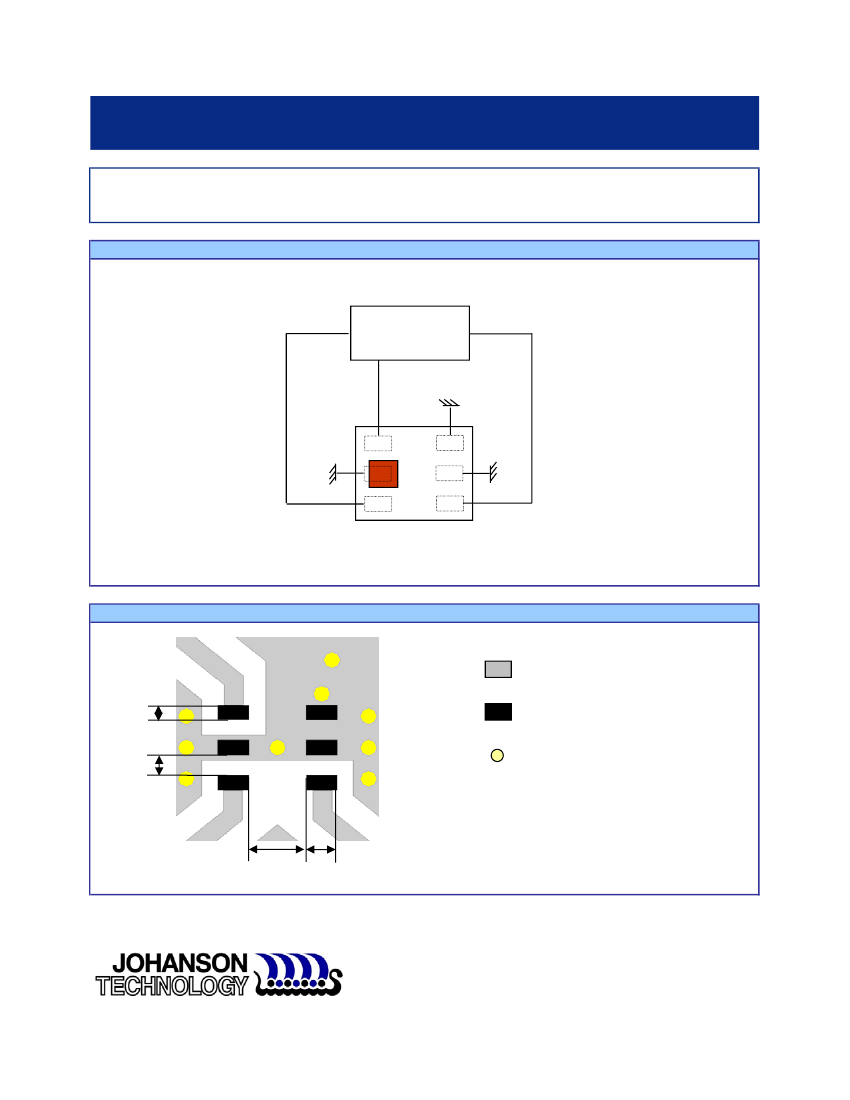

Measuring Diagram
Return Loss (min)
Port
3
(50)
Network
Analyzer
Port 1
(50)
GND
Port
2
(50)
GND
GND
Mounting Considerations
*
0.
0.
Solder Resist
Land
Through-hole ( 0.30)
*
1.1
*
0.6
*
Line width should be designed to match
50Ω characteristic impedance, depending on
PCB material and thickness.
The contents of this data sheet are subject to change without notice. Please confirm the specifications
and delivery conditions when placing your order. All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2012 Johanson Technology, Inc. All Rights Reserved
