1675330000

Description
Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size59KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

1675330000 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal,

1675330000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

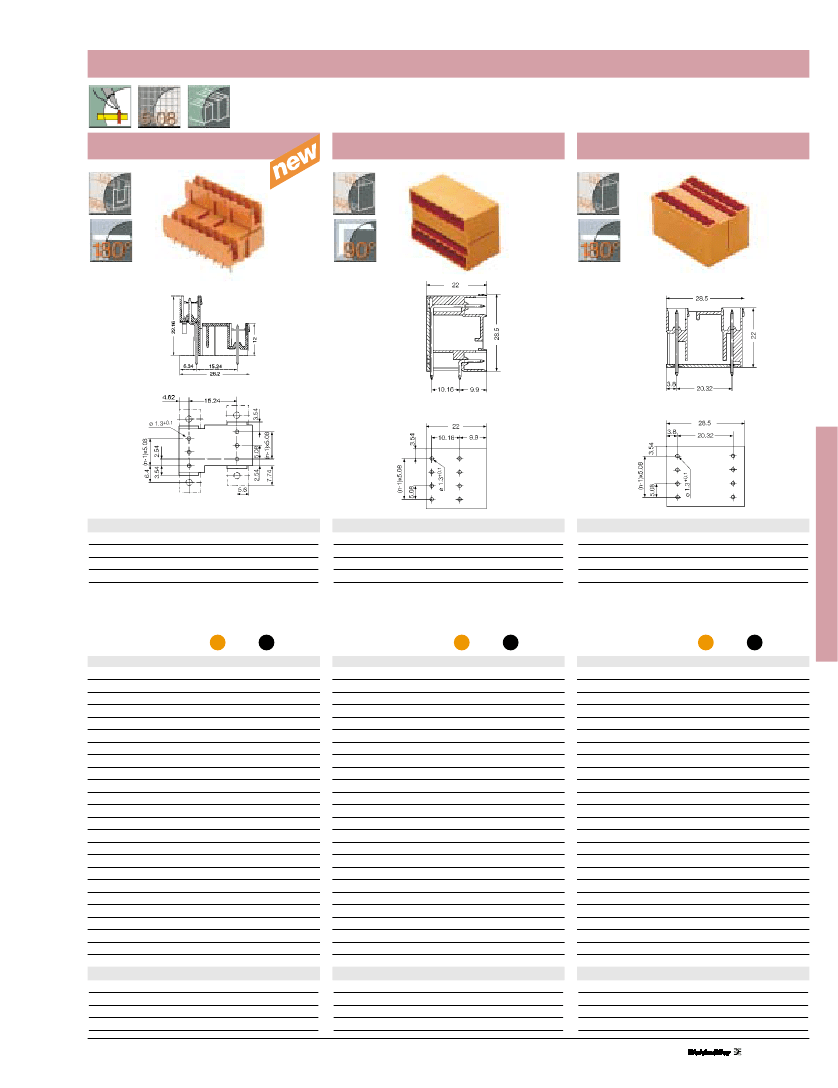

Omnimate Range - 5.08 mm Pitch
Pin headers SLD 5.08V/180B
Pin headers SLD 5.08R/90
Pin headers SLD 5.08R/180
Technical data
Rated voltage (V)
Rated current (A)
VDE
250*
7
UL
300
15
CSA
300
10
Technical data
Rated voltage (V)
Rated current (A)
VDE
250*
8
UL
300
15
CSA
300
10
Technical data
Rated voltage (V)
Rated current (A)
VDE
250*
8
UL
300
15
CSA
300
10
*Pollution severity 3 / Overvoltage category III
Additional technical data see page 217
*Pollution severity 3 / Overvoltage category III
Additional technical data see page 216
*Pollution severity 3 / Overvoltage category III
Additional technical data see page 216
Solder pin length
Color
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
3.2 mm
4.5 mm
Solder pin length
Color
4.5 mm
4.5 mm
Solder pin length
Color
4.5 mm
4.5 mm
Type
SLD 5.08V/4/180B
SLD 5.08V/6/180B
SLD 5.08V/8/180B
SLD 5.08V/10/180B
SLD 5.08V/12/180B
SLD 5.08V/14/180B
SLD 5.08V/16/180B
SLD 5.08V/18/180B
SLD 5.08V/20/180B
SLD 5.08V/22/180B
SLD 5.08V/24/180B
SLD 5.08V/26/180B
SLD 5.08V/28/180B
SLD 5.08V/30/180B
SLD 5.08V/32/180B
SLD 5.08V/34/180B
SLD 5.08V/36/180B
SLD 5.08V/38/180B
SLD 5.08V/40/180B
SLD 5.08V/42/180B
SLD 5.08V/44/180B
SLD 5.08V/46/180B
SLD 5.08V/48/180B
1726740000
1726750000
1726760000
1726770000
1726780000
1726790000
1726800000
1726810000
1726820000
1726830000
1726840000
1726850000
1726860000
1726870000
1726880000
1726890000
1726900000
1726910000
1726920000
1726930000
1726940000
1726950000
1726960000
Part No.
1726970000
1726980000
1726990000
1727000000
1727010000
1727020000
1727030000
1727040000
1727050000
1727060000
1727070000
1727080000
1727090000
1727100000
1727110000
1727120000
1727130000
1727140000
1727150000
1727160000
1727170000
1727180000
1727190000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
Type
SLD 5.08R/4/90
SLD 5.08R/6/90
SLD 5.08R/8/90
SLD 5.08R/10/90
SLD 5.08R/12/90
SLD 5.08R/14/90
SLD 5.08R/16/90
SLD 5.08R/18/90
SLD 5.08R/20/90
SLD 5.08R/22/90
SLD 5.08R/24/90
SLD 5.08R/26/90
SLD 5.08R/28/90
SLD 5.08R/30/90
SLD 5.08R/32/90
SLD 5.08R/34/90
SLD 5.08R/36/90
SLD 5.08R/38/90
SLD 5.08R/40/90
SLD 5.08R/42/90
SLD 5.08R/44/90
SLD 5.08R/46/90
SLD 5.08R/48/90
Part No.
1602020000
1602030000
1602040000
1602050000
1602060000
1602070000
1602080000
1602090000
1602100000
1602110000
1602120000
1602130000
1602140000
1602150000
1602160000
1602170000
1602180000
1602190000
1602200000
1602210000
1602220000
1602230000
1602240000
Part No.
Qty.
1711450000
50
1675320000
50
1675330000
50
1711480000
50
1711490000
50
1711500000
20
1711510000
20
1711520000
20
1711530000
20
1711540000
10
1711550000
10
1711560000
10
1711570000
10
1711580000
10
1711590000
10
1711600000
10
1711610000
10
1711620000
10
1711630000
10
1711640000
10
1711650000
10
1711660000
10
1711670000
10
Page
–
190
192, 193
–
Poles
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
Type
SLD 5.08R/4/180
SLD 5.08R/6/180
SLD 5.08R/8/180
SLD 5.08R/10/180
SLD 5.08R/12/180
SLD 5.08R/14/180
SLD 5.08R/16/180
SLD 5.08R/18/180
SLD 5.08R/20/180
SLD 5.08R/22/180
SLD 5.08R/24/180
SLD 5.08R/26/180
SLD 5.08R/28/180
SLD 5.08R/30/180
SLD 5.08R/32/180
SLD 5.08R/34/180
SLD 5.08R/36/180
SLD 5.08R/38/180
SLD 5.08R/40/180
SLD 5.08R/42/180
SLD 5.08R/44/180
SLD 5.08R/46/180
SLD 5.08R/48/180
Part No.
1602620000
1602630000
1602640000
1602650000
1602660000
1602670000
1602680000
1602690000
1602700000
1602710000
1602720000
1602730000
1602740000
1602750000
1602760000
1602770000
1602780000
1602790000
1602800000
1602810000
1602820000
1602830000
1602840000
Part No.
Qty.
1711680000
50
1711690000
50
1711700000
50
1711710000
50
1711720000
50
1711730000
20
1676730000
20
1711750000
20
1711760000
20
1711770000
10
1711780000
10
1711790000
10
1711800000
10
1711810000
10
1711820000
10
1711830000
10
1711840000
10
1711850000
10
1711860000
10
1711870000
10
1711880000
10
1711890000
10
1711900000
10
Page
–
190
192, 193
–
121
Accessories
Mounting
Marking
Coding
Miscellaneous
* See Note, page 187
Page
187*
190
193
–
Accessories
Mounting
Marking
Coding
Miscellaneous
Accessories
Mounting
Marking
Coding
Miscellaneous
Omnimate Range 5.08 mm Pitch

1675330000 Related Products

1675330000 1675320000 1676730000
Description Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code compli compli compli
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO
Installation method RIGHT ANGLE RIGHT ANGLE STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 5.08 mm 5.08 mm 5.08 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 8 6 16
UL Flammability Code 94V-0 94V-0 94V-0
Base Number Matches 1 1 1
ECCN code EAR99 EAR99 -
