1D23A-220M: DescriptionFixed Inductors Class D Inductor 22uH 9.6mOhms; CategoryPassive components; File Size263KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1D23A-220M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1D23A-220M	-	-	View	Buy Now

1D23A-220M Overview

Fixed Inductors Class D Inductor 22uH 9.6mOhms

1D23A-220M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ICE Components
Product Category	Fixed Inductors
RoHS	Details
Termination Style	Radial
Shielding	Shielded
Inductance	22 uH
Tolerance	20 %
Maximum DC Current	9.4 A
Maximum DC Resistance	9.6 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 130 C
Test Frequency	1 kHz
Termination	-
Mounting Style	PCB Mount
Length	24 mm
Width	23 mm
Height	21.2 mm
Application	Class D Audio Amplifier
Packaging	Cut Tape
Packaging	Reel
Core Material	Ferrite
Product	Fixed Inductors
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

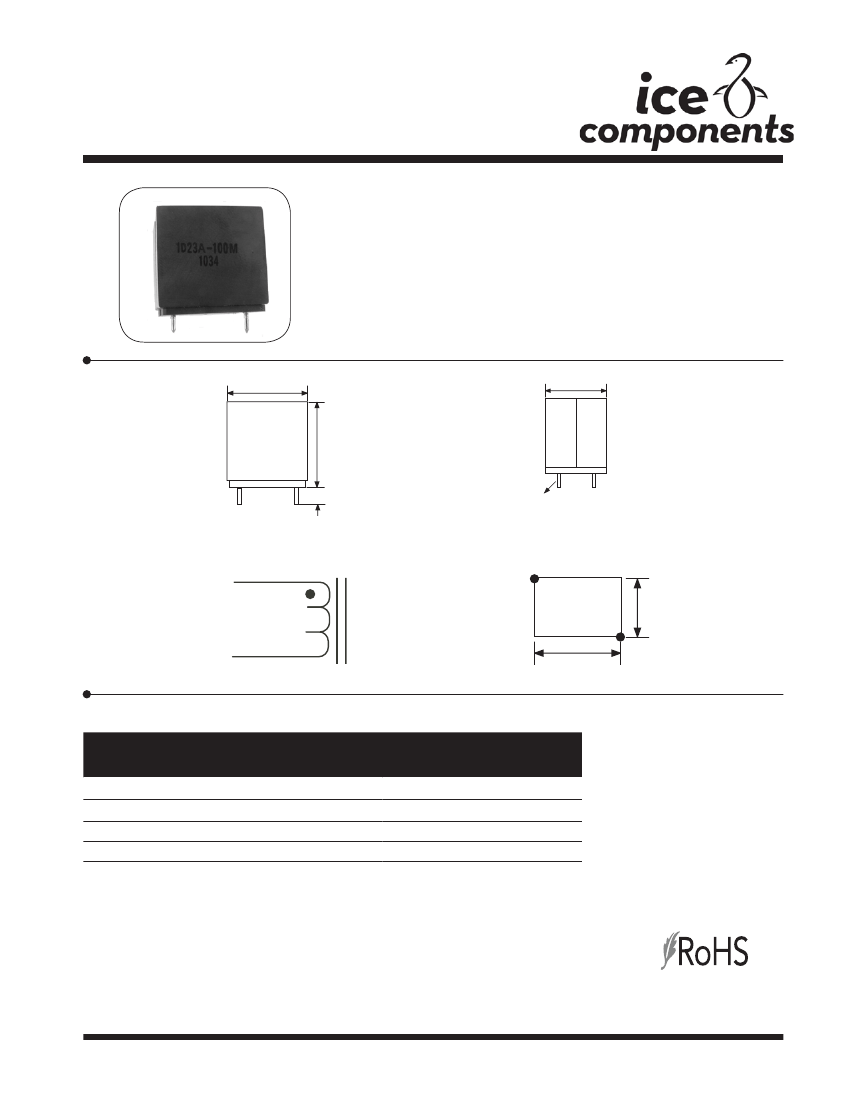

1D23A Series

Class D Inductor

Features

• Small Footprint

• Shielded Design for low EMI

• Ferrite Material Designed

for Audio Applications

Applications

• Class D Audio Amplifiers

Front

View

(23.0 typ.)

24.0 max

Side

View

23.0 max

(20.0 typ.)

21.2 max

1D23A-XXXM

YYWW

3.5 +/-0.5

dia 1.2

Schematic

S

F

Footprint

½

S

10.5

F

½

15.5

units: mm

Electrical Specifications

Part No.

1D23A-100M

1D23A-150M

1D23A-220M

1D23A-330M

Ls

1

(uH +/-20%)

DCR

(mOhms Max.)

I

sat

5

(Adc)

I

DC

4

(Adc)

10

15

22

33

9.6

37.8

23.5

18.5

10.4

9.4

Notes:

1. Tested at 100kHz, 1Vrms series.

2. Electrical specifications at 25°C.

3. Operating range: -40°C to +130°C. This is a combination of ambient plus temperature rise.

4. DC current through winding to cause a 40°C temperature rise at 25°C ambient.

5. DC current through the winding to cause a 10% drop in inductance

6. All products are RoHS-compliant.

7. Meets UL 94V-0

Specifications subject to change without notice.

800.729.2099 tel

www.icecomponents.com

(11/10) 1D23A-1
