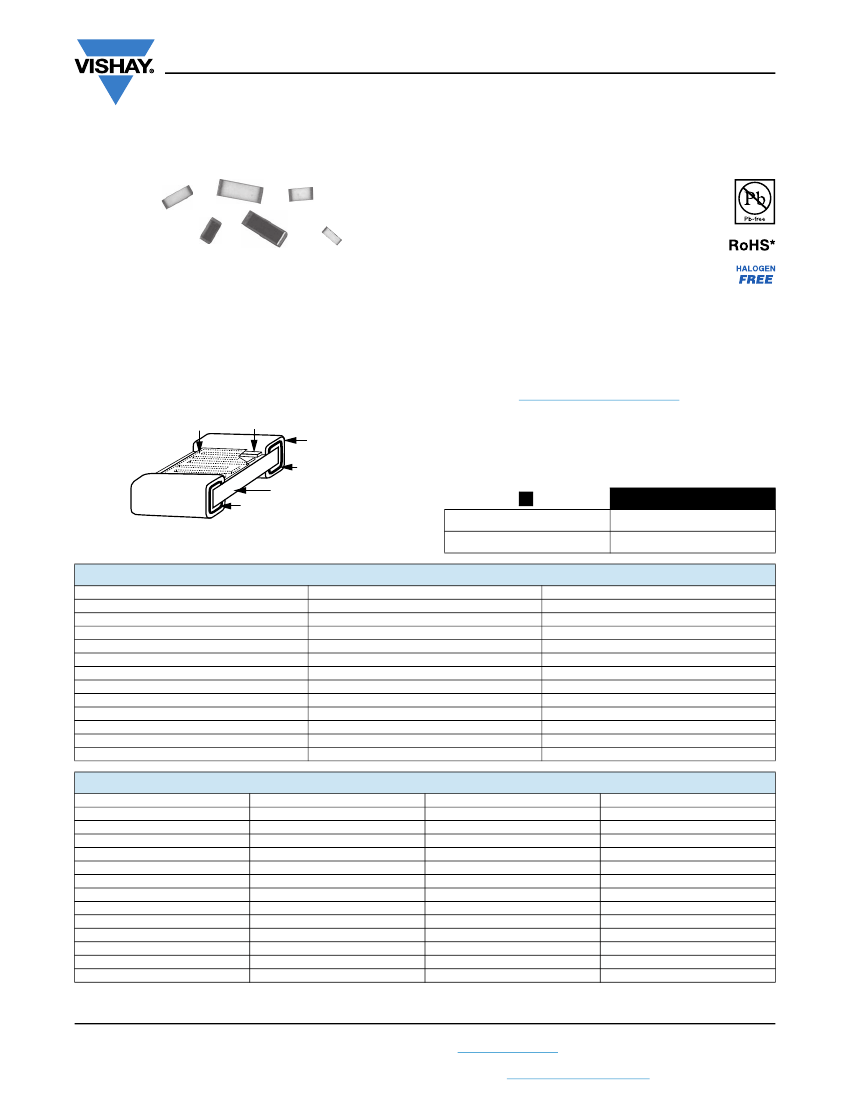

PNM
www.vishay.com
Vishay Dale Thin Film
Precision Thin Film Non-Magnetic Resistor,
Surface Mount Chip, ± 25 ppm/°C, Tolerances to 0.1 %
FEATURES
Actual
Size
1505
These devices eliminate materials that would disturb
magnetic fields applications such as in MRI magnetic
resonance imaging machines. The PNM series chip resistor
has been carefully engineered with non-magnetic materials
to eliminate the effects of these stray magnetic fields on
circuit performance, thereby resulting in simplified shielding
requirements and improved sound quality in audio
applications. Providing signal conditioning without
distortion from magnetic fields.
•
•
•
•
•
•
•
•
•
•
•
CONSTRUCTION
Passivation
Tantalum Nitride
Resistive Film
Solder
coating
Barrier layer
High Purity
Alumina
Substrate
Adhesion layer
Non-magnetic
Moisture resistant
Available
High purity alumina substrate
Non-standard values available
Available
MIL-STD-202 method 106 moisture
resistance with 10 % power
Available
100 % visual inspected per MIL-PRF-55342
Very low noise and voltage coefficient (< -30 dB)
Non-inductive
Laser-trimmed tolerances to ± 0.1 %
Wraparound resistance less than 10 m
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
0.1
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Tantalum nitride
10
to 3 M
± 25 ppm/°C to ± 100 ppm/°C
± 0.1 % to ± 1.0 %
R
± 0.03 %
-
0.1 ppm/V
75 V to 200 V
-55 °C to +155 °C
-55 °C to +155 °C
< -30 dB
-
CONDITIONS
-
-
-55 °C to +125 °C
+25 °C
-
-
-
-
-
-
-
-
COMPONENT RATINGS
CASE SIZE
(1)
0402
0502
0505
0603
0805
0705
1005
1010
1206
1505
2208
2010
2512
POWER RATING (mW)
50
100
150
150
200
200
250
500
400
400
750
800
1000
WORKING VOLTAGE (V)
75
75
75
75
100
100
100
150
200
150
150
200
200
RESISTANCE RANGE ()
20 to 35K
20 to 65K
20 to 130K
10 to 130K
10 to 301K
10 to 301K
10 to 301K
50 to 600K
10 to 1M
10 to 1M
10 to 1.75M
10 to 2M
10 to 3M
Note
(1)
0705 and 0805 are the same (only use 0805 when ordering)
Revision: 13-Sep-2018
Document Number: 60057
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PNM
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS
in inches
D
T
E
L
W
CASE SIZE
0402
0502
0505
0603
0705, 0805
(1)
1005
1010
1206
1505
2010
2208
2512
L
0.042 ± 0.008
0.055 ± 0.006
0.055 ± 0.006
0.064 ± 0.006
0.080 ± 0.006
0.105 ± 0.007
0.105 ± 0.007
0.126 ± 0.008
0.155 ± 0.007
0.209 ± 0.009
0.230 ± 0.007
0.259 ± 0.009
W
0.022 ± 0.005
0.025 ± 0.005
0.050 ± 0.005
0.032 ± 0.005
0.050 ± 0.005
0.050 ± 0.005
0.100 ± 0.005
0.063 ± 0.005
0.050 ± 0.005
0.098 ± 0.005
0.075 ± 0.005
0.124 ± 0.005
T
0.012 to 0.033
0.012 to 0.033
0.012 to 0.033
0.020 Max.
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
D
0.010 ± 0.005
0.010 ± 0.005
0.010 ± 0.005
0.012 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005/- 0.010
0.015 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
E
0.010 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005/- 0.010
0.015 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
Note
(1)
0705 and 0805 are the same (only use 0805 when ordering)
ENVIRONMENTAL TESTS
(Vishay Performance vs. MIL-PRF-55342 Requirements)
ENVIRONMENTAL TEST
Resistance Temperature Characteristic
Max. Ambient Temperature at Rated Wattage
Max. Ambient Temperature at Power Derating
Thermal Shock
Low Temperature Operation
Short Time Overload
High Temperature Exposure
Resistance to Bonding Exposure
Moisture Resistance
Life + 70 °C at 1000 hours
Insulation Resistance
R
R
R
R
R
R
R
LIMITS MIL-PRF-55342
CHARACTERISTIC “H”
± 50 ppm/°C
+70 °C
+150 °C
± 0.25 %
± 0.25 %
± 0.10 %
± 0.20 %
± 0.25 %
± 0.40 %
± 0.50 %
10 000
minimum
TYPICAL VISHAY
PERFORMANCE
± 35 ppm/°C
+70 °C
+150 °C
± 0.040 %
± 0.005 %
± 0.010 %
± 0.150 %
± 0.005 %
± 0.029 %
± 0.03 %
> 100 000 M
Revision: 13-Sep-2018
Document Number: 60057
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PNM
www.vishay.com
Vishay Dale Thin Film
DERATING CURVE
100
FILM LOAD LIFE STABILITY
(at +125 °C)
0.1 %
Maximum
Absolute
Change
0.06 %
0.05 %
0.04 %
0.03 %
0.02 %
0.01 %
0.006 %
0.005 %
0.004 %
0.003 %
0.002 %
0.001 %
200
400
600
800 1000 1200 1400 1600 1800 2000
Percent of Rated Power
80
60
40
20
0
0
70
125
155
Time in h at + 125 °C
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
P
GLOBAL
MODEL
PNM
non-
magnetic
resistor
N
CASE
SIZE
0402
0502
0505
0603
0805
1005
1010
1206
1505
2208
2010
2512
M
1
2
0
6
E
1
0
0
2
B
B
T
1
TCR
CHARACTERISTIC
E
= 25 ppm
(R > 100
)
H
= 50 ppm
(R > 50
)
K
= 100 ppm
(R > 10
)
RESISTANCE
The first 3 digits are
significant
figures
and the last digit
specifies the number
of zeros to follow.
“R” designates the
decimal point.
Example:
10R0 = 10
1000 = 100
1001 = 1 k
TOLERANCE
TERMINATION
PACKAGING
BS
= BULK
100 min., 1 mult
WS
= WAFFLE
100 min., 1 mult
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(2)
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel
TS
= 100 min., 1 mult
B
= ± 0.1 %
(1)
B
= wraparound
Sn/Pb solder
D
= ± 0.5 %
63 % Sn/ 37 % Pb
F
= ± 1 %
S
= wraparound
G
= ± 2 %
lead (Pb)-free solder
J
=±5%
96.5 % Sn/3.0 % Ag/
0.5 % Cu
RoHS compliant - e1
Notes
(1)
B = 0.1 % tolerance available only above 100
(2)
Preferred packaging code
Revision: 13-Sep-2018
Document Number: 60057
3
