Part Number:
2873002302
Frequency Range: Suppression Applications for Lower Frequencies < 50 MHz (73 material)
Description:
Application:
Where Used:
Part Type:
73 MULTI-APERTURE CORE
Suppression Components
Board Component
Multi-Aperture cores
Mechanical Specifications
Weight:
.100
(g)
Part Type Information
Multi-aperture cores are used in suppression applications and in balun (balance-unbalance) and other broadband transformers. They
are also employed in airbag designs to prevent accidental activation.
-All multi-aperture cores are supplied burnished.
-Multi-aperture cores in 73 and 43 materials are controlled for impedance only. The 61 NiZn material is controlled for both impedance
and AL value. The high frequency 67 material is controlled for AL value. Minimum impedance values are specified for the + marked
frequencies. The minimum impedance is typically the listed impedance less 20%.
-Multi-aperture cores in 73 and 43 material are measured for impedance on the 4193A Vector Impedance Analyzer. The 61 and 67 multi-aperture
cores are tested on the 4291A Impedance Analyzer. All impedance measurements are performed with a single turn to both holes, using the
shortest practical wire length.
-The 61 and 67 material multi-hole beads are tested for AL value. The test frequency is 10 kHz at < 10 gauss. The test winding is
five turns wound through both holes.
-For any multi-aperture requirement not listed here, feel free to contact our
customer service group for availability and pricing.
-Our 'Multi-Aperture Core Kit' (part number 0199000036) is available for prototype evaluation.
-Explanation of Part Numbers: Digits 1&2 = product class, 3&4 = material grade last digit 2 = burnished.
Fair-Rite Product's Catalog
Part Data Sheet, 2873002302
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

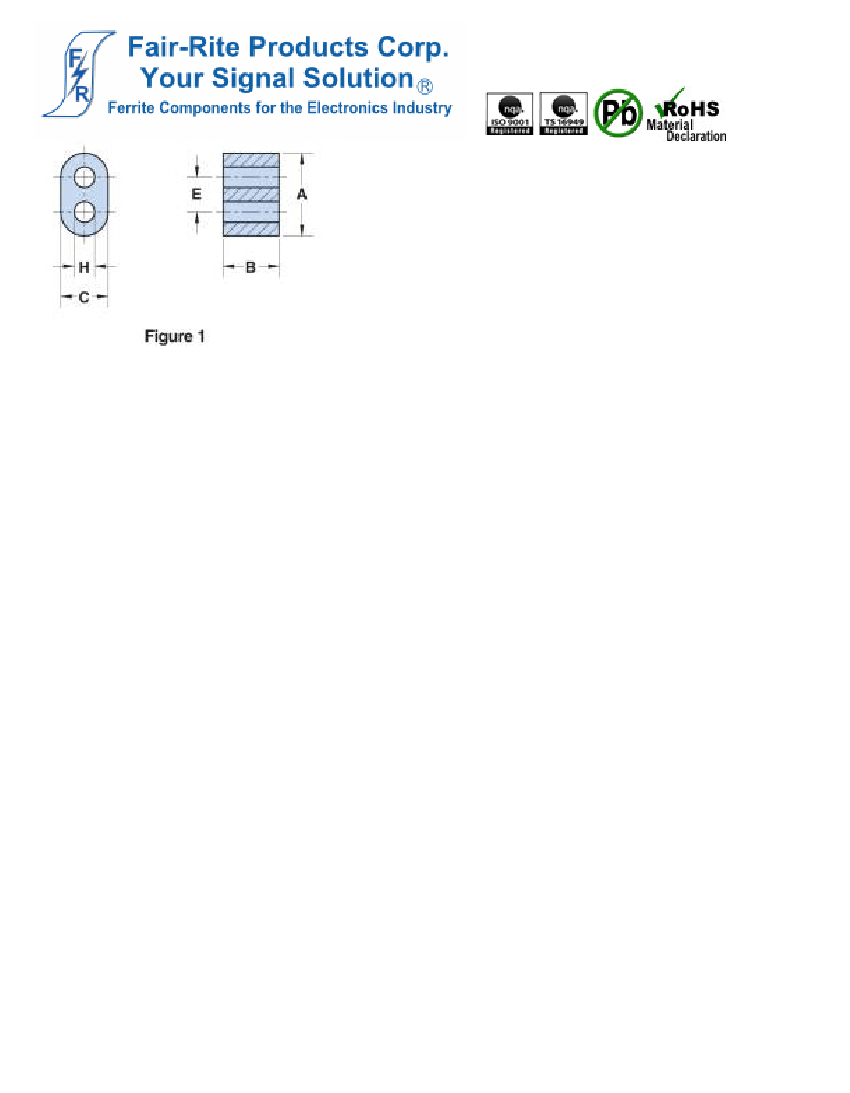

Mechanical Specifications
Dim
mm
mm
tol
A
B
C
D
E
F
G
H
J
K
3.45
2.35
2.00
-
1.45
-
-
0.75
-
-
±0.25
±0.25
±0.15
-
±0.10
-
-
+0.25
-
-
nominal inch
inch
0.136
0.093
0.079
-
0.057
-
-
0.034
-
-
misc.
-
-
-
-
-
-
-
-
-
-
Land Patterns
V
W
ref
-
-
-
-
-
-
-
-
-
-
X
Y
Z
Winding Information
Turns
Tested
-
-
Wire
Size
-
1st Wire
Length
-
2nd Wire
Length
Reel Information
Tape Width Pitch
mm
-
mm
-
Parts 7 ''
Reel
-
Parts 13 '' Parts 14 ''
Reel
-
Reel
-
Electrical Specifications

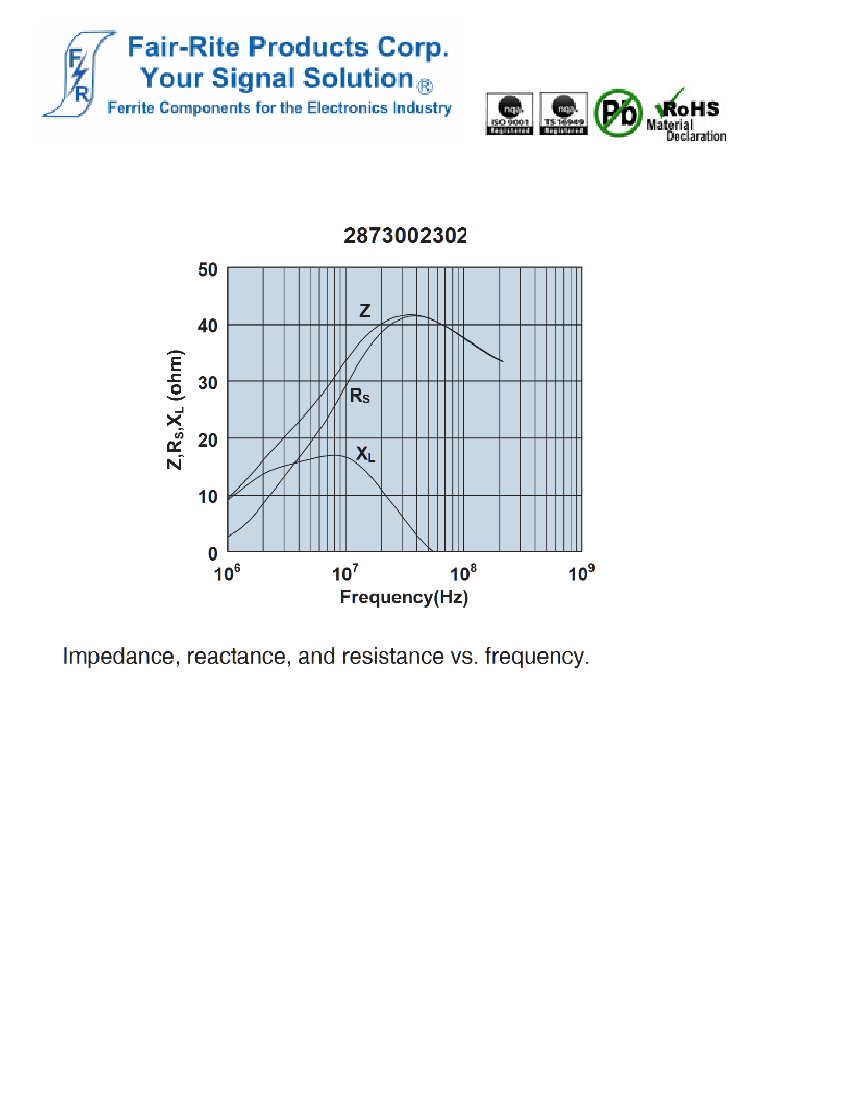

Typical Impedance ( )
10 MHz
25 MHz+
35
44
Package Size
Pkg Size
-
(-)
Electrical Properties
Connector Plate
# Holes
-
# Rows
-
Legend
+ Test frequency
Preferred parts, the suggested choice for new designs,have shorter lead times and are more readily available.
The column H(Oe) gives for each bead the calculated dc bias field in oersted for 1 turn and 1 ampere direct current. The actual dc H field in
the application is this value of H times the actual NI (ampere-turn) product. For the effect of the dc bias on the impedance of the bead material,
see figures 18-23 in the application note How to choose Ferrite Components for EMI Suppression.
A ½ turn is defined as a single pass through a hole.
l/A - Core Constant
Ae : Effective Cross-Sectional Area
L
AL - Inductance Factor
(
__ 2
)
N
N/AWG - Number of Turns/Wire Size for Test Coil
l e : Effective Path Length
Ve : Effective Core Volume
Nl - Value of dc Ampere-turns
Fair-Rite Product's Catalog
Part Data Sheet, 2873002302
Printed: 2013-07-03
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

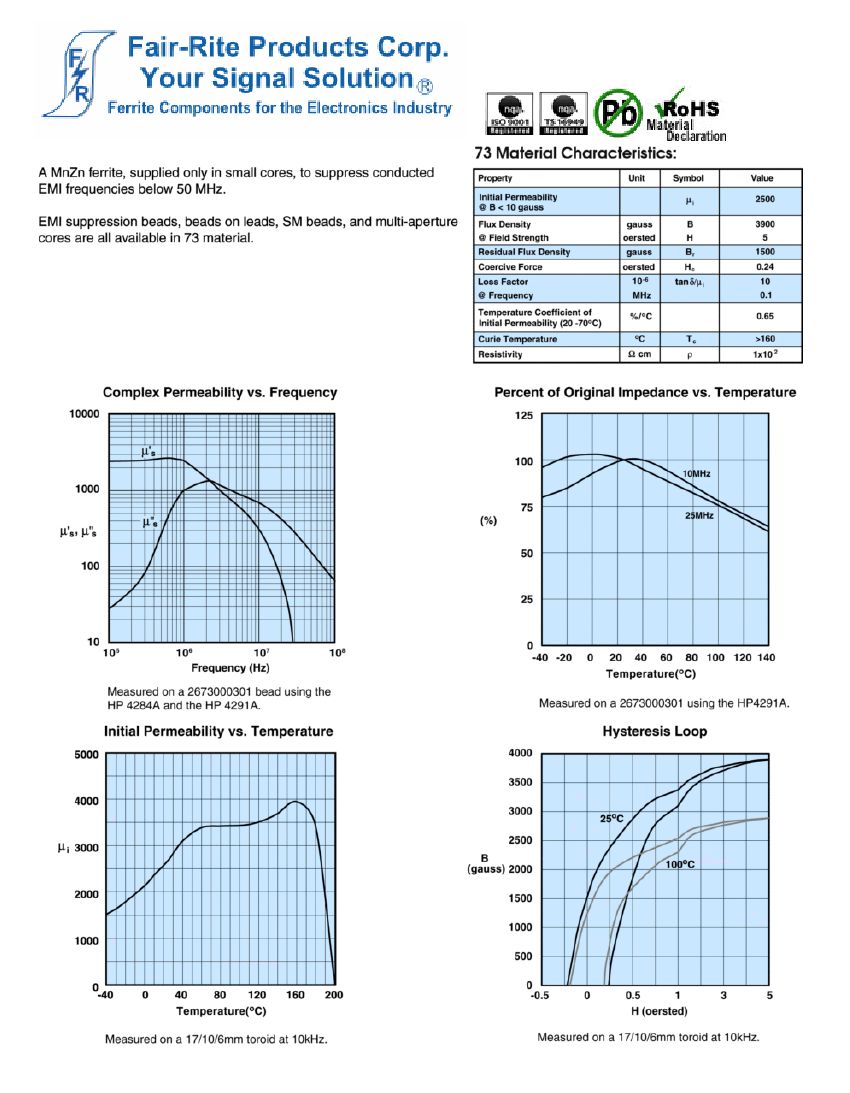

See next page for further material specifications.
