156TLS025M: DescriptionAluminum Electrolytic Capacitors - Leaded 15uF 25 Volts 20% LYTICS/IC; CategoryPassive components; File Size80KB，2 Pages; ManufacturerCornell Dubilier; Environmental Compliance

Download Datasheet Parametric Compare View All

156TLS025M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	156TLS025M	-	-	View	Buy Now

156TLS025M Overview

Aluminum Electrolytic Capacitors - Leaded 15uF 25 Volts 20% LYTICS/IC

156TLS025M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Aluminum Electrolytic Capacitors - Leaded
RoHS	Details
Termination Style	Axial
Capacitance	15 uF
Voltage Rating DC	25 VDC
Packaging	Bulk
Factory Pack Quantity	5000

Preview

Download Datasheet

View All

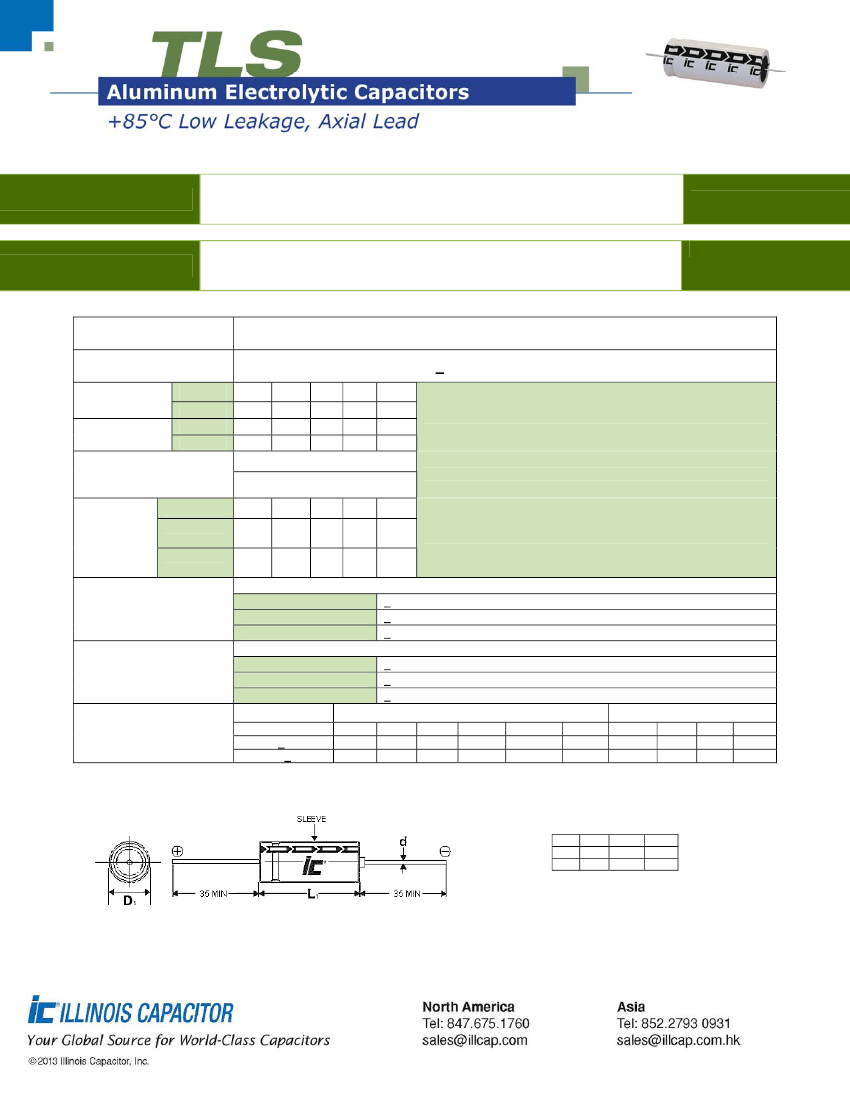

FEATURES

Small size

-

High voltage

-

General purpose

APPLICATIONS

Operating

Temperature Range

Capacitance

Tolerance

WVDC

Surge

Voltage

SVDC

Dissipation

WVDC

Tan

δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

Inverters

–

DC link

–

AC/DC motor controls

–

Solar inverters

-40°C to +85°C

+20% at 120 Hz, 20°C

10

13

10

.2

16

20

16

.16

25

32

25

.14

2 Minutes

.002CV or 0.4uA,

Whichever is greater

10

3

8

16

2

6

25

2

4

35

2

3

50

2

3

35

44

35

.12

50

63

50

.1

WVDC

-25°C to

+20°C

-40°C to

+20°C

Load Life

Shelf Life

2000 hours at 105°C with rated WVDC and ripple current applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<150% of maximum specified value

Leakage Current

>100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<20% initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

>100% of maximum specified value

Capacitance

uF

C<10

10<C<100

50

.8

120

1.0

Frequency (Hz)

400

1k

1.3

1.45

1.23

1.36

10k

1.65

1.48

50k

1.7

1.53

Temperature (°C)

+85

+70

+60

+30

1.0

1.3

1.5

1.8

1.0

1.3

1.5

1.8

Ripple Current

Multipliers

D

d

B

5

0.5

6.3

0.5

8

0.6

0.5

L

1

=L+1.0mm Max.

D

1

=D+B Max.

mm

156TLS025M Related Products
