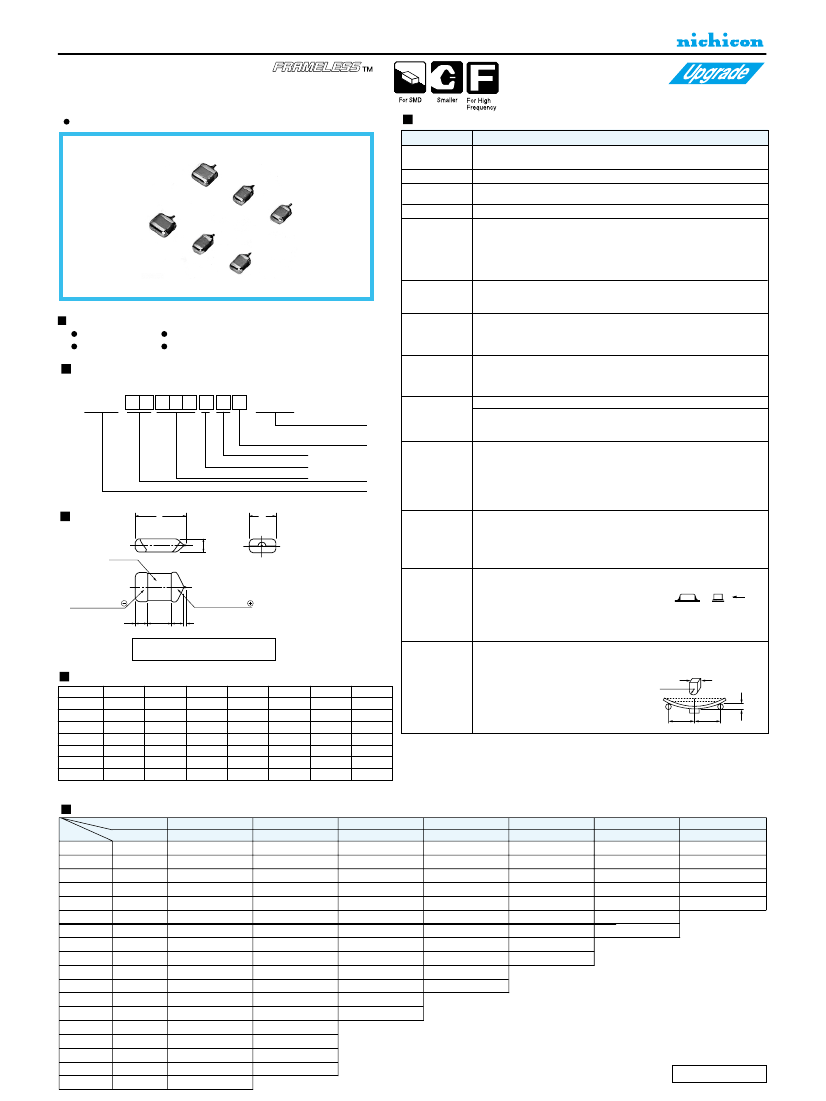

SOLID TANTALUM ELECTROLYTIC CAPACITORS
F95
Conformal coated
Chip
Compliant to the RoHS directive (2002/95/EC).
Specifications
Item
Per formance Characteristics
Category
--55 to +125˚C (Rated temperature : +85˚C)
Temperature Range
Capacitance Tolerance ± 20%, ± 10% (at 120Hz) (However R
•
P Case ± 20%)
Dissipation Factor
Refer to next page
(at 120Hz)
ESR(100kHz)
Refer to next page
Refer to next page
Provided that
•
After 1 minute's application of rated voltage, leakage current at 85˚C,
10 times or less than 20˚C specified value.
•
After 1 minute's application of rated voltage, leakage current at 125˚C,
12.5 times or less than 20˚C specified value.
+15% Max. (at +125˚C)
+10% Max. (at + 85˚C)
--10% Max. (at --55˚C)
At 40˚C, 90 to 95% R.H., For 500 hours (No voltage applied)
Capacitance Change
• • • • • •
Refer to next page (
*
1
)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • • •
Initial specified value or less
At --55˚C / +125˚C, 30 minutes each, For 5 cycles,
Capacitance Change
• • • • • •
Refer to next page (
*
1
)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • ••
Initial specified value or less
10 seconds reflow at 260˚C, 10 seconds immersion at 260˚C
Capacitance Change
• • • • • •
Refer to next page (
*
1
)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • ••
Initial specified value or less
After application of surge voltage in series with a 33
Ω
resistor at the rate of 30
seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85˚C,
capacitors shall meet the characteristic requirements table below.
Capacitance Change
• • • • • •
Refer to next page (
*
1
)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • • •
Initial specified value or less
After 2000 hours' application of rated voltage at 85˚C,
capacitors shall meet the characteristic requirements table below.
Capacitance Change
• • • • • •
Refer to next page (
*
1
)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • ••
Initial specified value or less
After applying the pressure load of 5N
for 10 ± 1 seconds horizontally to the
center of capacitor side body which has
no electrode and has been soldered
beforehand on a substrate, there shall be
found neither exfoliation
nor its sign at the terminal electrode.
Leakage Current
Capacitance Change
by Temperature
Applications
Smartphone
Tablet PC
Wireless module
e-book
Damp Heat
(Steady State)
Type numbering system (Example : 4V 330µF)
1
2
3
4
5
6
7
8
9
10
11
12 13 14
Temperature Cycles
F 9 5 0 G 3 3 7 M A
AQ 2
Single face electrode
Taping code
(Refer to page 333 for details)
Case code
Capacitance tolerance
Rated capacitance Rated voltage
Series
Resistance to
Soldering Heat
Surge
∗
Drawing
Resin
L
W
H
Endurance
∗
Solder electrode
Solder electrode
(D)
Shear Test
5N (0.51kg
•
f)
For 10
±
1 seconds
A
B
C
Single-side electrodes
(Both electrodes at bottom side only)
Dimensions
Case code
R
P
Q
S
A
T
B
L
W
2.2 ± 0.3 1.25 ± 0.3
2.2 ± 0.3 1.25 ± 0.3
3.2 ± 0.2 1.6 ± 0.2
3.2 ± 0.3 1.6 ± 0.3
3.2 ± 0.3 1.7 ± 0.3
3.5 ± 0.2 2.7 ± 0.2
3.5 ± 0.2 2.8 ± 0.2
H
0.65MAX.
1.0 ± 0.2
0.8 ± 0.2
1.0 ± 0.2
1.4 ± 0.2
1.0 ± 0.2
1.8 ± 0.2
A
0.6 ± 0.3
0.6 ± 0.3
0.8 ± 0.2
0.8 ± 0.3
0.8 ± 0.3
0.8 ± 0.2
0.8 ± 0.3
B
0.8 ± 0.3
0.8 ± 0.3
1.2 ± 0.2
1.2 ± 0.3
1.2 ± 0.3
1.2 ± 0.2
1.2 ± 0.3
C
0.5MIN
0.8 ± 0.3
0.8 ± 0.2
0.8 ± 0.3
0.8 ± 0.3
1.1 ± 0.2
1.1 ± 0.3
(mm)
(D)
(0.2)
(0.2)
(0.2)
(0.2)
(0.2)
(0.2)
(0.2)
Terminal Strength
Keeping a capacitor surface-mounted on a substrate upside
down and supporting the substrate at both of the opposite
bottom points 45mm apart from the center of capacitor,
the pressure strength is applied with
20
R230
a specified jig at the center of
substrate so that the substrate may
bend by 1mm as illustrated. Then,
there shall be found no remarkable
45
45
abnormality on the capacitor terminals.
∗
As for the surge voltage, refer to page 332 for details.
D dimension only for reference
Standard Ratings
Cap.
(
µ
F)
V
Code
4
0G
6.3
0J
10
1A
16
1C
20
1D
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
477
687
25
1E
R
R
•
P
P
•
Q
•
S
•
A
(Q)
•
(
S)
A
•
(T)
•
B
35
1V
P
•
S
A
B
P
R
•
P
R
•
P
P
P
•
Q
•
S
•
A
P
•
Q
•
S
•
A
P
•
(
Q)
•
S
•
A
•
T
•
B
B
•
A
•
T
•
B
(S)
P
•
Q
•
S
•
A
S
•
A
Q
•
S
•
A
•
T
•
B
(A)
•
T
•
B
B
S
•
A
S
•
A
•
B
B
(R)
P
•
S
•
A
P
•
B
•
Q
•
S
•
A
•
T
•
B
(P)
(P)
•
(S)
•
A
•
T
•
B
(P)
•
(A)
•
(T)
•
B
(T)
R
(R)
•
P
P
P
•
Q
•
S
•
A
•
T
•
B
P
B
•
(A)
•
(T)
•
B
(S)
B
(B)
( ) The series in parentheses are being developed.
Please contact to your local Nichicon sales office when
these series are being designed in your application.
CAT.8100B
