PM3316S-150M-RC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> PM3316S-150M-RC

Preview

PM3316S-150M-RC: DescriptionFixed Inductors 15uH 20%; CategoryPassive components inductor; File Size303KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM3316S-150M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM3316S-150M-RC	-	-	View	Buy Now

PM3316S-150M-RC Overview

Fixed Inductors 15uH 20%

PM3316S-150M-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	5039
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	5039
structure	Rectangular
core material	FERRITE
DC Resistance	0.085 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	5.2 mm
Package length	12.7 mm
Package form	SMT
Package width	10 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	1.7 A
self resonant frequency	20 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Copper/Nickel/Tin (Cu/Ni/Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

PL

IA

NT

Features

OM

n

Formerly model

n

Available in E12 series

n

Unit height of 5.2 mm

n

Current up to 4.5 A

n

RoHS compliant*

F

RE

E

Applications

n

Input/output of DC/DC converters

n

Power supplies for:

*R

oH

S

C

• Portable communication equipment

• Camcorders

• LCD TVs

LE

AD

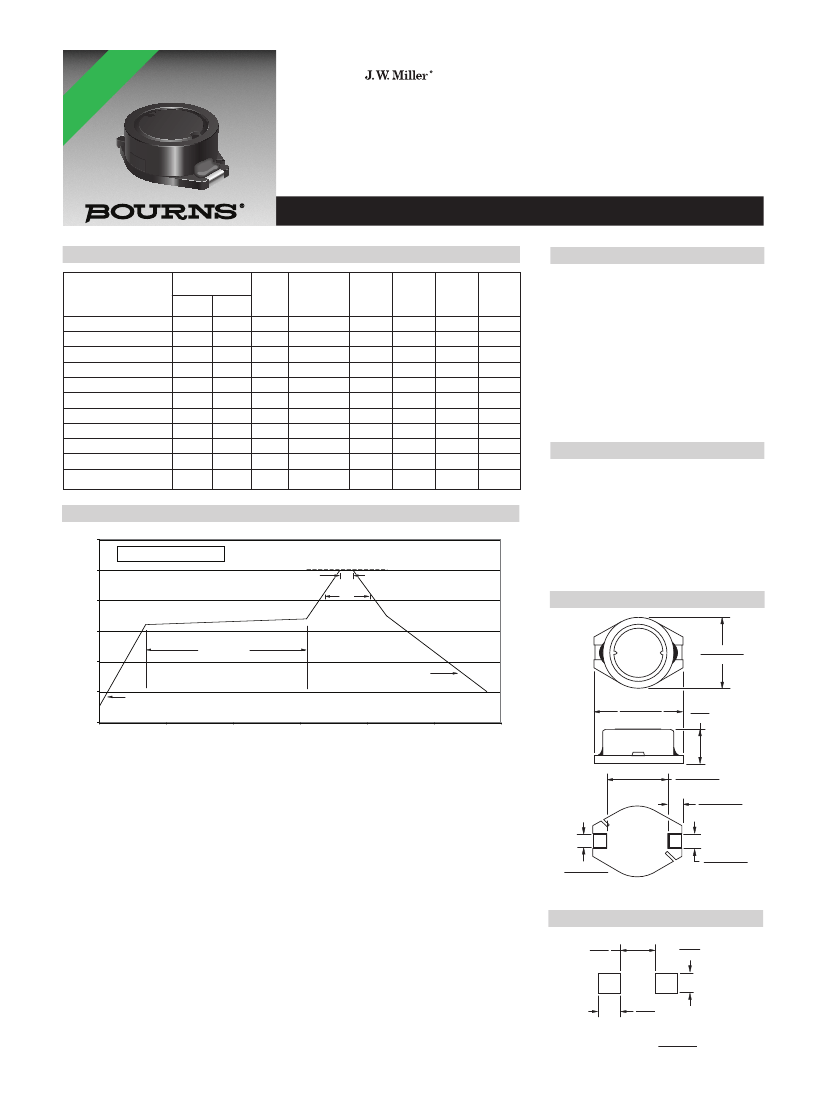

PM3316S Series - Shielded Power Inductors

Test

Frequency

(MHz)

7.96M

2.52M

SRF

Min.

(MHz)

120

100

90.0

75.0

50.0

35.0

30.0

20.0

18.0

15.0

12.0

Irms

Max.

(A)

4.50

3.60

3.10

3.30

2.50

2.20

2.00

1.70

1.40

1.20

1.00

Isat

Typ.

(A)

8.00

7.00

6.10

3.90

3.80

2.80

3.00

2.10

1.90

1.56

1.30

Electrical Specifications

Inductance 1 kHz

Bourns Part No.

PM3316S-1R0M-RC

PM3316S-1R5M-RC

PM3316S-2R2M-RC

PM3316S-3R3M-RC

PM3316S-4R7M-RC

PM3316S-6R8M-RC

PM3316S-100M-RC

PM3316S-150M-RC

PM3316S-220M-RC

PM3316S-330M-RC

PM3316S-470M-RC

(µH)

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

Tol. %

± 20

Q

Ref.

25

22

48

40

42

40

35

RDC

(Ω)

0.017

0.020

0.027

0.039

0.040

0.075

0.065

0.085

0.100

0.160

0.190

Test Voltage .......................................1 V

Reflow soldering .... 250 °C; 10 sec max.

(In compliance with JEDEC,

J-STD-020C, Table 4-2)

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

.......................... 250 °C, 10 sec. max.

Moisture Sensitivity Level .....................2

ESD Classification (HBM)................. N/A

Core ....................Ferrite DR and RI core

Wire ............................Enameled copper

Base ................................................DAP

Terminal ....................................Cu/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temp. Rise.......40 °C max. at rated Irms

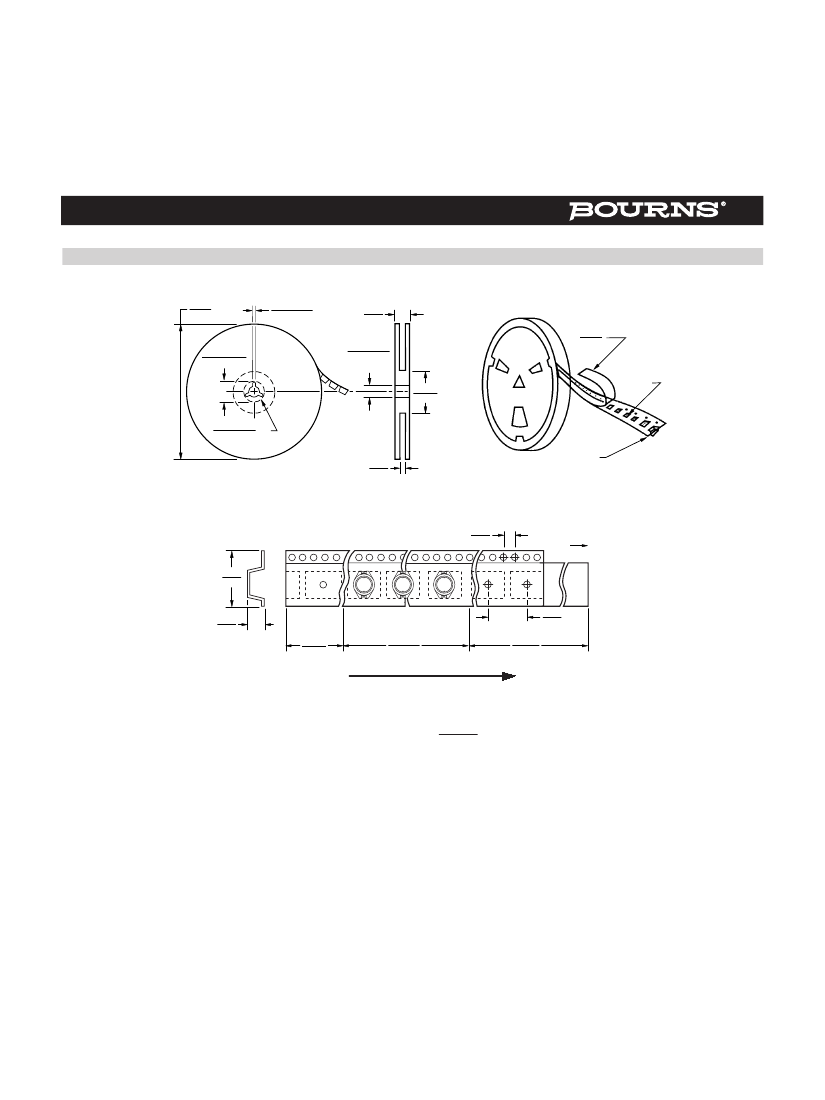

Packaging .................... 500 pcs. per reel

Product Dimensions

Materials

General Specifications

Soldering Profile

300

Solder Profile for Models SDR1005, SDR1806, SDR2207, SRR0804,

SRR0805, SRR1003, SRR1005, SRR1806, and SRR6603 (02/06)

<1> Max. of 10 seconds at 250 °C

<2> Max. of 30 seconds > 220 °C

250

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

NT

*

250 °C

<1>

<2>

200

Temperature (°C)

150

101

120 - 150 seconds

100

Ramp-down

5 °C/second maximum

10.0 ± 0.2

(.393 ± .008)

50

Ramp-up

4 °/second maximum

0

50

100

150

Time

(seconds)

200

250

300

12.7 ± 0.1

(.500 ± .004)

5.2

MAX.

(.205)

7.6 ± 0.3

TYP.

(.299 ± .012)

2.4 ± 0.2

(.094 ± .008)

TYP.

1.95 ± 0.1

(.077 ± .003)

TYP.

2.2 ± 0.2

(.087 ± .008)

TYP.

Recommended Layout

7.3

(.287)

2.8

(.110)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device

performance may vary over time.

Users should verify actual device performance in their specific applications.

3.0

(.118)

MM

DIMENSIONS:

(INCHES)

PM3316S-150M-RC Related Products

	PM3316S-150M-RC	PM3316S-100M-RC	PM3316S-4R7M-RC	PM3316S-1R0M-RC
Description	Fixed Inductors 15uH 20%	Fixed Inductors 10uH 20%	Fixed Inductors 4.7uH 20%	Fixed Inductors 1.0uH 20%
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Bourns	Bourns	Bourns	Bourns
package instruction	5039	5039	5039	5039
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	12 weeks	12 weeks	12 weeks
uppercase and lowercase codes	5039	5039	5039	5039
structure	Rectangular	Rectangular	Rectangular	Rectangular
core material	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.085 Ω	0.065 Ω	0.04 Ω	0.017 Ω
Nominal inductance(L)	15 µH	10 µH	4.7 µH	1 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2	e2	e2	e2
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package height	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Package length	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Package form	SMT	SMT	SMT	SMT
Package width	10 mm	10 mm	10 mm	10 mm
method of packing	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH
Maximum rated current	1.7 A	2 A	2.5 A	4.5 A
self resonant frequency	20 MHz	30 MHz	50 MHz	120 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
surface mount	YES	YES	YES	YES
Terminal surface	Copper/Nickel/Tin (Cu/Ni/Sn)	Copper/Nickel/Tin (Cu/Ni/Sn)	Copper/Nickel/Tin (Cu/Ni/Sn)	Copper/Nickel/Tin (Cu/Ni/Sn)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	20%	20%	20%	20%
