EMVH101ATR101MLH0S

Description
Aluminum Electrolytic Capacitors - SMD 100uF 100Volts 0.2
CategoryPassive components
File Size427KB,2 Pages
ManufacturerUnited Chemi-Con (UCC)
Environmental Compliance
Download Datasheet Parametric View All

EMVH101ATR101MLH0S Online Shopping

Suppliers Part Number Price MOQ In stock
EMVH101ATR101MLH0S - - View Buy Now

EMVH101ATR101MLH0S Overview

Aluminum Electrolytic Capacitors - SMD 100uF 100Volts 0.2

EMVH101ATR101MLH0S Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerUnited Chemi-Con (UCC)
Product CategoryAluminum Electrolytic Capacitors - SMD
RoHSDetails
Capacitance100 uF
Voltage Rating DC100 VDC
Tolerance20 %
ESR240 mOhms
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 125 C
Diameter16 mm
Length16.5 mm
Life2000 Hour
Ripple Current650 mA
QualificationAEC-Q200
PackagingTray
ProductAluminum Electrolytic Capacitors
Termination StyleSMD/SMT
Leakage Current4 uA
Dissipation Factor DF0.1
Factory Pack Quantity400

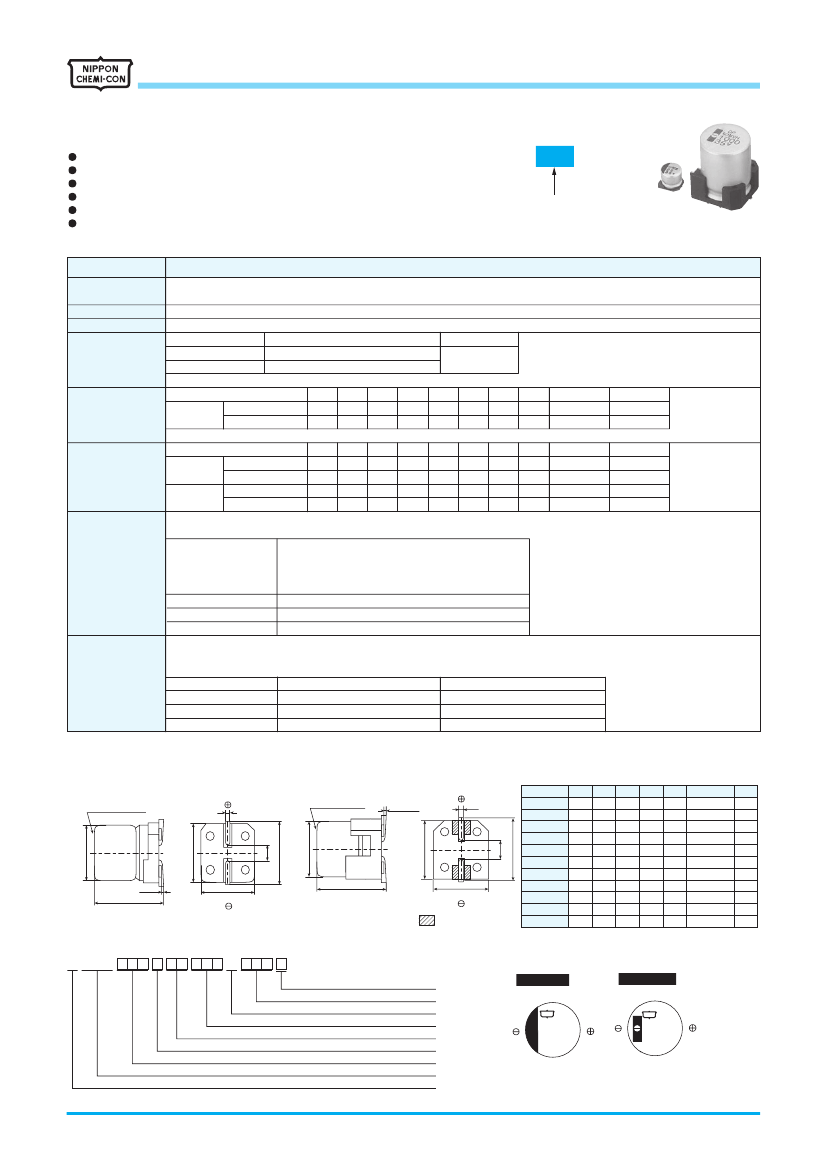

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
AIchip
TM
High heat resistance, 125℃
-
・Lower
ESR, Higher ripple current
・Endurance
: 1,000 to 5,000 hours at 125℃
・Suitable
to fit for automotive equipment
・Solvent
resistant type except 63 to 450V
dc
(see PRECAUTIONS AND GUIDELINES)
・Vibration
resistant structure
・RoHS
Compliant
MVH
Series
MVH
125℃
MVE P70
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to +125℃
10 to 450V
dc
±
20% (M)
(at 20℃, 120Hz)
10 to 100V
dc
Rated voltage (V
dc
)
160 to 450V
dc
F60 to JA0
I=0.01CV or 3µA, whichever is greater.
I=0.04CV+100
KE0 to MN0
I=0.03CV or 4µA, whichever is greater.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃ after 2 minutes)
Rated voltage (V
dc
)
10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 400 & 450V
0.24 0.20 0.16 0.14 0.14 0.12 0.12 0.10
-
-
F60 to JA0
tan (Max.)
δ
0.22 0.18 0.16 0.14 0.12 0.14
0.10
-
0.20
0.24
KE0 to MN0
When nominal capacitance exceeds 1,000µF, add 0.02 to the value above for each 1,000µF increase.
(at 20℃, 120Hz)
Rated voltage (V
dc
)
10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 400 & 450V
Z(-25℃)/Z(+20℃) 3
2
2
2
2
2
2
2
-
-
F60 to JA0
Z(-40℃)/Z(+20℃) 6
3
3
3
4
4
3
3
-
-
Z(-25℃)/Z(+20℃) 4
2
2
2
2
3
2
-
3
6
KE0 to MN0
Z(-40℃)/Z(+20℃) 8
3
3
3
4
6
3
(at 120Hz)
-
6
10
The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for the specified
time at 125℃.
F60 to H63 (10 to 100V
dc
) : 1,000hours
HA0 to JA0 (10 to 100V
dc
) : 2,000hours
Time
KE0 to MN0 (10 to 100V
dc
) : 5,000hours
KE0 to MN0 (160 to 450V
dc
) : 2,000hours
Capacitance change
≦±30%
of the initial value
D.F. (tan
δ
)
≦300%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours (500 hours
for 400 to 450V
dc
) at 125℃ without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
Rated voltage(V
dc
)
10 to 50V
dc
63 to 450V
dc
Capacitance change
≦±30%
of the initial value
≦±30%
of the initial value
D.F. (tan )
δ
≦300%
of the initial specified value
≦300%
of the initial specified value
Leakage current
≦The
initial specified value
≦500%
of the initial specified value
Characteristics
Dissipation Factor
δ
(tan )
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
◆DIMENSIONS
[mm]
Code : A
Size code : F60 to MN0
Vent
(Except F60 to HA0)
φD±0.5
B±0.2
W
φD±0.5
P
C±0.2
Terminal
Terminal
Code : G(Vibration resistant structure)
Size code : HA0 to MN0
Size code
Vent
(Except HA0)
0.3max.
W
F60
F80
H63
HA0
JA0
KE0
KG5
LH0
LN0
MH0
MN0
0.3max.
L±0.5 (Note)
A±0.2
L±0.5
A±0.2
Note : L±0.3 for F60 and F80
: Dummy terminals
D
6.3
6.3
8
8
10
12.5
12.5
16
16
18
18
L
5.7
7.7
6.3
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
A
6.6
6.6
8.3
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
B
6.6
6.6
8.3
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
C
7.2
7.2
9.0
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
1.0 to 1.3
P
1.9
1.9
2.3
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
◆PART
NUMBERING SYSTEM
E MV H
AAA A AA AAA
M
AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7µF:4R7,10µF:100)
Taping·Tray code
Terminal code (A, G)
Voltage code (ex. 10V:100,50V:500, 100V: 101)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
B±0.2
P
C±0.2
◆MARKING
F60 to JA0
EX) 35V47µF
74H
KE0 to MN0
EX) 16V1,000µF
47
35V
1000
16V
0V
MVH
Please refer to "Product code guide (surface mount type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
94
CAT. No. E1001N
