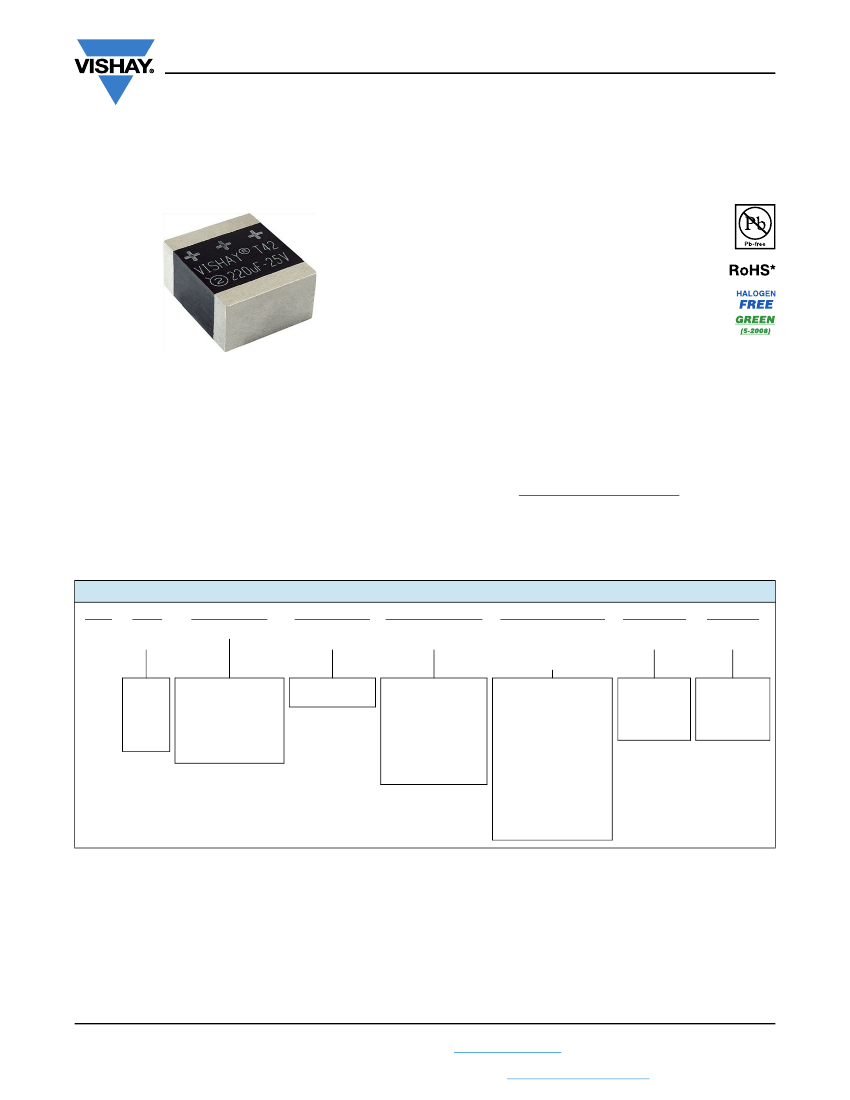

T42
www.vishay.com
Vishay
Solid Tantalum Surface-Mount Capacitors
T
ANTAMOUNT
™, Low ESR, Hi-Rel COTS, Built-in-Fuse,
Leadframeless Molded
FEATURES
• Individually fused multiple anode construction
ensures fail-safe operation and graceful
Available
degradation in the event of failure
• High-reliability
design
with
reliability
Available
screening available
• Surge current testing per MIL-PRF-55365
options available
Available
• Ultra-low ESR
• Fuse characteristics: guaranteed fuse protection at 5 A,
10 ms
• Fuse characteristics are optimized to ensure activation to
protect against catastrophic failures while avoiding false
triggering
• Terminations: wraparound Sn / Pb, standard. 100 % tin
available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
PERFORMANCE CHARACTERISTICS
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance:
10 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
16 V
DC
to 75 V
DC
ORDERING INFORMATION
T42
TYPE
M2
CASE
CODE
227
CAPACITANCE
M
CAPACITANCE
TOLERANCE
025
DC VOLTAGE
RATING AT +85 °C
E
TERMINATION /
PACKAGING
(available options are
series dependent)
E = Sn / Pb solder /
7" (178 mm) reel
L = Sn / Pb solder /
7" (178 mm), 1/2 reel
C = 100 % tin /
7" (178 mm), reel
H = 100 % tin /
7" (178 mm), 1/2 reel
U = 100 % tin /
7" (178 mm), partial
reel (100 pcs/reel)
R = Sn / Pb
7" (178 mm), partial
reel (100 pcs/reel)
S
RELIABILITY
LEVEL
A
SURGE
CURRENT
See
Ratings
and
Case
Codes
table
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros
to follow.
K = ± 10 %
M = ± 20 %
This is expressed
in volts. To
complete the
three-digit block,
zeros precede the
voltage rating.
A decimal point is
indicated by an “R”
(6R3 = 6.3 V)
S = 40 h
burn-in
Z = non-
established
reliability
A = 10 cycles
at +25 °C
B = 10 cycles
at -55 °C /
+85 °C
Note
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting.
Revision: 11-May-16
Document Number: 40165
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T42
www.vishay.com
Vishay
DIMENSIONS
in inches [millimeters]
Anode termination
W
H
Anode polarity bar
Cathode termination
P1
P2
P1
L
CASE CODE
M2
L
0.319 ± 0.008
[8.1 ± 0.2]
W
0.276 ± 0.008
[7.0 ± 0.2]
H
0.177 max.
[4.5 max.]
P1
0.055 ± 0.019
[1.4 ± 0.5]
P2 (REF.)
0.208
[5.3]
RATINGS AND CASE CODES
μF
10
15
22
33
47
68
100
150
220
330
470
M2
(1)
M2
(1)
M2
(1)
M2
M2
(1)
M2
(1)
M2
(1)
M2
(1)
M2
(1)
M2
(1)
16 V
20 V
25 V
35 V
50 V
63 V
75 V
M2
(1)
Note
(1)
Rating in development, contact factory for availability
MARKING
+ + +
VISHAY T42
2
220μF-25V
Vishay
marking
®
Polarity
Family
Revision: 11-May-16
Document Number: 40165
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T42
www.vishay.com
Vishay
MAX. ESR
AT +25 °C
100 kHz (m)
200
200
180
200
200
200
200
250
500
350
600
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.6
0.6
0.7
0.6
0.6
0.6
0.6
0.6
0.4
0.5
0.4
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
MAX. DCL
AT +25 °C (μA)
MAX. DF
AT +25 °C (%)
16 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
470
330
150
220
47
68
100
33
15
22
10
M2
(1)
T42M2477(1)016(2)(3)(4)
T42M2337(1)020(2)(3)(4)
T42M2157(1)025(2)(3)(4)
T42M2227M025(2)(3)(4)
T42M2476(1)035(2)(3)(4)
T42M2686(1)035(2)(3)(4)
T42M2107(1)035(2)(3)(4)
T42M2336(1)050(2)(3)(4)
T42M2156(1)063(2)(3)(4)
T42M2226(1)063(2)(3)(4)
T42M2106(1)075(2)(3)(4)
75.2
66.0
37.5
55.0
16.5
23.8
35.0
16.5
9.5
13.9
7.5
20
18
12
15
10
10
12
10
8
10
8
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
M2
(1)
M2
(1)
M2
M2
(1)
M2
M2
M2
(1)
(1)
25 V
DC
AT +85 °C; 17 V
DC
AT +125 °C
35 V
DC
AT +85 °C; 23 V
DC
AT +125 °C
50 V
DC
AT +85 °C; 33 V
DC
AT +125 °C
(1)
63 V
DC
AT +85 °C; 42 V
DC
AT +125 °C
M2
(1)
M2
(1)
75 V
DC
AT +85 °C; 50 V
DC
AT +125 °C
M2
(1)
Notes
• Part number definitions:
(1) Capacitance tolerance: K = 10 %, M = 20 %
(2) Termination and packaging: C, E, H, L, U, R
(3) Reliability level: S, Z
(4) Surge current: A, B
(1)
Rating in development, contact factory for availability
RECOMMENDED VOLTAGE DERATING GUIDELINES
(for temperatures below +85 °C)
STANDARD CONDITIONS. FOR EXAMPLE: OUTPUT FILTERS
Capacitor Voltage Rating
16
20
25
35
50
63
75
SEVERE CONDITIONS. FOR EXAMPLE: INPUT FILTERS
Capacitor Voltage Rating
16
20
25
35
50
63
75
Operating Voltage
8.0
10
12
15
24
32
37
Operating Voltage
10
12
15
24
28
37.8
45
Revision: 11-May-16
Document Number: 40165
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T42
www.vishay.com
Vishay
TAPE WIDTH W
(mm)
16
CARRIER TAPE DIMENSIONS
in inches [millimeters]
TYPE
T42
CASE CODE
M2
P
1
0.476 ± 0.004
[12.0 ± 0.1]
K
0 max.
0.193
[4.9]
B
1 max.
0.193
[8.6]
STANDARD PACKAGING QUANTITY
CASE CODE
M2
QUANTITY (PCS/REEL)
7" REEL
320
7" HALF REEL
160
7" PARTIAL REEL
100
POWER DISSIPATION
CASE CODE
M2
MAXIMUM PERMISSIBLE POWER DISSIPATION (W) AT +25 °C IN FREE AIR
0.084
ELECTRICAL PERFORMANCE CHARACTERISTICS
ITEM
Category temperature range
Capacitance tolerance
Dissipation factor
ESR
Leakage current
PERFORMANCE CHARACTERISTICS
-55 °C to +85 °C (to +125 °C with voltage derating)
± 20 %, ± 10 %, tested via bridge method, at 25 °C, 120 Hz
Limits per Standard Ratings table. Tested via bridge method, at 25 °C, 120 Hz.
Limits per Standard Ratings table. Tested via bridge method, at 25 °C, 100 kHz.
After application of rated voltage applied to capacitors for 5 min using a steady source of power with 1 k
resistor in series with the capacitor under test, leakage current at 25 °C is not more than described in
Standard Ratings table.
Note that the leakage current varies with temperature and applied voltage.
See graph below for the appropriate adjustment factor.
+12 % max. (at +125 °C)
+10 % max. (at +85 °C)
-10 % max. (at -55 °C)
For capacitance value > 300 μF
+20 % max. (at +125 °C)
+15 % max. (at +85 °C)
-15 % max. (at -55 °C)
Capacitance change by
temperature
Reverse voltage
Capacitors are capable of withstanding peak voltages in the reverse direction equal to:
10 % of the DC rating at +25 °C
5 % of the DC rating at +85 °C
Vishay does not recommend intentional or repetitive application of reverse voltage.
For maximum permissible ripple current (I
RMS
) or / and voltage (V
RMS
) please refer to product datasheet
and Guide to Application. If capacitors are to be used at temperatures above +25 °C, the permissible RMS
ripple current or voltage shall be calculated using the derating factors:
1.0 at +25 °C
0.9 at +85 °C
0.4 at +125 °C
OPERATING TEMPERATURE
+85 °C
RATED VOLTAGE (V)
16
20
25
35
50
50
(1)
Ripple current and
Temperature derating
Maximum operating voltage
+125 °C
RATED VOLTAGE (V)
10
13
17
23
33
33
42
50
SURGE VOLTAGE(V)
12
16
20
28
40
40
50
60
20
26
32
46
65
60
76
90
SURGE VOLTAGE(V)
63
75
Note
(1)
Capacitance values 15 μF and higher
Revision: 11-May-16
Document Number: 40165
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T42
www.vishay.com
Vishay
TYPICAL LEAKAGE CURRENT FACTOR RANGE
100
+125 °C
Leakage Current Factor
10
1.0
+85 °C
+55 °C
+25 °C
0 °C
0.1
-55 °C
0.01
0.001
0
10
20
30
40
50
60
70
80
90
100
Percent of Rated Voltage
Notes
•
At +25 °C,
the leakage current shall not exceed the value listed in the Standard Ratings table
•
At +85 °C,
the leakage current shall not exceed 10 times the value listed in the Standard Ratings table
•
At +125 °C,
the leakage current shall not exceed 12 times the value listed in the Standard Ratings table
CAPACITOR PERFORMANCE CHARACTERISTICS
ITEM
Surge voltage
CONDITION
85 °C, 1000 successive test cycles at 1.3 of rated
voltage in series with a 1 k resistor at the rate of
30 s ON, 30 s OFF, MIL-PRF-55365
2000 h application of rated voltage at 85 °C,
MIL-STD-202 method 108
1000 h application of 2/3 rated voltage at 125 °C,
MIL-STD-202 method 108
POST TEST PERFORMANCE
Capacitance change
Dissipation factor
Leakage current
Life test at +85 °C
Capacitance change
Leakage current
Capacitance change
Leakage current
Within ± 10 % of initial
Not to exceed initial
Not to exceed initial
Within ± 10 % of initial
Not to exceed 125 % of initial
Within ± 20 % of initial
Not to exceed 125 % of initial
Life test at +125 °C
ENVIRONMENTAL CHARACTERISTICS
ITEM
Moisture resistance
CONDITION
MIL-STD-202, method 106, rated voltage.
POST TEST PERFORMANCE
Capacitance change
Cap.
600 μF
Cap. > 600 μF
Dissipation factor
Leakage current
Thermal shock
Capacitors are subjected to 5 cycles
MIL-STD-202 method 107 of the following:
-55 °C (+ 0 °C, - 5 °C) for 30 min, then
+25 °C (+ 10 °C, - 5 °C) for 5 min, then
+125 °C (+ 3 °C, - 0 °C) for 30 min, then
+25 °C (+ 10 °C, - 5 °C) for 5 min
per
Capacitance change
Cap.
600 μF
Cap. > 600 μF
Dissipation factor
Leakage current
Within ± 10 % of initial
Within ± 20 % of initial
Initial specified value or less
Initial specified value or less
Within ± 10 % of initial
Within ± 20 % of initial
Initial specified value or less
Initial specified value or less
Revision: 11-May-16
Document Number: 40165
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
