ERB21B5C2D3R9CDX1L datasheet, PDF

Datasheet> All Categories > Passive components> ERB21B5C2D3R9CDX1L

ERB21B5C2D3R9CDX1L: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 0805 3.9pF 200volts C0G +/-0.25pF; CategoryPassive components; File Size3MB，20 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

ERB21B5C2D3R9CDX1L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ERB21B5C2D3R9CDX1L	-	-	View	Buy Now

ERB21B5C2D3R9CDX1L Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0805 3.9pF 200volts C0G +/-0.25pF

ERB21B5C2D3R9CDX1L Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Details
Capacitance	3.9 pF
Voltage Rating DC	200 VDC
Dielectric	C0G (NP0)
Tolerance	0.25 pF
Case Code - in	0805
Case Code - mm	2012
Height	1.25 mm
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 125 C
Product	RF Microwave / High Q
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	2 mm
Package / Case	0805 (2012 metric)
Termination Style	SMD/SMT
Type	High Frequency Ceramic Capacitor
Width	1.25 mm
Factory Pack Quantity	3000
Unit Weight	0.000194 oz

Preview

Download Datasheet

View All

A p p l i c At i o n S p E c i F i c c A pA c i t o R S

High Frequency Ceramic Capacitors

ERB Product Summary

Exhibiting a

capacitance range of 0.5 to 1,000pF,

the ERB series of capacitors comes

with higher Q and lower ESR which

is better than the standard products

of equivalent packages. For high

performance, medium power RF

designs, this series offers low ESR in

the 1MHz to 1GHz frequency range.

The temperature stability of the

C0G dielectrics ensures low power

dissipation. The ERB series is designed

with precious metal inner electrodes.

These surface mount capacitors are

available in voltages up to 500VDC in a

1210 EIA size.

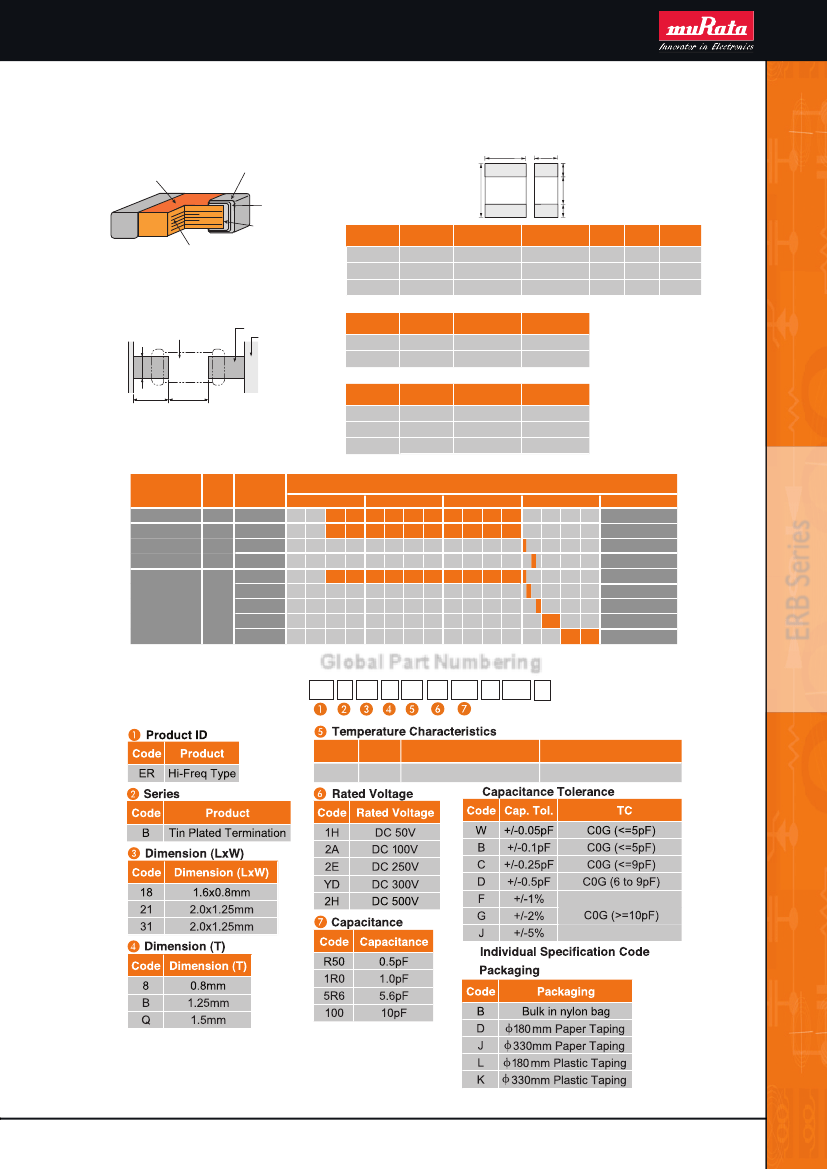

ERB Series:

Features:

Size: 0603, 0805, and 1210



Voltage: 50, 100, 250, 300, 500VDC



Cap Range: 0.5 to 1000pF



Internal Electrode: Pd/Ag



Termination: Pd/Ag + Ni/Sn plating



ESR: Low



Power: Medium Power (5-15W)



Frequency Range: 1MHz – 1GHz



Tolerance: Tight Tolerance Available ([W]=+/-0.05pF for <=5pF, [ [B]=+/-0.1pF for

5 - 9.1pF, [C]=+/-0.25pF for 5 - 9.1pF, [F]=+/-1% for 10 - 20pF)



Temp. Characteristics: C0G (-55ºC to 125ºC with 0 ±30ppm/ ºC)



ERB Series

Applications:

General purpose

high frequency circuits, wireless

equipment, high frequency radios,

broadcast satellites, terminals,

RF and base station power

amplifiers

44 – Innovator in Electronics



C-29-C
