PCF1A271MCL4GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PCF1A271MCL4GS

PCF1A271MCL4GS: DescriptionAluminum Organic Polymer Capacitors 10volts 270uF 105c 8x12; CategoryPassive components; File Size665KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

PCF1A271MCL4GS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCF1A271MCL4GS	-	-	View	Buy Now

PCF1A271MCL4GS Overview

Aluminum Organic Polymer Capacitors 10volts 270uF 105c 8x12

PCF1A271MCL4GS Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Organic Polymer Capacitors
RoHS	Details
Termination Style	SMD/SMT
Capacitance	270 uF
Voltage Rating DC	10 VDC
Tolerance	20 %
ESR	13 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	8 mm
Length	12 mm
Type	Can
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Aluminum Polymer Capacitors
Factory Pack Quantity	400
Unit Weight	0.031747 oz

Preview

Download Datasheet

View All

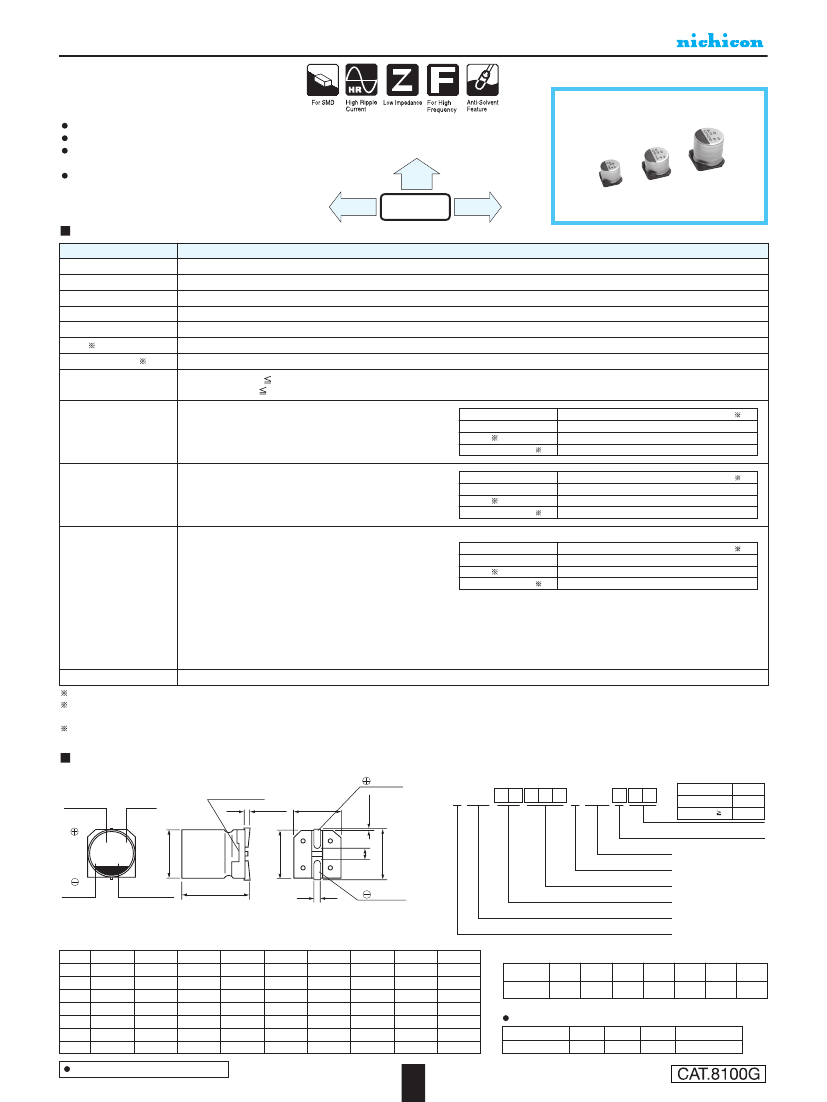

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PCF

Specifications

Item

Category Temperature Range

Rated Voltage Range

Chip Type, Standard

Low ESR, High ripple current.

Load life of 2000 hours at 105°C.

SMD type : Lead free reflow soldering condition at 260°C

peak correspondence.

Compliant to the RoHS directive (2011/65/EU).

PCG

Higher

Capacitance,

PCS

Long Life

PCF

Low ESR

Higher Capacitance

PCJ

Performance Characteristics

– 55 to +105°C

2.5 to 25V

3.3 to 1500µF

± 20%

at 120Hz, 20°C

Rated Capacitance Range

Capacitance Tolerance

ESR (

Tangent of loss angle (tan

δ)

Less than or equal to the specified value at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Less than or equal to the specified value.

Z+105°C / Z+20°C

Z– 55°C / Z+20°C

1.25

(100kHz)

After 2 minutes' application of rated voltage at 20°C

Leakage Current (

Temperature Characteristics

(Max.Impedance Ratio)

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 105°C

Capacitance change

tan

ESR

( 1)

Leakage current ( 2)

Capacitance change

tan

ESR

( 1)

Leakage current ( 2)

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Damp Heat

(Steady State)

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 1000 hours at 60°C, 90% RH.

After soldering the capacitor under the soldering conditions

prescribed here, the capacitor shall meet the specifications listed

at right.

Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.

The duration for over +230°C temperature at capacitor surface

shall not exceed 60 seconds.

In case peak temperature is 250°C or less, reflow soldering shall

be two times maximum.

In case peak temperature is 260°C or less, reflow soldering shall

be once.

Measurement for solder temperature profile shall be made at the

capacitor top and the terminal.

Navy blue print on the case top

Resistance to

Soldering Heat

Capacitance change

tan

ESR

( 1)

Leakage current ( 2)

Within ± 10% of the initial capacitance value ( 3)

130% or less than the initial specified value

Less than or equal to the initial specified value

Marking

1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

3 Initial value : The value before test of examination of resistance to soldering.

Dimensions

Positive

Type numbering system (Example : 6.3V 150µF)

9 10 11 12 13 14

Taping code

0.5 MAX.

Plastic platform

Capacitance

Lot No.

0.3 MAX.

C±0.2

PC F 0 J 1 5 1 MC L 1 GS

φD

4 to 6.3 5.5L）

（

5 to 10 L

（

6）

Code

Size code

φD±0.5

0.2

A±0.2

150

841

Configuration

Capacitance tolerance (±20%)

Rated capacitance (150µF)

Series

Voltage

( j:6.3v)

+0.1

-0.4

Negative

Rated voltage (6.3V)

Series name

Type

Size

φD

φ4

5.5L

4.0

5.4

5.0

4.3

φ5

5.0

5.9

6.0

5.3

φ6.3

5.5L

φ6.3

6.3

5.4

7.3

6.6

5.9

7.3

6.6

φ8

8.0

6.9

9.0

8.3

φ8

12L

8.0

11.9

9.0

8.3

(mm)

φ10

10L

φ10

12.7L

10.0

7.9

11.0

10.3

9.9

11.0

10.3

12.6

11.0

10.3

Voltage

Code

2.5

6.3

Frequency coefficient of rated ripple current

Frequency0/ 120Hz

Coefficient

0.05

1kHz

0.30

10kHz 100kHz or more

0.70

1.00

2.1

4.6

1.0

1.6

2.1

3.2

4.6

0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1

Dimension table in next page.
