201XR104B: DescriptionTrimmer Resistors - Through Hole 100Kohms 20% Serrated Edge; CategoryPassive components The resistor; File Size3MB，2 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

201XR104B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	201XR104B	-	-	View	Buy Now

201XR104B Overview

Trimmer Resistors - Through Hole 100Kohms 20% Serrated Edge

201XR104B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
package instruction	15 MM, 3 PINS, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Miniature Size
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	100 °C
Minimum operating temperature	55 °C
Package diameter	15.08 mm
Package length	4.98 mm
Package shape	CIRCULAR PACKAGE
Package form	PCB Mount
Rated power dissipation(P)	0.25 W
Rated temperature	55 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	260 deg
surface mount	NO
technology	CARBON COMPOSITION
Terminal shape	SNAP-IN
Tolerance	20%
Operating Voltage	350 V

Preview

Download Datasheet

View All

Electrocomponents

®

Series 201

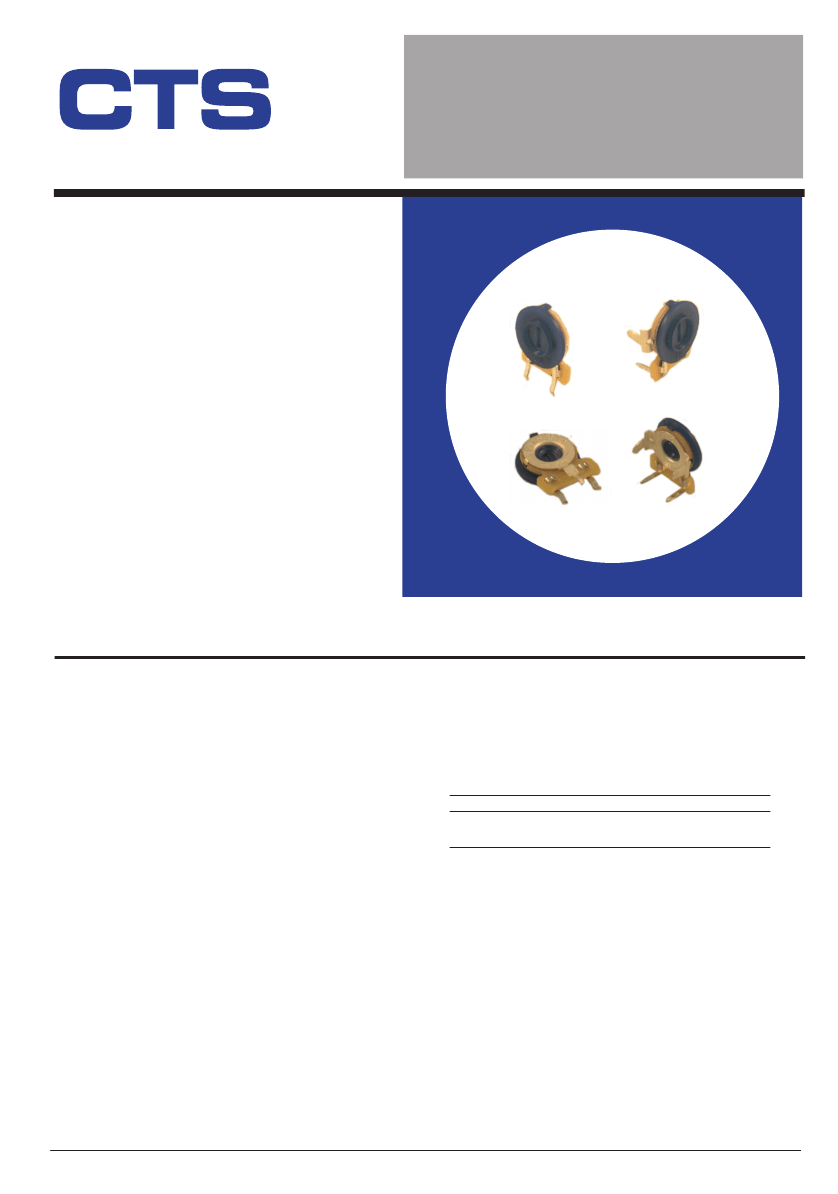

Data Sheet

Trimmer Potentiometer

Commercial

15 mm Diameter

Carbon Composition

Trimmer Potentiometer

Features

• Miniature size — knob 19/32" (15.08mm)

diameter

• Printed circuit mounting with knob parallel

or perpendicular to printed circuit board

• Wide resistance range

• Knob slotted for screwdriver adjustment

• Reliable CTS composition resistance element

• Low cost

• RoHS compliant

Electrical and Mechanical Specifications

Resistance Range

500Ω through 5 Megohms

Fixed resistor available

Resistance Tolerance

±30%, ±20%, ±10%

Power Rating, Watts

1

/

4

watt @ 55°C

( resistance up to 5000Ω )

°

1

/

5

Stop Strength

2

1

/

2

in-lb (2.9 kgf-cm min.)

Adjusting Knob Information

Diameter: 19/32" (15.08mm)

Trim:

Knob Periphery

Knob Adjustmeent

Slotted — front or rear screwdriver adjust

CTS Type

201 R

Standard:

Smooth round

Standard Color:

Blue

watt @ 55°C

( resistance above 5000Ω )

Voltage Rating

350 VDC

Angle of Rotation

260°

Turning Torque

Standard: 3/4 to 6 in-oz (54 – 432 gf-cm)

Special : 2 to 7 in-oz (144 – 505 gf-cm)

Operating Temperature

-35°C

~

85°C

Mounting Information

Type 201U for mounting control with knob parallel to printed

circuit board.

Type 201X for mounting control with knob perpendicular to

printed circuit board.

1-2

CTS

Electrocomponents

©

11/13/13

www.ctscorp.com
