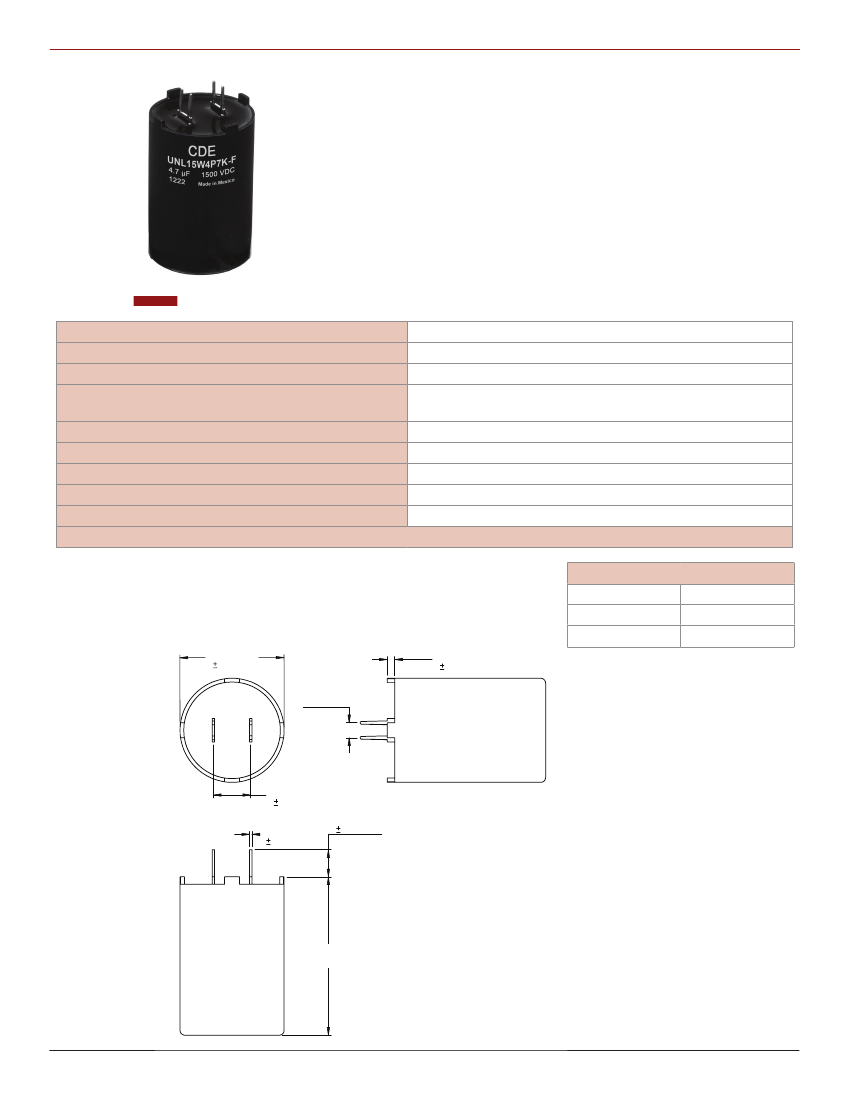

Type UNL, DC Link and Filter Capacitors
High Capacitance, High Current, Board Mount
Constructed using a low-loss polypropylene film, the UNL series
offers high ripple current capabilities and high capacitance values
making them ideal for electrolytic bank replacement and high
ripple current applications.
Highlights
Advantages over Electrolytics
- Exceptionally low ESR
- Up to 10 times the ripple current
- Non-polar
- Higher voltage ratings
- Dry construction - no electrolyte
- Improved reliability
4.7 to 100 µF
±10% (K) standard
400 to 1500 Vdc
–55 ºC to 105 ºC*
*Full rated voltage at 85 ºC - derate linearly to 50% rated at 105 ºC
Check tables for values
125% rated DC voltage for 60 s
3 kVac @ 50/60 Hz for 60 s
2,000 h @ 85 ºC, 125% rated voltage
60,000 h @ 70 ºC, rated voltage
RoHS Compliant
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range
Maximum rms Current
Test Voltage between Terminals @ 25 ºC
Test Voltage between Terminals & Case @ 25 ºC
Life Test
Life Expectancy
Dimensions
Construction Details
Case Material
Resin Material
Terminal Material
D
0.8 mm
5.1 mm
2.54
0.8 mm
Plastic UL94V-0
Dry Resin UL94V-0
Tin Plated Brass
12.7
0.8 mm
0.8
0.08 mm
h*
0.5 mm
* Standard Long Pins: h = 7.6 mm
'S' Short Pins: h =3.8 mm
Pins are tapered 1.27 - 1.14 mm
H
±0.5 mm
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type UNL, DC Link and Filter Capacitors
High Capacitance, High Current, Board Mount
Part Numbering System
UNL
7
W20
K
S
–F
Type
UNL
Voltage
4 = 400 Vdc
5 = 500Vdc
6 = 600 Vdc
7 = 750 Vdc
8 = 800 Vdc
9 = 900 Vdc
10 = 1000 Vdc
12 = 1200 Vdc
15 = 1500 Vdc
Capacitance
W80 = 80µF
W100 = 100µF
W30 = 30µF
W50 = 50µF
W40 = 40µF
W13P5 = 13.5µF
W10 = 10µF
W7P5 = 7.5µF
W4P7 = 4.7µF
Tolerance
K = ±10%
Leads
S = Short Pins
Blank = Long Pins
RoHS
Compliant
Ratings
NOTE:
Other ratings, sizes and performance specifications are available. Contact us.
Catalog
Part Number*
UNL4W30K-F
UNL4W80K-F
UNL5W35K-F
UNL5W100K-F
UNL6W30K-F
UNL6W80K-F
UNL7W20K-F
UNL7W50K-F
UNL8W15K-F
UNL8W40K-F
UNL9W13P5K-F
UNL9W35K-F
UNL10W10K-F
UNL10W25K-F
UNL12W7P5K-F
UNL12W20K-F
UNL15W4P7K-F
UNL15W13K-F
Cap
(µF)
30.0
80.0
35.0
100.0
30.0
80.0
20.0
50.0
15.0
40.0
13.5
35.0
10.0
25.0
7.5
20.0
4.7
13.0
Rated
Voltage
(Vdc)
400
400
500
500
600
600
750
750
800
800
900
900
1000
1000
1200
1200
1500
1500
Dia.
D
(mm)
35
50
35
50
35
50
35
50
35
50
35
50
35
50
35
50
35
50
Height
H
(mm)
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
53.7
63
Typical ESR
@ 100 kHz
(mΩ)
6.0
5.0
8.0
6.0
9.0
6.5
10.0
7.0
10.0
7.5
10.5
8.0
12.0
8.5
13.5
9.0
15.0
10.0
dV/dt
(V/µs)
30
25
26
22
30
25
37
30
42
35
43
36
50
40
60
50
72
60
Peak
Current
(A)
900
2000
910
2200
900
2000
740
1500
630
1400
580
1260
500
1000
450
1000
338
780
Ripple Current @ 100 kHz
25 ºC
(Arms)
24.2
35.0
22.0
31.8
20.7
30.5
19.0
29.4
18.8
28.4
18.0
27.5
17.5
26.7
16.0
26.0
15.0
24.6
50 ºC
(Arms)
19.4
28.0
18.2
25.4
17.0
24.4
16.0
23.5
15.0
22.8
14.5
22.0
13.7
21.4
12.0
20.7
11.5
19.7
75 ºC
(Arms)
14.6
14.3
13.0
13.2
12.0
12.6
9.9
12.0
9.8
11.7
9.6
11.3
9.0
11.0
8.4
10.7
7.8
10.1
*Add ‘S’ after ‘K’ for short pins
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type UNL, DC Link and Filter Capacitors
High Capacitance, High Current, Board Mount

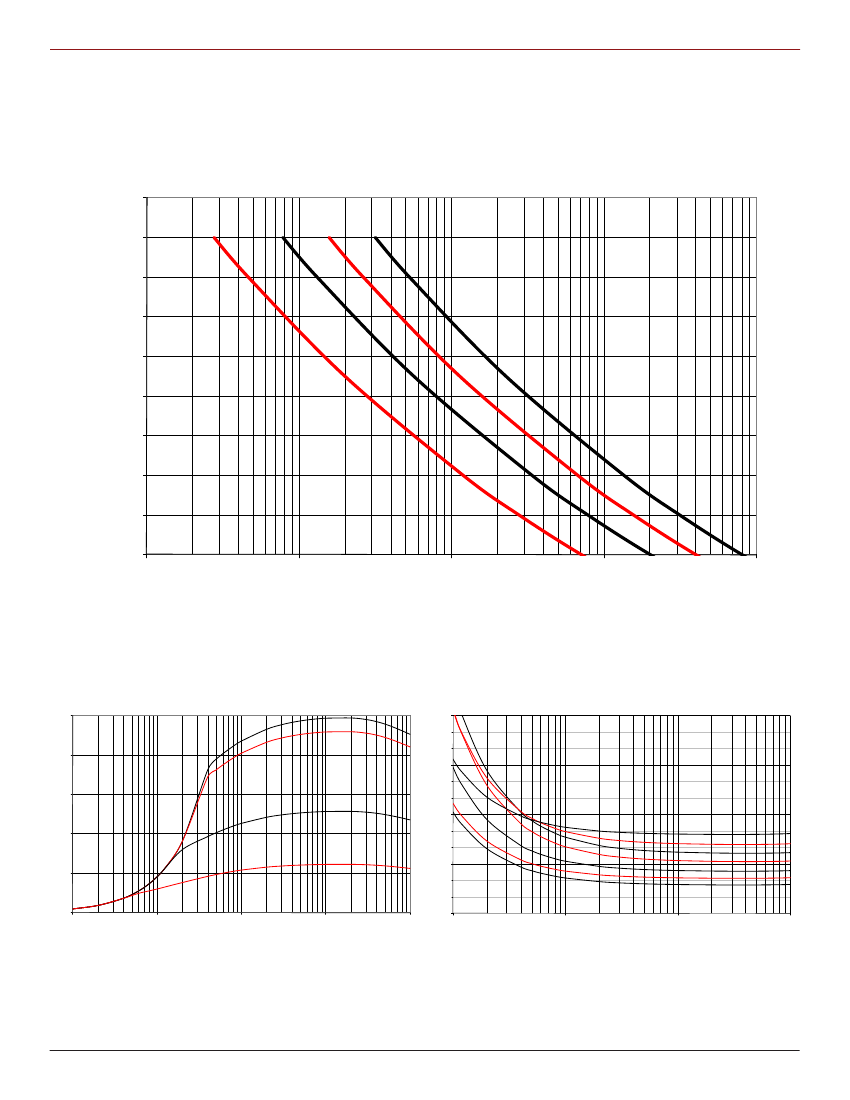

Typical Performance Curves
1.7
1.6
1.5
1.4
1.3
1.2
Expected Lifetime vs Core Temperature and Applied DC Voltage
Applied / Rated Voltage Ratio (Va/Vr)
50 ºC
60 ºC
70 ºC
1.1
1
0.9
0.8
100
1000
85 ºC
Expected Lifetime (h)
10000
100000
1000000
25
Ripple Current Ratings vs Temperature and Frequency UNL6W30K-F
15
UNL6W30K-F ESR vs Frequency and Temperature
25 ºC
50 ºC
20
12
Ripple Current (Arms)
15
75 ºC
ESR (mΩ)
Ω
9
10
85 ºC
5
6
85 ºC
65ºC
45 ºC
25 ºC
0 ºC
-20 ºC
-40 ºC
0
10
100
3
Frequency (Hz)
1000
10000
100000
100
1000
Frequency (Hz)
10000
100000
