5.0V, HCMoS, SMD oscillator
Page 1 of 2
Model: F3345 SERIES
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 1/29/2014
FEATURES
•
•
•
•
5.0V Operation
HCMOS/TTL Output
Tri-State Enable/Disable
Tape and Reel
(2,000 pcs. STD)
oPTIonS
• Standby Function (F4101)
• PART nUMbER SELECTIon
Part Number
092-Frequency-xxxxx
093-Frequency-xxxxx
090-Frequency-xxxxx
091-Frequency-xxxxx
094-Frequency-xxxxx
095-Frequency-xxxxx
096-Frequency-xxxxx
Operating
Model Frequency
Number Stability
1
Temperature (ºC)
F3345
±100PPM
-10 ~ +70
F3345R
±100PPM
-40 ~ +85
F3340
±50PPM
-10 ~ +70
F3340R
±50PPM
-40 ~ +85
F3346
±25PPM
-10 ~ +70
F3346R
±25PPM*
-40 ~ +85
F3348
±20PPM*
-10 ~ +70
Frequency
Range (MHz)
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
1.000 ~ 80.000
7.5 Max
Top
View
#4
#1
#3
5.2 Max
#2
Dot denotes
pin 1
1.5 Max
1.4±0.2
Bottom
View
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.000 ~ 25.000 MHz
25.000+ ~ 50.000 MHz
50.000+ ~ 67.000 MHz
67.000+ ~ 80.000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
) (T
r
)
Fall Time (90% ~ 10% V
dd
) (T
f
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
TTL
HCMOS
Start-up Time
(T
s
)
Enable/Disable Time
2
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
1.000 ~ 80.000 MHz
-55ºC ~ +125ºC
5.0V ± 10%
25mA
40mA
60mA
73mA
45% ~ 55%
7nS
7nS
10% V
dd
90% V
dd
Min
16mA Min
-16mA Min
10TTL
50pF
10mS
100nS
260ºC / 10 Seconds
1
Au
#1
#4
#2
#3
5.08±0.1
2.6±0.2
Recommended
Solder Pad Layout
1.8±0.1
2.0±0.1
4.2±0.1
5.08±0.1
Pin Connections
#1 E/D #3 output
#2 GnD #4 V
DD
All dimensions are in millimeters
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. *Excludes Shock/Vibration
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
• EnAbLE / DISAbLE FUnCTIon
OUTPUT (Pin 3)
INH (Pin 1)
ACTIVE
OPEN
2
ACTIVE
'1' Level V
ih
≥
70% V
dd
High Z
'0' Level V
il
≤
30% V
dd
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
An Integrated Device Technology, Inc. company
99
5.0V, HCMoS, SMD oscillator
Page 2 of 2
Model: F3345 SERIES
RoHS Compliant / Pb Free
http://www.foxonline.com/need_a_sample.htm
Rev. 1/29/2014

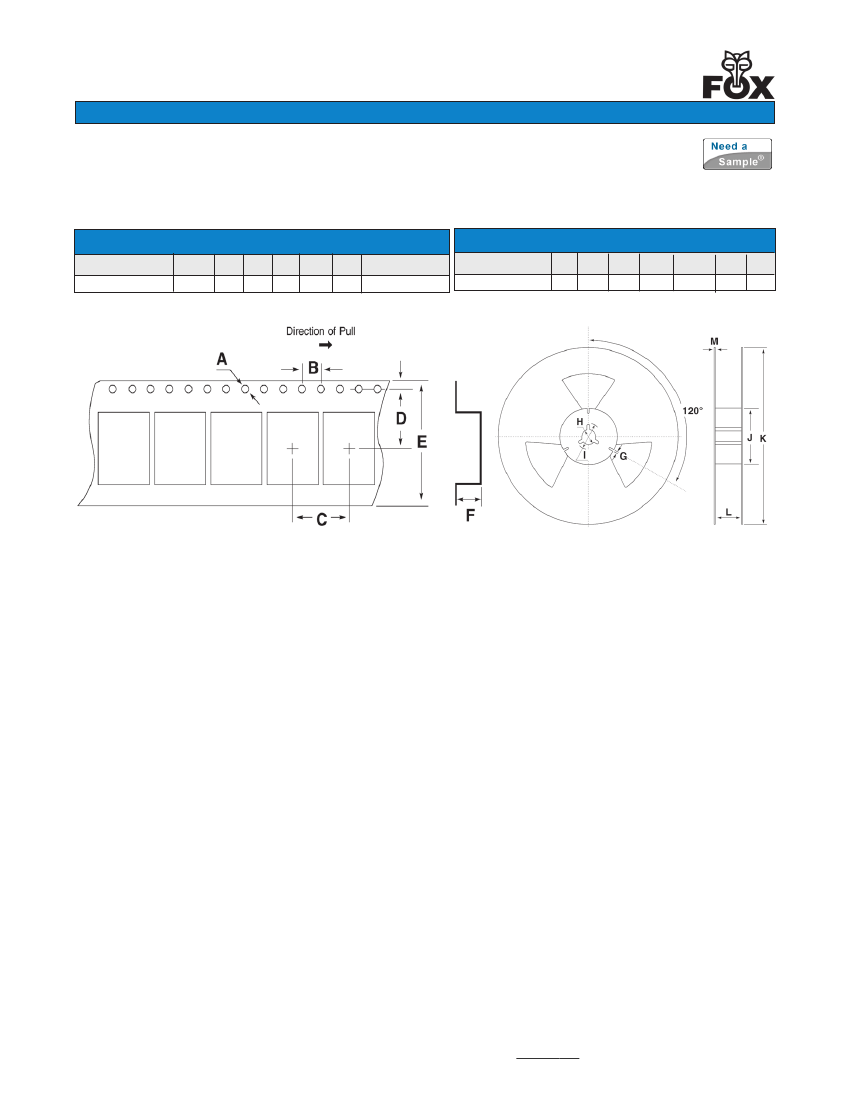

• TAPE SPECIFICATIonS
(millimeters)
MoDEL
F3345 Series
• REEL SPECIFICATIonS
(millimeters)
G H
I
J
K
L M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b
C D E
F
STD Reel QTY
MoDEL
A
F3345 Series
2,000
∅1.5
4.0 8.0 7.5 16.0 2.15
