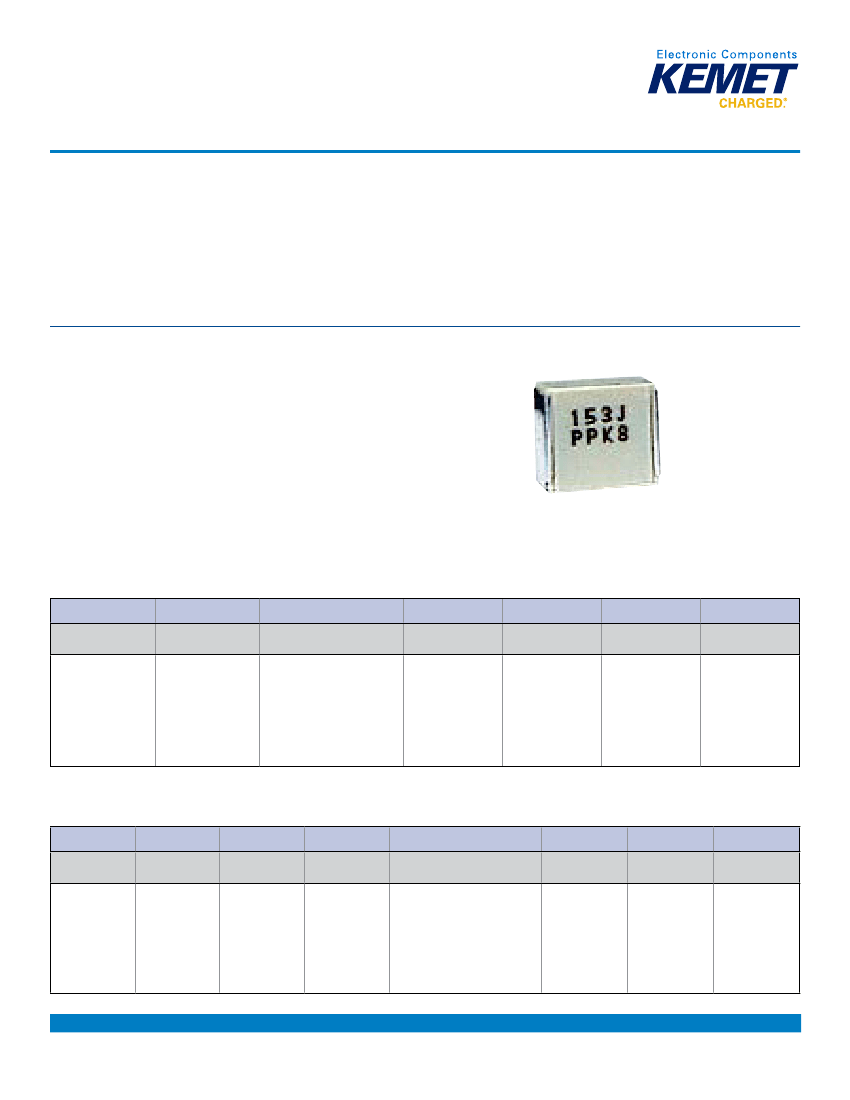

Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GPC Series Encapsulated Double Metallized,
Size 2824 – 6560, 63 – 1,000 VDC
Overview
Film capacitor for surface mounting. Double sided
metallized polyethylene naphthalate (PEN) as electrode.
Clear PEN as dielectric. Rugged box encapsulation in self-
extinguishing material meeting the requirements of UL 94
V–0. GPC capacitors meet the standards according to IEC
60384-23.
Applications
The GPC Series is designed for high frequency coupling
and decoupling as well as general high speed applications
requiring high dV/dt such as pulse operation in switched-
mode power supply (SMPS). Not suitable for across-the-line
application (see suppressor capacitors).
Benefits
• Rated voltage: 63 – 1,000 VDC
• Rated voltage: 40 – 350 VAC
• Capacitance range: 0.00047 – 1.0 µF
• EIA size: 2824 – 6560
• Capacitance tolerance: ±10%, ±20%, other tolerances on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55˚C to +125˚C
Legacy Part Number System
GPC
Series
Double Metallized
PEN
7.3
Chip Length (mm)
7.3
10.2
12.7
16.5
471
Capacitance Code (pF)
K
63
Rated Voltage
(VDC)
63
100
160
250
400
630
1,000
K33
Size Code
See Dimension
Table
TR12
Packaging
See Ordering
Options Table
Capacitance
Tolerance
First two digits indicate the K = ±10%
two most significant digits
M = ±20%
of the capacitance value in Other tolerances
picofarads. The third digit on request.
is the number of following
zeros.
New KEMET Part Number System
F
Capacitor
Class
F = Film
117
Series
Double
Metallized
PEN
S
Chip Size
S = 2824
W = 4036
Y = 5045
Z = 6560
L
Size Code
471
Capacitance Code (pF)
K
Capacitance
Tolerance
K = ±10%
M = ±20%
Other
tolerances on
request.
063
Rated Voltage
(VDC)
063 = 63
100 = 100
160 = 160
250 = 250
400 = 400
630 = 630
1K0 = 1,000
V
Packaging
See Ordering
Options Table
See Dimension First two digits indicate the
Table
two most significant digits
of the capacitance value in
picofarads. The third digit
is the number of following
zeros.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3080_GPC • 9/22/2016
1
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GPC Series Encapsulated Double Metallized, Size 2824 – 6560, 63 – 1,000 VDC
Ordering Options Table
Chip Size
(EIA)
2824
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
TR12
BULK
KEMET
Packaging
Code
Legacy
Packaging
Code
4036
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR16
BULK
TV24
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
TR24
BULK
TV24
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
V
A
Y
TR24
BULK
TV44
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3080_GPC • 9/22/2016
2
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GPC Series Encapsulated Double Metallized, Size 2824 – 6560, 63 – 1,000 VDC
Dimensions – Millimeters
F
H
B
L
F
KEMET
Size Code
SL
SP
ST
WP
YR
ZS
Legacy
Size Code
K33
K35
K37
A31
B31
C31
Chip Size
(EIA)
2824
2824
2824
4036
5045
6560
B
Nominal
6.0
6.0
6.0
9.1
11.5
15
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
3.0
3.5
4.5
5.5
6.5
7.0
H
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3080_GPC • 9/22/2016
3
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GPC Series Encapsulated Double Metallized, Size 2824 – 6560, 63 – 1,000 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature
Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
63
40
0.00047 – 1
2824 – 6560
±10%, ±20%, other tolerances on request
−55°C to +125°C
+100°C
The rated voltage should be decreased with 1.25%/°C from +100°C to +125°C and 1.5%/°C from +125°C to
175°C.
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–19
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Pulse Rise Time
0.6%
1.0%
2.0%
C ≤ 0.33 µF
10,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C ≤ 1 µF
0.6%
1.0%
2.5%
C > 1 µF
0.6%
1.2%
C > 0.33 µF
5,000 MΩ • µF
10,000 MΩ • µF
100
63
0.00047 – 1
160
100
250
160
400
200
630
300
1,000
350
0.00047 – 0.68 0.00047 – 0.47 0.00047 – 0.22 0.00047 – 0.1 0.00047 – 0.68
The capacitors can withstand an unlimited number of pulses with a dV/dt according to Table 1. For voltages
(V) lower than the rated voltage (V
R
), the specified dV/dt can be multiplied by V
R
/V.

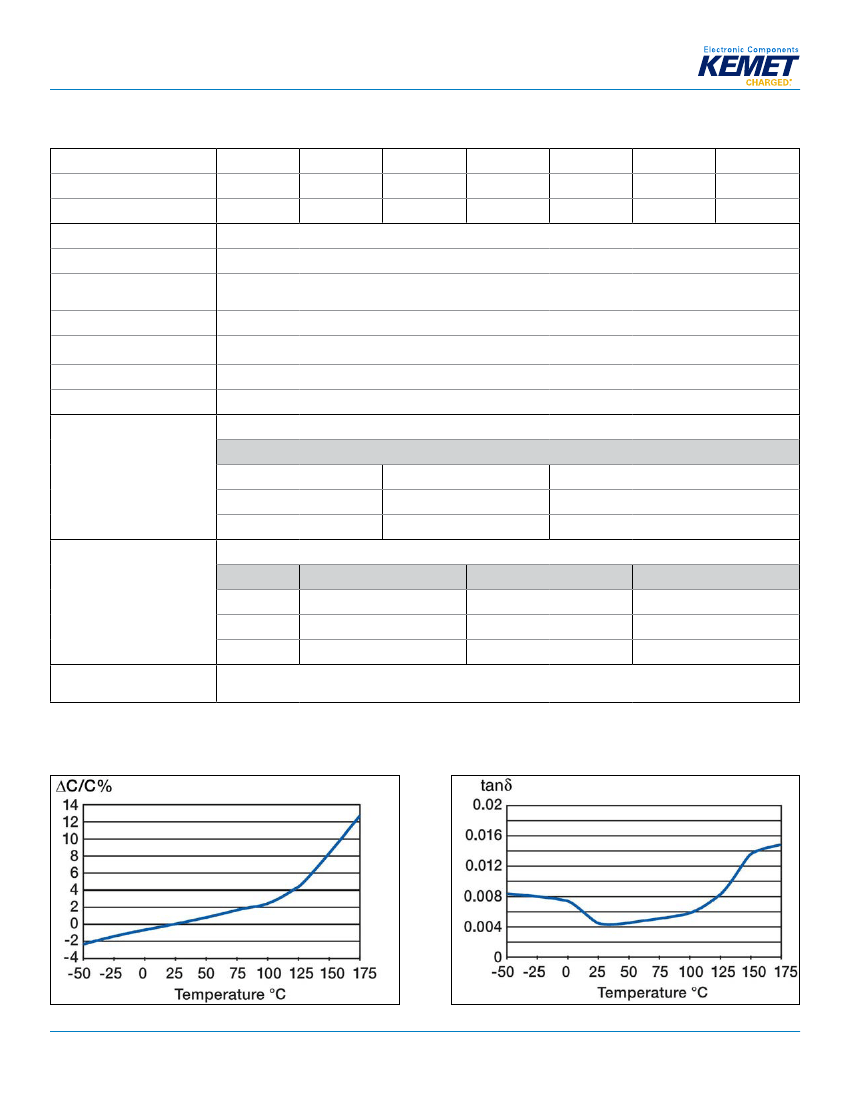

Capacitance vs. Temperature
Dissipation Factor vs. Temperature
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3080_GPC • 9/22/2016
4
Surface Mount Polyethylene Naphthalate (PEN) Film Capacitor
GPC Series Encapsulated Double Metallized, Size 2824 – 6560, 63 – 1,000 VDC
Table 1 – Ratings & Part Number Reference
VDC
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
160
VAC
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
100
Cap Value
Size Code
(µF)
(New/Legacy)
0.00047
0.00068
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.0068
0.010
0.015
0.022
0.027
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
0.00047
0.00068
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.0068
0.010
0.015
0.022
0.027
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.47
0.68
1.0
0.00047
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
ZS/C31
ZS/C31
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SL/K33
SP/K35
ST/K37
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
WP/A31
YR/B31
YR/B31
ZS/C31
ZS/C31
ZS/C31
SL/K33
Dimensions in mm
B
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
11.5
15.0
15.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
9.1
11.5
11.5
15.0
15.0
15.0
6.0
H
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
7.0
7.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.5
4.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
6.5
6.5
7.0
7.0
7.0
3.0
L
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
12.7
16.5
16.5
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
7.3
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
10.2
12.7
12.7
16.5
16.5
16.5
7.3
Chip
Size
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
5045
6560
6560
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
2824
4036
4036
4036
4036
4036
4036
4036
4036
4036
4036
5045
5045
6560
6560
6560
2824
dV/dt
(V/μs)
400
400
400
400
400
400
400
400
400
400
400
400
400
400
400
300
300
300
300
300
300
300
300
300
300
300
300
200
100
100
800
800
800
800
800
800
800
800
800
800
800
800
800
600
600
600
600
600
600
600
600
600
600
400
400
150
150
150
1000
New KEMET
Part Number
F117SL471(1)063(2)
F117SL681(1)063(2)
F117SL102(1)063(2)
F117SL152(1)063(2)
F117SL222(1)063(2)
F117SL332(1)063(2)
F117SL472(1)063(2)
F117SL682(1)063(2)
F117SL103(1)063(2)
F117SL153(1)063(2)
F117SL223(1)063(2)
F117SL333(1)063(2)
F117SL473(1)063(2)
F117SP683(1)063(2)
F117ST104(1)063(2)
F117WP682(1)063(2)
F117WP103(1)063(2)
F117WP153(1)063(2)
F117WP223(1)063(2)
F117WP273(1)063(2)
F117WP333(1)063(2)
F117WP473(1)063(2)
F117WP683(1)063(2)
F117WP104(1)063(2)
F117WP154(1)063(2)
F117WP224(1)063(2)
F117WP334(1)063(2)
F117YR474(1)063(2)
F117ZS684(1)063(2)
F117ZS105(1)063(2)
F117SL471(1)100(2)
F117SL681(1)100(2)
F117SL102(1)100(2)
F117SL152(1)100(2)
F117SL222(1)100(2)
F117SL332(1)100(2)
F117SL472(1)100(2)
F117SL682(1)100(2)
F117SL103(1)100(2)
F117SL153(1)100(2)
F117SL223(1)100(2)
F117SP333(1)100(2)
F117ST473(1)100(2)
F117WP682(1)100(2)
F117WP103(1)100(2)
F117WP153(1)100(2)
F117WP223(1)100(2)
F117WP273(1)100(2)
F117WP333(1)100(2)
F117WP473(1)100(2)
F117WP683(1)100(2)
F117WP104(1)100(2)
F117WP154(1)100(2)
F117YR224(1)100(2)
F117YR334(1)100(2)
F117ZS474(1)100(2)
F117ZS684(1)100(2)
F117ZS105(1)100(2)
F117SL471(1)160(2)
Legacy Part
Number
GPC7.3471(1)63K33(2)
GPC7.3681(1)63K33(2)
GPC7.3102(1)63K33(2)
GPC7.3152(1)63K33(2)
GPC7.3222(1)63K33(2)
GPC7.3332(1)63K33(2)
GPC7.3472(1)63K33(2)
GPC7.3682(1)63K33(2)
GPC7.3103(1)63K33(2)
GPC7.3153(1)63K33(2)
GPC7.3223(1)63K33(2)
GPC7.3333(1)63K33(2)
GPC7.3473(1)63K33(2)
GPC7.3683(1)63K35(2)
GPC7.3104(1)63K37(2)
GPC10.2682(1)63A31(2)
GPC10.2103(1)63A31(2)
GPC10.2153(1)63A31(2)
GPC10.2223(1)63A31(2)
GPC10.2273(1)63A31(2)
GPC10.2333(1)63A31(2)
GPC10.2473(1)63A31(2)
GPC10.2683(1)63A31(2)
GPC10.2104(1)63A31(2)
GPC10.2154(1)63A31(2)
GPC10.2224(1)63A31(2)
GPC10.2334(1)63A31(2)
GPC12.7474(1)63B31(2)
GPC16.5684(1)63C31(2)
GPC16.5105(1)63C31(2)
GPC7.3471(1)100K33(2)
GPC7.3681(1)100K33(2)
GPC7.3102(1)100K33(2)
GPC7.3152(1)100K33(2)
GPC7.3222(1)100K33(2)
GPC7.3332(1)100K33(2)
GPC7.3472(1)100K33(2)
GPC7.3682(1)100K33(2)
GPC7.3103(1)100K33(2)
GPC7.3153(1)100K33(2)
GPC7.3223(1)100K33(2)
GPC7.3333(1)100K35(2)
GPC7.3473(1)100K37(2)
GPC10.2682(1)100A31(2)
GPC10.2103(1)100A31(2)
GPC10.2153(1)100A31(2)
GPC10.2223(1)100A31(2)
GPC10.2273(1)100A31(2)
GPC10.2333(1)100A31(2)
GPC10.2473(1)100A31(2)
GPC10.2683(1)100A31(2)
GPC10.2104(1)100A31(2)
GPC10.2154(1)100A31(2)
GPC12.7224(1)100B31(2)
GPC12.7334(1)100B31(2)
GPC16.5474(1)100C31(2)
GPC16.5684(1)100C31(2)
GPC16.5105(1)100C31(2)
GPC7.3471(1)160K33(2)
VDC
VAC
Capacitance
Value (µF)
Size Code
(New/Legacy)
B (mm)
H
(mm)
L (mm)
Chip Size
dV/dt
(V/μs)
New KEMET
Part Number
Legacy Part Number
(1) K = ±10%, M = ±20%, other tolerances on request.
(2) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3080_GPC • 9/22/2016
5
京公网安备 11010802033920号
EEWORLD
