LD14AC104MAB1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> LD14AC104MAB1A

LD14AC104MAB1A: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 1KV .1uF X7R 2225 20% Tol; CategoryPassive components; File Size46KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

LD14AC104MAB1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LD14AC104MAB1A	-	-	View	Buy Now

LD14AC104MAB1A Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 1KV .1uF X7R 2225 20% Tol

LD14AC104MAB1A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	N
Capacitance	0.1 uF
Voltage Rating DC	1 kVDC
Dielectric	X7R
Tolerance	20 %
Case Code - in	2225
Case Code - mm	5764
Height	2.54 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	General Type MLCCs
Packaging	Reel
Length	5.7 mm
Package / Case	2220 (5750 metric)
Termination Style	SMD/SMT
Type	High Voltage MLC Chip
Width	6.4 mm
Capacitance - nF	100 nF
Capacitance - pF	100000 pF
Factory Pack Quantity	1000
Unit Weight	0.016932 oz

Preview

Download Datasheet

View All

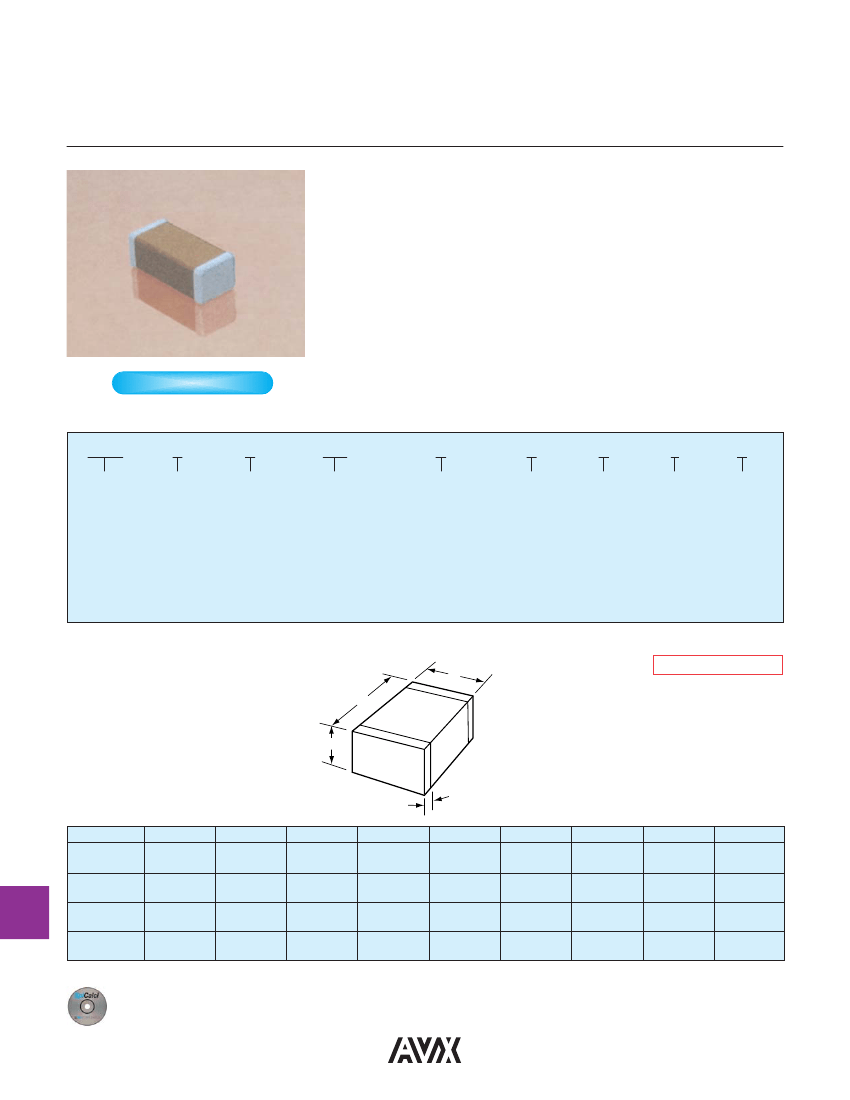

High Voltage MLC Chips

Tin/Lead Termination “B”

For 600V to 5000V Applications

AVX Corporation will support those customers for commercial and military Multi-

layer Ceramic Capacitors with a termination consisting of 5% minimum lead. This

termination is indicated by the use of a “B” in the 12th position of the AVX Cata-

log Part Number. This fulfills AVX’s commitment to providing a full range of prod-

ucts to our customers. AVX has provided in the following pages, a full range of

values that we are offering in this “B” termination.

Larger physical sizes than normally encountered chips are used to make high volt-

age MLC chip product. Special precautions must be taken in applying these chips

in surface mount assemblies. The temperature gradient during heating or cooling

cycles should not exceed 4ºC per second. The preheat temperature must be

within 50ºC of the peak temperature reached by the ceramic bodies through the

soldering process. Chip sizes 1210 and larger should be reflow soldered only. Ca-

pacitors may require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or

SMT configurations (for details see section on high voltage leaded MLC chips).

NEW 630V RANGE

HOW TO ORDER

LD08

AVX

Style

LD05 - 0805

LD06 - 1206

LD10 - 1210

LD08 - 1808

LD12 - 1812

LD13 - 1825

LD20 - 2220

LD14 - 2225

LD40 - 3640

***

Voltage

600V/630V = C

1000V = A

1500V = S

2000V = G

2500V = W

3000V = H

4000V = J

5000V = K

Temperature

Coefficient

C0G = A

X7R = C

271

Capacitance Code

(2 significant digits

+ no. of zeros)

Examples:

10 pF = 100

100 pF = 101

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 μF = 105

Capacitance

Tolerance

C0G: J = ±5%

K = ±10%

M = ±20%

X7R: K = ±10%

M = ±20%

Z = +80%, -20%

Test

Termination

Packaging Special Code

Level

B = 5% Min Pb 2 = 7" Reel** A = Standard

A = Standard X = FLEXITERM

4 = 13" Reel

with 5% min.

Pb*

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

FLEXITERM is not available in the LD40 Style

The LD40 Style is not available on 7" Reels.

***

AVX offers nonstandard chip sizes. Contact factory for details.

Not RoHS Compliant

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

LD12* (1812)

4.60 ± 0.50

(0.181 ± 0.020)

3.20 ± 0.30

(0.126 ± 0.012)

2.80

(0.110)

0.75 ± 0.35

(0.030 ± 0.014)

LD13* (1825)

4.60 ± 0.50

(0.181 ± 0.020)

6.30 ± 0.40

(0.248 ± 0.016)

3.40

(0.134)

0.75 ± 0.35

(0.030 ± 0.014)

LD20* (2220)

5.70 ± 0.50

(0.224 ± 0.020)

5.00 ± 0.40

(0.197 ± 0.016)

3.40

(0.134)

0.85 ± 0.35

(0.033 ± 0.014)

LD14* (2225) LD40* (3640)

5.70 ± 0.50

9.14 ± 0.25

(0.224 ± 0.020) (0.360 ± 0.010)

6.30 ± 0.40

10.2 ± 0.25

(0.248 ± 0.016) (0.400 ± 0.010)

3.40

2.54

(0.134)

(0.100)

0.85 ± 0.35

0.76 (0.030)

(0.033 ± 0.014) 1.52 (0.060)

LD05 (0805)

LD06 (1206)

LD10* (1210) LD08* (1808)

2.10 ± 0.20

3.30 ± 0.30

3.30 ± 0.40

4.60 ± 0.50

(0.083 ± 0.008) (0.130 ± 0.012) (0.130 ± 0.016) (0.181 ± 0.020)

(W) Width

1.25 ± 0.20

1.60

+0.30

2.50 ± 0.30

2.00 ± 0.20

-0.10

(0.049 ±0.008) (0.063

+0.012

) (0.098 ± 0.012) (0.079 ± 0.008)

-0.004

(T) Thickness

1.35

1.80

2.80

2.20

Max.

(0.053)

(0.071)

(0.110)

(0.087)

(t) terminal min. 0.50 ± 0.20

0.60 ± 0.20

0.75 ± 0.35

max. (0.020 ± 0.008) (0.024 ± 0.008) (0.030 ± 0.014) (0.030 ± 0.014)

* Reflow soldering only.

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program - http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.

011916
