CAY10-680J4LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CAY10-680J4LF

CAY10-680J4LF: DescriptionResistor Networks & Arrays 68ohm 5% Convex 4resistors; CategoryPassive components The resistor; File Size539KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

CAY10-680J4LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CAY10-680J4LF	-	-	View	Buy Now

CAY10-680J4LF Overview

Resistor Networks & Arrays 68ohm 5% Convex 4resistors

CAY10-680J4LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 0804
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks
Is Samacsys	N
structure	Chip
Component power consumption	0.063 W
The first element resistor	68 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	68 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0804
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	250 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	25 V
Base Number Matches	1

Preview

Download Datasheet

View All

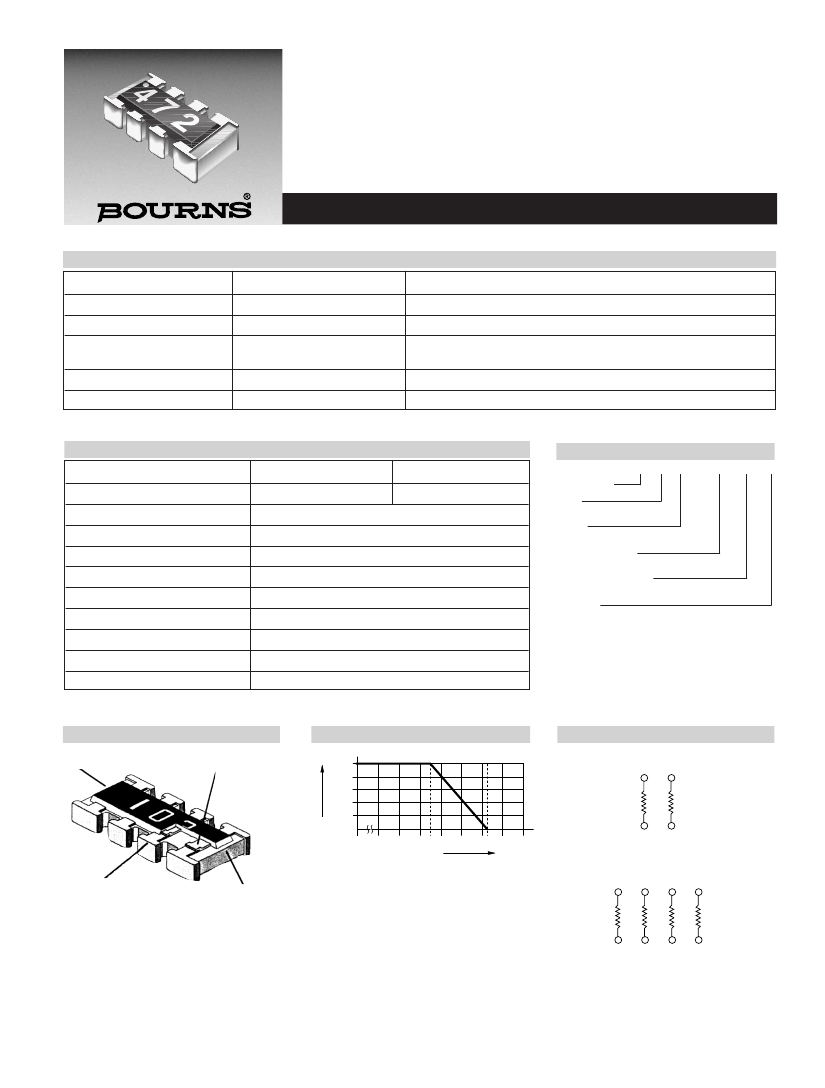

Features

Improvement of placement efficiency

2/4 isolated resistors in an 0404/0804

size package

Convex termination style

E24 series from 10 ohms to

1 megohm

Resistance tolerance ±5%

Suitable for all types of soldering

processes

Paper tape on reel for automatic

placement

Model CAY10 - Chip Resistor Array

Specifications

Requirement

Short Time Overload

Soldering Heat

Temperature Cycling (5)

Moisture Load Life

Load Life

Characteristics

±2%

±1%

±3%

Test Method

Rated Voltage X 2.5, 5 seconds

260°C ±5°C, 10 seconds ±1 second

125°C (30 minutes) - normal (15 minutes)

-30°C (30 minutes) - normal (15 minutes)

1000 hours

Characteristics

Number of Elements (Isolated)

Power Rating per Element

Resistance Tolerance

Resistance Range (E24)

T.C.R.

Max. Overload Voltage

Max. Working Voltage

Operating Temp. Range

Rating Temperature

Packaging

CAY10-xxxJ2

31mW

±5%

10 ohms - 1 megohm

±250ppm/°C

50V

25V

-55°C to +125°C

+70°C

10,000 pieces per reel

CAY10-xxxJ4

How To Order

CA Y 10 - 103

Chip Arrays

Type

• Y = Convex

Model

• 10 = 04 Package Width

Resistance Code

• 103 = 10K ohms

Resistance Tolerance

• J = ±5%

Resistors

• 2 = 2 Resistors

• 4 = 4 Resistors

Construction

Protective Glass Overcoat

Thick Film

Resistive Element

Derating Curve

70°C

Rated Load (%)

-55

40 60 80 100 120 140 160

Ambient Temp. (˚C)

125°C

Isolated Circuit

CAY10-xxxJ2

CAY10-xxxJ4

Termination

High Purity Alumina

Substrate

Specifications are subject to change without notice.
