FLBA6I0826K03: DescriptionFilm Capacitors 400volts 3x82.9uF 10%; CategoryPassive components; File Size141KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

FLBA6I0826K03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FLBA6I0826K03	-	-	View	Buy Now

FLBA6I0826K03 Overview

Film Capacitors 400volts 3x82.9uF 10%

FLBA6I0826K03 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Film Capacitors
RoHS	Details
Termination Style	Terminal Block
Packaging	Bulk
Factory Pack Quantity	8

Preview

Download Datasheet

View All

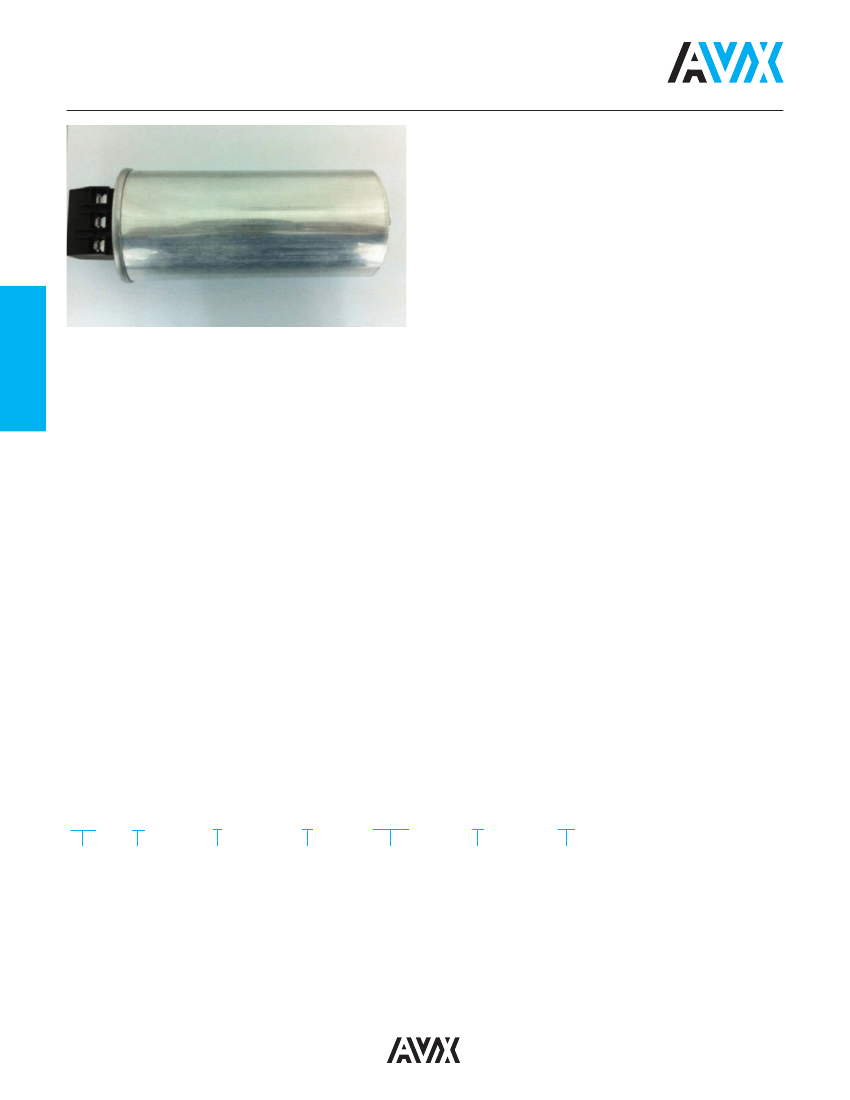

Medium Power Film Capacitors

FLB (RoHS Compliant)

The FLB series uses metallized polypropylene dielectric, alu-

minum can, impregnated with soft PU specially treated to

have a very high dielectric strength in operating conditions up

to 85°C.

The FLB has been designed with overpressure disconnected

device. They are suitable for power factor correction and out-

put AC filtering for power converters, UPS systems, solar

inverters and motor drives etc.

APPLICATIONS

• The FLB capacitor is particularly designed for AC filtering

and power factor correction.

AC FILTERING

PACKAGING MATERIAL

• Aluminum can with soft PU

HOT SPOT CALCULATION

See Hot Spot Temperature, page 75.

hot spot

ambient

+ (P

+ P

) x R

with P

(Dielectric losses) = Q x tgδ

Q x tgδ

⇒

[

⁄

x C

x (V

peak

)

x f ] x tgδ

tgδ

(tan delta)

For polypropylene, tgδ

= 2 x 10

-4

for frequencies

up to 1MHz and is independent of temperatures.

(Thermal losses) = R

x (I

rms

)

where

in Farad

rms

in Ampere

f in Hertz

in °C

V in Volt

in Ohm

in °C/W

STANDARDS

IEC 61071-1, IEC 61071-2: Power electronic capacitors

IEC 60831: Shunt power capacitors of selfhealing type for

ac systems having a rated voltage up to and

including 1kv

WORKING TEMPERATURE

According to the power to be dissipated –

-40°C to +85°C

LIFETIME EXPECTANCY

One unique feature of this technology (as opposed to alu-

minum electrolytic) is how the capacitor reacts at the end of

its lifetime.

Unlike aluminum electrolytic film capacitors do not have a

catastrophic failure mode. Film capacitors simply experience

a parametric loss of capacitance of about 5% from initial

value, with no risk of short circuit.

The capacitor continues to be functional even after this 5%

decrease.

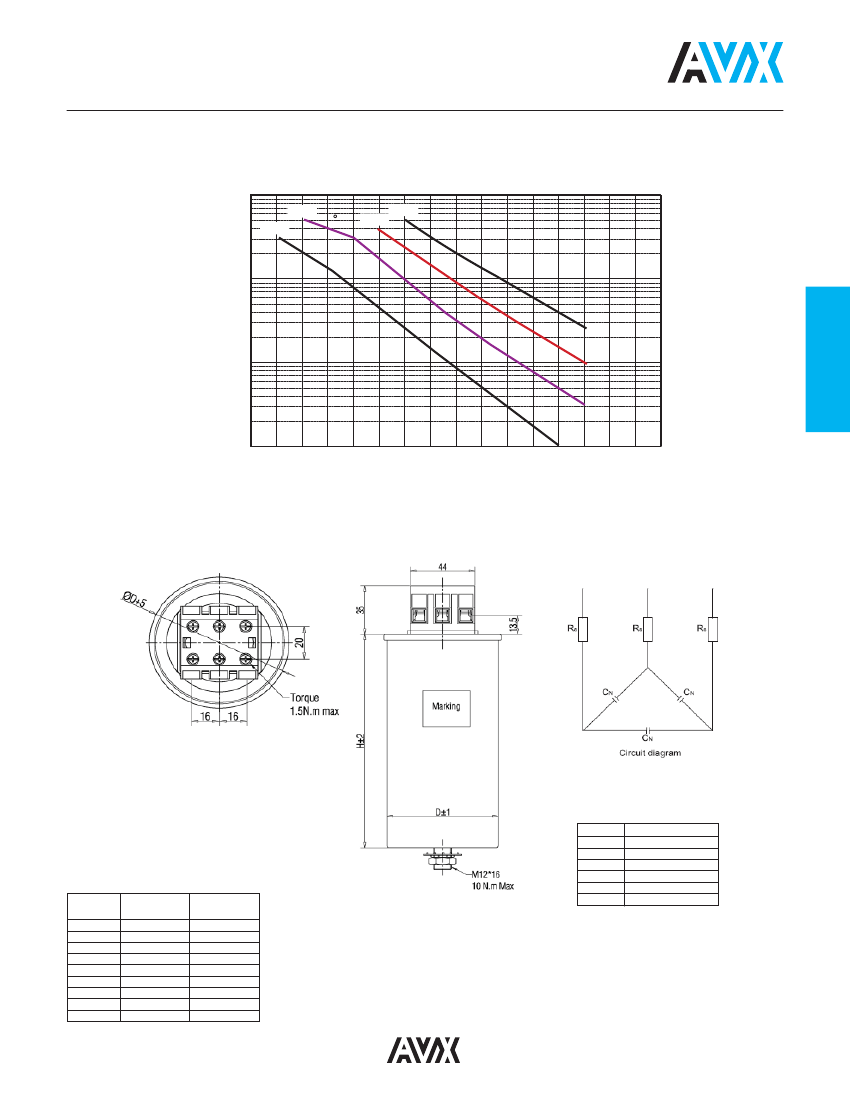

HOW TO ORDER

FLB

Series

Case

Dielectric

6 = Polypropylene

Voltage

A = 230V

I = 400V

L = 440V

J = 525V

N = 660V

O = 690V

0335

Capacitance

EIA Code

0103 = 0.01μF

Tolerances

J = ±5%

K = ±10%

Terminal

Code

03 = 3 phase

■

JUNE 2015
