Inline terminal - IB IL 24 DI 8/T2 - 2860439
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

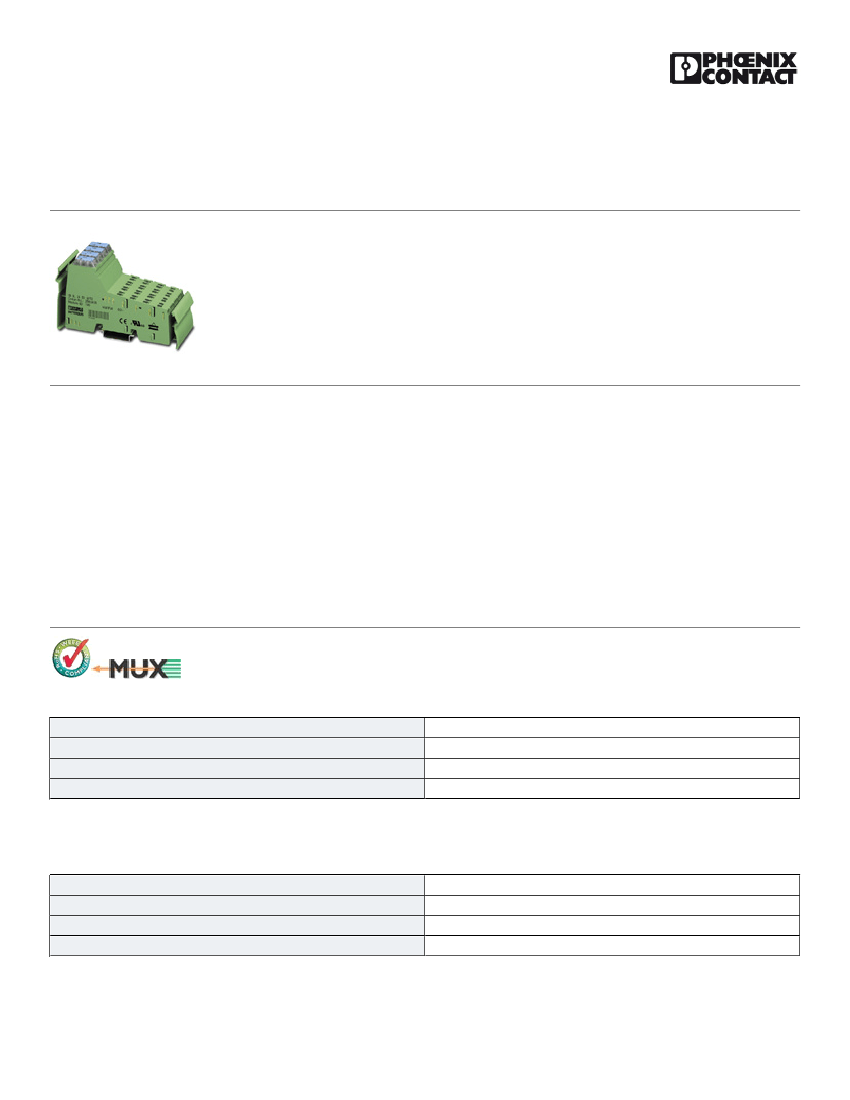

Inline digital input terminal block, without accessories, 8 inputs, input in acc. with EN 61131-2/Type 2, 24 V DC, 4-
wire connection method
Product Description
The digital Inline input module is specially designed for the connection of digital signals in acc. with type 2 limit values following EN 61131-2, as supplied,
for example, by certain limit switches and proximity switches. The I/Os can be connected with the Inline IB IL SCN-8-CP plug. Sensors can be connected
using 2, 3 or 4-wire systems.
The Inline terminal can be labeled using hinged labeling fields. The fields have insert cards that can be labeled individually to suit the application.
Additionally, there is the proven ZBFM-6... Zack strip for labeling the terminal points.
Product Features
■
■
■
■
■
8 digital inputs corresponding to type 2 limit values, according to EN 61131-2
Connection of sensors in 2, 3, and 4-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 2 A
Diagnostic and status indicators
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
136.8 g
85389091
Germany
Technical data
Dimensions
Width
Height
Depth
Note on dimensions
48.8 mm
119.8 mm
71.5 mm
Housing dimensions
04/24/2016 Page 1 / 7
https://www.phoenixcontact.com/us/products/2860439
Inline terminal - IB IL 24 DI 8/T2 - 2860439
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-25 °C ... 55 °C
-25 °C ... 85 °C
10 % ... 95 % (according to DIN EN 61131-2)
10 % ... 95 % (according to DIN EN 61131-2)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
Interfaces
Designation
Connection method
Inline local bus
Inline data jumper
Digital inputs
Input name
Connection method
Number of inputs
Typical response time
Protective circuit
Input voltage
Input voltage range "0" signal
Input voltage range "1" signal
Digital inputs
Spring-cage connection
4-wire
8 (IEC 61131-2 type 2)
< 1 ms
Short-circuit and overload protection
24 V DC (via voltage jumper)
-3 V DC ... 5 V DC
15 V DC ... 30 V DC
Standards and Regulations
Test section
5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min.
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz
1 min.
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min.
24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.
Protection class
III, IEC 61140, EN 61140, VDE 0140-1
Power supply for module electronics
Supply voltage
Supply voltage range
Supply current
Communications power U
L
Current consumption
24 V DC (via voltage jumper)
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
50 mA
7.5 V (via voltage jumper)
max. 50 mA (from the local bus)
General
Mounting type
DIN rail
04/24/2016 Page 2 / 7
https://www.phoenixcontact.com/us/products/2860439
Inline terminal - IB IL 24 DI 8/T2 - 2860439
Technical data
General
Net weight
Note on weight specifications
109.81 g
Without plug
Inline potentials
Communications power U
L
Current consumption from U
L
Current consumption from U
M
Segment circuit supply U
S
Current consumption from U
S
Current consumption from U
ANA
7.5 V DC
max. 50 mA
0 A DC
24 V DC (nominal value)
max. 2 A
0 A DC
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27250302
27250302
27250302
27242604
27242604
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001430
EC001599
EC001599
EC001599
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Accessories
Accessories
Connector set
04/24/2016 Page 3 / 7
https://www.phoenixcontact.com/us/products/2860439
Inline terminal - IB IL 24 DI 8/T2 - 2860439
Accessories

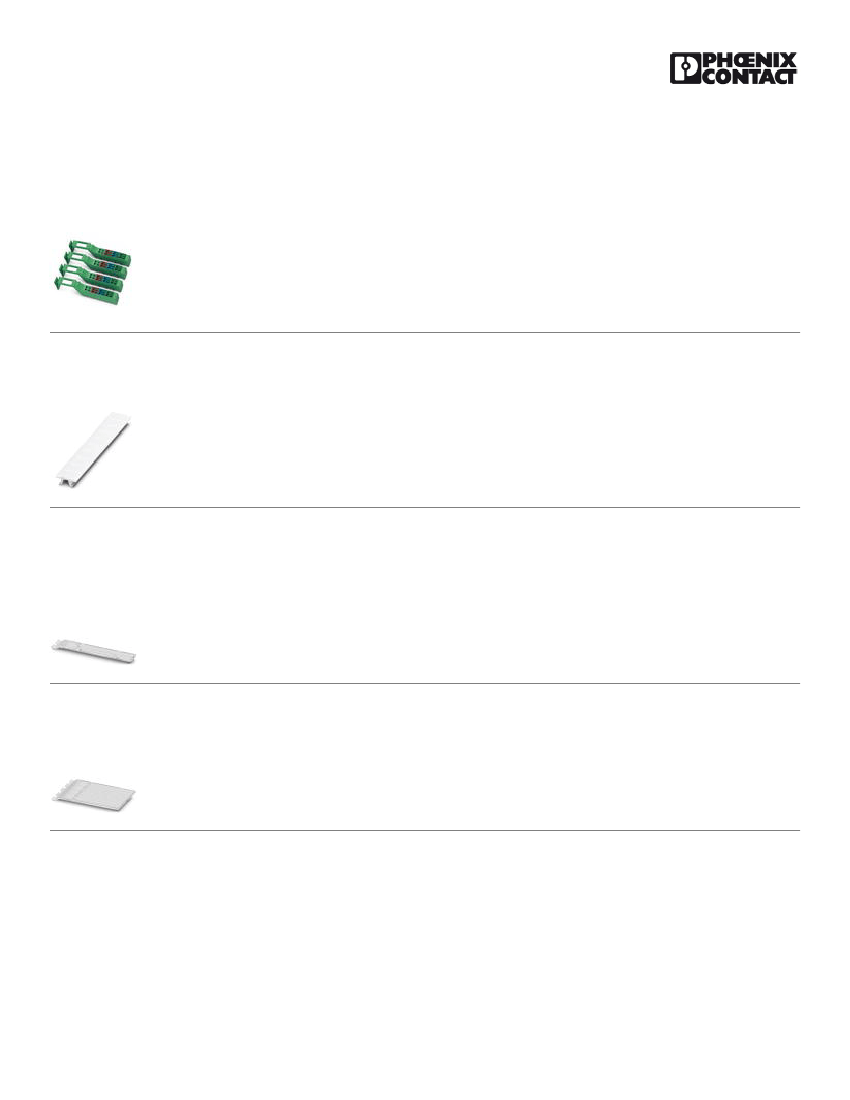

Connector set - IB IL DI/DO 8-PLSET/CP - 2860963
Connector set, for IB IL DI/DO 8, copper, with color print.
Labeled terminal marker
Zack marker strip - ZB 6,QR:FORTL.ZAHLEN - 1051029
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed vertically: Consecutive numbers 1 - 10, 11
- 20, etc. up to 491 - 500, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field:
6.15 x 10.5 mm
Labeling panel
Labeling field - IB IL FIELD 2 - 2727501
Labeling field, width: 12.2 mm
Labeling field - IB IL FIELD 8 - 2727515
Labeling field, width: 48.8 mm
Marker pen
04/24/2016 Page 4 / 7
https://www.phoenixcontact.com/us/products/2860439
Inline terminal - IB IL 24 DI 8/T2 - 2860439
Accessories

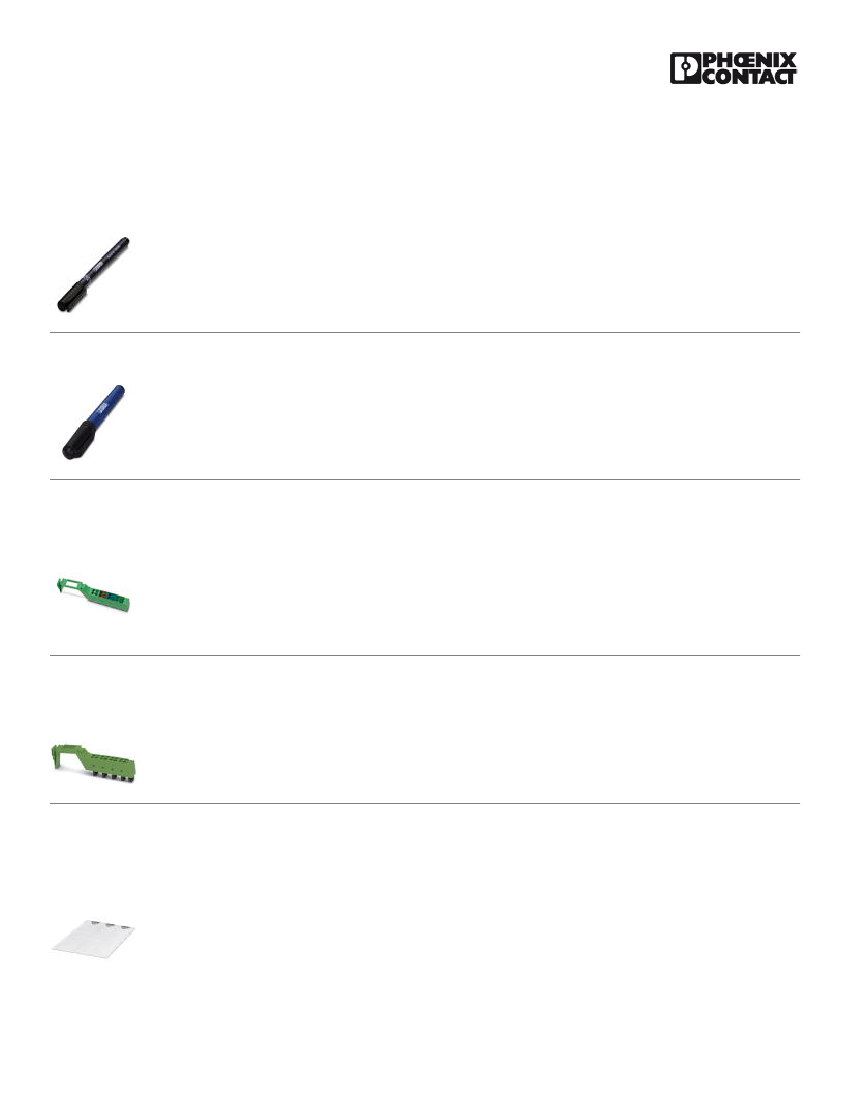

Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Marker pen - X-PEN 0,35 - 0811228
Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
Plug
Inline connector - IB IL SCN-8-CP - 2727608
Inline connector, colored
Inline connector - IB IL SCN-8 - 2726337
Connector, for digital 1, 2 or 8-channel Inline terminals
Terminal marking
Insert strip - ESL 62X10 - 0809492
Insert strip, Sheet, white, unlabeled, can be labeled with: Office printing systems, Plotter: Laser printer, Mounting type:
Insert, Lettering field: 62 x 10 mm
04/24/2016 Page 5 / 7
