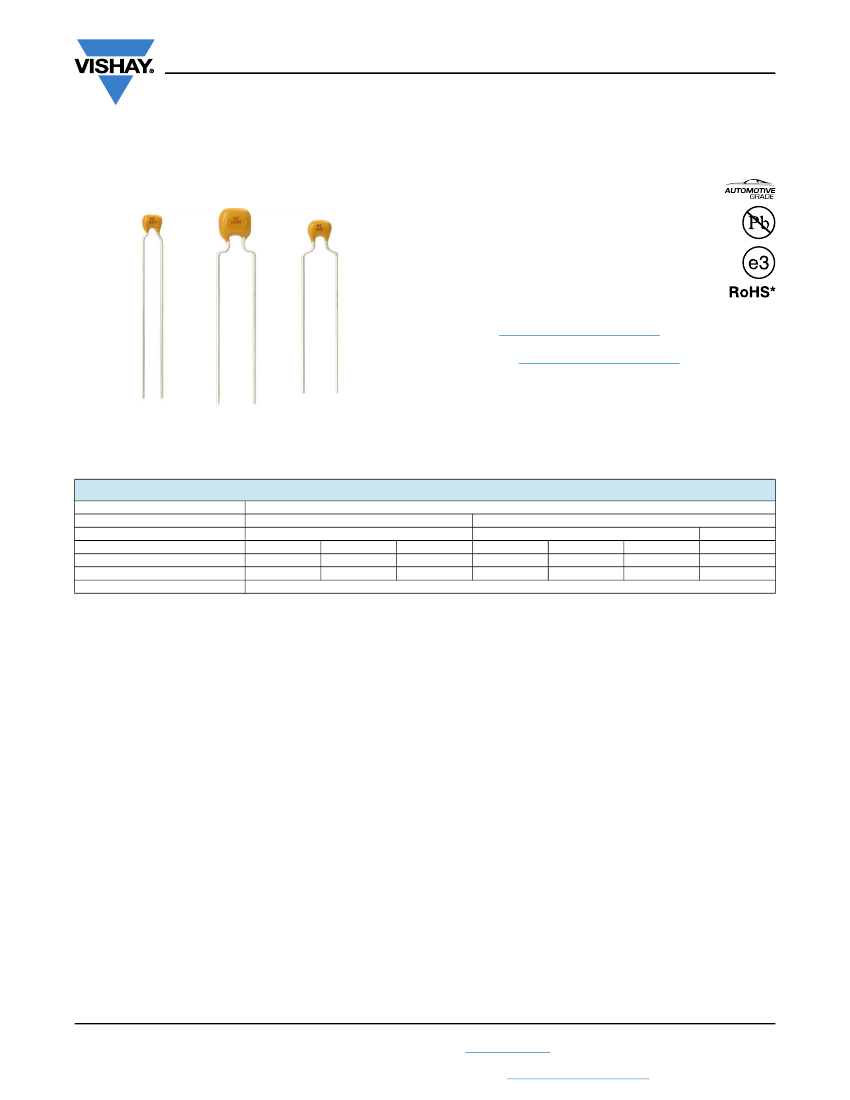

K...V Series
www.vishay.com
Vishay BCcomponents
Radial Leaded Multilayer Ceramic Capacitors For Automotive Applications
Class 1 and Class 2, 50 V
DC
, 100 V
DC
, 200 V
DC
FEATURES
• AEC-Q200 qualified with PPAP available
• High reliability MLCC insert with wet build
process
• High operating temperature up to 160 °C
• High capacitance with small size
• Radial mounting style
• Crimp and straight leadstyles
Available
• Parts compliant with ELV Directive
• For fully RoHS-compliant alternative K...R Series, please
refer to
www.vishay.com/doc?45233
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
APPLICATIONS
• Automotive
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
C0G
100
100
10 000
2
200
100
1000
50
470
1 000 000
Radial
X7R
100
470
470 000
200
330
100 000
X8R
50
470
330 000
50
100
10 000
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
CAPACITANCE RANGE
100 pF to 1 μF
OPERATING TEMPERATURE RANGE
-55 °C to +160 °C (50 % rated voltage above 150 °C)
TOLERANCE ON CAPACITANCE
± 5 %, ± 10 %, ± 20 %
TEMPERATURE CHARACTERISTICS
Class 1: C0G
Class 2: X7R, X8R
RATED VOLTAGE
50 V
DC
, 100 V
DC
, 200 V
DC
TEST VOLTAGE
• 50 V
DC
and 100 V
DC
: 250 % of rated voltage
• 200 V
DC
: 200 % of rated voltage
SECTIONAL SPECIFICATIONS
Climatic category (acc. to EN 60058-1)
Class 1 and 2: 55/125/21
INSULATION RESISTANCE
APPROVALS
EIA 198
IEC 60384-9
AEC-Q200
100 G or 1000
F
whichever is less at rated voltage within
2 min of charging.
DISSIPATION FACTOR
Class 1: 0.1 % max.
(at 1 MHz, 1 V where C
1000 pF;
at 1 kHz, 1 V where C > 1000 pF)
Class 2: 2.5 % max.
(at 1 kHz, 1 V)
DESIGN
• The capacitors consist of a high reliability MLCC
• The lead wires are 0.5 mm and are made of 100 % tinned
copper clad steel wire (nickel wires for welding are
available on request)
• The capacitors may be supplied with straight or kinked
leads having a lead spacing of 2.5 mm and 5.0 mm
• Coating is made of yellow colored flame retardant epoxy
resin in accordance with UL 94 V-0
Revision: 25-Feb-16
Document Number: 45213
1
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
K...V Series
www.vishay.com
Vishay BCcomponents

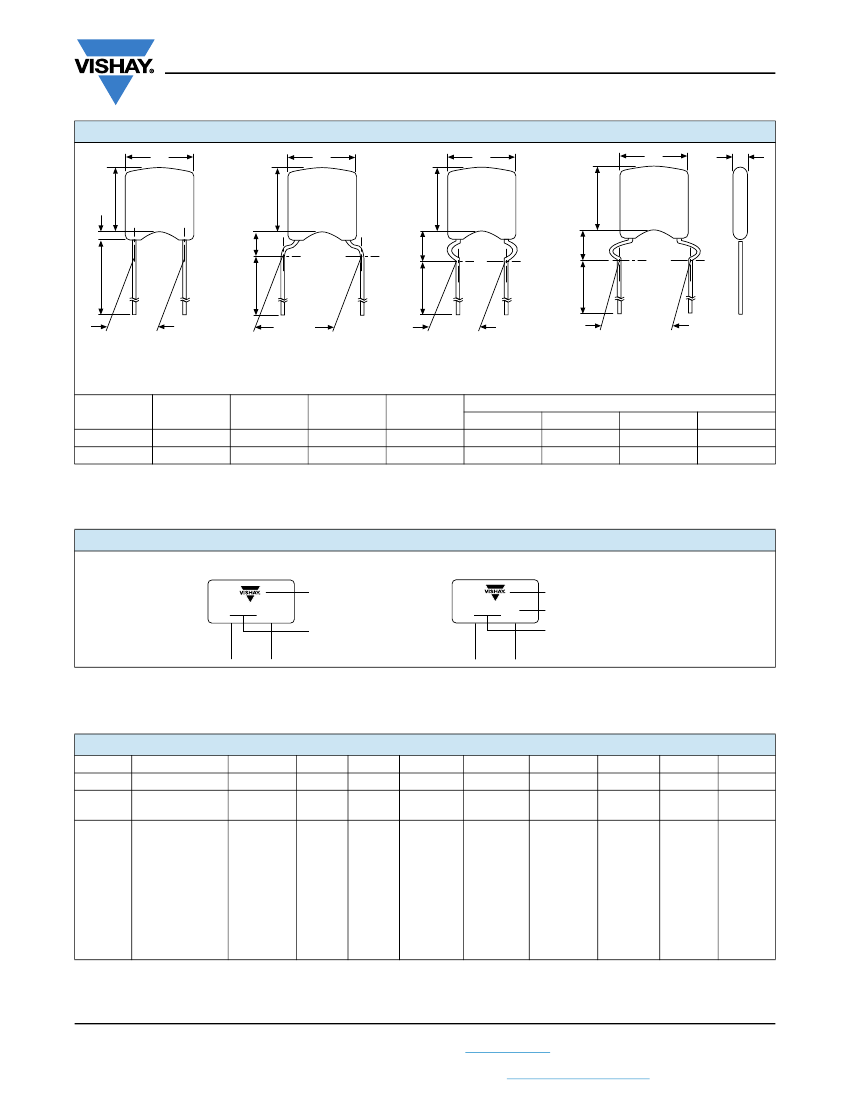

LEAD CONFIGURATION AND DIMENSIONS
in millimeters
Wb
Wb
Wb
Wb
T
H
H
H
H
SH
SH
SH
SH
L
L
L
L
2.5 ± 0.8
5.0 ± 0.8
2.5 ± 0.8
5.0 ± 0.8
L2
Component outline for
lead
spacing
2.5 mm ± 0.8 mm
(straight leads)
H5
Component outline for
lead
spacing
5.0 mm ± 0.8 mm
(flat bent leads)
K2
Component outline for
lead
spacing
2.5 mm ± 0.8 mm
(outside kink)
K5
Component outline for
lead
spacing
5.0 mm ± 0.8 mm
(outside kink)
SIZE CODE
15
20
Wb
MAX.
3.0 - 3.8
4.3 - 5.1
H
MAX.
2.0 - 3.8
2.5 - 5.1
T
MAX.
1.6 - 2.6
1.9 - 3.2
Lead
Diameter
0.50 ± 0.05
0.50 ± 0.05
MAXIMUM SEATING HEIGHT (SH)
L2
1.6
1.6
H5
2.6
2.6
K2
3.5
3.5
K5
3.5
3.5
Notes
• Bulk packed types have a standard lead length L = 30 mm ± 5 mm.
• L2 and H5 are preferred styles.
MARKING
SIZE
15
Vishay logo or BC logo
X X X
X X X
t
SIZE
20
Vishay logo or BC logo
t: Tolerance code
XXX: Capacitance code
XXX: Capacitance code
Notes
• Two significant digits followed by one digit for the multiplier as given following: 1 = * 10, 2 = * 100, 3 = * 1000, 4 = * 10 000, 5 = * 100 000
• The tolerance codes are J = 5 %, K = 10 %, M = 20 %
ORDERING CODE INFORMATION
K
1
Product
Type
104
234
Capacitance
(pF)
K
5
Capacitance
Tolerance
15
67
Size
Code
X7R
8 9 10
T.C.
Code
F
11
Rated
Voltage
5
12
3
13
H
14
Lead
Style
5
15
V
16
Lead
Packaging /
Diameter Lead Length
AEC-Q200
Lead
Spacing qualified
K = radial The first two digits J = ± 5 %
Please
Please F = 50 V
DC
5 = 0.50 mm 3 = bulk
H = flat 2 = 2.5 mm
V=
leaded are the significant K = ± 10 % refer to refer to H = 100 V
DC
± 0.05 mm
T = tape
crimp
5 = 5.0 mm AEC-Q200
MLCC
figures of
M = ± 20 % relevant relevant K = 200 V
DC
and reel
L = straight
qualified
capacitance and
datasheet datasheet
U = ammo K = outside
the last digit is a
crimp
multiplier as
follows:
1 = * 10
2 = * 100
3 = * 1000
4 = * 10 000
5 = * 100 000
Revision: 25-Feb-16
Document Number: 45213
2
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
K...V Series
www.vishay.com
ORDERING CODES
DIELECTRIC C0G
CAP.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10 000
50 V
DC
K101#15C0GF5###V
K121#15C0GF5###V
K151#15C0GF5###V
K181#15C0GF5###V
K221#15C0GF5###V
K271#15C0GF5###V
K331#15C0GF5###V
K391#15C0GF5###V
K471#15C0GF5###V
K561#15C0GF5###V
K681#15C0GF5###V
K821#15C0GF5###V
K102#15C0GF5###V
K122#15C0GF5###V
K152#15C0GF5###V
K182#15C0GF5###V
K222#15C0GF5###V
K272#15C0GF5###V
K332#15C0GF5###V
K392#15C0GF5###V
K472#20C0GF5###V
K562#20C0GF5###V
K682#20C0GF5###V
K822#20C0GF5###V
K103#20C0GF5###V
100 V
DC
K101#15C0GH5###V
K121#15C0GH5###V
K151#15C0GH5###V
K181#15C0GH5###V
K221#15C0GH5###V
K271#15C0GH5###V
K331#15C0GH5###V
K391#15C0GH5###V
K471#15C0GH5###V
K561#15C0GH5###V
K681#15C0GH5###V
K821#15C0GH5###V
K102#15C0GH5###V
K122#15C0GH5###V
K152#15C0GH5###V
K182#15C0GH5###V
K222#20C0GH5###V
K272#20C0GH5###V
K332#20C0GH5###V
K392#20C0GH5###V
K472#20C0GH5###V
K562#20C0GH5###V
K682#20C0GH5###V
K822#20C0GH5###V
K103#20C0GH5###V
200 V
DC
K101#15C0GK5###V
K121#15C0GK5###V
K151#15C0GK5###V
K181#15C0GK5###V
K221#15C0GK5###V
K271#15C0GK5###V
K331#15C0GK5###V
K391#15C0GK5###V
K471#15C0GK5###V
K561#15C0GK5###V
K681#15C0GK5###V
K821#15C0GK5###V
K102#15C0GK5###V
-
-
-
-
-
-
-
-
-
-
-
-
Vishay BCcomponents
Notes
• Lead diameter is 0.5 mm
• # 5th digit is capacitance tolerance code: ± 5 % = J; ± 10 % = K
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; H; K (L and H are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5
RoHS-compliant
Not RoHS-compliant, for fully RoHS-compliant alternative K...R Series, please refer to
www.vishay.com/doc?45233
Revision: 25-Feb-16
Document Number: 45213
3
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
K...V Series
www.vishay.com
Vishay BCcomponents
DIELECTRIC X7R
CAP.
(pF)
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10 000
12 000
15 000
18 000
22 000
27 000
33 000
39 000
47 000
56 000
68 000
82 000
100 000
150 000
220 000
330 000
470 000
560 000
680 000
1 000 000
50 V
DC
-
-
K471#15X7RF5###V
K561#15X7RF5###V
K681#15X7RF5###V
K821#15X7RF5###V
K102#15X7RF5###V
K122#15X7RF5###V
K152#15X7RF5###V
K182#15X7RF5###V
K222#15X7RF5###V
K272#15X7RF5###V
K332#15X7RF5###V
K392#15X7RF5###V
K472#15X7RF5###V
K562#15X7RF5###V
K682#15X7RF5###V
K822#15X7RF5###V
K103#15X7RF5###V
K123#15X7RF5###V
K153#15X7RF5###V
K183#15X7RF5###V
K223#15X7RF5###V
K273#15X7RF5###V
K333#15X7RF5###V
K393#15X7RF5###V
K473#15X7RF5###V
K563#15X7RF5###V
K683#15X7RF5###V
K823#15X7RF5###V
K104#15X7RF5###V
K154#15X7RF5###V
K224#20X7RF5###V
K334#20X7RF5###V
K474#20X7RF5###V
K564#20X7RF5###V
K684#20X7RF5###V
K105#20X7RF5###V
100 V
DC
-
-
K471#15X7RH5###V
K561#15X7RH5###V
K681#15X7RH5###V
K821#15X7RH5###V
K102#15X7RH5###V
K122#15X7RH5###V
K152#15X7RH5###V
K182#15X7RH5###V
K222#15X7RH5###V
K272#15X7RH5###V
K332#15X7RH5###V
K392#15X7RH5###V
K472#15X7RH5###V
K562#15X7RH5###V
K682#15X7RH5###V
K822#15X7RH5###V
K103#15X7RH5###V
K123#15X7RH5###V
K153#15X7RH5###V
K183#15X7RH5###V
K223#15X7RH5###V
K273#15X7RH5###V
K333#15X7RH5###V
K393#15X7RH5###V
K473#15X7RH5###V
K563#15X7RH5###V
K683#15X7RH5###V
K823#15X7RH5###V
K104#15X7RH5###V
K154#20X7RH5###V
K224#20X7RH5###V
K334#20X7RH5###V
K474#20X7RH5###V
-
-
-
200 V
DC
K331#15X7RK5###V
K391#15X7RK5###V
K471#15X7RK5###V
K561#15X7RK5###V
K681#15X7RK5###V
K821#15X7RK5###V
K102#15X7RK5###V
K122#15X7RK5###V
K152#15X7RK5###V
K182#15X7RK5###V
K222#15X7RK5###V
K272#15X7RK5###V
K332#15X7RK5###V
K392#15X7RK5###V
K472#15X7RK5###V
K562#15X7RK5###V
K682#15X7RK5###V
K822#15X7RK5###V
K103#15X7RK5###V
K123#15X7RK5###V
K153#15X7RK5###V
K183#15X7RK5###V
K223#15X7RK5###V
K273#15X7RK5###V
K333#20X7RK5###V
K393#20X7RK5###V
K473#20X7RK5###V
K563#20X7RK5###V
K683#20X7RK5###V
K823#20X7RK5###V
K104#20X7RK5###V
-
-
-
-
-
-
-
Notes
• Lead diameter is 0.5 mm
• # 5th digit is capacitance tolerance code: ± 10 % = K; ± 20 % = M
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; H; K (L and H are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5
RoHS-compliant
Not RoHS-compliant, for fully RoHS-compliant alternative K...R Series, please refer to
www.vishay.com/doc?45233
Revision: 25-Feb-16
Document Number: 45213
4
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
K...V Series
www.vishay.com
Vishay BCcomponents
DIELECTRIC X8R
CAP.
(pF)
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10 000
12 000
15 000
18 000
22 000
27 000
33 000
39 000
47 000
56 000
68 000
82 000
100 000
150 000
220 000
330 000
50 V
DC
K471#15X8RF5###V
K561#15X8RF5###V
K681#15X8RF5###V
K821#15X8RF5###V
K102#15X8RF5###V
K122#15X8RF5###V
K152#15X8RF5###V
K182#15X8RF5###V
K222#15X8RF5###V
K272#15X8RF5###V
K332#15X8RF5###V
K392#15X8RF5###V
K472#15X8RF5###V
K562#15X8RF5###V
K682#15X8RF5###V
K822#15X8RF5###V
K103#15X8RF5###V
K123#15X8RF5###V
K153#15X8RF5###V
K183#15X8RF5###V
K223#15X8RF5###V
K273#15X8RF5###V
K333#15X8RF5###V
K393#15X8RF5###V
K473#15X8RF5###V
K563#15X8RF5###V
K683#15X8RF5###V
K823#15X8RF5###V
K104#15X8RF5###V
K154#15X8RF5###V
K224#20X8RF5###V
K334#20X8RF5###V
Notes
• Lead diameter is 0.5 mm
• # 5th digit is capacitance tolerance code: ± 10 % = K; ± 20 % = M
• # 13th digit is packaging code: bulk = 3; reel = T; ammo = U
• # 14th digit is lead style code: L; H; K (L and H are preferred lead configuration)
• # 15th digit is lead spacing code: 2.5 mm = 2; 5.0 mm = 5
RoHS-compliant
Not RoHS-compliant, for fully RoHS-compliant alternative K...R Series, please refer to
www.vishay.com/doc?45233
Revision: 25-Feb-16
Document Number: 45213
5
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
