CDR74BNP-560LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CDR74BNP-560LC

CDR74BNP-560LC: DescriptionFixed Inductors 56uH 0.76A 15% SMD PWR INDUCTOR; CategoryPassive components inductor; File Size237KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDR74BNP-560LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDR74BNP-560LC	-	-	View	Buy Now

CDR74BNP-560LC Overview

Fixed Inductors 56uH 0.76A 15% SMD PWR INDUCTOR

CDR74BNP-560LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	3229
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	3229
structure	Magnetically Shielded
DC Resistance	0.29 Ω
Nominal inductance(L)	56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDR74B
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Package height	4.5 mm
Package length	7.8 mm
Package form	SMT
Package width	7 mm
method of packing	Tape
Maximum rated current	0.76 A
self resonant frequency	11.8 MHz
series	CDR74B
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	2.52 MHz
Tolerance	15%

Preview

Download Datasheet

View All

SMD Power Inductor

CDR74B

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H: 8.15 7.35 4.9 mm Max.

• Product weight: 75mg(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -25

+80

(including coil’s self temperature rise)

• Storage temperature range: -25

+80

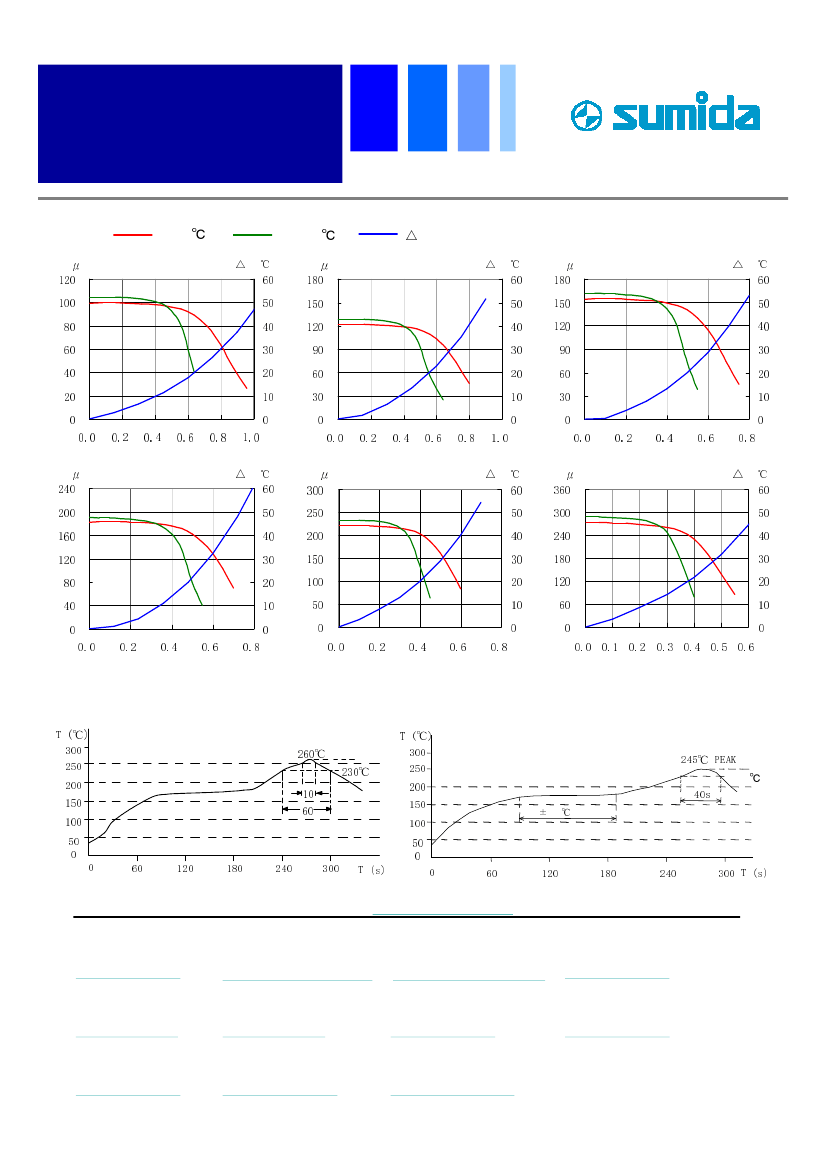

• Solder reflow temperature: 260

peak.

RoHS

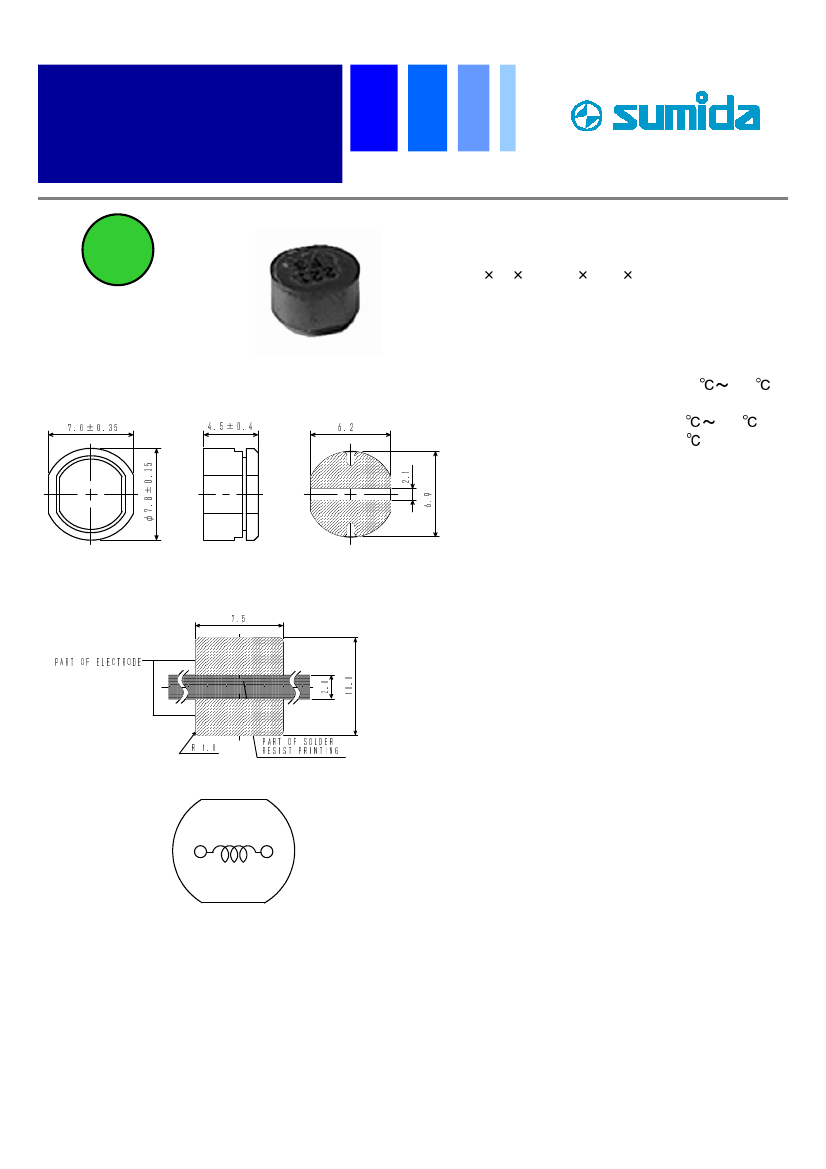

Dimension - [mm]

2.6

4.0±5.4

53.0±0.7

Packaging

• Carrier tape and reel packaging

• 12.9”diameter reel

• 1000pcs per reel

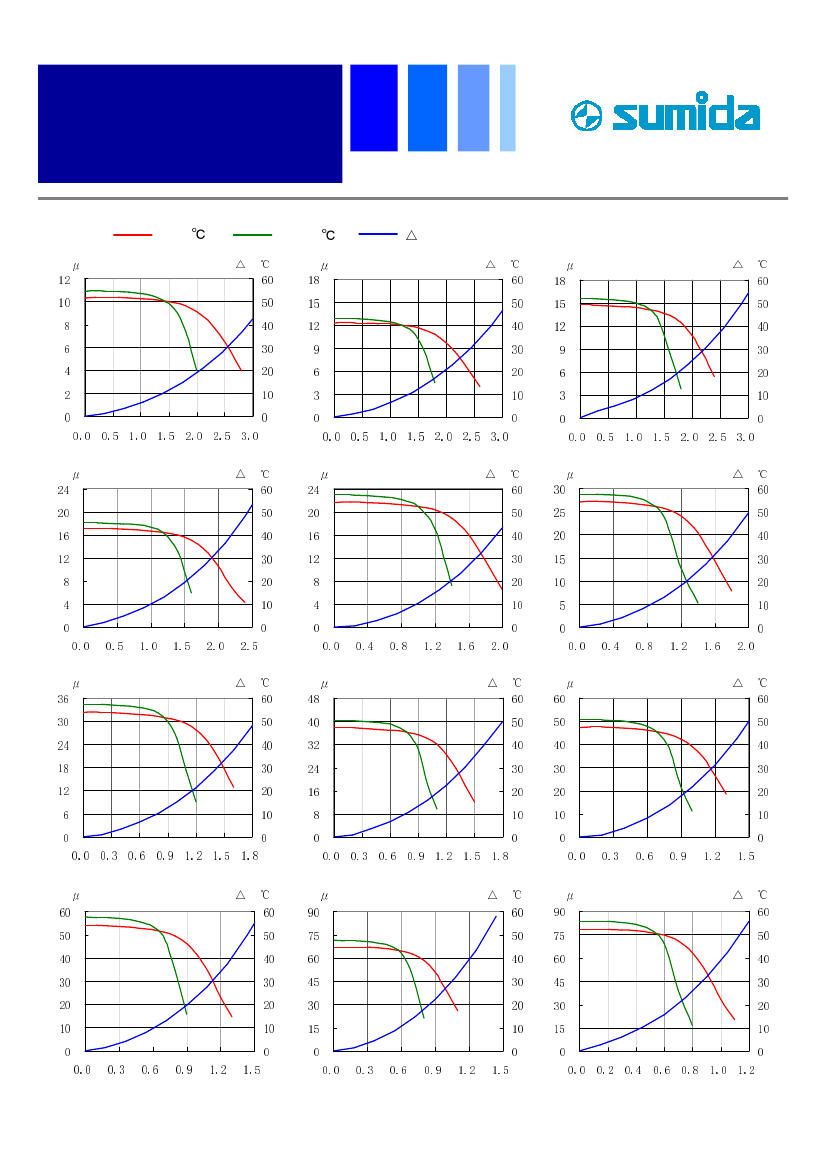

Land pattern and Schematics - [mm]

5.7

Applications

• Ideally used in Notebook PC ,LCD TV ,Game

machine ,HDD ,DSC/DVC , etc as DC-DC

converter inductors.

Page 1 of 4

Revised: 19-Dec-13

℃

℃ ½℃

× ×

GNITNIRP TSISER

REDLOS FO TRAP

0.1 R

EDORTCELE FO TRAP

CDR74BNP-560LC Related Products

	CDR74BNP-560LC	CDR74BNP-100MC	CDR74BNP-180MC	CDR74BNP-101KC	CDR74BNP-470LC	CDR74BNP-680LC	CDR74BNP-220MC	CDR74BNP-151KC	CDR74BNP-121KC	CDR74BNP-820LC
Description	Fixed Inductors 56uH 0.76A 15% SMD PWR INDUCTOR	Fixed Inductors 10uH 1.65A 20% SMD PWR INDUCTOR	Fixed Inductors 18uH 1.29A 20% SMD PWR INDUCTOR	Fixed Inductors 100uH 0.55A 10% SMD PWR INDUCTOR	Fixed Inductors 47uH 0.8A 15% SMD PWR INDUCTOR	Fixed Inductors 68uH 0.68A 15% SMD PWR INDUCTOR	Fixed Inductors 22uH 1.12A 20% SMD PWR INDUCTOR	Fixed Inductors 150uH 0.44A 10% SMD PWR INDUCTOR	Fixed Inductors 120uH 0.49A 10% SMD PWR INDUCTOR	Fixed Inductors 82uH 0.62A 15% SMD PWR INDUCTOR
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	3229	3229	3229	3229	3229	3229	3229	3229	3229	3229
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	3229	3229	3229	3229	-	3229	3229	3229	-	-
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	-	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	-	-
DC Resistance	0.29 Ω	0.07 Ω	0.1 Ω	0.49 Ω	-	0.33 Ω	0.13 Ω	0.94 Ω	-	-
Nominal inductance(L)	56 µH	10 µH	18 µH	100 µH	-	68 µH	22 µH	150 µH	-	-
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-
Manufacturer's serial number	CDR74B	CDR74B	CDR74B	CDR74B	-	CDR74B	-	CDR74B	-	-
Number of functions	1	1	1	1	-	1	1	1	-	-
Number of terminals	2	2	2	2	-	2	2	2	-	-
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	-	80 °C	80 °C	80 °C	-	-
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-	-25 °C	-25 °C	-25 °C	-	-
Package height	4.5 mm	4.5 mm	4.5 mm	4.5 mm	-	4.5 mm	4.5 mm	4.5 mm	-	-
Package length	7.8 mm	7.8 mm	7.8 mm	7.8 mm	-	7.8 mm	7.8 mm	7.8 mm	-	-
Package form	SMT	SMT	SMT	SMT	-	SMT	SMT	SMT	-	-
Package width	7 mm	7 mm	7 mm	7 mm	-	7 mm	7 mm	7 mm	-	-
method of packing	Tape	Tape	Tape	Tape	-	Tape	Tape	Tape	-	-
Maximum rated current	0.76 A	1.65 A	1.29 A	0.55 A	-	0.68 A	1.12 A	0.44 A	-	-
self resonant frequency	11.8 MHz	26.3 MHz	19.3 MHz	8.3 MHz	-	10 MHz	18.4 MHz	6.4 MHz	-	-
series	CDR74B	CDR74B	CDR74B	CDR74B	-	CDR74B	-	CDR74B	-	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-
shield	YES	YES	YES	YES	-	YES	YES	YES	-	-
surface mount	YES	YES	YES	YES	-	YES	YES	YES	-	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	-	-
Test frequency	2.52 MHz	2.52 MHz	2.52 MHz	0.001 MHz	-	2.52 MHz	2.52 MHz	0.001 MHz	-	-
Tolerance	15%	20%	20%	10%	-	15%	20%	10%	-	-
