803-004-02ZNU7-10PN datasheet, PDF

Datasheet> All Categories > The connector> 803-004-02ZNU7-10PN

803-004-02ZNU7-10PN: DescriptionCircular Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector; File Size263KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

803-004-02ZNU7-10PN Overview

Circular Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

803-004-02ZNU7-10PN Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC NICKEL WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	7
Termination type	CRIMP
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

Series 803 “Mighty Mouse”

¼ Turn Bayonet Coupling

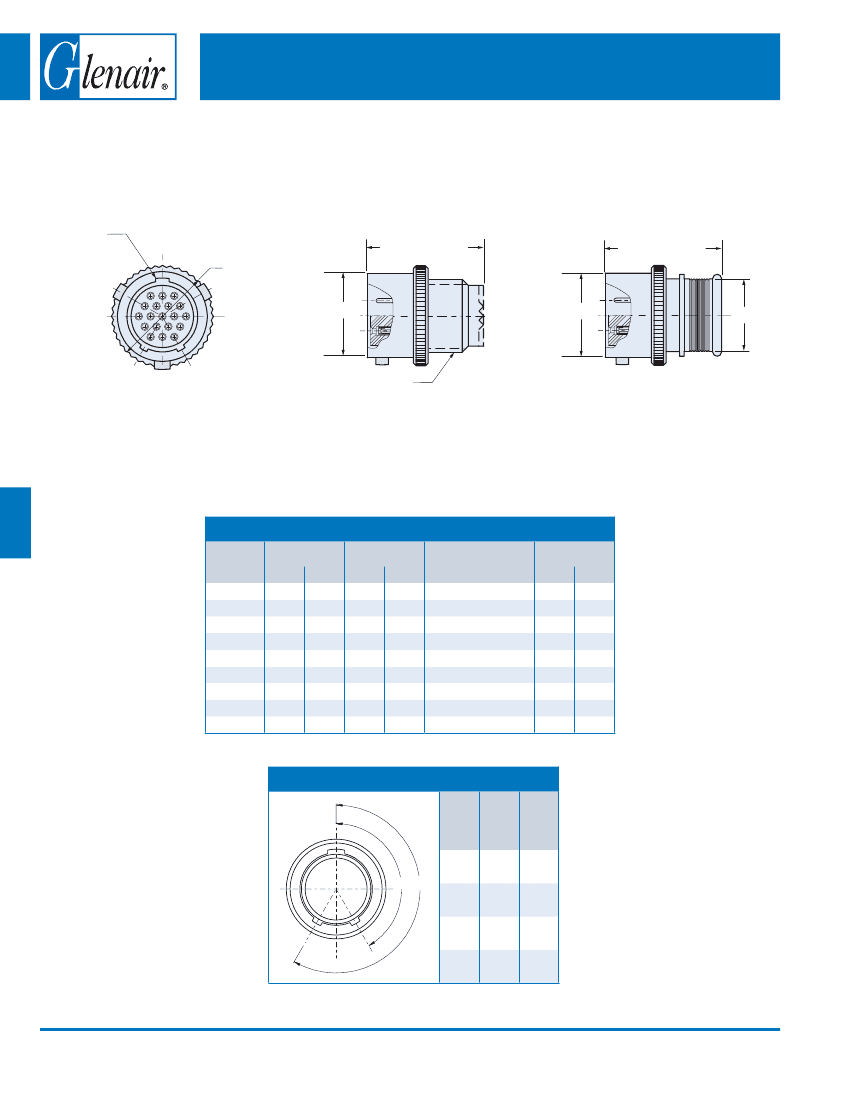

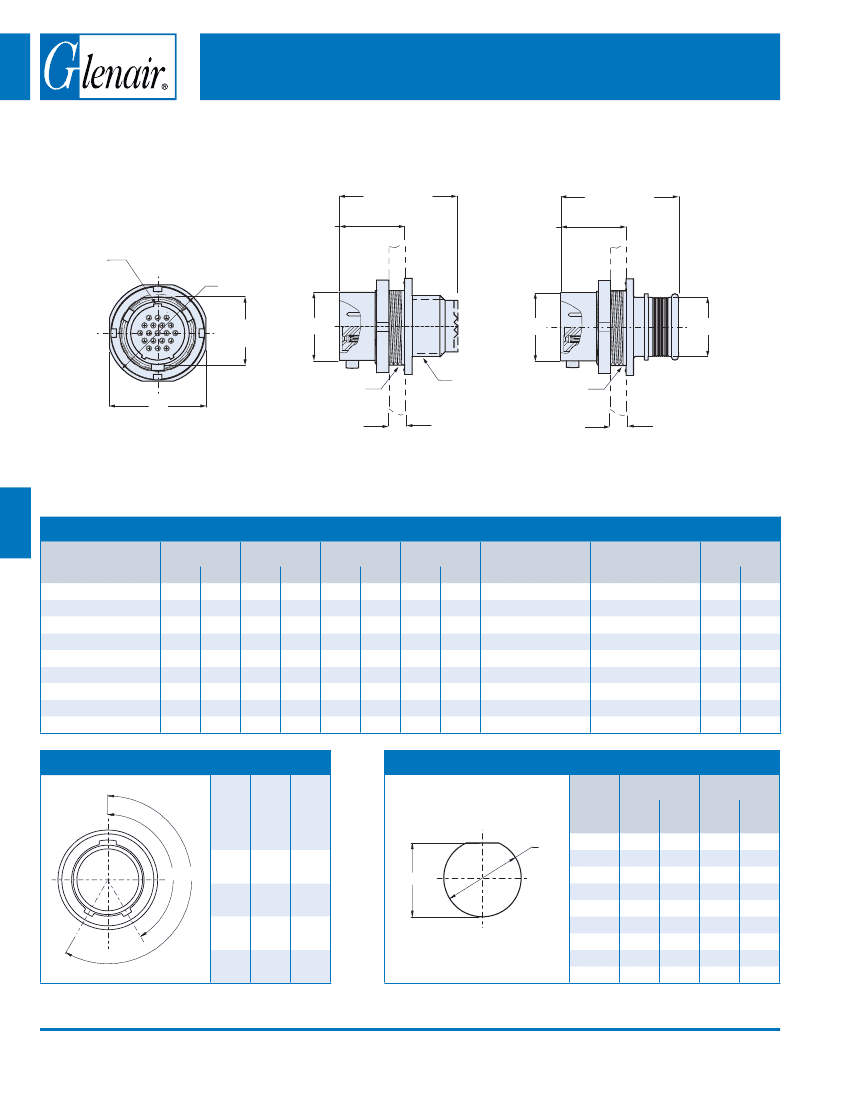

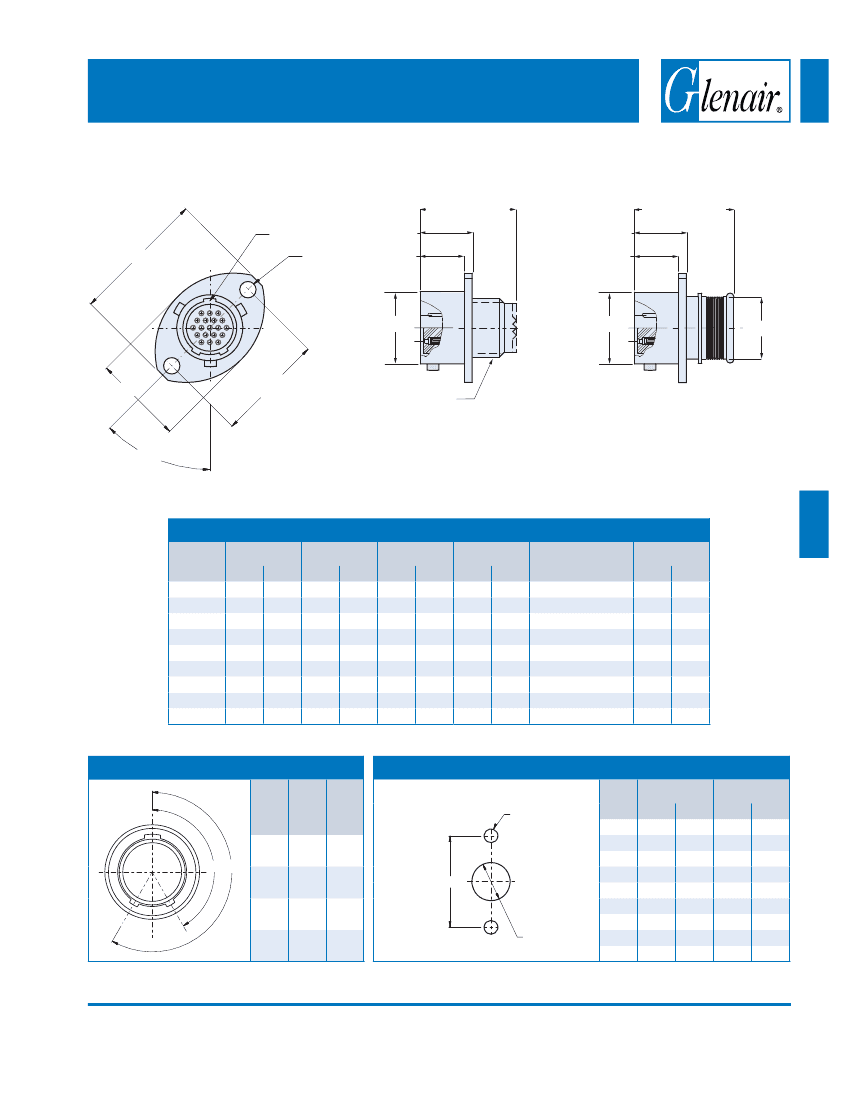

Series 803 Bayonet Crimp Receptacles

6–7

Shell Size- Insert

Arrangement

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23 Contacts

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

37 #23 Contacts

55 #23 Contacts

85 #23 Contacts

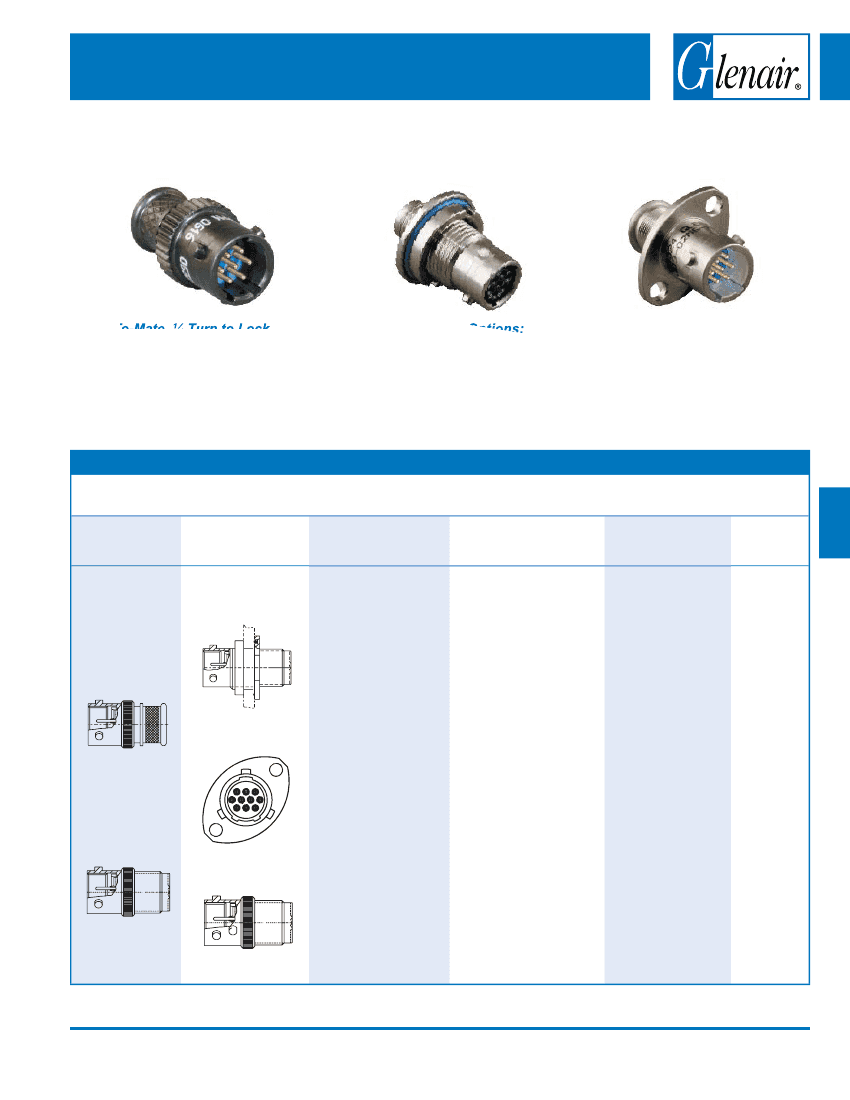

Push-To-Mate, ¼ Turn to Lock.

These quick-mating connectors feature

bayonet pins on the receptacle. Simply

push the connectors together, then

rotate the plug coupling nut 90° to lock

the connectors together.

Three Shell Mounting Options:

Jam nut with o-ring for rear panel

mounting, elliptical ﬂange for front

or rear panel mounting, or in-line

receptacles for free-hanging cables.

Two Shell Styles:

Choose the integral

band platform for direct attachment

of a cable shield. Install a heat-shrink

boot, or overmold directly onto the

band platform. An accessory thread is

available for attaching strain reliefs and

backshells.

HOW TO ORDER

Sample Part Number

80 3 - 003

Series

803-003

Receptacle with

Banding Platform

for Direct

Attachment of

Cable Shield and

Overmold

-0 7

Shell Style

Shell Material /

Finish

Aluminum / Black

Anodize

Contact Type

Shell Key

Position

Normal

Alternate

Key

Positions:

-07

Jam Nut

Socket

Standard #23 contacts

accept #22 through

#28 AWG wire. Special

contacts for #26 to #30

AWG are available. Use

the following contact

codes to specify these

contacts:

Aluminum / Electroless

Nickel

-02

Flange Mount

Aluminum / Cadmium

with Olive Drab

Chromate

803-004

Receptacle with

Rear Accessory

Thread

Aluminum / Zinc-

Nickel with Olive Drab

Chromate

Pin #2630

ZNU

-01

In-Line

Aluminum / Zinc-Nickel

with Black Chromate

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Socket #2630

Stainless Steel /

Passivated

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

F-5

Rev. 05-APR-2007

E-Mail: sales@glenair.com

Series 803
