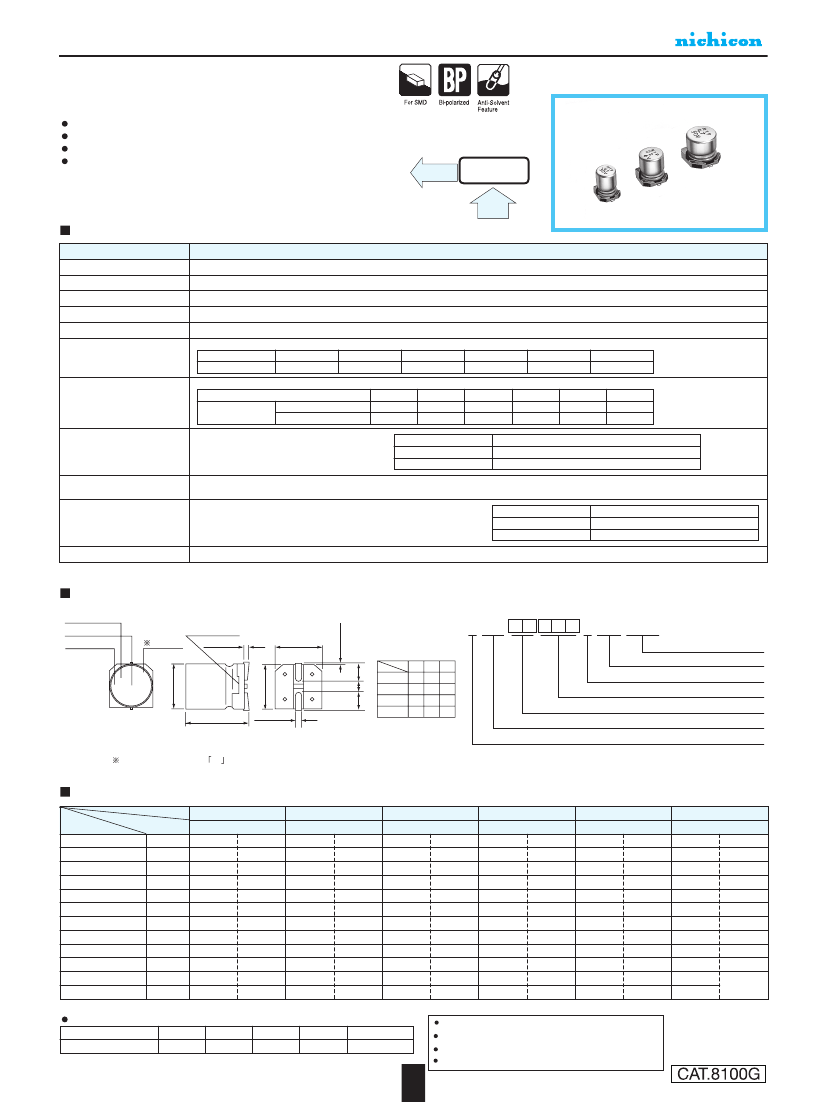

ALUMINUM ELECTROLYTIC CAPACITORS
UUP
Specifications
Item
6mmL Chip Type, Bi-Polarized
Chip type, bi-polarized withstanding high temperature range up to +105
°C.
Designed for surface mounting on high density PC board.
Applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive (2011/65/EU).
UUN
Extended
range
UUP
High
Temperature
UWP
Performance Characteristics
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
–55 to +105°C
6.3 to 50V
0.1 to 47µF
± 20% at 120Hz, 20°C
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.05 CV or 10 (µA), whichever is greater.
Measurement frequency : 120Hz at 20°C
Rated voltage (V)
tan
δ
(MAX.)
6.3
0.24
10
0.20
6.3
4
8
16
0.17
10
3
6
25
0.17
16
2
4
25
2
4
35
0.15
35
2
3
50
0.15
50
2
3
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
ZT / Z20 (MAX.)
Z– 40°C / Z+20°C
Endurance
Shelf Life
Resistance to soldering
heat
Marking
The specifications listed at right shall be met
Within ±20% of the initial capacitance value
Capacitance change
when the capacitors are restored to 20°C after
tan
δ
200% or less than the initial specified value
the rated voltage is applied for 1000 hours at
Less than or equal to the initial specified value
Leakage current
105°C with the polarity every 250 hours.
After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
The capacitors are kept on a hot plate for 30 seconds, which is
Capacitance change
Within ±10% of the initial capacitance value
maintained at 250°C. The capacitors shall meet the characteristic
Less than or equal to the initial specified value
tan
δ
requirements listed at right when they are removed from the plate
Less than or equal to the initial specified value
Leakage current
and restored to 20°C.
Black print on the case top.
Chip Type
105˚C Marking
Capacitance
Lot No.
Type numbering system (Example : 16V 10
µ
F)
1
Plastic platform
Voltage
0.3 MAX.
C±0.2
0.5 MAX.
2
3
4
5
6
7
8
9 10 11 12 13 14
UUP 1 C 1 0 0 M C L1 GS
Taping code
A±0.2 E A±0.2
φD
5.8±0.3
0.5 to 0.8
A
B
C
E
4
1.8
4.3
4.3
1.0
(mm)
5 6.3
2.1 2.4
5.3 6.6
5.3 6.6
1.3 2.2
Configuration
Capacitance tolerance (±20%)
Rated capacitance (10µF)
Rated voltage (16V)
Series name
Type
A2P
10
16V
Voltage mark for 6.3V is 6V
Dimensions
Cap.(µF)
V
Code
φD±0.5
6.3
0J
B±0.2
10
1A
16
1C
25
1E
35
1V
50
1H
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
5
6.3
6.3
28
37
45
4
6.3
6.3
17
33
41
4
5
6.3
6.3
12
23
37
49
5
5
6.3
12
16
27
4
5
5
6.3
8.4
16
18
29
4
4
4
4
4
5
5
6.3
1.0
2.0
2.8
4.0
8.4
13
17
20
Case size
φ
D (mm)
Rated
ripple
Frequency coefficient of rated ripple current
Frequency
Coefficient
50 Hz
0.70
120 Hz
1.00
300 Hz
1.17
1 kHz
1.36
10 kHz or more
1.50
Rated ripple current (mArms) at 105°C 120Hz
122
Taping specifications are given in page 23.
Recommended land size, soldering by reflow are given in page 18, 19.
Please select UUN(p.164) if high CV products are required.
Please refer to page 3 for the minimum order quantity.
