Base module - VIP/S/D25M/BASE 1-8/L/EX - 2906595
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

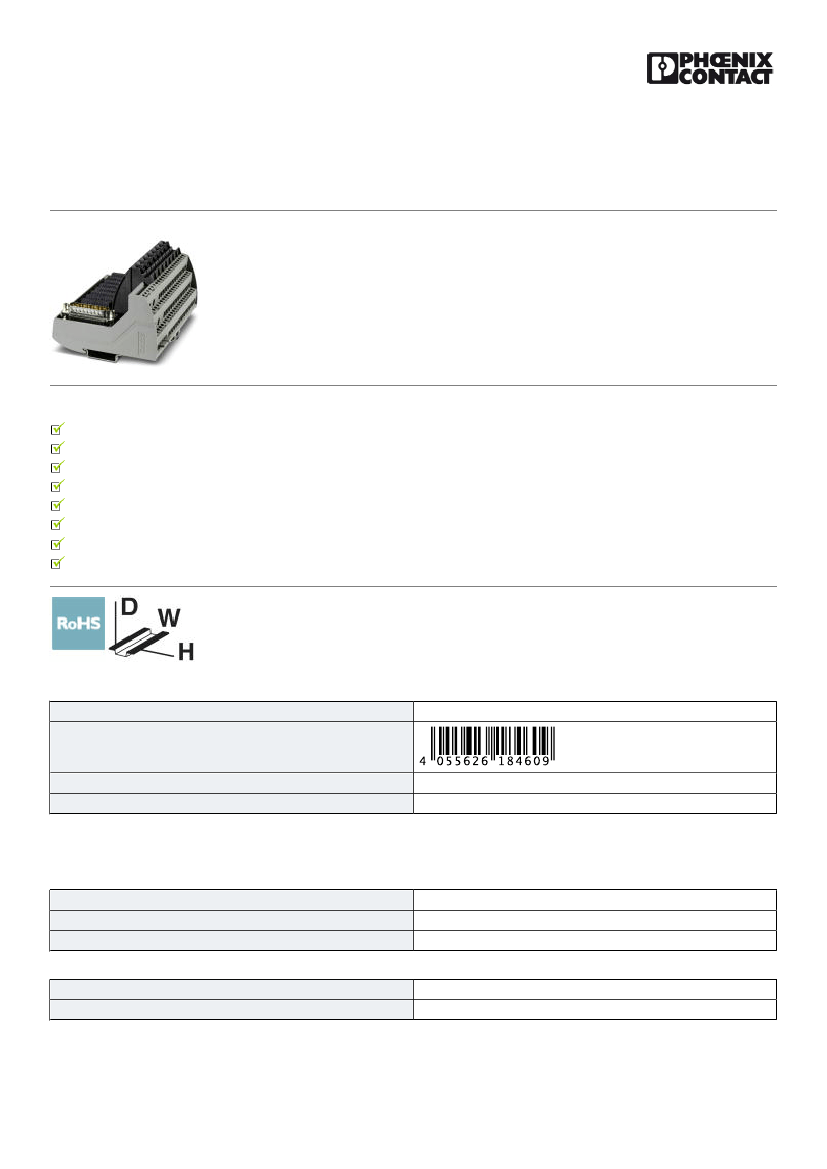

VIP base module with input/output accessories (IOA) provide universal channel configuration. This module
with the D-SUB 25 connector is pin compatable to the Foxboro I/A series DCS.
Why buy this product
Integrated carrier for IOA insertion and retention
Screw-clamp field connections
Terminals for discrete wiring or cable connection
Three isolated power bus options
Each channel has four connections (A, B, C, D) and multiple shield options
Channels for marking accessories
Integrated DIN rail ground foot
Rugged metal DIN rail foot for ease of installation or removal from the rail
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626184609
85369010
1 STK
Technical data
Dimensions
Width
Height
Depth
118.1 mm
102.7 mm
72.2 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 75 °C
-40 °C ... 75 °C
General
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/2906595
Base module - VIP/S/D25M/BASE 1-8/L/EX - 2906595
Technical data
General
Max. perm. operating voltage
Max. operating voltage U
max
Max. operating voltage
125 V
120 V AC (BUS and field terminals)
120 V AC (BUS and field terminals)
125 V DC
30 V AC/DC (24C, 24 terminals)
30 V (D-SUB 25 connector)
Max. perm. current (per branch)
Max. permissible current (separate power supply)
Max. permissible current
Max. permissible total current
Number of positions
Status display
Mounting position
Degree of protection
3 A (field signal)
1 A (control contacts)
15 A (per module)
5 A (24C)
15 A (BUS/24)
8
No
Any
IP20
Connection data for connection 1
Connection name
Connection in acc. with standard
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Torque
Field level
IEC / EN
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
0.5 Nm ... 0.6 Nm
Connection data for connection 2
Connection name
Connection method
Number of connections
Number of positions
Controller level
D-SUB pin strip
1
25
Supported controller
Controller
universal
Safety data
Input voltage U
i
Input current I
i
Inductance Li
Capacitance Ci
30 V (per channel)
1 A (per channel)
0 mH
0 µF
Standards and Regulations
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/2906595
Base module - VIP/S/D25M/BASE 1-8/L/EX - 2906595
Technical data
Standards and Regulations
Standards/regulations
IEC 60664
DIN EN 50178
IEC 62103
Conformance
ANSI/ISA 60079-0; 60079-11; 60079-15
ANSI/IEC 60529
FM 3600; 3611; 3810

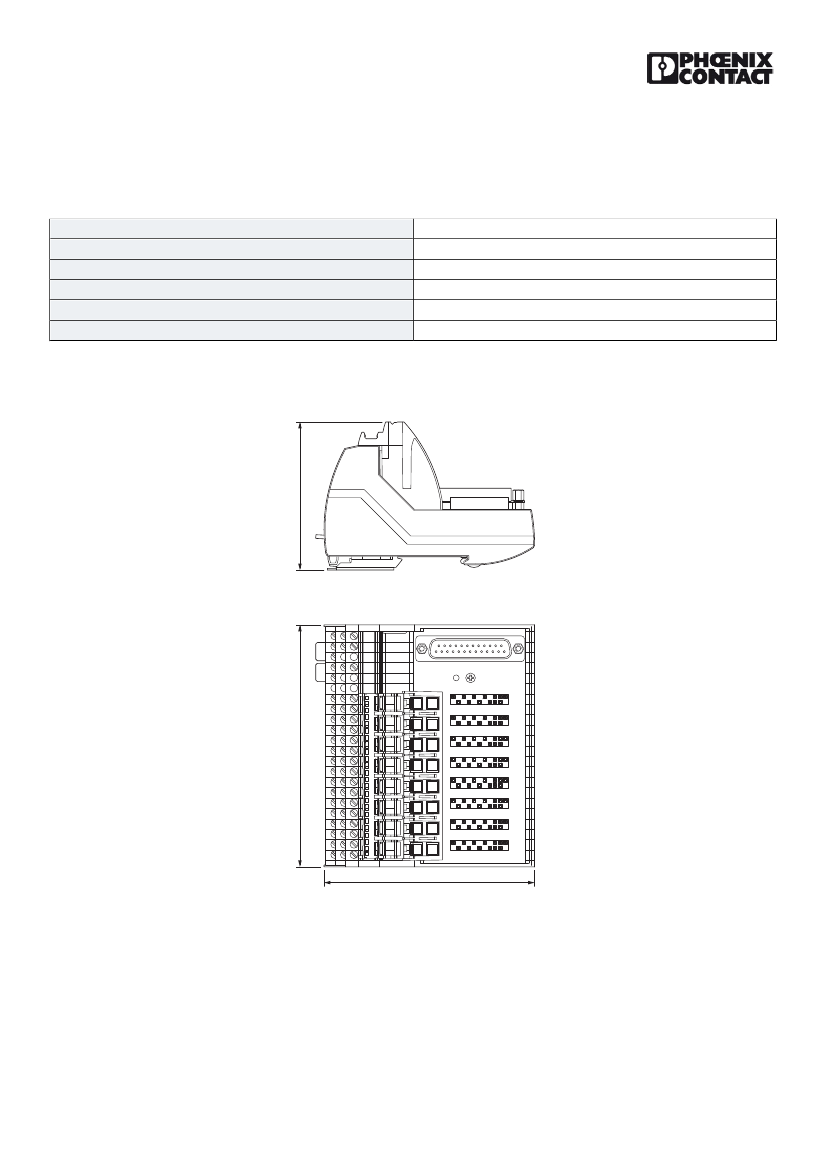

Drawings
Dimensional drawing
118,1
72,2
102,7
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/2906595
Base module - VIP/S/D25M/BASE 1-8/L/EX - 2906595
Circuit diagram
PE
X30
12 13
23 24
9 10 20 21
6 7
17 18
3 4
14 15
1
GND
GND
24C+
24C-
24+
24-
BUS+
BUS-
1A
1B
1C
1D
SH C
SH F
2A
2B
SH C
2C
2D
SH F
8A
8B
SH C
8C
8D
SH F
PE
PE
SH C
PE
SH F
