THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
.58
14.7
.45
11.5
PANDUIT P/N
NK2F**Y
WEIGHT
.49 LB/10 PCS
(224 g/10 PCS)
B
.64
16.4
3.28
83.3
4.50
114.3
NOTES:
1. SEE CURRENT CATALOG FOR ADDITIONAL
PART SUFFIXES TO INDICATE COLOR AND
OR PACKAGE QUANTITY.
2. FACEPLATE WILL ACCEPT TWO STANDARD
NETKEY MODULES.
3. PART INCLUDES:
1- FACEPLATE
2- MOUNTING SCREW
2- LABEL
2- LABEL COVER
4. DIMENSIONS IN [] ARE IN METRIC.
B
2.75
69.8
.28
7.0
PART NUMBER
B
NK2F**Y

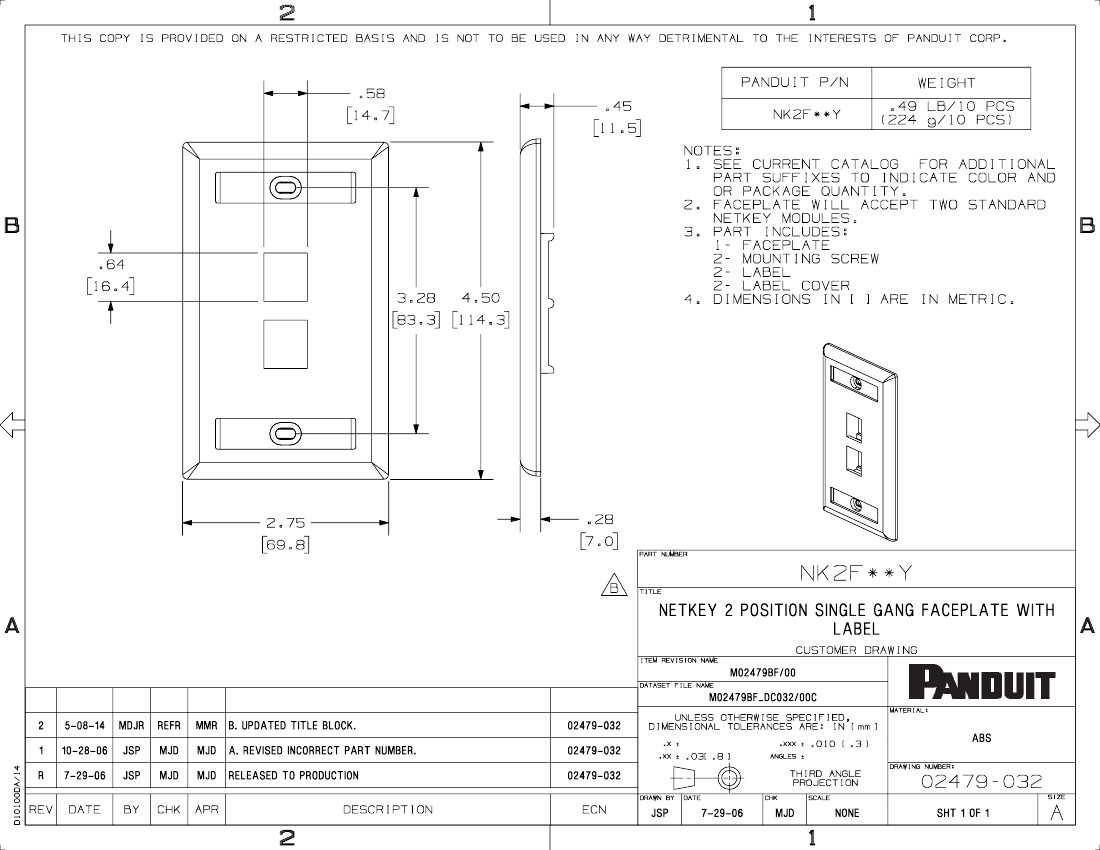

TITLE
A
NETKEY
2
POSITION
SINGLE
GANG
FACEPLATE
WITH
LABEL
CUSTOMER DRAWING
ITEM REVISION NAME
A
M02479BF/00
DATASET FILE NAME
M02479BF_DC032/00C
MATERIAL:
2
1
D10100DA/14
5-08-14
10-28-06
7-29-06
DATE
MDJR
REFR
MMR
B.
UPDATED
TITLE
BLOCK.
02479-032
02479-032
02479-032
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
JSP
JSP
MJD
MJD
MJD
MJD
A.
REVISED
INCORRECT
PART
NUMBER.
RELEASED
TO
PRODUCTION
.010 [.3]
DRAWING NUMBER:
ABS
.03[.8]
ANGLES
R
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02479-032
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
JSP
7-29-06
MJD
NONE
SHT
1
OF
1
A
2
1
