ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED

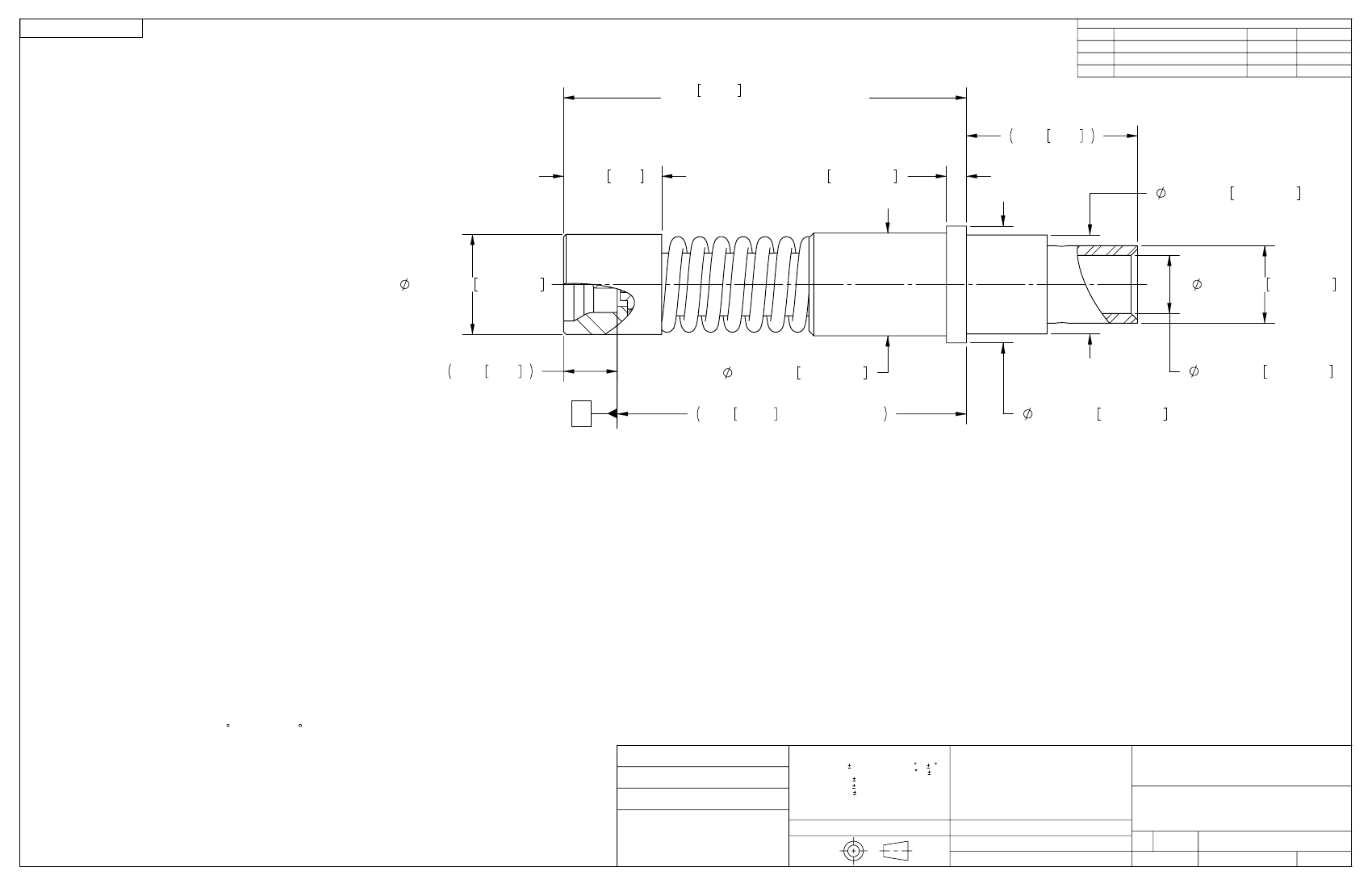

PRODUCT DATA DRAWING
.624 15.85 UNCOMPRESSED
(.559[14.20] COMPRESSED)
.265 6.73
.152 3.86
.031±.002 0.79±0.05
1
A
B
PRELIMINARY
REL. NRN 34346
DCN 35853
09/13/07
09/25/07
06/08
JM
STW
STW
.153±.002 3.89±0.05
.155±.002 3.94±0.05
.120±.002 3.05±0.05
MATERIAL
:
SHROUD
& SLEEVE:
BODY &
CONTACT:
SPRING:
INSULATOR:
.083 2.11
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
STAINLESS STEEL PER ASTM A313, TYPE 631
ALLOY UNS S17700
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
RP
.159±.001 4.04±0.03
.477 12.12 COMPRESSED
.181±.001 4.60±0.03
.090±.001 2.29±0.03
FINISH
:
SHROUD
SLEEVE & SPRING:
BODY & CONTACT :
PASSIVATED PER AMS-2700, TYPE 2
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
PERFORMANCE
:
IMPEDANCE:
FREQ. RANGE:
DWV:
OPERATING TEMP.:
VSWR:
INSERTION LOSS:
INSUL. RESISTANCE:
CONTACT RESISTANCE
OUTER CONDUCTOR:
INNER CONDUCTOR:
ENGAGEMENT/
DISENGAGEMENT:
50 OHMS
DC TO 65.0 GHz
325 VRMS
-55 C TO +125 C
1.10:1 DC TO 26.5 GHz, 1.30:1 TYPICAL TO 50 GHz
.12 X SQRT(F(F IN GHz))
5000 MEGOHMS MIN.
2 MILLIOHMS MAX.
6 MILLIOHMS MAX.
2.5 LBS MAX. ENGAGEMENT
1.5 LBS MIN. DISENGAGEMENT
SOCKET CONTACT
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JMC 09/04/07
JM 09/04/07
JM 09/04/07
SMPM, MALE TO T-FLEX 405
SMOOTH BORE INTERFACE
FIT M38999 SIZE 12 INSERT
SIZE CAGE CODE DWG. NO.
SF3211-6004
B
95077
SCALE: 4:1
SHEET 1 OF 1
TITLE:
