Product Bulletin
Circuit Breaker Lockout System
OSHA (Occupational Safety and Health Administration) mandates
that all energy sources be turned off and locked out to protect
employees from injuries caused by the accidental startup of equipment
under repair and service. To support compliance with OSHA 1910.147,
Panduit offers a complete line of high quality, circuit breaker lockout
devices to ensure that electrical energy sources are isolated for optimal
work place safety. These circuit breaker lockouts are part of an extensive
line of innovative safety devices designed by Panduit to protect employees
from risks associated with all forms of hazardous energy, while meeting
safety and regulatory requirements.

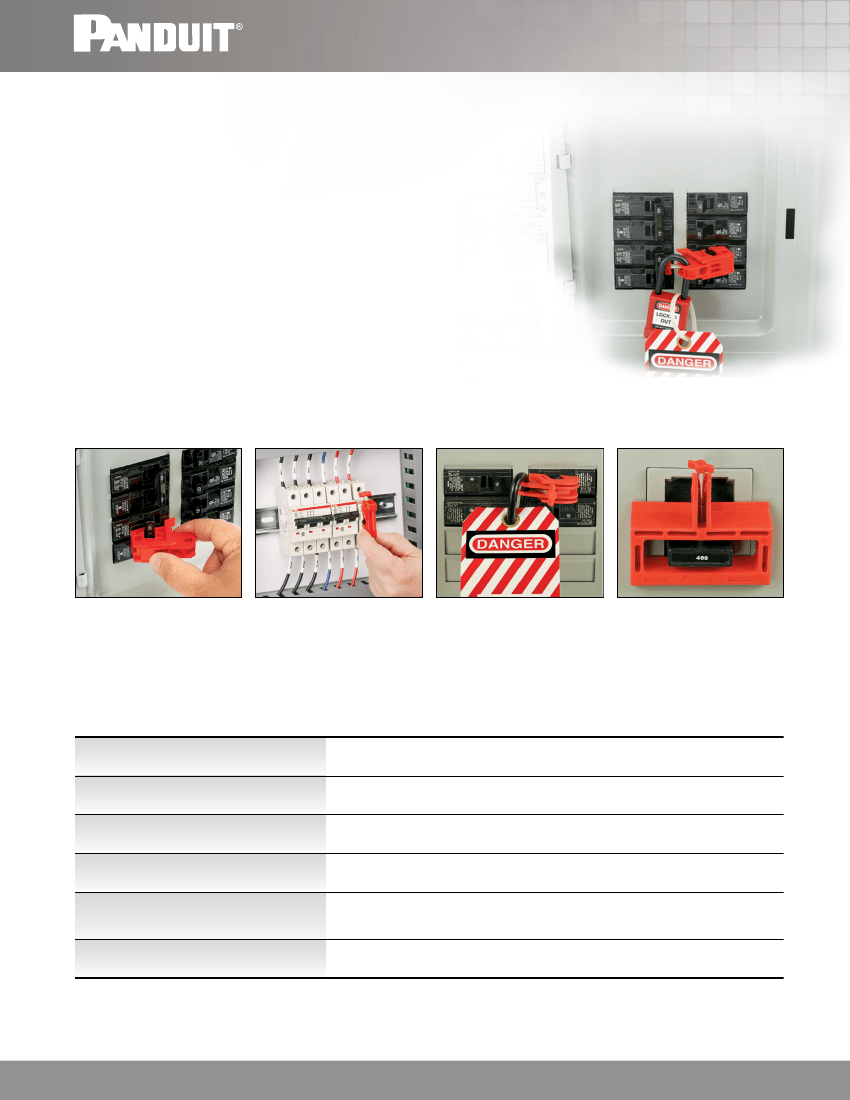

PowerLOK
™
Circuit
Breaker Lockout Device
Miniature Circuit
Breaker Lockout Device
“No Tool” Circuit
Breaker Lockout Device
Large Handle Circuit
Breaker Lockout Device
Key Features
Complete circuit breaker
lockout offering
Unique “no tool” option
Industry-leading
clamping force
Universal design
Rugged nylon and stainless
steel construction
Compact and lightweight
Benefits
One supplier for all circuit breaker lockout needs to deliver optimal
workplace safety
Allows circuit breaker to lock in the off position without the use of a tool
to provide a quick and easy installation
Prevents the breaker from being turned back on for safe performance of
maintenance or service
Accommodates single pole and multiple pole breakers to efficiently
lockout most circuit breakers in the facility
Provides strength, durability, added security, and corrosion resistance;
ideal for industrial and harsh applications
Convenient, easy to transport and store in a small lockout kit
www.panduit.com
Circuit Breaker Lockout System
PowerLOK
™
Circuit Breaker Lockout Devices

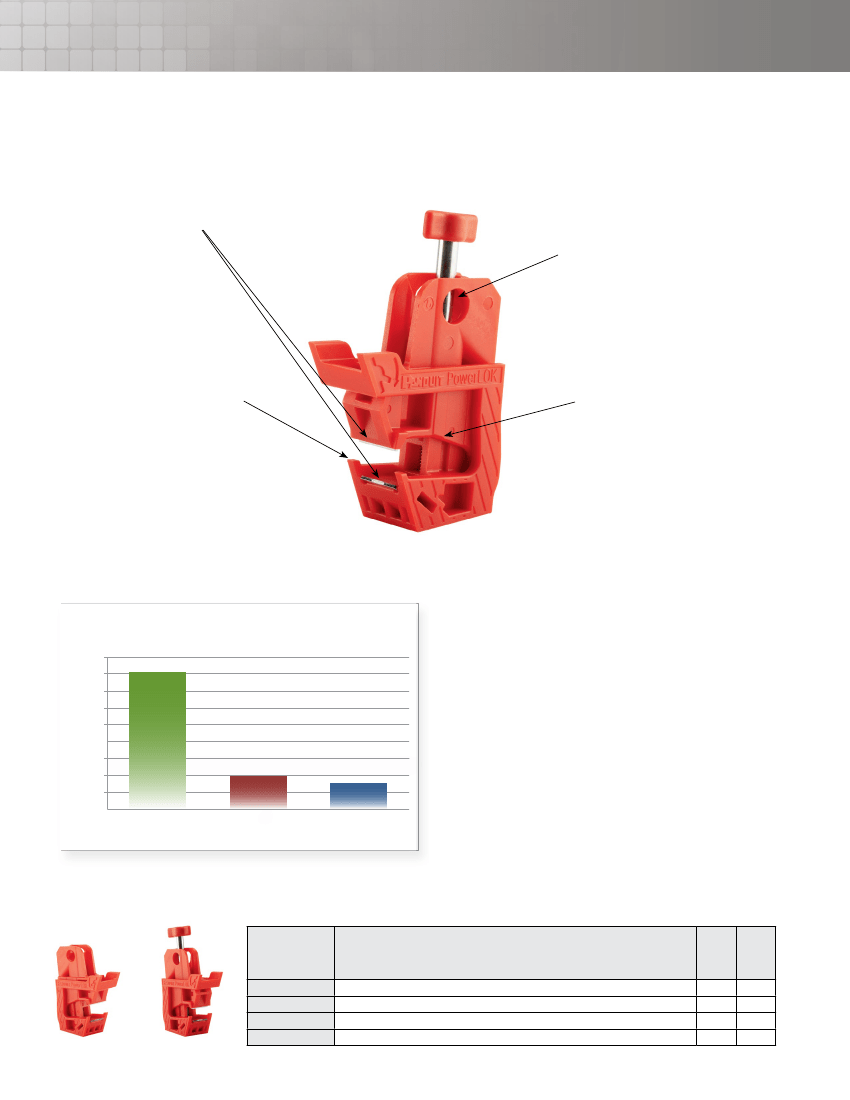

Panduit’s PowerLOK
™
Circuit Breaker Lockout Devices include many innovative features to provide a versatile,
easy to use lockout/tagout device. These devices can be applied to single or multi-pole circuit breakers (such as
120/277V breakers) to prevent the breaker from being turned back on; for safe performance of maintenance or
service in accordance with lockout/tagout procedures.
Two Metal Contacts
Provide a contact area
that is evenly distributed
on the breaker handle
for a secure and reliable
connection without damage
to the breaker handle itself
Two-Position Padlock Design
Allows padlock to be installed
horizontally or vertically to
accommodate space
Fits Single and Multi-Pole
Circuit Breakers
Jaws designed to grasp the
tie-bar of two and three pole
circuit breakers, allowing
one part to be used in
multiple applications
Two-Piece Construction
Delivers outstanding clamping
force, to assure the circuit
breaker will remain locked out
once the device is applied for
improved reliability and safety
PowerLOK
™
Circuit Breaker Lockout Devices Deliver Industry-Leading
Clamping Force
Circuit Breaker Lockout Device
Pull-Off Force Testing
90
80
70
60
50
40
30
20
10
0
Panduit PowerLOK™
Circuit Breaker
Lockout Device
Competitor "A"
Circuit Breaker
Lockout Device
Competitor "B"
Circuit Breaker
Lockout Device
The PowerLOK
™
Circuit Breaker Lockout Devices are
designed for superior engagement with the circuit
breaker to deliver industry-leading pull-off resistance
performance. The two-piece construction, metal
contacts, and jaws that encircle the circuit breaker
handle create superior clamping force for a reliable
and secure connection. Pull-off force test results
indicate the Panduit
®
PowerLOK
™
devices deliver
over 3X the pull-off resistance when compared to
competitor products used in the same application.
Test results based on pull-off force of each device when force applied perpendicular to the circuit breaker.
For more information on the test contact Panduit at: safety@panduit.com
.
PowerLOK
™
Circuit Breaker Lockout Devices – Ordering Information
Std.
Pkg.
Qty.
1
5
1
5
Std.
Ctn.
Qty.
10
25
10
25
Pull-Off Force (lbs)
Part Number
PSL-PCB
PSL-PCB-V
PSL-PCBNT
PSL-PCBNT-V
™
Part Description
PowerLOK Circuit Breaker Lockout.
PowerLOK
™
Circuit Breaker Lockout, 5-pack.
PowerLOK
™
“No Tool” Circuit Breaker Lockout.
PowerLOK
™
“No Tool” Circuit Breaker Lockout, 5-pack.
PSL-PCB
PSL-PCBNT
2
Circuit Breaker Lockout System and Electrician Lockout Kit

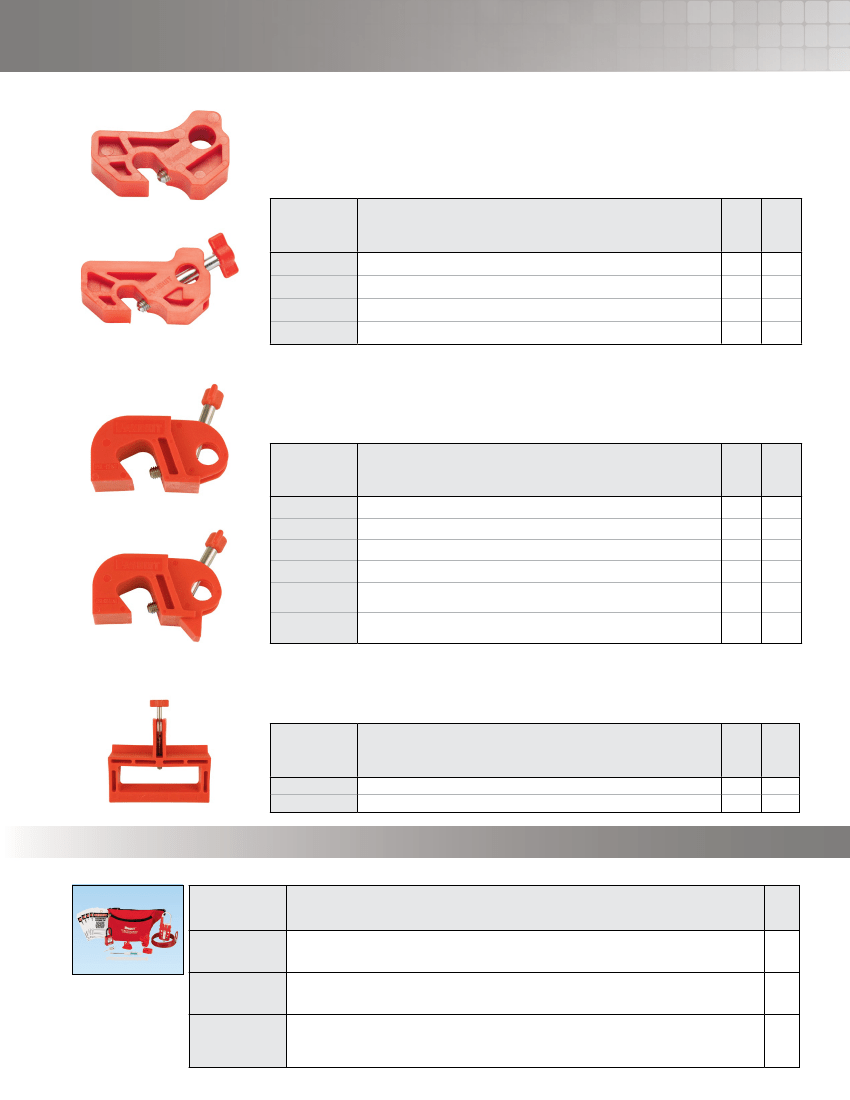

Miniature Circuit Breaker Lockout Devices
• Quickly locks out miniature circuit breakers commonly used in industrial automation and
motor control
• On the PSL-MCBNT, multiple padlock orientations allow adjacent circuit breakers to be
locked out individually
• PSL-MCB can be installed using a screwdriver
• PSL-MCBNT can be installed by hand with no tool required
Std.
Pkg.
Qty.
1
5
1
5
Std.
Ctn.
Qty.
10
25
10
25
PSL-MCB
Part Number
PSL-MCB
PSL-MCB-V
PSL-MCBNT
PSL-MCBNT
Part Description
Universal miniature circuit breaker lockout.
Universal miniature circuit breaker lockout.
“No Tool” miniature circuit breaker lockout.
PSL-MCBNT-V
“No Tool” miniature circuit breaker lockout.
Universal and I-LINE
^
Circuit Breaker Lockout Devices
• Quickly locks out circuit breakers (such as 120/277V breakers); ideal for industrial and
harsh applications
• PSL-CB and PSL-CBIL can be installed using a screwdriver
• PSL-CBNT and PSL-CBILNT can be installed by hand, with no tool required
Std.
Pkg.
Qty.
1
5
1
5
1
1
Std.
Ctn.
Qty.
10
25
10
25
10
10
Part Number
PSL-CBNT
PSL-CB
PSL-CB-V
PSL-CBNT
PSL-CBNT-V
PSL-CBIL
PSL-CBILNT
PSL-CBILNT
Part Description
Universal circuit breaker lockout.
Universal circuit breaker lockout, 5-pack.
“No Tool” universal circuit breaker lockout.
“No Tool” universal circuit breaker lockout, 5-pack.
Circuit breaker lockout device for use with Square D I-LINE^/Federal
Pacific (FPE) circuit breakers.
“No Tool” circuit breaker lockout for use with Square D I-LINE^/Federal
Pacific (FPE) circuit breakers.
^I-LINE is a registered trademark of Square D Company.
Large Handle Circuit Breaker Lockout Device
• Quickly locks out large molded-case circuit breakers (such as 480/600V breakers)
• Can be installed by hand, with no tool required
Std.
Pkg.
Qty.
1
5
Std.
Ctn.
Qty.
10
25
Part Number
PSL-CBL
PSL-CBL
PSL-CBL-V
Part Description
Large handle circuit breaker lockout.
Large handle circuit breaker lockout.
Electrician Lockout Kit
Electrician Lockout Kit
Part Number
PSL-PK-EAP
Part Description
(1) Screwdriver,(1) PSL-PK pouch, (1) PSL-8 red non-conductive lockout padlock, (1) PSL-MLD
multiple lockout device, (1) PSL-WS wall switch lockout device, (1) PSL-PCBNT PowerLOK
™
“No Tool”
Circuit Breaker lockout device, (1) PSL-P plug lockout device, (5) PVT-30 electrician’s blocking tags.
(1) Screwdriver, (1) PSL-PK pouch, (1) PSL-8 red non-conductive lockout padlock, (1) PSL-MLD
multiple lockout device, (1) PSL-WS wall switch lockout device, (1) PSL-CBNT “No Tool” Circuit
Breaker lockout device, (1) PSL-P plug lockout device, (5) PVT-30 electrician’s blocking tags.
(1) Screwdriver, (1) PSL-PK pouch, (1) PSL-8 red non-conductive lockout padlock, (1) PSL-MLD
multiple lockout device, (1) PSL-WS wall switch lockout device, (1) PSL-CBNT “No Tool” Circuit
Breaker lockout device, (1) PSL-P plug lockout device, (5) PVT-30-S electrician’s blocking tags,
printed in Spanish.
Std.
Pkg.
Qty.
1
PSL-PK-EAP
PSL-PK-EA
1
PSL-PK-EA-S
1
3
Lockout Kits
Contractor Lockout Kit
Part Number
PSL-KT-CONAP
Part Description
(1) Screwdriver, (1) PSL-KT carrying case – 5.00" x 3.50" x 11.00" (127.0mm x 88.9mm x 279.4mm),
(6) PSL-8 red non-conductive lockout padlocks, (1) PSL-1A lockout hasp – 1.00" (25.4mm) jaw
diameter, (1) PSL-MLD multiple lockout device, (3) PSL-WS wall switch lockouts, (3) PSL-PCBNT
PowerLOK
™
“No Tool” Circuit Breaker lockout device, (3) PSL-P plug lockouts, (15 Tags) PVT-98
“EQUIPMENT LOCKED OUT BY...” safety tags.
(1) Screwdriver, (1) PSL-KT carrying case – 5.00" x 3.50" x 11.00" (127.0mm x 88.9mm x 279.4mm),
(6) PSL-8 red non-conductive lockout padlocks, (1) PSL-1A lockout hasp – 1.00" (25.4mm) jaw
diameter, (1) PSL-MLD multiple lockout device, (3) PSL-WS wall switch lockouts, (3) PSL-CBNT
“No Tool” Circuit Breaker lockout device, (3) PSL-P plug lockouts, (15 Tags) PVT-98 "EQUIPMENT
LOCKED OUT BY..." safety tags.
(1) Screwdriver, (1) PSL-KT carrying case – 5.00"x 3.50" x 11.00" (127.0mm x 88.9mm x 279.4mm),
(6) PSL-8 red non-conductive lockout padlocks, (1) PSL-1A lockout hasp – 1.00" (25.4mm) jaw
diameter, (1) PSL-MLD multiple lockout device, (3) PSL-WS wall switch lockouts, (3) PSL-CBNT
“No Tool” Circuit Breaker lockout device, (3) PSL-P plug lockouts, (15 Tags) PVT-98-S “EQUIPMENT
LOCKED OUT BY...” safety tags, printed in Spanish.
Std.
Pkg.
Qty.
1
PSL-KT-CONAP
PSL-KT-CONA
1
PSL-KT-CONA-S
1
Maintenance Lockout Kit
Part Number
PSL-KT-MROAP
Part Description
(1) Screwdriver, (1) PSL-BX carrying case – 6.50" x 5.00" x 14.50" (165.1mm x 127.0mm x 368.3mm),
(3) PSL-8 red non-conductive lockout padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-WS
wall switch lockouts, (2) PSL-PCBNT PowerLOK
™
“No Tool” Circuit Breaker lockout device, (2) PSL-P
plug lockouts, (1) PSL-V6A gate valve lockout – 6.50" (165.1mm), (1) PSL-V2A gate valve lockout –
2.50" (63.5mm), (1) PSL-BV2 ball valve lockout – 3.00" (76.2mm), (1) PSL-CL110 110V plug lockout,
(10) PVT-44 “DO NOT OPERATE” maintenance tags.
(1) Screwdriver, (1) PSL-BX carrying case – 6.50" x 5.00" x 14.50" (165.1mm x 127.0mm x 368.3mm),
(3) PSL-8 red non-conductive lockout padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-WS
wall switch lockouts, (2) PSL-CBNT “No Tool” Circuit Breaker lockout device, (2) PSL-P plug lockouts,
(1) PSL-V6A gate valve lockout – 6.50" (165.1mm), (1) PSL-V2A gate valve lockout – 2.50" (63.5mm),
(1) PSL-BV2 ball valve lockout – 3.00" (76.2mm), (1) PSL-CL110 110V plug lockout, (10) PVT-44 “DO
NOT OPERATE” maintenance tags.
(1) Screwdriver, (1) PSL-BX carrying case – 6.50" x 5.00" x 14.50" (165.1mm x 127.0mm x 368.3mm),
(3) PSL-8 red non-conductive lockout padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-WS
wall switch lockouts, (2) PSL-CBNT “No Tool” Circuit Breaker lockout device, (2) PSL-P plug lockouts,
(1) PSL-V6A gate valve lockout – 6.50" (165.1mm), (1) PSL-V2A gate valve lockout – 2.50"
(63.5mm),(1) PSL-BV2 ball valve lockout – 3.00" (76.2mm), (1) PSL-CL110 110V plug lockout, (10)
PVT-44-S “DO NOT OPERATE” maintenance tags, printed in Spanish.
Std.
Pkg.
Qty.
1
PSL-KT-MROAP
PSL-KT-MROA
1
PSL-KT-MROA-S
1
Power and Panel Distribution Lockout Kit
Part Number
PSL-KT-PWRP
Part Description
(1) Screwdriver, (1) PSL-STATION metal wall mount cabinet, (2) PSL-8 red non-conductive lockout
padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-PCBNT PowerLOK
™
“No Tool” circuit breaker
lockout device, (2) PSL-CBILNT circuit breaker lockout device for Square D I-LINE^/Federal Pacific
(FPE) circuit breakers, (2) PSL-CBL large handle circuit breaker lockout devices,(1) PSL-P plug
lockout, (25) PVT-23-Q “DO NOT OPERATE ELECTRICIANS AT WORK” tags.
(1) Screwdriver, (1) PSL-STATION metal wall mount cabinet, (2) PSL-8 red non-conductive lockout
padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-CBNT “No Tool” circuit breaker lockout device,
(2) PSL-CBILNT circuit breaker lockout device for Square D I-LINE^/Federal Pacific (FPE) circuit
breakers.(2) PSL-CBL large handle circuit breaker lockout devices, (1) PSL-P plug lockout, (25)
PVT-23-Q “DO NOT OPERATE ELECTRICIANS AT WORK” tags.
(1) Screwdriver, (1) PSL-STATION metal wall mount cabinet, (2) PSL-8 red non-conductive lockout
padlocks, (1) PSL-MLD multiple lockout device, (2) PSL-CBNT “No Tool” circuit breaker lockout device,
(2) PSL-CBILNT circuit breaker lockout device for Square D I-LINE^/Federal Pacific (FPE) circuit
breakers.(2) PSL-CBL large handle circuit breaker lockout devices, (1) PSL-P plug lockout, (25)
PVT-23-Q-S “DO NOT OPERATE ELECTRICIANS AT WORK” tags, printed in Spanish.
Std.
Pkg.
Qty.
1
PSL-KT-PWRP
PSL-KT-PWR
1
PSL-KT-PWR-S
1
^I-Line is a registered trademark of Square D Company.
WORLDWIDE SUBSIDIARIES AND SALES OFFICES
PANDUIT CANADA
Markham, Ontario
cs-cdn@panduit.com
Phone: 800.777.3300
PANDUIT EUROPE LTD.
London, UK
cs-emea@panduit.com
Phone: 44.20.8601.7200
PANDUIT SINGAPORE PTE. LTD.
Republic of Singapore
cs-ap@panduit.com
Phone: 65.6305.7575
PANDUIT JAPAN
Tokyo, Japan
cs-japan@panduit.com
Phone: 81.3.6863.6000
PANDUIT LATIN AMERICA
Guadalajara, Mexico
cs-la@panduit.com
Phone: 52.33.3777.6000
PANDUIT AUSTRALIA PTY. LTD.
Victoria, Australia
cs-aus@panduit.com
Phone: 61.3.9794.9020
©2016 Panduit Corp.
ALL RIGHTS RESERVED.
Printed in the U.S.A.
IDCB78--SA-ENG
Replaces IDCB75
3/2016
For a copy of Panduit product warranties, log on to www.panduit.com/warranty
For more information
Visit us at www.panduit.com
Contact Customer Service by email: cs@panduit.com
or by phone: 800.777.3300
京公网安备 11010802033920号
EEWORLD
