AS4C256M16D3L-12BAN
Features
•
JEDEC Standard Compliant
•
AEC-Q100 Compliant
•
Power supplies: V
DD
& V
DDQ
= +1.35V
•
Backward compatible to V
DD
& V
DDQ
= 1.5V ±0.075V
•
Automotive temperature: -40~105°C (TC)
•
Supports JEDEC clock jitter specification
•
Fully synchronous operation
•
Fast clock rate: 800MHz
•
Differential Clock, CK & CK#
•
Bidirectional differential data strobe
- DQS & DQS#
•
8 internal banks for concurrent operation
•
8n-bit prefetch architecture
•
Internal pipeline architecture
•
Precharge & active power down
•
Programmable Mode & Extended Mode registers
•
Additive Latency (AL): 0, CL-1, CL-2
•
Programmable Burst lengths: 4, 8
•
Burst type: Sequential / Interleave
•
Output Driver Impedance Control
•
8192 refresh cycles / 64ms
- Average refresh period
7.8μs @ -40°C
≦TC≦
+85°C
3.9μs @ +85°C
＜TC≦
+105°C
Overview
The 4Gb Double-Data-Rate-3 (DDR3L) DRAMs
is double data rate architecture to achieve high-
speed operation. It is internally configured as an
eight bank DRAM.
The 4Gb chip is organized as 32Mbit x 16 I/Os x
8 bank devices. These synchronous devices
achieve high speed double-data-rate transfer rates
of up to 1600 Mb/sec/pin for general applications.
The chip is designed to comply with all key
DDR3L DRAM key features and all of the control
and address inputs are synchronized with a pair of
externally supplied differential clocks. Inputs are
latched at the cross point of differential clocks (CK
rising and CK# falling). All I/Os are synchronized
with differential DQS pair in a source synchronous
fashion.
These devices operate with a single 1.35V
-0.067V /+0.1V power supply and are available in
FBGA packages.
•
Write Leveling
•
ZQ Calibration
•
Dynamic ODT (Rtt_Nom & Rtt_WR)
•
RoHS compliant
•
Auto Refresh and Self Refresh
•
96-ball 9 x 13 x 1.0mm FBGA package
- Pb and Halogen Free
Table 1. Ordering Information
Part Number
AS4C256M16D3L-12BAN
Org
256Mx16
Temperature
Automotive
-40°C to 105°C
MaxClock (MHz)
800
Package
96-ball FBGA
Table 2. Speed Grade Information
Speed Grade
DDR3L-1600
Clock Frequency
800MHz
CAS Latency
11
tRCD (ns)
tRP (ns)
13.75
13.75
Confidential
-2-
Rev.1.0
Mar. 2016

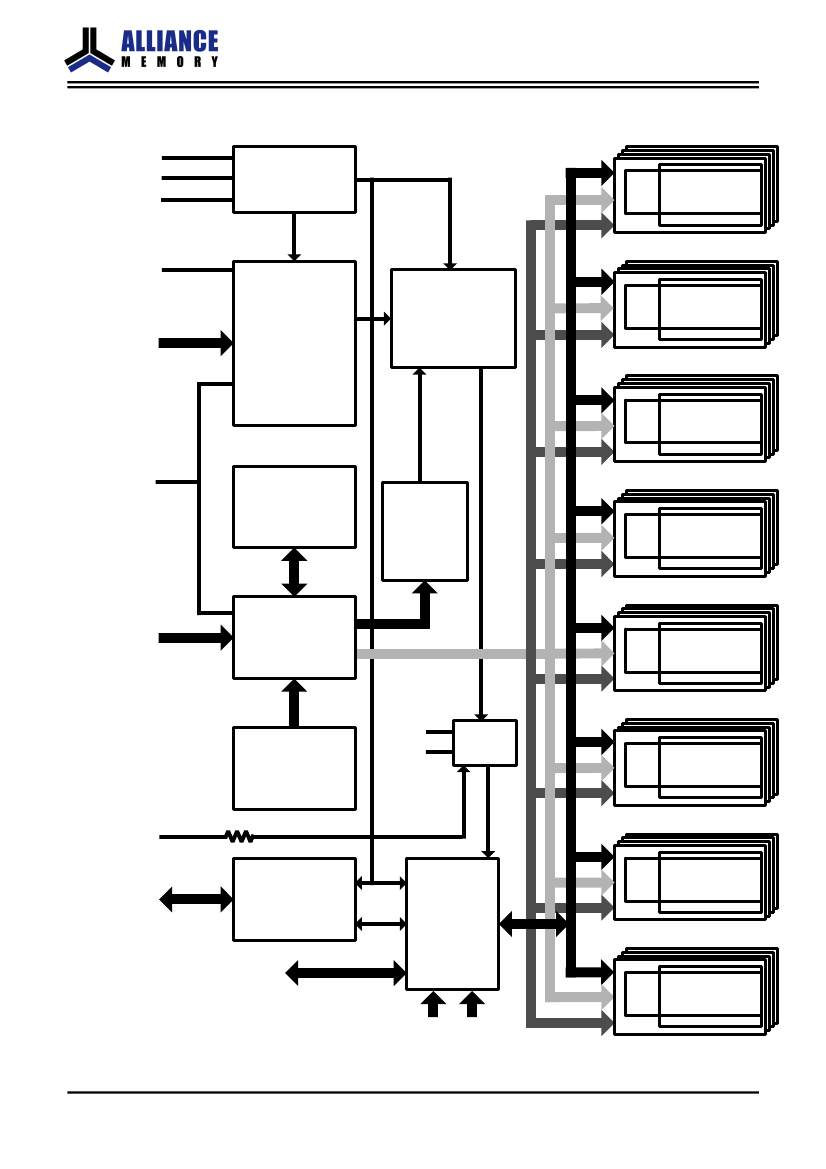

AS4C256M16D3L-12BAN

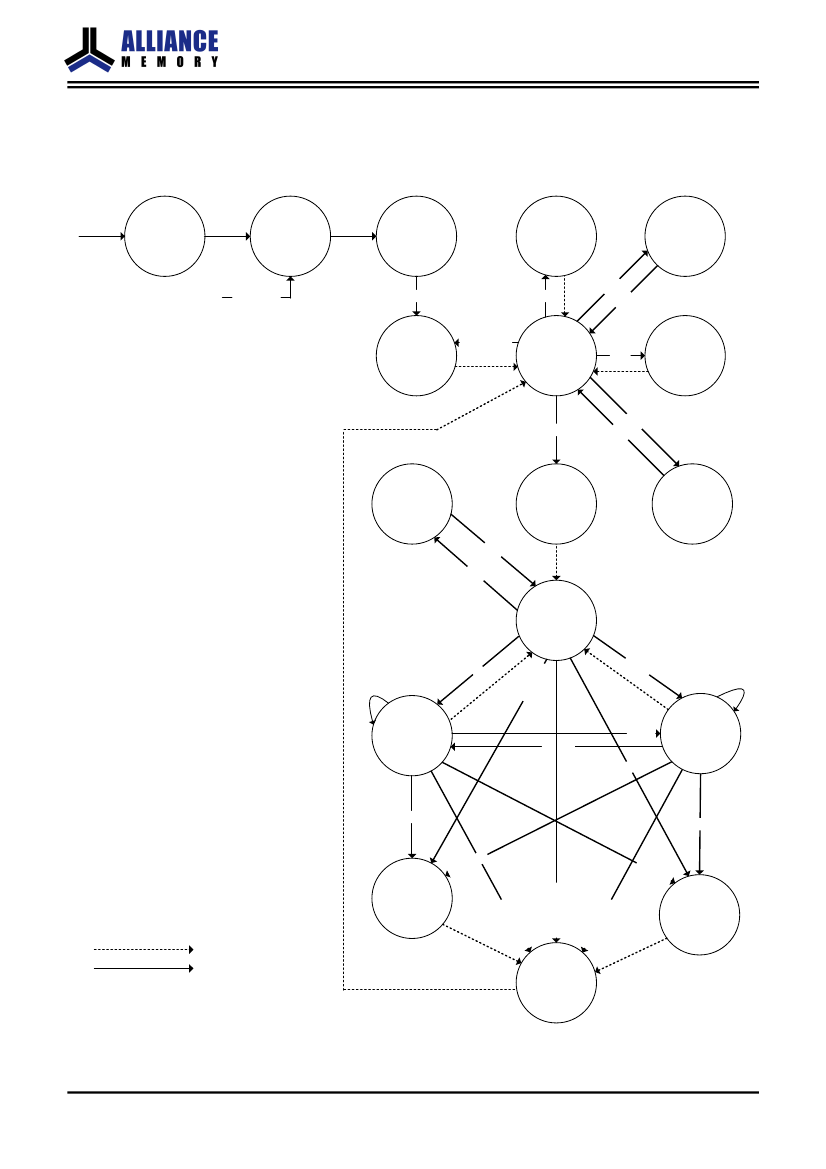

Figure 3. State Diagram
This simplified State Diagram is intended to provide an overview of the possible state transitions and the
commands to control them. In particular, situations involving more than one bank, the enabling or disabling of on-die
termination, and some other events are not captured in full detail.
Power
applied
Power
On
Reset
Procedure
Initialization
MRS,MPR,
Write
Leveling
E
Self
Refresh
from any
RESET
state
ZQ
Calibration
ZQCL,ZQCS
Idle
SR
ZQCL
MRS
SR
X
REF
Refreshing
PD
ACT
E
PD
X
ACT = Active
PRE = Precharge
PREA = Precharge All
MRS = Mode Register Set
REF = Refresh
RESET = Start RESET Procedure
Read = RD, RDS4, RDS8
Read A = RDA, RDAS4, RDAS8
Active
Power
Down
PD
X
Activating
Precharge
Power
Down
PD
E
Bank
Activating
RE
ITE
Write = WR, WRS4, WRS8
Write A = WRA, WRAS4, WRAS8
ZQCL = ZQ Calibration Long
ZQCS = ZQ Calibration Short
PDE = Enter Power-down
PDX = Exit Power-down
SRE = Self-Refresh entry
SRX = Self-Refresh exit
MPR = Multi-Purpose Register
A
W
TE
RI
AD
WR
WRITE
READ
Writing
READ
WRITE
Reading
A
RE
DA
WRITE A
READ A
IT
WR
EA
RE
A
DA
PRE, PREA
Writing
P
RE
,P
PR
E,
PR
EA
Reading
RE
A
Automatic Sequence
Command Sequence
Precharging
Confidential
-5-
Rev.1.0
Mar. 2016
