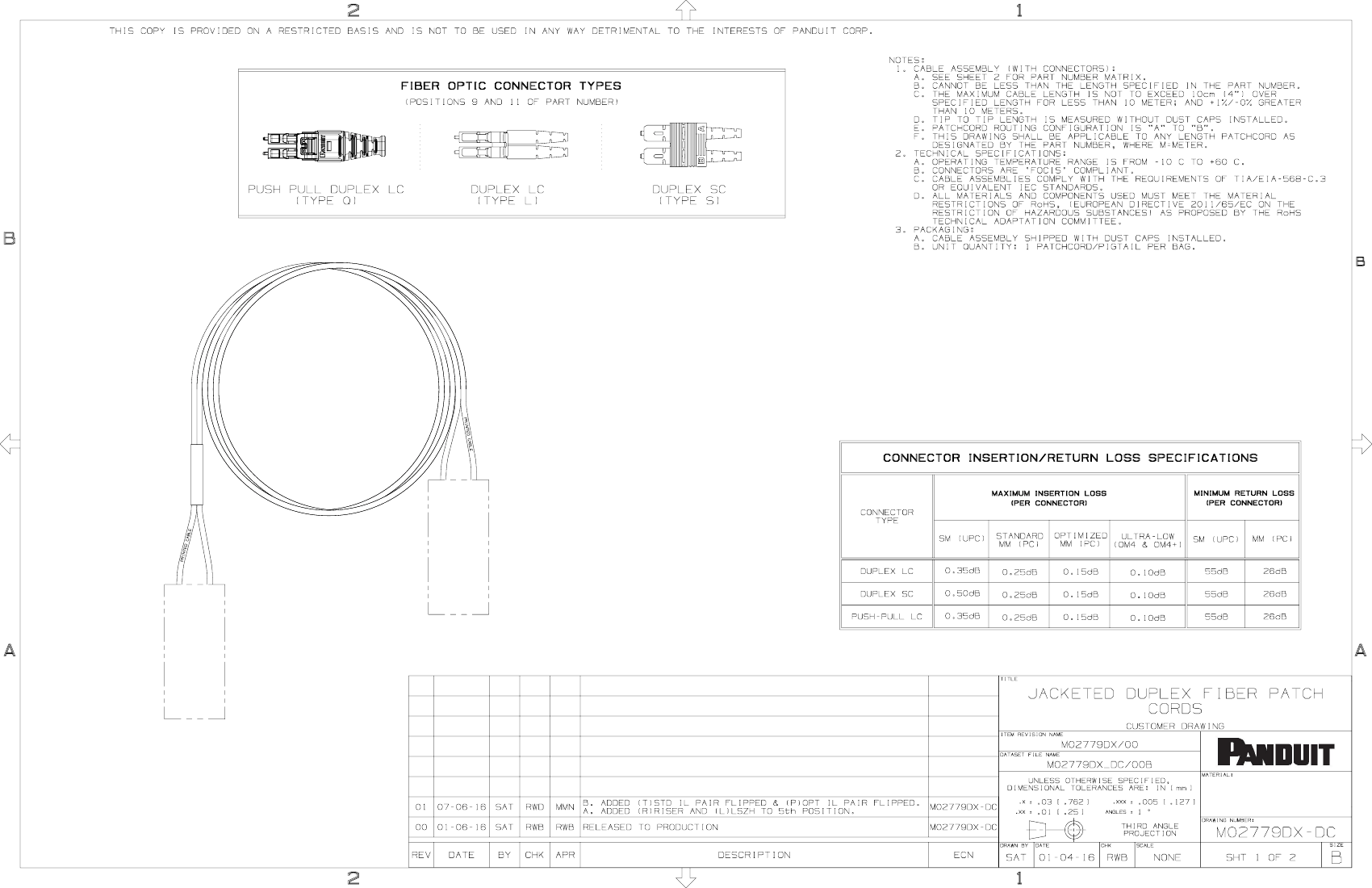

FIBER OPTIC CONNECTOR TYPES
(POSITIONS 9 AND 11 OF PART NUMBER)
PUSH PULL DUPLEX LC
(TYPE Q)
DUPLEX LC
(TYPE L)
DUPLEX SC
(TYPE S)
B
NOTES:
1. CABLE ASSEMBLY (WITH CONNECTORS):
A. SEE SHEET 2 FOR PART NUMBER MATRIX.
B. CANNOT BE LESS THAN THE LENGTH SPECIFIED IN THE PART NUMBER.
C. THE MAXIMUM CABLE LENGTH IS NOT TO EXCEED 10cm (4") OVER
SPECIFIED LENGTH FOR LESS THAN 10 METER; AND +1%/-0% GREATER
THAN 10 METERS.
D. TIP TO TIP LENGTH IS MEASURED WITHOUT DUST CAPS INSTALLED.
E. PATCHCORD ROUTING CONFIGURATION IS "A" TO "B".
F. THIS DRAWING SHALL BE APPLICABLE TO ANY LENGTH PATCHCORD AS
DESIGNATED BY THE PART NUMBER, WHERE M=METER.
2. TECHNICAL SPECIFICATIONS:
A. OPERATING TEMPERATURE RANGE IS FROM -10 C TO +60 C.
B. CONNECTORS ARE 'FOCIS' COMPLIANT.
C. CABLE ASSEMBLIES COMPLY WITH THE REQUIREMENTS OF TIA/EIA-568-C.3
OR EQUIVALENT IEC STANDARDS.
D. ALL MATERIALS AND COMPONENTS USED MUST MEET THE MATERIAL
RESTRICTIONS OF RoHS, (EUROPEAN DIRECTIVE 2011/65/EC ON THE
RESTRICTION OF HAZARDOUS SUBSTANCES) AS PROPOSED BY THE RoHS
TECHNICAL ADAPTATION COMMITTEE.
3. PACKAGING:
A. CABLE ASSEMBLY SHIPPED WITH DUST CAPS INSTALLED.
B. UNIT QUANTITY: 1 PATCHCORD/PIGTAIL PER BAG.
B
ABLE
ED C
PRINT
CONNECTOR INSERTION/RETURN LOSS SPECIFICATIONS
MAXIMUM INSERTION LOSS
(PER CONNECTOR)
MINIMUM RETURN LOSS
(PER CONNECTOR)
CONNECTOR
TYPE
LE
SM
(UPC)
PRIN
TED
STANDARD
MM
(PC)
OPTIMIZED
ULTRA-LOW
MM
(PC) (OM4 & OM4+)
0.15dB
0.15dB
0.15dB
CAB
SM
(UPC)
MM
(PC)
DUPLEX LC
DUPLEX SC
PUSH-PULL LC
0.35dB
0.50dB
0.35dB
0.25dB
0.25dB
0.25dB
0.10dB
0.10dB
0.10dB
55dB
55dB
55dB
26dB
26dB
26dB
A
TITLE
A
JACKETED DUPLEX FIBER PATCH
CORDS
CUSTOMER DRAWING
ITEM REVISION NAME
M02779DX/00
DATASET FILE NAME
M02779DX_DC/00B
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
01
00
07-06-16
01-06-16
SAT
SAT
RWD
MMN
B. ADDED (T)STD IL PAIR FLIPPED & (P)OPT IL PAIR FLIPPED.
A. ADDED (R)RISER AND (L)LSZH TO 5th POSITION.
M02779DX-DC
M02779DX-DC
.X
.XX
.03 [.762]
.01 [.25]
.XXX
ANGLES
.005 [.127]
1
DRAWING NUMBER:
RWB
RWB
RELEASED TO PRODUCTION
THIRD ANGLE
PROJECTION
DRAWN
BY
M02779DX-DC
SIZE
DATE
CHK
SCALE
REV
DATE
BY
CHK
APR
DESCRIPTION
ECN
SAT
01-04-16
RWB
NONE
SHT 1 OF 2
B
2
1
2
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
1

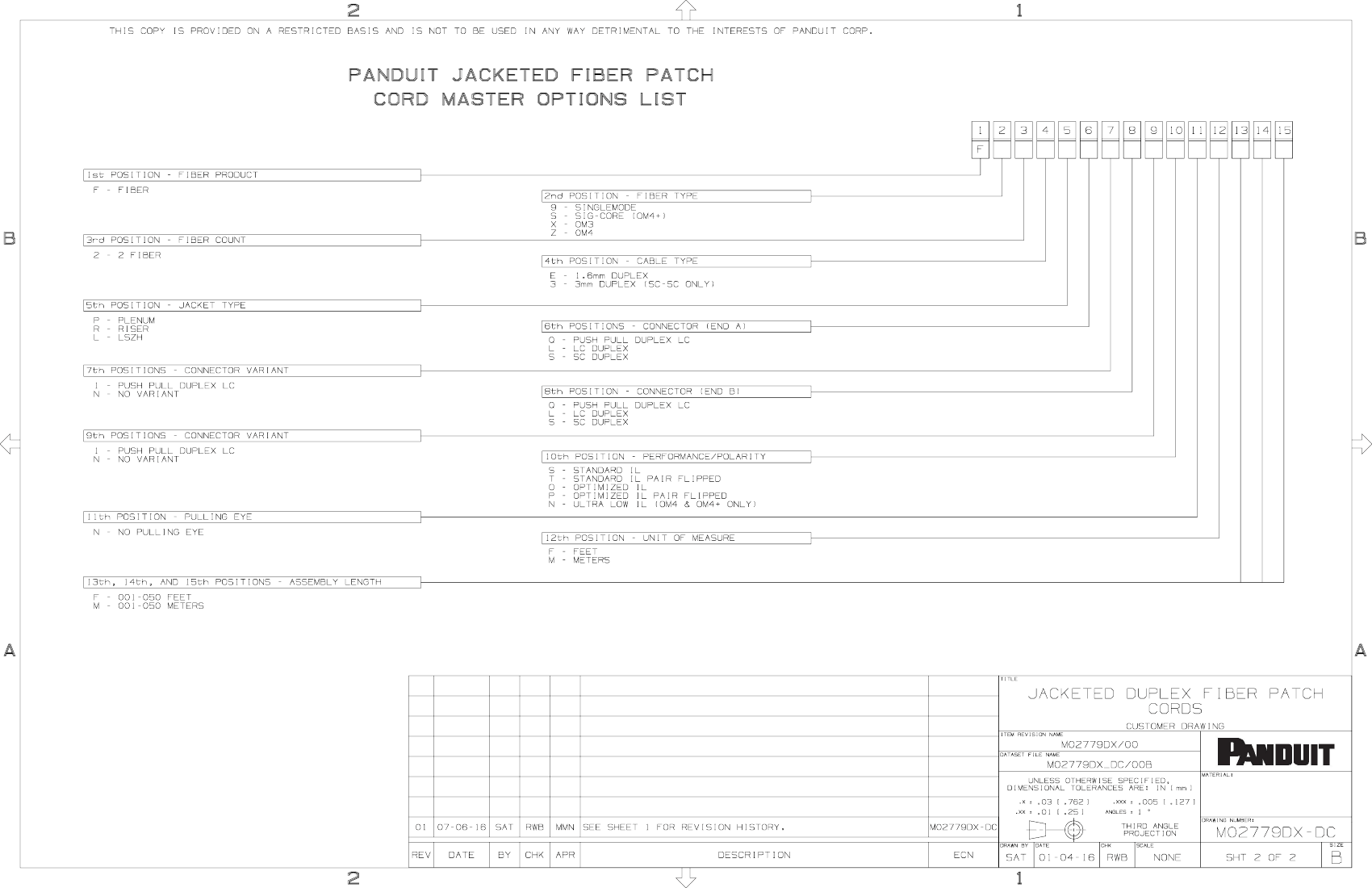

PANDUIT JACKETED FIBER PATCH
CORD MASTER OPTIONS LIST
1
F
1st POSITION - FIBER PRODUCT
F - FIBER
2nd POSITION - FIBER TYPE
9 - SINGLEMODE
S - SIG-CORE (OM4+)
X - OM3
Z - 0M4
4th POSITION - CABLE TYPE
E - 1.6mm DUPLEX
3 - 3mm DUPLEX (SC-SC ONLY)
5th POSITION - JACKET TYPE
P - PLENUM
R - RISER
L - LSZH
6th POSITIONS - CONNECTOR (END A)
Q
- PUSH PULL DUPLEX LC
2
3
4
5
6
7
8
9
10 11 12 13 14 15
B
3rd POSITION - FIBER COUNT
2 - 2 FIBER
B
L - LC DUPLEX
S - SC DUPLEX
7th POSITIONS - CONNECTOR VARIANT
1 - PUSH PULL DUPLEX LC
N - NO VARIANT
8th POSITION - CONNECTOR (END B)
Q
- PUSH PULL DUPLEX LC
L - LC DUPLEX
S - SC DUPLEX
9th POSITIONS - CONNECTOR VARIANT
1 - PUSH PULL DUPLEX LC
N - NO VARIANT
10th POSITION - PERFORMANCE/POLARITY
S - STANDARD IL
T - STANDARD IL PAIR FLIPPED
O
- OPTIMIZED IL
P - OPTIMIZED IL PAIR FLIPPED
N - ULTRA LOW IL (OM4 & OM4+ ONLY)
11th POSITION - PULLING EYE
N - NO PULLING EYE
12th POSITION - UNIT OF MEASURE
F - FEET
M
- METERS
13th, 14th, AND 15th POSITIONS - ASSEMBLY LENGTH
F - 001-050 FEET
M
- 001-050 METERS
A
TITLE
A
JACKETED DUPLEX FIBER PATCH
CORDS
CUSTOMER DRAWING
ITEM REVISION NAME
M02779DX/00
DATASET FILE NAME
M02779DX_DC/00B
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.03 [.762]
.01 [.25]
.XXX
ANGLES
.005 [.127]
1
DRAWING NUMBER:
01
07-06-16
SAT
RWB
MMN
SEE SHEET 1 FOR REVISION HISTORY.
M02779DX-DC
DRAWN
BY
THIRD ANGLE
PROJECTION
DATE
CHK
SCALE
M02779DX-DC
SIZE
REV
DATE
BY
CHK
APR
DESCRIPTION
ECN
SAT
01-04-16
RWB
NONE
SHT 2 OF 2
B
2
1
