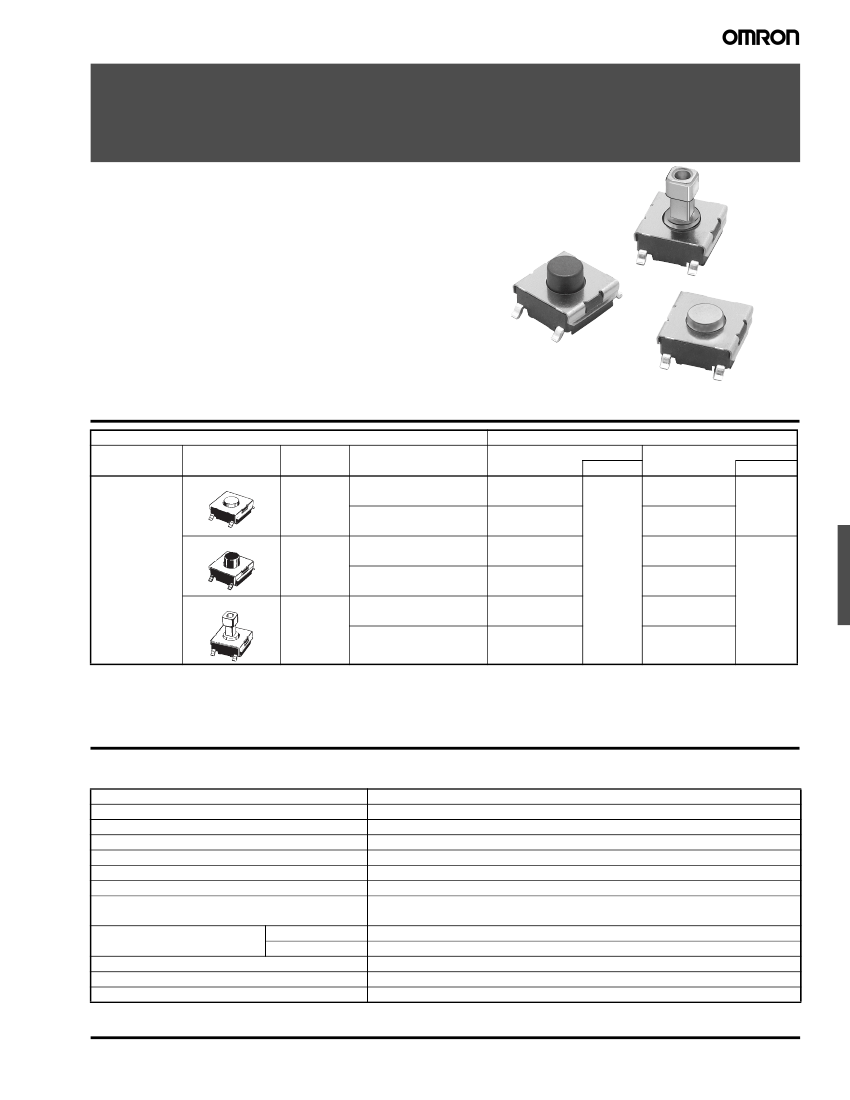

• 3 actuator heights for design flexibility; Projected plunger
versions allow installation of B32-series keytops
• RoHS Compliant
Ordering Information
Item
Type
Standard
6 x 6 mm
Flat
Plunger
Height
3.1 mm
Operating force (OF)
General-purpose: 100 gf
High-force:
Flat
4.3 mm
150 gf
Model
Bag packaging
Embossed tape packaging
(qty/bag)
(qty/reel)
B3FS-1000
B3FS-1000P
B3FS-1002
B3FS-1010
B3FS-1012
B3FS-1050
B3FS-1052
100
B3FS-1002P
B3FS-1010P
B3FS-1012P
B3FS-1050P
B3FS-1052P
1,000
3,000
General-purpose: 100 gf
High-force:
150 gf
Projected
7.3 mm
General-purpose: 100 gf
High-force:
150 gf
Note:
Order in multiples of the quantities given for each package
Important Note:Switches
cannot be water-washed.
Specifications
■
Characteristics
Contact form
Switching capacity
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Life expectancy
Ambient operating temperature
Ambient operating humidity
Weight
Note:
Data shown are of initial value
General-purpose
High-force type
SPST-NO
50 mA, 24 VDC (resistive load)
100 mΩ max. (rated: 1 mA, 5 VDC)
100 MΩ min. (at 100 VDC)
250 VAC, 50/60 Hz for 1 min.
5 ms max.
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
max. (approx. 100G max.)
Malfunction: 100 m/s
2
max. (approx. 10G max.)
1,000,000 operations min.
300,000 operations min.
–25°C to +70°C (at 60% RH max.) with no icing or condensation
35% to 85% (at 5 to 35°C)
Approx. 0.2 g
Tactile Switch (SMD)
B3FS
247
Engineering Data
■

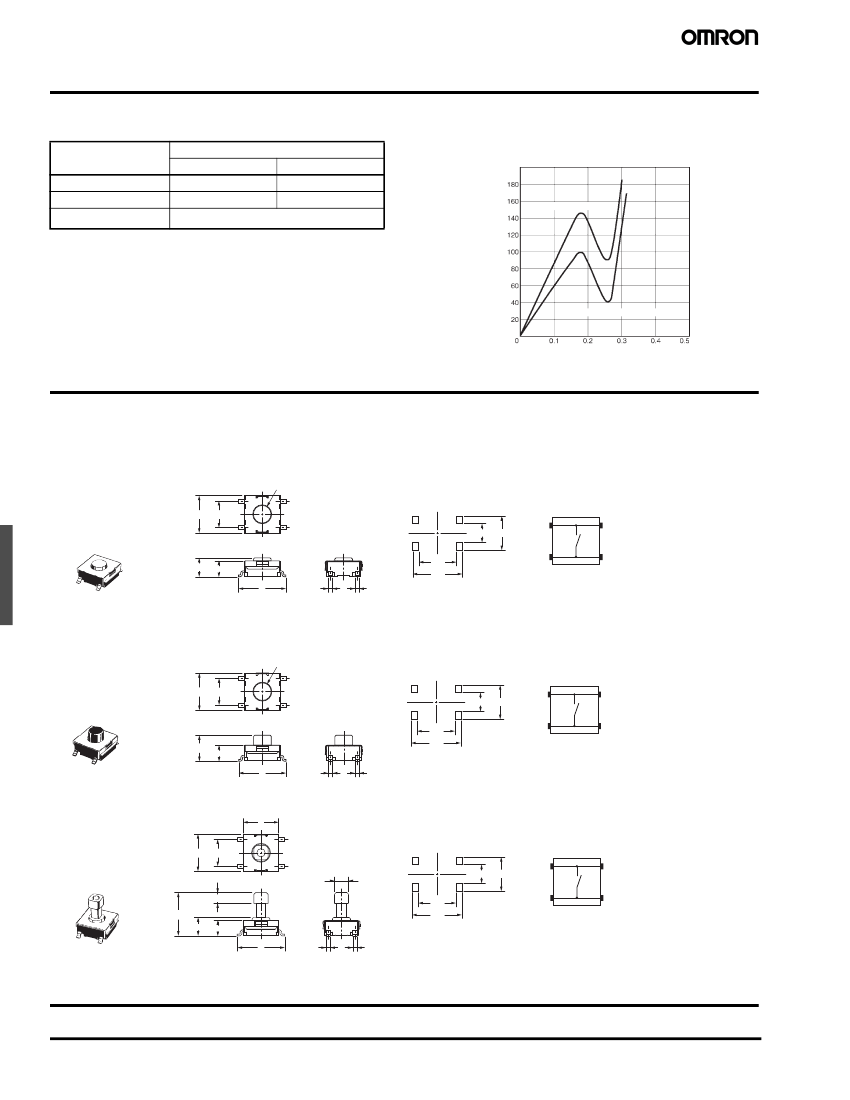

Operating Characteristics
Characteristics
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
100
±
30 gf
20 gf
0.25
+0.2
/
-
0.1
mm
B3FS-1000 series
General-purpose
High-force
150
±
50 gf
50 gf
Operating force (gf)
High-force type
■
Operating Force vs Stroke
(Typical Example)
■
Accessories
See “B32” Tactile Switch Key Top data sheet for keycaps that fit
projected plunger B3FS models.
General-purpose type
Stroke S (mm)
Dimensions
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
2.
Terminal numbers are not indicated on this switch. With the switch turned over so that the logo mark “OMRON” is visible on the upper
part of the rear side of the switch base, the terminal on the right of the logo mark is numbered “1” and that on the bottom right is “3.”
Accordingly, two terminals on the left side are numbered “2” and “4” respectively.
Flat Type
B3FS-1000
B3FS-1002
B3FS-1000P
B3FS-1002P
6.3 4.5±
0.2
3 dia.
PCB Pad
(Top
View)
(One-side PCB t= 1.6)
Terminal Arrangement/
Internal Connection
(Top
View)
4
3
3.1
5.9
3.1±
0.2
2.6
8
0.7
0.7
6.4
9.6
2
1
Flat Type
B3FS-1010
B3FS-1012
B3FS-1010P
B3FS-1012P
3 dia.
PCB Pad
(Top
View)
(One-side PCB t= 1.6)
Terminal Arrangement/
Internal Connection
(Top
View)
4
3
6.3 4.5±
0.2
3.1
5.9
4.3
6.4
9.6
2.6
8
0.7
0.7
2
1
Projected Type
B3FS-1050
B3FS-1052
B3FS-1050P
B3FS-1052P
6.3 4.5±
0.2
6
PCB Pad
(Top
View)
(One-side PCB t= 1.6)
3.1
5.9
Terminal Arrangement/
Internal Connection
(Top
View)
4
3
2.4±
0.1
1.8
7.3
3.1
2.6
8
0.7
0.7
6.4
9.6
2
1
Precautions
Be sure to read the precautions common to all Tactile Switches, contained in the Technical User’s Guide, “Tactile Switches, Technical Information” for correct use.
248
Tactile Switch (SMD)
B3FS
MEMO
Tactile Switch (SMD)
B3FS
