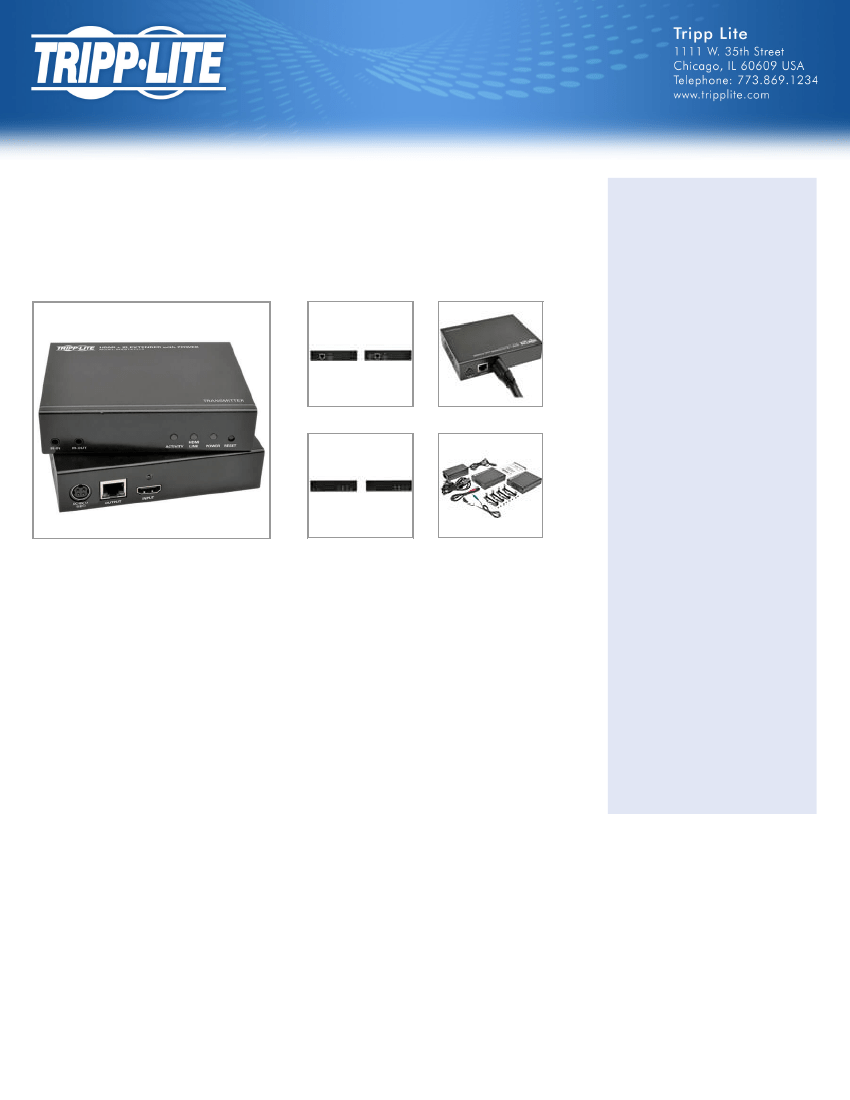

HDBaseT HDMI over Cat5e/6/6a Extender Kit with
Power and IR Control, 4K x 2K @ 30Hz UHD /
1080p @ 60Hz, Up to 328 ft.
MODEL NUMBER:
BHDBT-K-PI-LR
Highlights
q
Ideal for digital signs,
classrooms and trade show
booths
q
Extends both a 4096 x 2160 and
3840 x 2160 (4K x 2K) @ 30Hz
signal up to 328 ft.
q
Supports 7.1-channel surround
sound, DTS-HD and Dolby
TrueHD
q
Built-in PoE technology powers
receiver over Cat5e/6/6a cable
q
Plug and play—no software or
drivers to install
Package Includes
q
Transmitter unit
Receiver unit
IR-IN cable, 5 ft.
IR-OUT cable, 6 ft.
External Power Supply with C14
inlet (Input: 100–240V, 50/60
Hz, 1.5A; Output: 48V, 1A), 4.5
ft.
Extends HDMI video/audio and IR control signals with Power over a single Cat5e/6/6a cable to a
projector, monitor or television up to 328 ft. from the source.
q
q
q
Description
The BHDBT-K-PI-LR HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio
and video and IR remote control signals up to 328 feet over a single Cat5e/6/6a cable, including an Ultra
High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz signal.
q
In addition to HDMI and IR signals, this extender kit features built-in PoE technology, which powers the
receiver over Cat5e/6/6a cable, eliminating the need for an external power source. The two-way IR remote
control feature (@ 39 KHz) lets you control your Blu-ray player or other HDMI source using its remote
q
C13 to NEMA 5-15P power
cord, 6 ft.
q
when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player.
Locking HDMI ports (ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking
connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring
an intact signal.
q
Mounting hardware
Owner’s manual
The plug-and-play BHDBT-K-PI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or
pole with the included mounting hardware.
Features
Extends HDMI Video/Audio and IR Control Signals with Power Over a Single Cat5e/6/6a Cable
q
Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
Extends an Ultra High Definition (UHD) 4096 x 2160 or 3840 x 2160 (4K x 2K) @ 30Hz signal up to 328
ft.
q
q
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
1/3
q
Supports 3D video, EDID and HDCP
Reduces cable clutter and installation costs
Built-in PoE technology powers receiver over Cat5e/6/6a cable, eliminating need for external power
source
q
q
Controls IR Devices
q
2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while
standing at the remote monitor (and vice versa)
Locking HDMI Ports on Transmitter and Receiver
q
Prevent cables from coming loose or disconnected, ensuring an intact signal
Ideal for use with Tripp Lite’s P569-006-LOCK high-speed HDMI cables with locking connectors
q
Easy to Set Up and Use
q
Plug and play with no software or drivers to download and install
Includes mounting hardware for attaching each unit to a wall, rack or pole
q
TAA-Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
AC Adapter
037332186942
Input: 100-240V, 50/60Hz, 1.5A; Output: 48V, 1A, 4.5 ft.
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
8.43 x 5.91 x 3.19
21.41 x 15.01 x 8.10
2.95
1.34
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
328
328
328
328
328
2/3
Max 1920 x 1440 Range (ft)
Max 2560 x 1600 Range (ft)
Max 4K UHD Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 1920 x 1200 Range (ft)
Max 2048 x 1536 Range (ft)
Max 720P Range (ft)
328
328
328
328
328
328
328
328
328
328
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
Side B - Connector 2
1
HDMI (FEMALE)
RJ45 (FEMALE)
HDMI (FEMALE)
RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Power Over Cable (PoC) Support
IR Remote Extension Support
10/100 Ethernet Extension Support
Technology
Yes
Yes
No
HDBaseT; HDMI; IR
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
3/3
