PSE Technology Corporation
SPECIFICATION FOR APPROVAL
CUSTOMER
NOMINAL FREQUENCY
PRODUCT TYPE
SPEC. NO. ( P/N )
CUSTOMER P/N
ISSUE DATE
VERSION
APPROVED
PREPARED
200.000000 MHz
TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
NX7032C0200.000000
0
September 30, 2015
A
QA
APPROVED BY CUSTOMER：
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*Pb-free
*RoHS Compliant
*HF-Halogen Free
*REACH Compliant
Pericom Internal Reference NO. NX73K00006
E0-R-4-014 Rev. E
Page
i
TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
NX7032C0200.000000
VERSION HISTORY
Version
No.
A
Version
Date
Sep.30,2015
Customer Receipt
Date
Supplier Receipt
Date
Initial Release
Description
VER. A
30-Sep-15
Notes
E0-R-4-014 Rev. E
Page
ii
TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
NX7032C0200.000000
ELECTRICAL SPECIFICATIONS
SRe Part Number :
NX7032C0200.000000
VER. A
30-Sep-15
Item
Nominal Frequency
Frequency Stability
Operating Temperature Range
Supply Voltage
Logic Type
Supply Current, Output Enabled
Supply Current, Output Disabled
Duty Cycle (Symmetry)
Rise / Fall Time
Output Voltage "0" Level
Output Voltage "1" Level
Output Load
Differential Output Voltage
Jitter, Phase
Jitter, Accumulated
Jitter, Peak to Peak
Storage Temperature Range
Symbol
Fo
FT
TR
V
CC
LT
I
CC
/OE
I
CC
/OD
DC/SY
T
R
/T
F
V
OL
V
OH
Specifications
200.000000
± 50
-20 to +70
+2.5 ± 5.0%
LVDS
70
40
45 / 55
400
1.10 / 0.9
1.43 / 1.6
Units
MHz
ppm
°C
V
**See note
Notes
mA
mA
%
ps
V
V
Max.
Max.
Measured 50% of Waveform
Max. measured 20/80% of Waveform
Typ / Min.
Typ / Max.
Output requires termination
Min. / Max.
Max. 12KHz ~ 20MHz Frequency Band
Max. 20,000 Consecutive Periods
Max. 100,000 Random Periods
100Ω connected between outputs
V
OD
RMS
RMS(1-σ)
Pk-Pk
247 / 454
1
6
40
-55 to +125
mV
ps
ps
ps
°C
※
This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
**Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial
Calibration Tolerance (25°C), Aging (1 years at 25°C Average Effective Ambient Temperature), Shock and Vibration.
Output Enable / Disable Function
Parameter
Input Voltage (Pin1), Output Enable
Input Voltage (Pin1), Output Disable (low power standby)
Output Disable Delay
Output Enable Delay
Start Up Time
Min.
0.7V
CC
Typ.
Max.
0.3V
CC
100
100
10
Units
V
V
ns
ns
ms
Or Open
Notes
Output is Hi-Z
E0-R-4-014 Rev. E
Page 1
TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
NX7032C0200.000000

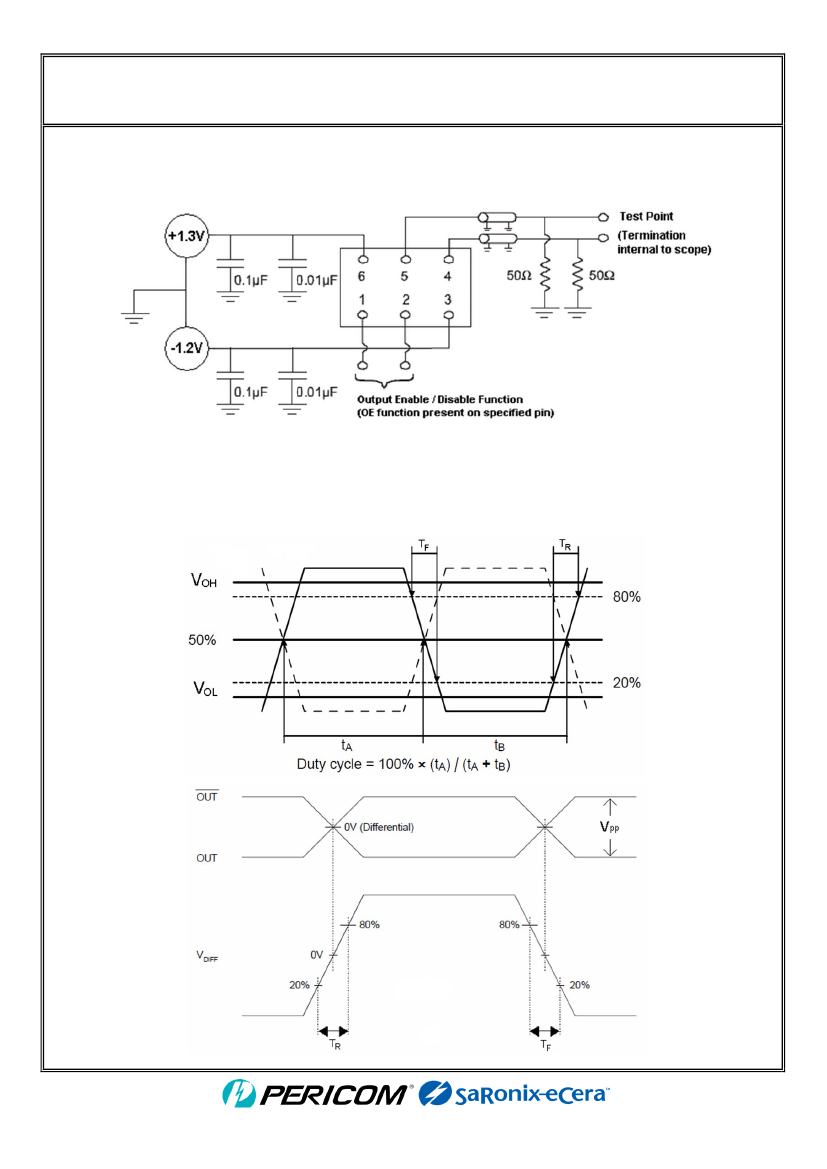

TEST CIRCUIT
VER. A
30-Sep-15
OUTPUT WAVEFORM
E0-R-4-014 Rev. E
Page 2
TYPE NX 7.0x5.0 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
NX7032C0200.000000
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL:
a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A
b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004
c) VIBRATION: MIL-STD-883, Method 2007, Condition A
d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices
(except 2 cycles max)
e) HAZARDOUS SUBSTANCE: Pb - free and RoHS/ Green Compliant.
VER. A
30-Sep-15
MECHANICAL:
a) SHOCK: MIL-STD-883, Method 2002, Condition B
b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E)
c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D
d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C
e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10
-8
atm cc/s
f) SOLVENT RESISTANCE: MIL-STD-202, Method 215

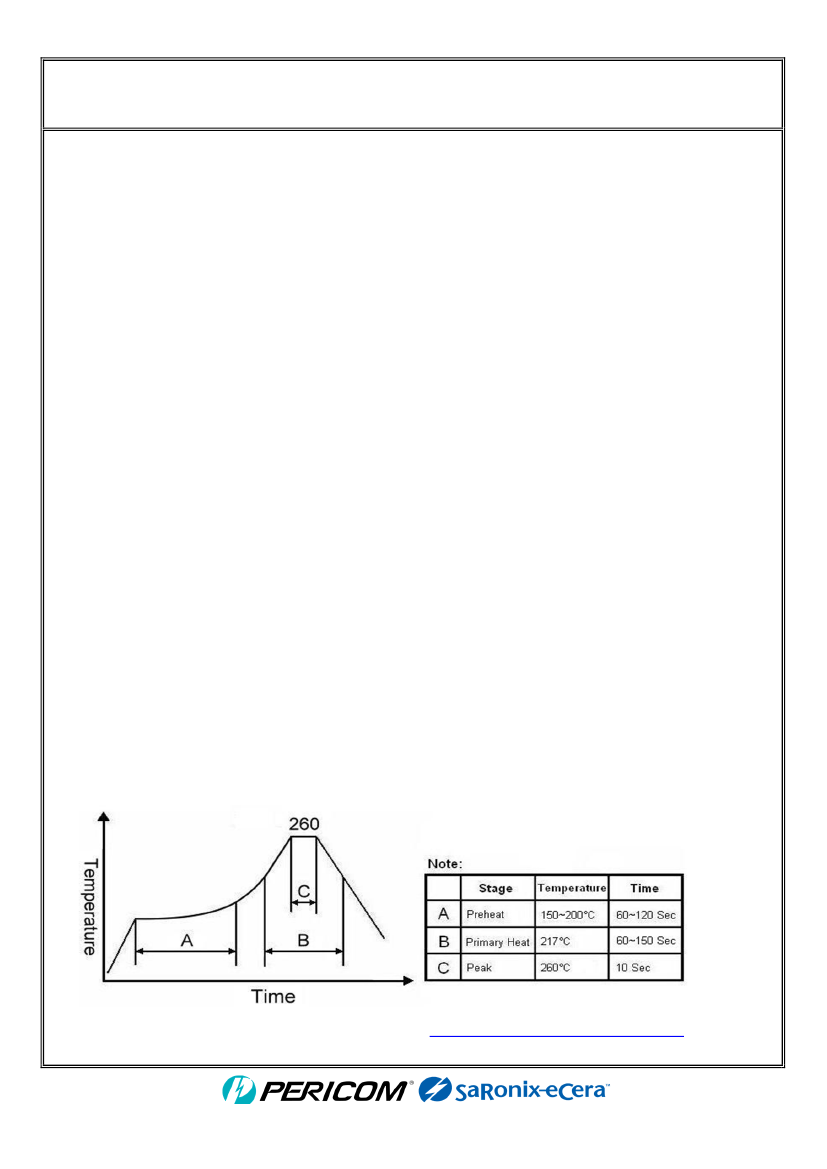

SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 3
