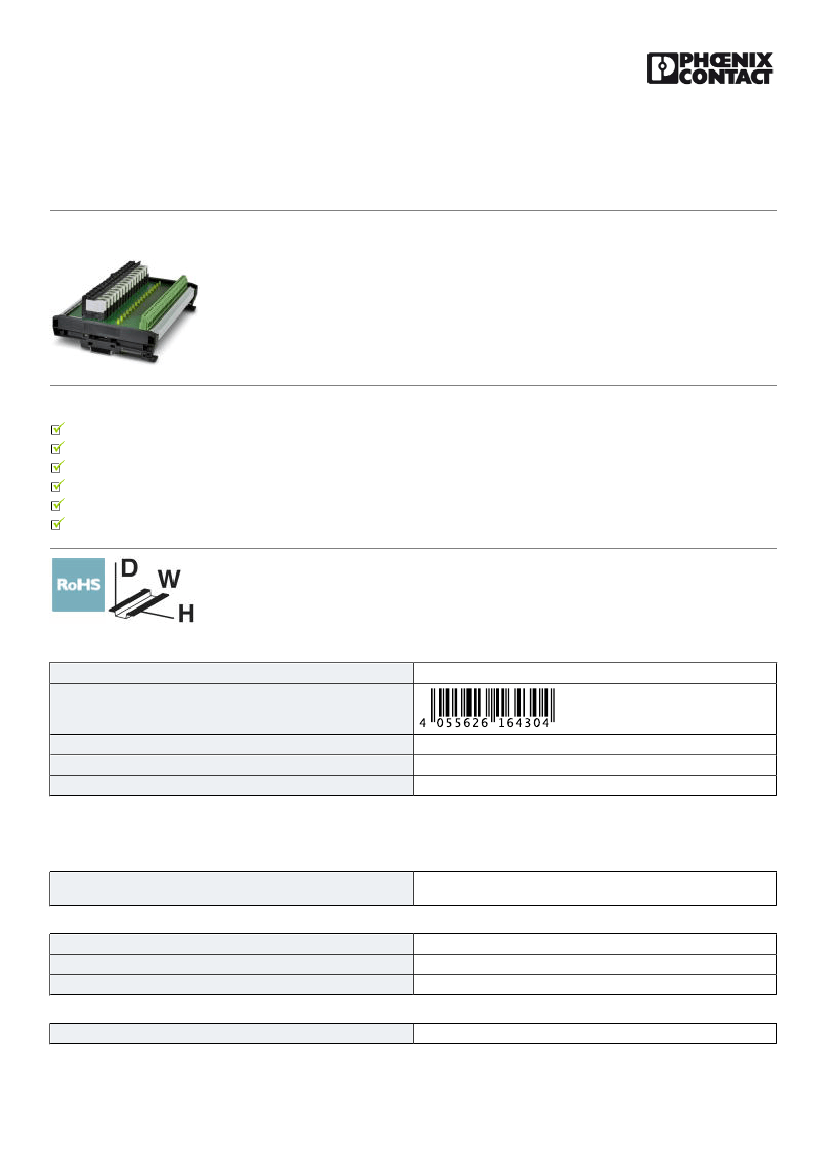

Active module - UM-D37M/16R-240AC/DI/C3/L C - 2906914
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VARIOFACE 16-channel module enhances the capabilities of Honeywell Experion LX digital input IOTA's,
enabling the use of (240 V AC) digital input signals with (24 V DC) Experion LX systems
Why buy this product
UM-PRO housing
DIN rail mounting, includes grounding foot
Designed to be mounted in the left side of the cabinet
Per channel LED (coil) signal indication
Per channel pluggable N/O relay
Provides isolation between 240 V field devices and 24 V controller
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626164304
85369010
Made to Order (non-returnable)
1 STK
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
184 mm
142.3 mm
65.2 mm
Ambient conditions
Ambient temperature (operation)
-40 °C ... 60 °C
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/2906914
Active module - UM-D37M/16R-240AC/DI/C3/L C - 2906914
Technical data
Ambient conditions
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Input data
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Typical response time
Typical release time
Type of protection
Protective circuit/component
Status display/channel
240 V AC
0.8 ... 1.1
3 mA
7 ms
15 ms
Free-wheeling diode
Damping diode
Yellow LED
Output data
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Limiting continuous current
Min. switching current
1 N/O contact (double contact)
AgNi, 5 µm hard gold-plated
30 V AC
36 V DC
100 mV
50 mA
1 mA
General
No. of channels
With components
Mechanical service life
Operating mode
Color
16
yes
2 x 10 cycles
100% operating factor
yellow
7
Connection data for connection 1
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Number of connections
Number of positions
Controller level
D-SUB connector
1
37
Supported controller
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/2906914
Active module - UM-D37M/16R-240AC/DI/C3/L C - 2906914
Technical data
Supported controller
Corresponding control
Corresponding I/O card
Honeywell Experion LX Series 8
TDILA1
Drawings
Dimensional drawing
20
1
21
Circuit diagram
2
34
15
35
16
184
65,2
142,3
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
1
1+
1- 2+
2-
15+
15- 16+
16-
11/15/2016 Page 3 / 3
