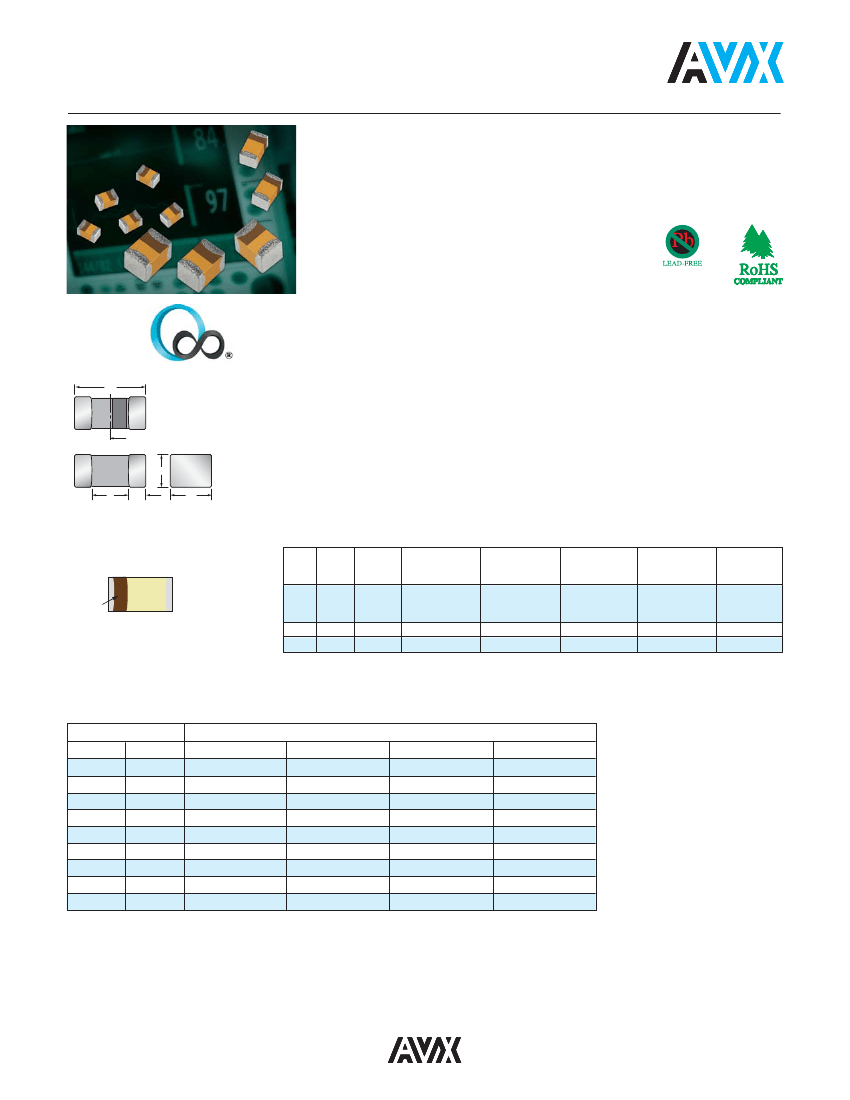

T4C – Microchip Medical Series
HRC4000 Implantable Non Life Support and Non Implantable Life Support
The AVX T4C microchip medical series is designed for use in Implantable - Non-
Life support or Non-Implantable - Life support medical applications with space
limits. These components are screened using our newly designed
Q-Process to effectively remove components that may experience parametric
shifts through customer processing or display instability through life testing.
FEATURES
• Dedicated to medical applications
•
HRC4000 - Implantable, Non-Life support
- Non-Implantable, Life support
For RoHS compliant products,
•
-55 to +125°C operation temperature
please select correct termination style.
•
Basic reliability better than 0.1%/1000hours
•
Custom DCL / ESR options on selected parts
T4C Standard - Standard option DCL and ESR limits including Q-Process screening.
T4C Custom – A custom option where specific DCL and ESR parameter limits can be
agreed based Q-Process statistical screening. DCL down to 0.005CV on selected
codes
LEAD-FREE COMPATIBLE
COMPONENT
L
POLARITY BAND NOT TO
EXCEED CENTER LINE
APPLICATIONS
• Medical, Implantable - Non-Life support and Non-Implantable - Life support
For additional information on Q-process please consult the AVX technical publication
“Reaching the Highest Reliability for Tantalum Capacitors” (see the link:
http://www.avx.com/docs/techinfo/Qprocess.pdf)
H
S
Lt
W
MARKING
K, L, R CASE
CASE DIMENSIONS:
Code
EIA
Code
0402
0603
0805
EIA
Metric
1005-07
1608-10
2012-15
millimeters (inches)
W+0.15 (0.006)
-0.00 (0.000)
-0.00
+0.008
(0.020
-0.000
)
L+0.20 (0.008)
-0.00 (0.000)
1.00 (0.039)
1.60 (0.063)
2.00 (0.079)
H+0.15 (0.006)
-0.00 (0.000)
-0.00
+0.008
(0.020
-0.000
)
Termination
Spacing(S)
0.40 (0.016) min
0.55 (0.022) min
0.70 (0.028) min
Minimum
Termination
Length (Lt)
0.10 (0.004)
0.15 (0.006)
0.15 (0.006)
Polarity
Band
(Anode+)
%
K
%
L
R
0.50
+0.20
0.50
+0.20
0.85 (0.033)
1.35 (0.053)
0.85 (0.033)
1.35 (0.053)
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
0.33
334
0.47
474
1.0
105
2.2
225
3.3
335
4.7
475
10
106
15
156
22
226
Available Ratings
(M tolerance only)
Rated Voltage DC (V
R
) to 85°C (Voltage Code)
4V (G)
6.3V (J)
10V (A)
16V (C)
K
L
L
K
K
L
K
L
(M)
,R
R
Please contact the factory for codes not listed in the table.
Note: Voltage ratings are minimum values. AVX reserves the right to supply higher
ratings in the same case size, to the same reliability standards with customer
written approval.
033117
85
T4C – Microchip Medical Series
HRC4000 Implantable Non Life Support and Non Implantable Life Support
HOW TO ORDER
T4C K
Type
Case
Size
105
*
006
C
Standard
or Low
ESR
Range
C = Std ESR
L
Q
4
^
00
Capacitance
Capacitance
Voltage
Code
Tolerance
Code
pF code: 1st two digits represent M = ±20% 004 = 4Vdc
significant figures 3rd digit
K = ±10% 006 = 6.3Vdc
represents multiplier
010 = 10Vdc
(number of zeros to follow)
016 = 16Vdc
Qualification
Inspection Level
Reliability
Packaging
Level
L = Lab Inspection
Grade
R, P = 7" Reel
Q = Q-Proces
4 = HRC4000
X, Q = 4¼" Reel
Screening
B = Bulk
Termination
Suffix
Finish
00 = Standard
7 = 100% Tin XX = Custom
9 = Gold Plated
H = SnPb Non
RoHS
H, 9 = (Contact Manufacturer)
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Leakage Current DCL:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
All technical data relate to an ambient temperature of +25°C
0.47 μF to 22 μF (for extended range contact manufacturer)
±10%; ±20%
0.01CV or 0.3μA whichever is the greater
4
6.3
10
16
2.7
4
6.7
10
5.2
8
13
20
3.2
5
8
13
-55°C to +125°C
0.1% per 1000 hours at 25°C, V
R
with 0.1Ω/V series impedance, 90% confidence level
+85°C:
+125°C:
+85°C:
+125°C:
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Voltage
(V)
4
4
6.3
6.3
10
10
10
10
10
16
Rated
Category
Category
Temperature Voltage Temperature
(ºC)
(V)
(ºC)
85
85
85
85
85
85
85
85
85
85
4 Volt @ 85°C
2.7
125
2.7
125
6.3 Volt @ 85°C
4
125
4
125
10 Volt @ 85°C
6.7
125
6.7
125
6.7
125
6.7
125
6.7
125
16 Volt @ 85°C
10
125
DCL
Max.
(μA)
0.3
0.3
0.3
1.4
0.3
0.3
0.3
1
1
0.3
DF
Max.
(%)
6
20
6
10
6
6
6
20
8
6
ESR
Max.
@ 100kHz
(Ω)
15
15
15
5
15
7.5
7.5
7.5
5
7.5
100kHz RMS Current (mA)
MSL
25ºC
3
3
3
3
3
3
3
3
3
3
32
32
32
95
32
58
58
58
95
58
85ºC
28
28
28
85
28
52
52
52
85
52
125ºC
13
13
13
38
13
23
23
23
38
23
T4CK105*004C LQ4^00
T4CK475*004C LQ4^00
T4CK105*006C LQ4^00
T4CR226*006C LQ4^00
T4CK474*010C
T4CL105*010C
T4CL225*010C
T4CL106M010C
T4CR106*010C
LQ4^00
LQ4^00
LQ4^00
LQ4^00
LQ4^00
K
K
K
R
K
L
L
L
R
L
1
4.7
1
22
0.47
1
2.2
10
10
1
T4CL105*016C LQ4^00
Moisture Sensitivity Level (MSL) is defined according to J-STD-020.
All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
The EIA & CECC standards for low ESR Solid Tantalum Capacitors allow an ESR movement to 1.25 times catalogue limit post mounting.
86
033117
T4C – Microchip Medical Series
HRC4000 Implantable Non Life Support and Non Implantable Life Support
QUALIFICATION TABLE
TEST
T4C HRC4000 (Temperature range -55ºC to +125ºC)
Characteristics
Visual examination
no visible damage
Determine after application of rated voltage for 2000
+48/-0 hours at 85±2ºC and then leaving 1-2 hours
DCL
1.25 x initial limit
at room temperature. Also determine of 125ºC tem-
ΔC/C
within ±10% of initial value
perature, category voltage for 2000 +48/-0 hours
and then leaving 1-2 hours at room temperature.
DF
initial limit
Power supply impedance to be ≤0.1Ω/V.
ESR
1.25 x initial limit
Visual examination
no visible damage
DCL
1.25 x initial limit
125ºC, 0V, 2000h
ΔC/C
within ±10% of initial value
DF
initial limit
ESR
1.25 x initial limit
Condition
Step
1
2
3
4
5
6
Temperature°C
+20±2
-55+0/-3
+20±2
+85+3/-0
+125+3/-0
+20±2
Duration(min)
15
15
15
15
15
15
Endurance
Storage Life
+20ºC
-55ºC
n/a
+0/-10%
1.5 x IL*
+20ºC
IL*
±5%
IL*
+85ºC
10 x IL*
+10/-0%
1.5 x IL*
+125ºC +20ºC
12.5 x IL*
+12/-0%
2 x IL*
IL*
±5%
IL*
Temperature
Stability
DCL
ΔC/C
DF
ESR
IL*
n/a
IL*
1.25 x IL* 2.5 x IL*
1.25 x IL* 1.25 x IL* 1.25 x IL* 1.25 x IL*
Surge
Voltage
Test temperature: 85ºC+3/0ºC
Test voltage: Rated voltage at 85ºC
Surge voltage: 1.3x rated voltage at 85ºC
Series protection resistance 1000±100Ω
Discharge resistance: 1000Ω
Number of cycles: 1000x
Cycle duration: 6 min; 30 sec charge,
5 min 30 sec discharge
Visual examination
DCL
ΔC/C
DF
ESR
no visible damage
initial limit
within ±5% of initial value
initial limit
1.25 x initial limit
*Initial Limit
LOT ACCEPTANCE TESTING
TEST
T4C HRC4000 (Temperature range -55ºC to +125ºC)
Characteristics
DCL
initial limit
25 Pieces from each lot
•
Read and Record Initial Electricals
ΔC/C
within ±5% of initial value
•
Bake Out @ 125°C for 2 Hours
•
Mount using AVX recommended profile
DF
initial limit
•
Read and Record Post Mounting Electricals
ESR
1.25 x initial limit
•
Life Test: 6 hours, 2/3 R.V., 125°C
•
Read and Record Post Electricals
0 Failures Allowed
Condition
Lot
Acceptance
Test
033117
87
