D2HWBL272MBYOMR datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> D2HWBL272MBYOMR

D2HWBL272MBYOMR: DescriptionBasic / Snap Action Switches Subminiature Basic Switch; CategoryTopical application Mechanical and electrical/engineering/automation; File Size2MB，12 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

D2HWBL272MBYOMR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D2HWBL272MBYOMR	-	-	View	Buy Now

D2HWBL272MBYOMR Overview

Basic / Snap Action Switches Subminiature Basic Switch

D2HWBL272MBYOMR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	OMRON
Product Category	Basic / Snap Action Switches
RoHS	Details
Type	Sealed Ultra Subminiature Basic
Contact Form	SPST
Switch Function	ON - (OFF)
Actuator	Simulated Roller Lever
Current Rating	0.1 A, 2 A
Voltage Rating AC	125 VAC
Voltage Rating DC	12 VDC
Operating Force	1.8 N
Termination Style	Wire Leads
Mounting	Panel
IP Rating	IP67
Contact Material	Gold
Illuminated	Non-Illuminated
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	20
Unit Weight	0.024692 oz

Preview

Download Datasheet

View All

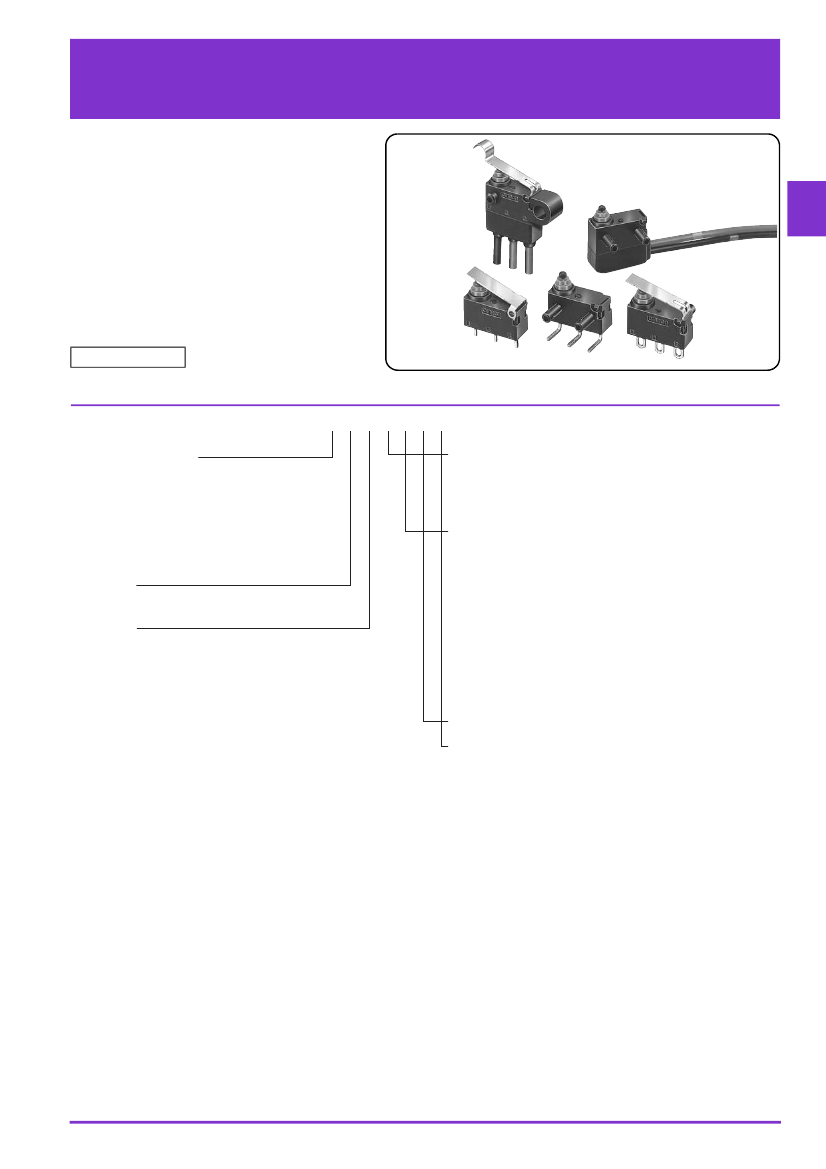

D2HW

Sealed Ultra Subminiature Basic Switch

Smallest sealed snap-action

switch in the industry with a

very long stroke for reliable

ON/OFF action

●

The case dimensions are 78% of conventional

models, contributing to down-sizing of

mechanical modules.

●

Extra-long stroke even without levers.

(OT reference value: 1.4 mm).

●

Made of environmentally-friendly materials.

All models are lead-free, including molded lead

wire models.

RoHS Compliant

Model Number Legend

1 2 3 4 5 6 7

D2HW -

@ @ @ @ @

1. Mounting Structure

A : Without posts (base-mounting)

BR : Long post on right

BL : Long post on left

C : M3-screw mounting models

ER : Short post on right

EL : Short post on left

2. Raitings

2 : 5 VDC 1mA to 12 VDC 2A

3. Actuator

0 : Pin plunger

1 : Hinge lever

2 : Long hinge lever

3 : Simulated roller lever

4 : Hinge roller lever

5 : Straight leaf lever

6 : Leaf lever

7 : Simulated roller leaf lever

8 : Long leaf lever

4. Contact form

1 : SPDT

2 : SPST-NC (Molded lead wire models only)

3 : SPST-NO (Molded lead wire models only)

5. Terminals

D, DS :

DR, DRS :

DL, DLS :

H, HS :

M, MS :

MR, MRS :

PCB terminals (Straight)

PCB Terminals (Right-angled)

PCB Terminals (Left-angled)

Solder terminals

Molded lead wires downwards

Molded lead wires on right-side

ML, MLS : Molded lead wires on left-side

Note. UL/CSA approved versions are available.

In this case, a "S" will be added to the end of the model number.

The Lead wire is a UL approved wire (AWG24, UL1007).

6. Special Specification

7. Special Industry Specification
